BA6458FP-Y datasheet, PDF - EEWORLD Datasheet

BA6458FP-Y: Description3-phase motor driver; CategoryOther integrated circuit (IC) The signal circuit; File Size126KB，8 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA6458FP-Y Overview

3-phase motor driver

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	HSSOP, SOP34,.3,32
Contacts	25
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	BRUSHLESS DC MOTOR CONTROLLER
JESD-30 code	R-PDSO-G27
length	13.6 mm
Number of functions	1
Number of terminals	27
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Maximum output current	1.3 A
Package body material	PLASTIC/EPOXY
encapsulated code	HSSOP
Encapsulate equivalent code	SOP34,.3,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,12 V
Certification status	Not Qualified
Maximum seat height	2.11 mm
Maximum supply current (Isup)	13 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.25 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5.4 mm
Base Number Matches	1

Motor driver ICs

3-phase motor driver

BA6458FP-Y

The BA6458FP-Y is an one-chip IC designed for driving video cassette recorder cylinder motors. It is a high-performance

IC with a 3-phase, full-wave, pseudo-linear drive system. The IC is compactly packaged.

FApplications

Video cassette recorder cylinder motors

FFeatures

1) 3-phase, full-wave, pseudo-linear drive system.

2) Output saturation voltage is low with low variation.

3) Built-in torque limit pin.

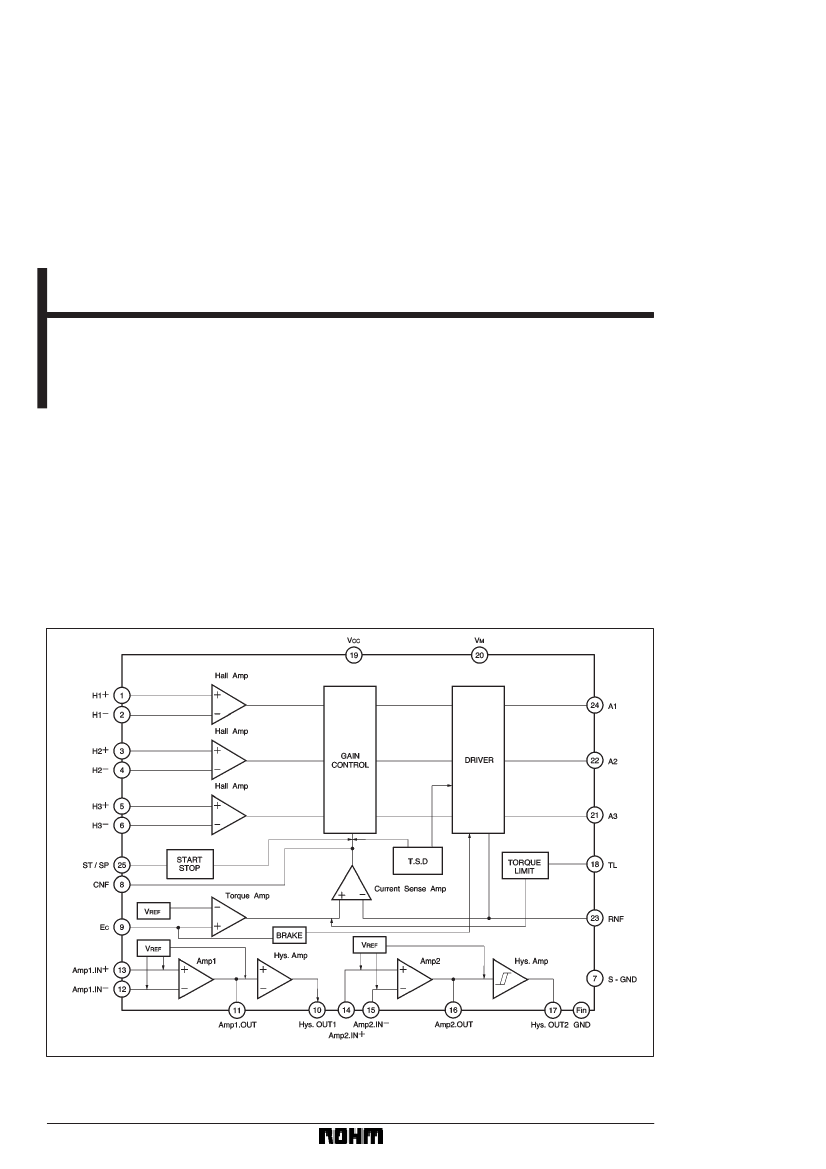

FBlock

diagram

4) Contains two amplifiers and two hysteresis amplifi-

ers to amplify FG and PG signals.

5) Built-in thermal shutdown circuit.

603

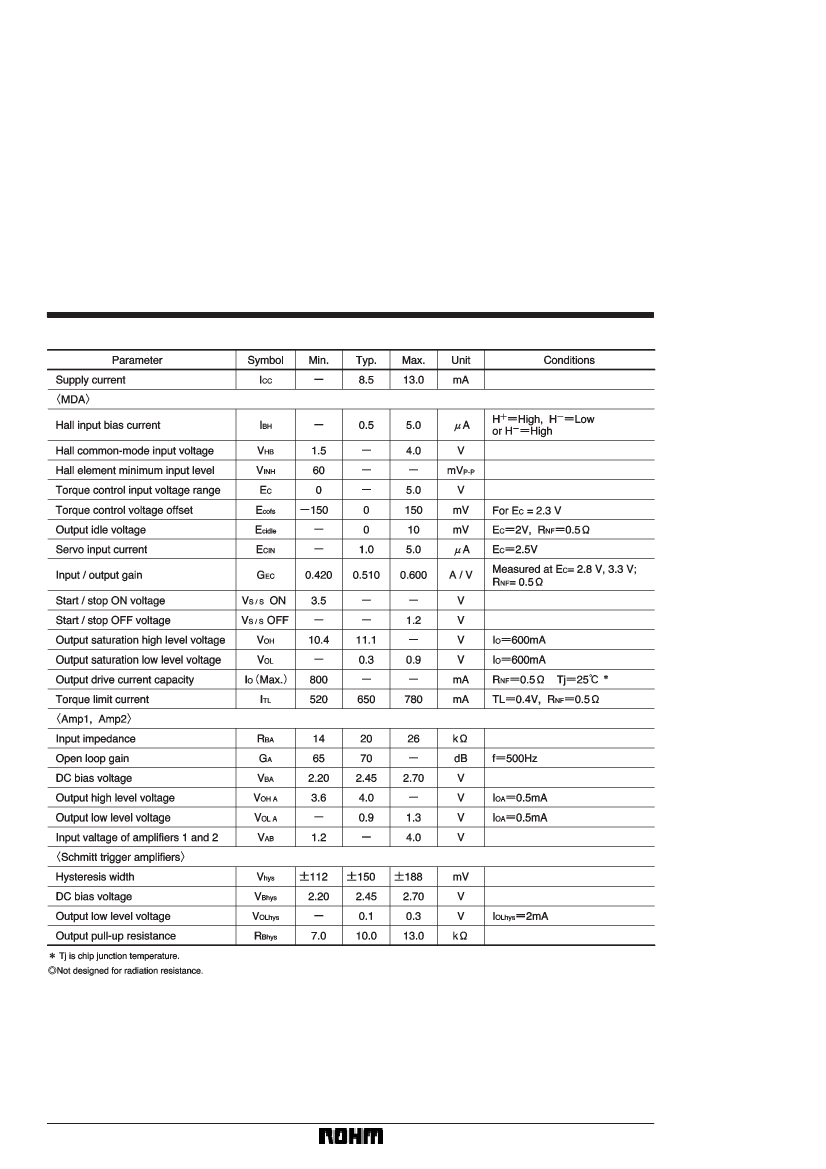

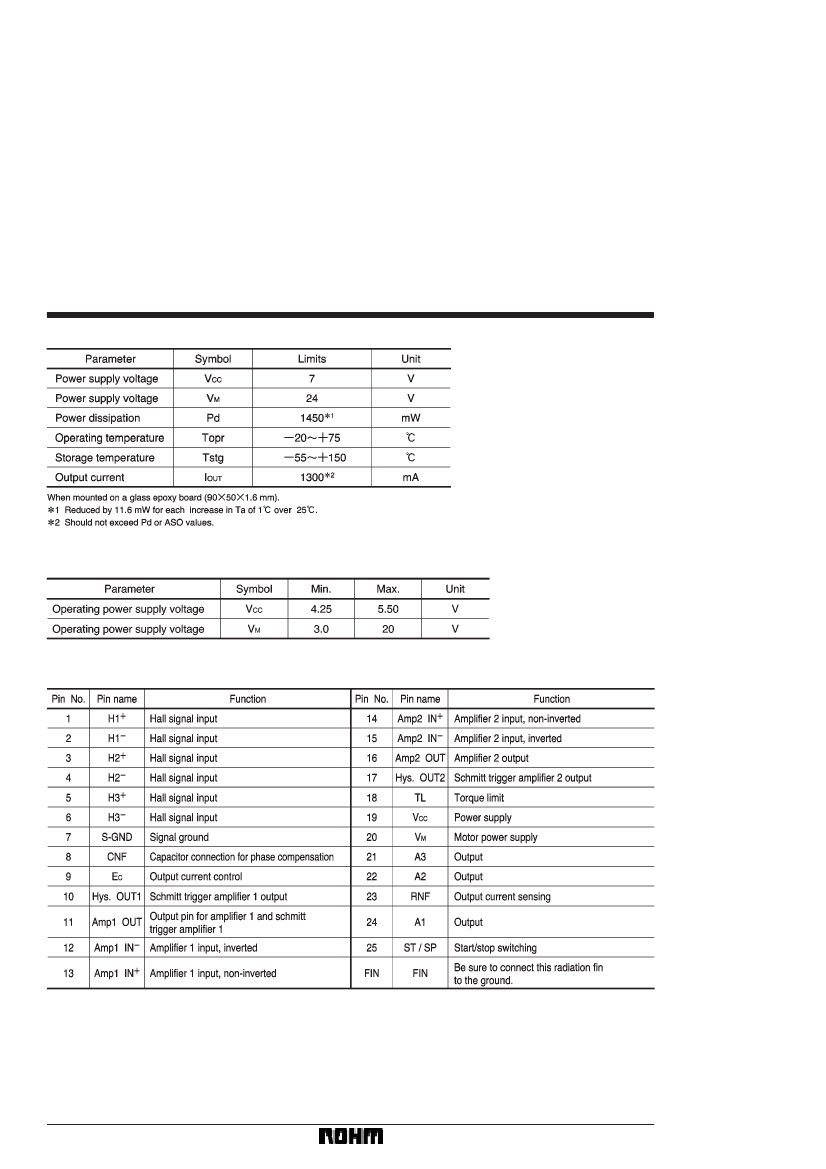

	BA6458FP-Y	BA6458
Description	3-phase motor driver	3-phase motor driver
