CIN01-B06SCS datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> CIN01-B06SCS

Preview

CIN01-B06SCS: DescriptionD Nanominiature Connector, 15 Contact(s), Male, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size280KB，2 Pages; ManufacturerCristek Interconnects Inc

Download Datasheet Parametric View All

CIN01-B06SCS Overview

D Nanominiature Connector, 15 Contact(s), Male, Crimp Terminal, Plug,

CIN01-B06SCS Parametric

Parameter Name	Attribute value
Maker	Cristek Interconnects Inc
Reach Compliance Code	compli
Other features	POLARIZED
Body/casing type	PLUG
Connector type	D NANOMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED THERMOPLASTIC/LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	CIN01
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	CADMIUM
Shell material	ALUMINUM ALLOY
Termination type	CRIMP
Total number of contacts	15

Preview

Download Datasheet

View All

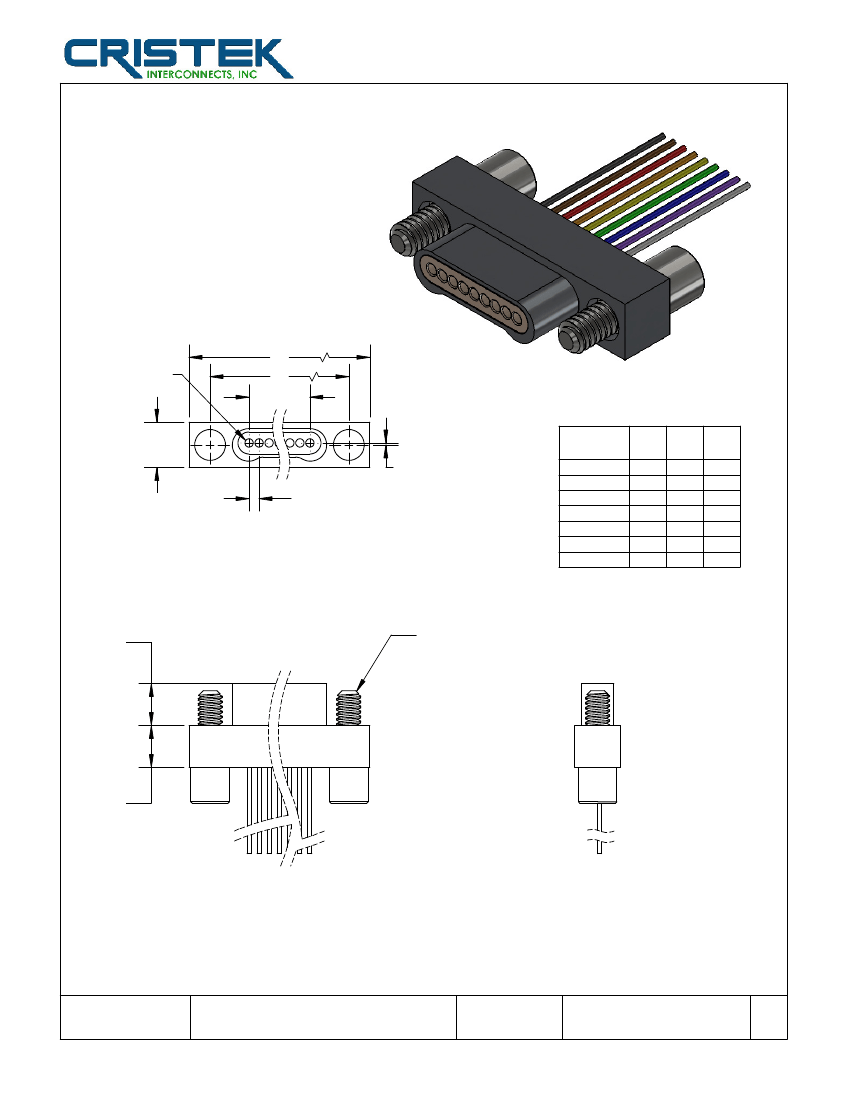

SERIES

M32139/01

NANO METAL SHELL

SINGLE ROW PLUG WITH LEADS

A

POS 1

B

C

NO. OF

CONTACTS

.115

.005

.025 TYP

A

.500

.650

.800

.900

1.050

1.200

1.550

B

.395

.545

.695

.795

.945

1.095

1.445

C

.200

.350

.500

.600

.750

.900

1.250

9

15

21

25

31

37

51

.105

2x #0-80 JACKSCREW

WITH .050 HEX

.105

TOLERANCE: .XXX ±.005

.XX ±.01

ANGLE ±1°

TITLE

NANO METAL SHELL

SINGLE ROW PLUG

WITH LEADS

DWG. NO.

SHT

REV

1

OF

2

M32139/01

C

CRISTEK.COM

888.265.9162
