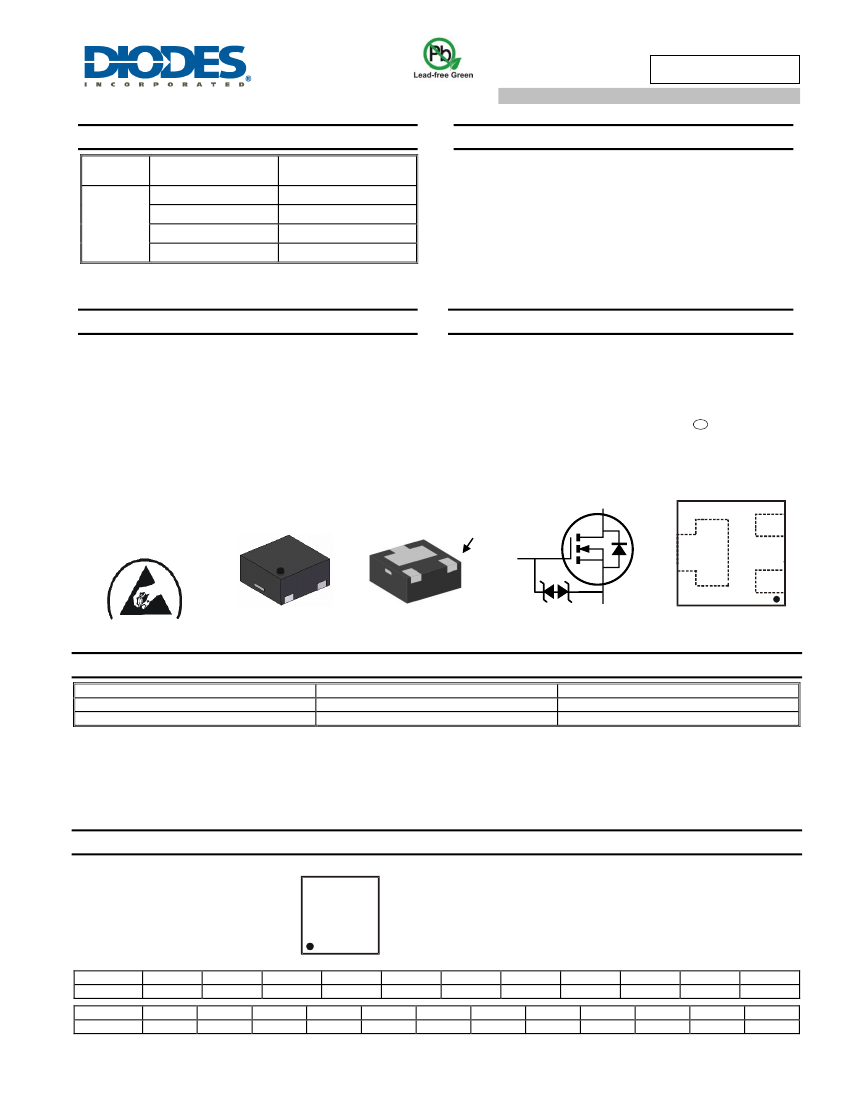

Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
INFORMATION
ADVANCED NEW PRODUCT
20V
0.8Ω @ V
GS
= 2.5V
1.0Ω @ V
GS
= 1.8V
1.6Ω @ V
GS
= 1.5V
Description and Applications
This MOSFET is designed to minimize the on-state resistance
(R
DS(ON)
) and yet maintain superior switching performance, making it
ideal for high-efficiency power management applications.
Power Management Functions
Battery Operated Systems and Solid-State Relays
Load Switch
Mechanical Data
Case: U-DFN1212-3 (Type C)
Case Material: Molded Plastic;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – NiPdAu over Copper Leadframe;
Solderable per MIL-STD-202, Method 208
e4
Terminal Connections: See Diagram
Weight: 0.005 grams (Approximate)
U-DFN1212-3 (Type C)
D
pin 1
S
G
D
G
ESD PROTECTED
Gate Protection
Diode
S
Top View
Bottom View
Equivalent Circuit
Pin-Out Top View
Ordering Information
(Note 5)
Part Number
DMN2400UFDQ-7
DMN2400UFDQ-13
Notes:
Case
U-DFN1212-3 (Type C)
U-DFN1212-3 (Type C)
Packaging
3,000/Tape & Reel
10,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to https://www.diodes.com/quality/.
5. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
