PM Photoelectric Sensors
U-shaped Micro Photoelectric Sensor

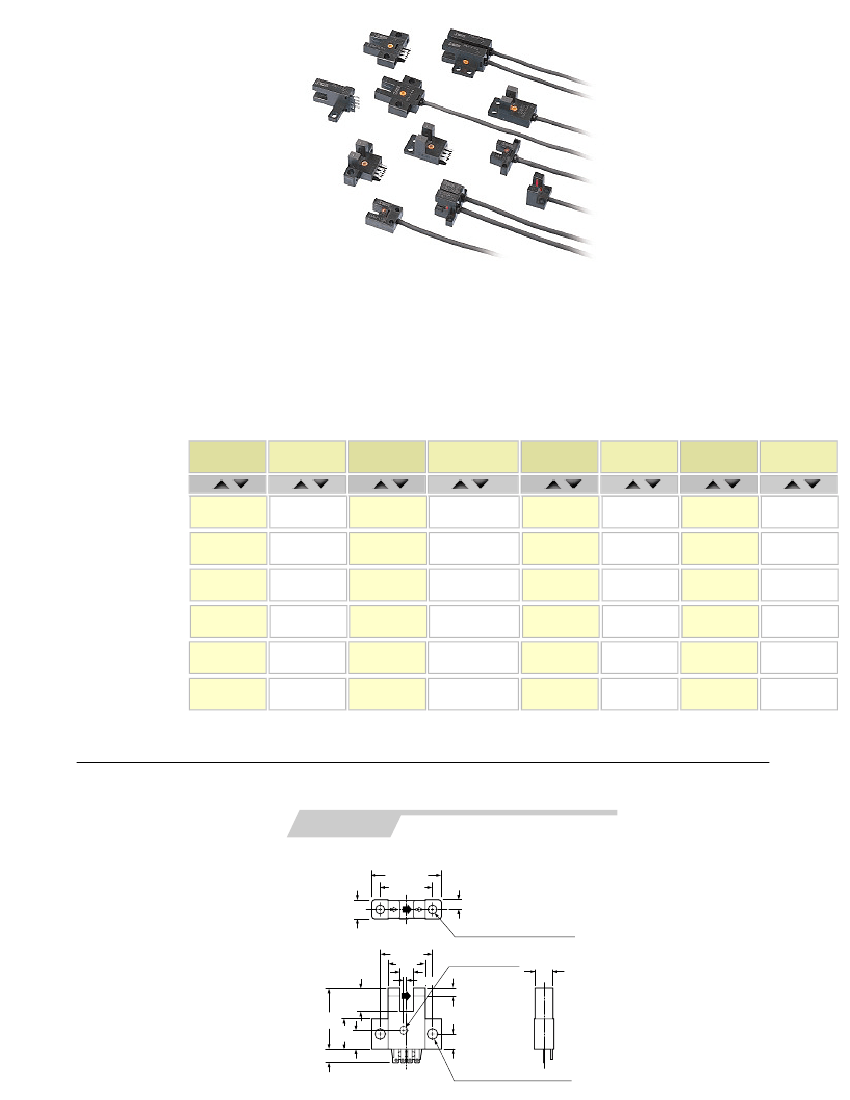

The ultra-small PM series of u-shaped photoelectric sensors provides a wide range of 29 different models to suit any of your
application needs. With the industry's smallest size, the PM series plays a key role in the miniaturization of your equipment.
All models are equipped with two outputs, one for
Light-ON
and the other for
Dark-ON
sensing. This increases the versatility
of the sensor for use in existing applications. The series is also available in a connector type to maximize ease of installation
and allow for wire replacement if the cable is severed. The PM series conforms to the European EMC Directive and carries
UL Recognition. Both NPN and PNP transistor output models are available.
Model Name
Sort
PM-F54
PM-K54
PM-L54
PM-R54
PM-T54
PM-Y54
Type
Sort
Small F-Type
with connector
Small K-Type
with connector
Small L-Type
with connector
Small R-Type
with connector
Small T-Type
with connector
Small Y-Type
with connector
Output
Operation
Sort
Output
Configuration
Sort
Emitting
Element
Sort
Infrared LED
Infrared LED
Infrared LED
Infrared LED
Infrared LED
Infrared LED
Max. Range
(mm)
Sort
5
5
5
5
5
5
Max. Range
(in)
Sort
0.2
0.2
0.2
0.2
0.2
0.2
Quick
Disconnect
Sort
Connector
Connector
Connector
Connector
Connector
Connector
Light-ON/Dark-
NPN
ON
Light-ON/Dark-
NPN
ON
Light-ON/Dark-
NPN
ON
Light-ON/Dark-
NPN
ON
Light-ON/Dark-
NPN
ON
Light-ON/Dark-
NPN
ON

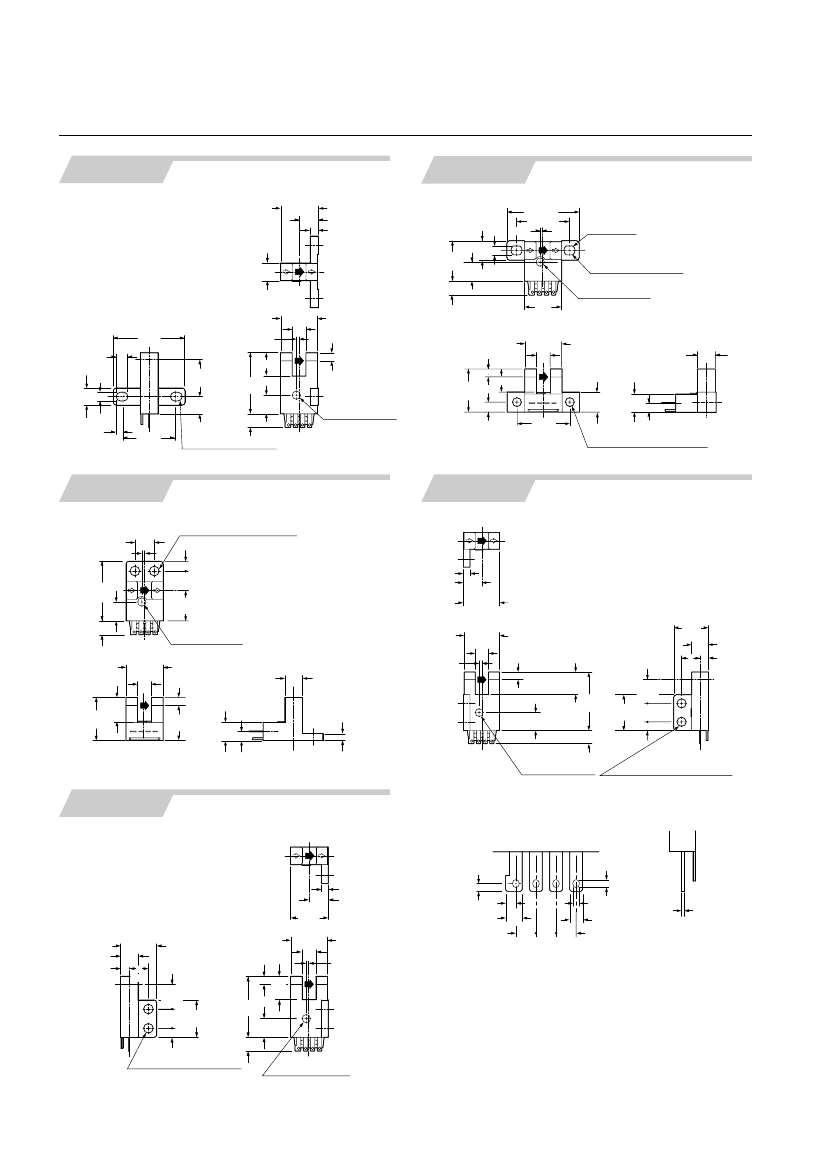

PM-K54
PM-K54P
Sensor
25.4
1.000
19
0.748
7
0.276
3.5
0.138
Beam axis
2-"3.2
"0.126
mounting holes
19
0.748
13.4
0.528
5
0.197
1
0.039
8.5
0.335
22.2
0.874
11
0.433
6.8
0.268
Operation indicator
(Vermilion)
2.9
0.114
Beam axis
13.8
0.543
5.5
0.217
6.4
0.252
5
0.197
2-"3.8
"0.150
mounting holes
PM
SPECIFICATIONS
Ultra-small
With flexible cable
PM- 24
PM- 24-R
With cable
PM- 44
PM- 44P
5 mm
0.197 in
(fixed)
0.8
1.8 mm
0.031
0.071 in
opaque object
Type
Model NPN output type
Item No.
PNP output type
Sensing range
Minimum sensing object
Hysteresis
Repeatability
Supply voltage
Current consumption
Small
With connector
PM- 54
PM- 54P
0.05 mm
0.002 in
or less
0.03 mm
0.001 in
or less
5 to 24 V DC
10 % Ripple P-P 10 % or less
15 mA or less
<
NPN output type
>
Output
<
PNP output type
>
NPN open-collector transistor
PNP open-collector transistor
•
Maximum sink current: 50 mA
•
Maximum source current: 50 mA
•
Applied voltage: 30 V DC or less (between output and 0 V)
•
Applied voltage: 30 V DC or less (between output and V)
•
Residual voltage: 0.7 V or less (at 50 mA sink current)
•
Residual voltage: 0.7 V or less (at 50 mA source current)
0.4 V or less (at 16 mA sink current)
0.4 V or less (at 16 mA source current)
DC-12 or DC-13
Incorporated with 2 outputs: Light-ON / Dark-ON
Under light received condition: 20
!s
or less
Under light interrupted condition: 100
!s
or less
(Response frequency: 1 kHz or more)(Note 1)
Vermilion LED (lights up under light received condition)
3 (Industrial environment)
25 to
55 C
13 to
131 F
(No dew condensation or icing allowed), Storage:
35 to 85 % RH, Storage: 35 to 85 % RH
Fluorescent light: 1,000
?x
at the light-receiving face
EN 50081-2, EN 50082-2, EN 60947-5-2
1,000 V AC for one min. between all supply terminals connected together and enclosure
50 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
10 to 2,000 Hz frequency, 1.5 mm
0.059 in
amplitude in X, Y and Z directions for two hours each
15,000 m/s
2
acceleration (1,500 G approx.) in X, Y and Z directions for three times each
Infrared LED (non-modulated)
Enclosure: PBT, Slit cover: Polycarbonate, Terminal part [PM-
54(P)
only]: Solder plated
0.09 mm
2
4-core cabtyre cable [PM-
24-R:
0.1 mm
2
flexible, oil and heat resistant cabtyre
cable (Note 4)], 1 m
3.281 ft
long
Extension up to total 100 m
328.084 ft
is possible with 0.3 mm
2
, or more, cable.
10 g approx.
15 g approx.
3 g approx.
30 to
80 C
22 to
176 F
Utilization category
Output operation
Response time
Operation indicator
Pollution degree
Environmental resistance
Ambient temperature (Note 2, 3)
Ambient humidity
Ambient illuminance
EMC
Voltage withstandability
Insulation resistance
Vibration resistance
Shock resistance
Emitting element
Material
Cable
Cable extension
Weight
Notes: 1) The response frequency is the value when the disc, given in the figure below, is rotated.
VF
Disc
Disc
1.8 mm
0.071 in
t
1.6 mm
0.063 in
0.2 mm
0.008 in
1.6 mm
0.063 in
50 C
122 F,
or more, make sure to mount it on a metal body.
Notes:
2) In case the ultra-small type
PM- 24(-R)
is used at an ambient temperature of
10 C
14 F.
Notes:
3) Take care that the flexibility of the
PM- 24-R
cable is lost if the ambient temperature in near
Notes:
4) The cable of
PM- 24-R
is a flexible cable usable on a moving base. When the sensor is mounted on a moving base, fix the sensor cable joint so that
stress is not applied to it.
