522Z-010/221MTRE0100 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 522Z-010/221MTRE0100

522Z-010/221MTRE0100: DescriptionTantalum Capacitor, Polarized, Tantalum, 10V, 10% +Tol, 10% -Tol, 220uF, 2917; CategoryPassive components capacitor; File Size53KB，3 Pages; ManufacturerTecate Group

Download Datasheet Parametric Compare View All

522Z-010/221MTRE0100 Overview

Tantalum Capacitor, Polarized, Tantalum, 10V, 10% +Tol, 10% -Tol, 220uF, 2917

522Z-010/221MTRE0100 Parametric

Parameter Name	Attribute value
Maker	Tecate Group
package instruction	, 2917
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	220 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
high	4 mm
length	7.3 mm
Manufacturer's serial number	522Z
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	10 V
series	522Z(10 VOLTS)
size code	2917
width	4.3 mm

522Z-010/221MTRE0100 Preview

TANTALUM LOW ESR

SMD CAPACITORS

Technical Data:

Capacitance Range:

Capacitance Tolerance:

Rated Voltage DC (V

)

Category Voltage (V

)

Surge Voltage (V

)

Temperature Range:

Environmental Classification:

Dissipation Factor at 1KHz:

#+85°C:

#+125°C:

#+85°C:

#+125°C:

All technical data relate to an ambient temperature of +25°C

1.5 µF to 330 µF

±20%; ±10%

6.3

TYPE 522Z

-55°C to +85°C (125°C with voltage derating)

55/125/56 (IEC 68-2)

2 FRC

STANDARD RANGE (EIA and EIA-J SIZES).

Capacitance

µF

1.5

2.2

3.3

4.7

6.8

100

150

220

330

D/E

C/D

D/E

6.3V

Capacitance Range (letter denotes case code) at 85°C

10V

16V

20V

25V

35V

50V

C/D

D/E

C/D

D/E

C/D

D/E

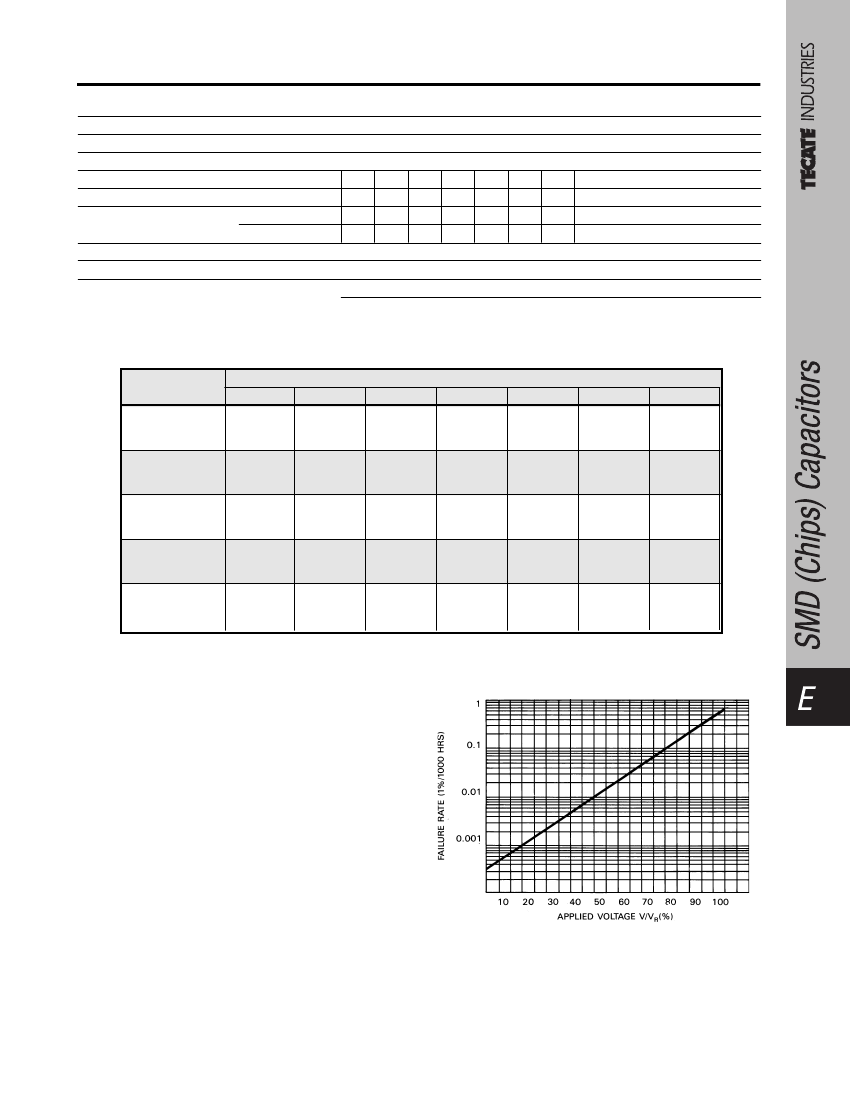

OPERATING VOLTAGE/VOLTAGE DERATING

If a capacitor with a higher voltage rating than the

maximum line voltage is used, then the operating

reliability will be improved. This is known as voltage

derating. The graph at right shows the relationship

between voltage derating (the ratio between applied

and rated voltage) and failure rate. The graph gives the

correction factor F(V) for any operating voltage.

Where less than 0.1 ohm per volt series resistance is

employed, a 70% derating factor is recommended.

Consult factory for further information under these

conditions

Effect of applied voltage on basic failure rate for

typical component (60% con. level)

Tecate Industries 858.513.2300 Fax 858.513.2345 Web Site: www.TecateGroup.com

E.11

TANTALUM LOW ESR

SMD CAPACITORS

FOR SWITCH MODE POWER SUPPLIES AND CONVERTERS

SOLID TANTALUM CHIP CAPACITORS

TYPE 522Z

The seven case sizes of the 522Z conform to the

sizes most required by the major OEMs throughout

Europe and America. These sizes conform to the

Electronics Industry Associations of U.S. and Japan

recommended standards for Tantalum Chip Capaci-

tors.

Available with capacitance tolerances of ±10% and

±20%.

Operational temperature -55°C to +85°C at rated

voltage and up to +125°C with voltage derating.

522Z is now available in standard and extended

ranges.

Note on sizes:

C, D – EIA standard EIA-535BAAC

E – Extended range (high profile D case)

CASE DIMENSIONS

inches (millimeters)

Code

L ± 0.008 (0.2)

0.236 (6.0)

0.287 (7.3)

W + 0.008 (0.2)

-0.004 (0.1)

0.126 (3.2)

0.170 (4.3)

H + 0.008 (0.2)

-0.004 (0.1)

0.098 (2.5)

0.110 (2.8)

0.158 (4.0)

± 0.008 (0.2)

0.087 (2.2)

0.094 (2.4)

A + 0.012 (0.3)

-0.008 (0.2)

0.051 (1.3)

S Min.

0.114 (2.9)

0.173 (4.4)

dimension applies to the termination width for A dimensional area only.

PART NUMBERING SYSTEM

522Z – 025

150

0250

Type

Rated DC Voltage

Capacitance Code

µF code: 1st two digits represent significant figures,

3rd digit represents multiplier (number of zeros to follow)

Tolerance

(K = ±10%, M = ±20%)

Packaging

TR = Tape Reel

Case Code

Max ESR

@25°C 100KHZ (MIL OHM)

E.12

Tecate Industries 858.513.2300 Fax 858.513.2345 Web Site: www.TecateGroup.com

TANTALUM LOW ESR

SMD CAPACITORS

RATINGS AND PART NUMBER REFERENCE

Case

Size

Capacitance

µF

DCL

(µA)

Max.

ESR

max. (

)

@ 100 kHZ

Case

Size

Capacitance

µF

DCL

(µA)

Max.

TYPE 522Z

ESR

max. (

)

@ 100 kHZ

6.3 volt @ 85°C (2.5 volt @ 125°C)

100

150

220

330

2.3

3.3

4.8

13.2

19.8

.30

.275

.140

.125

35 volt @ 85°C (23 volt @ 125°C) (cont’d.)

1.5

2.2

3.3

4.7

6.8

1.3

1.9

2.8

4.2

6.2

.90

.70

.55

.50

.30

.275

10 volt @ 85°C (6.3 volt @ 125°C) (cont’d.)

100

150

220

1.8

2.6

3.8

5.4

.345

.300

.200

.150

.100

50 volt @ 85°C (33 volt @ 125°C)

1.5

2.2

3.3

4.7

6.8

1.3

1.9

2.7

4.0

1.5

.45

16 volt @ 85°C (10 volt @ 125°C)

100

1.3

1.9

2.8

4.2

6 .0

8.7

12.8

.45

.40

.35

.30

.225

.15

.125

.10

20 volt @ 85°C (13 volt @ 125°C)

1.6

2.4

3.5

5.3

7.5

10.9

.45

.40

.375

.225

.200

.15

25 volt @ 85°C (16 volt @ 125°C)

4.7

6.8

1.4

2.0

3.0

4.4

6.0

.525

.500

.450

.250

.200

NOTE: Voltage ratings are minimum values. We reserve the right to supply higher voltage ratings in the same case size.

Tecate Industries 858.513.2300 Fax 858.513.2345 Web Site: www.TecateGroup.com

E.13

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
