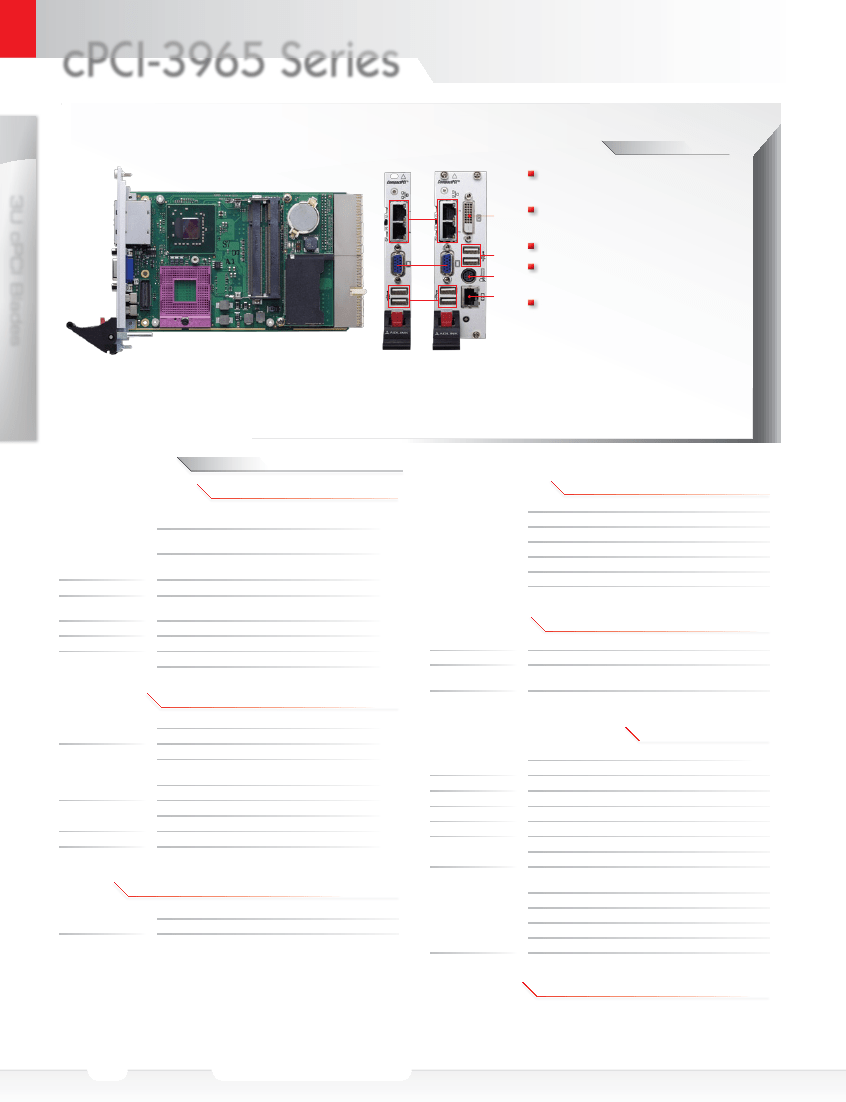

cPCI-3965 Series
3U cPCI Blades
LAN
Low Power 3U CompactPCI
®
Intel
®
Core™2 Duo
Processor Blade with Dual Independent Display
Features
Low power Intel
®
Core™2 Duo
2.2GHz
Dual Channel DDR2-667
SODIMM, up to 4GB
VGA+DVI independent display
Two PCI-Express Gigabit
Ethernet egress ports
Serial ATA and CompactFlash
storage options
DVI-D
VGA
USB
USB
KB/MS
COM
cPCI-3965
cPCI-3965D
Specifications
Processor & System
CPU
μFC-PGA Intel
®
Core™2 Duo 2.2GHz (T7500),
4MB L2 cache, FSB 800MHz
μFC-BGA Intel
®
Core™2 Duo LV 1.6GHz (L7500),
4MB L2 cache, FSB 800MHz
μFC-PGA Intel
®
Celeron
®
2.0GHz (550),
1MB L2 cache, FSB 533MHz
Chipset
RAM
BIOS
CompactPCI Bus
PICMG Standards
Intel
®
GME965 with ICH8M
Dual Channel DDR2-667 unbuffered memory with two
SO-DIMM sockets, up to 4GB capacity
AMIBIOS
®
8 16Mbit SPI Flash memory
32-bit/33 MHz CompactPCI
®
Bus
PICMG 2.0 CompactPCI R3.0
®
®
Operating System
OS
Microsoft Windows
®
XP Professional
Microsoft Windows
®
Vista Enterprise
Microsoft Windows
®
7
Fedora™ Core 7
Fedora™ 9
Red Hat Enterprise Linux 6
Wind River VxWorks 6.6, 6.7
Miscellaneous
LED
Battery
Hardware Monitor
Watchdog Timer
Power, WDT
Coin cell lithium battery onboard for RTC CMOS RAM
Integrated in Super I/O IT8712F, monitors CPU temperature,
system temperature, Vcore and DC voltages
Integrated in super I/O IT8712F, two stage watchdog timer,
1 to 15300 sec.
PICMG
®
2.1 Hot Swap R2.0
Connectivity
Ethernet
Graphics
Two PCI-Express Intel
®
82573L Gigabit Ethernet controllers
Two GbE egress ports, one configurable to rear by software
Integrated in GME965
One analog VGA port on front panel, supports up to 32bit,
2048x1536 resolution @ 75Hz refresh rate
One DVI-D front port
USB
PS/2
Serial Port
Maximum six USB 2.0 ports
Four front panel USB 2.0 ports, two USB 2.0 ports on RTM
One PS/2 KB/MS Combo Port
One RJ-45 RS-232 port on front panel, and one DB-9
RS-232 (Tx, Rx only) port on rear panel
Mechanical & Environmental
Form Factor
Operating Temp.
Storage Temp.
Rel. Humidity
Shock
Vibration
Power Consumption
3U 4HP/8HP CompactPCI
®
100 mm x 160mm (L x W)
0°C to +60°C standard (with forced air flow)
-40°C to +85°C
90% @ 60°C (non-condensing)
15G peak-to-peak, 11ms duration, non-operating
88Grms, 5-500Hz, each axis, operating
IEC68-2-64 standard
Core™2 Duo 2.2GHz (T7500), 2x 2GB SODIMM under
Windows
®
XP with 100% CPU loading
Current (A)
Power (W)
31.0
2.3
33.3
5V
3.3V
Total
Weight
6.2
0.7
Storage
SBC
RTM
One SATA port for 2.5” hard drive onboard
One CompactFlash socket
Two 7-pin SATA ports on RTM for external hard drives
Net weight 602.5g in dual slot with heatsink
Safety & EMI
Certifications
CE, FCC Class A
http://www.adlinktech.com/cPCI/

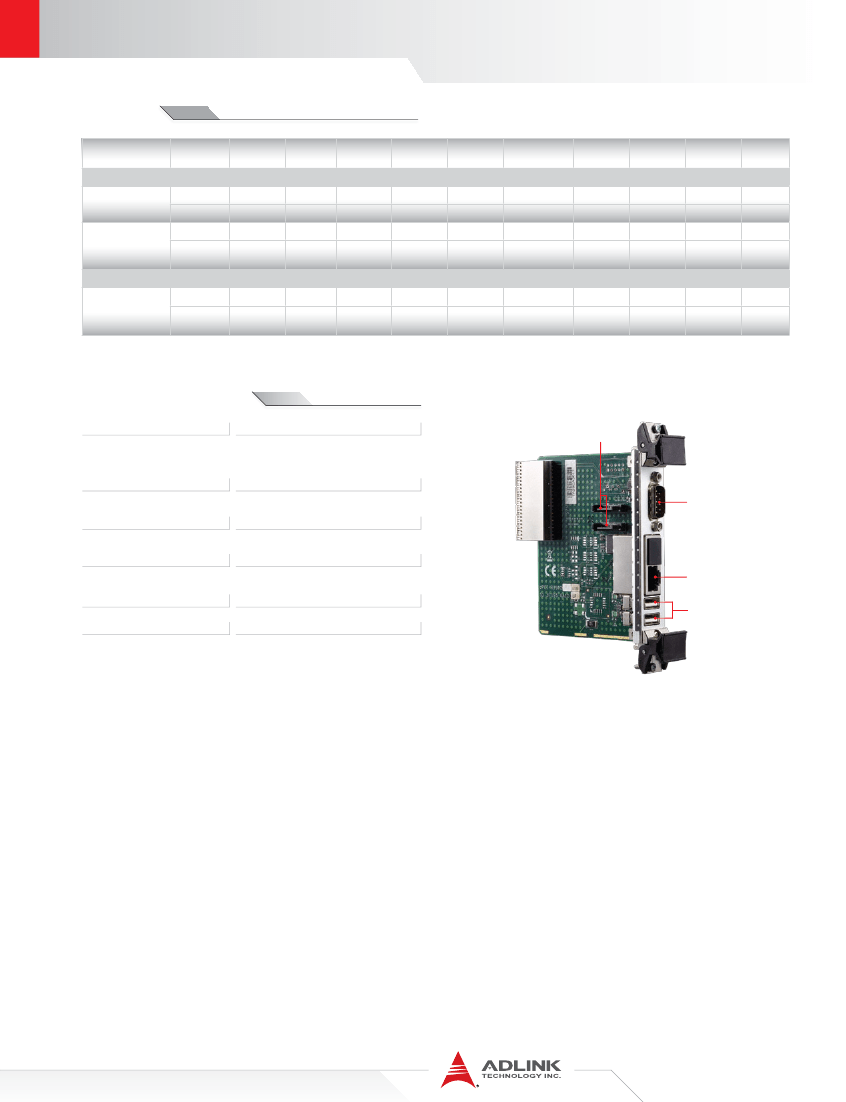

I/O Table
GbE
USB 2.0
VGA
DVI-D
SBC
cPCI-3965(4HP)
Faceplate
Onboard
Faceplate
cPCI-3965D(8HP)
Onboard
RTM
Faceplate
cPCI-R3920(T)-1
Onboard
1*
2
1 (DB-9)
2
(7-pin)
2
4
1 (DB-15)
1
1 (RJ-45)
1
(for 2.5” HDD)
1
2
2
1 (DB-15)
1
1
2
1
2
1
COM
SATA
CF
PS/2
KB/MS
LED
Reset
Button
Note* : Switched from front GbE port by BIOS
Ordering Information
Model Number
Processor Blades
cPCI-3965D/T75/M2G
8HP 3U CompactPCI
®
with Core™2 Duo
2.2GHz (T7500) processor and 2x 1GB
SODIMM
8HP 3U CompactPCI
®
with Core™2 Duo
2.2GHz (T7500) processor and 2x 2GB
SODIMM
8HP 3U CompactPCI
®
with Core™2 Duo
1.6GHz (L7500) processor and 2x 1GB
SODIMM
LAN
4HP Rear Transition Module for
cPCI-3965(D), 50mm depth
4HP Rear Transition Module for
cPCI-3965(D), 80mm depth
USB
COM
Description/Configuration
2x SATA
cPCI-3965D/T75/M4G
cPCI-3965D/L75/M2G
Rear Transition Modules
cPCI-R3920-1
cPCI-R3920T-1
Contact us for more CPU, memory & HDD options.
cPCI-R3920T-1
