TITLE:
SPECIFICATION CONTROL DRAWING
PART IDENTIFIER:
54XX
(XX) DB VALUE
DESCRIPTION:
HIGH POWER ATTENUATOR, BERYLLIA
ASSEMBLY DWG:
1700324
1.0
SPECIFICATIONS:
1.1
ELECTRICAL:
1.1.1
IMPEDANCE: 50Ω NOMINAL.
1.1.2
FREQUENCY RANGE: DC-2.5 GHZ.
1.1.3
ATTENUATION VALUES AVAILABLE: 1-20DB IN 1DB INCREMENTS.
1.1.4
ATTENUATION ACCURACY @ 1 GHZ: 1 - 10 DB, ±0.5 DB.
11 - 20 DB, ±1.0 DB.
1.1.5
POWER DISSIPATION (MAX @ 100°C):
1.1.5.1 AVERAGE: 20 WATTS.
1.1.5.2 PEAK: 200 WATTS FOR 10US WIDTH @ 1% DUTY CYCLE.
1.1.6
VSWR: DC - 1 GHZ - 1.15 MAX.
1.1 - 2.5 GHZ - 1.35 MAX.
MECHANICAL:
1.2.1

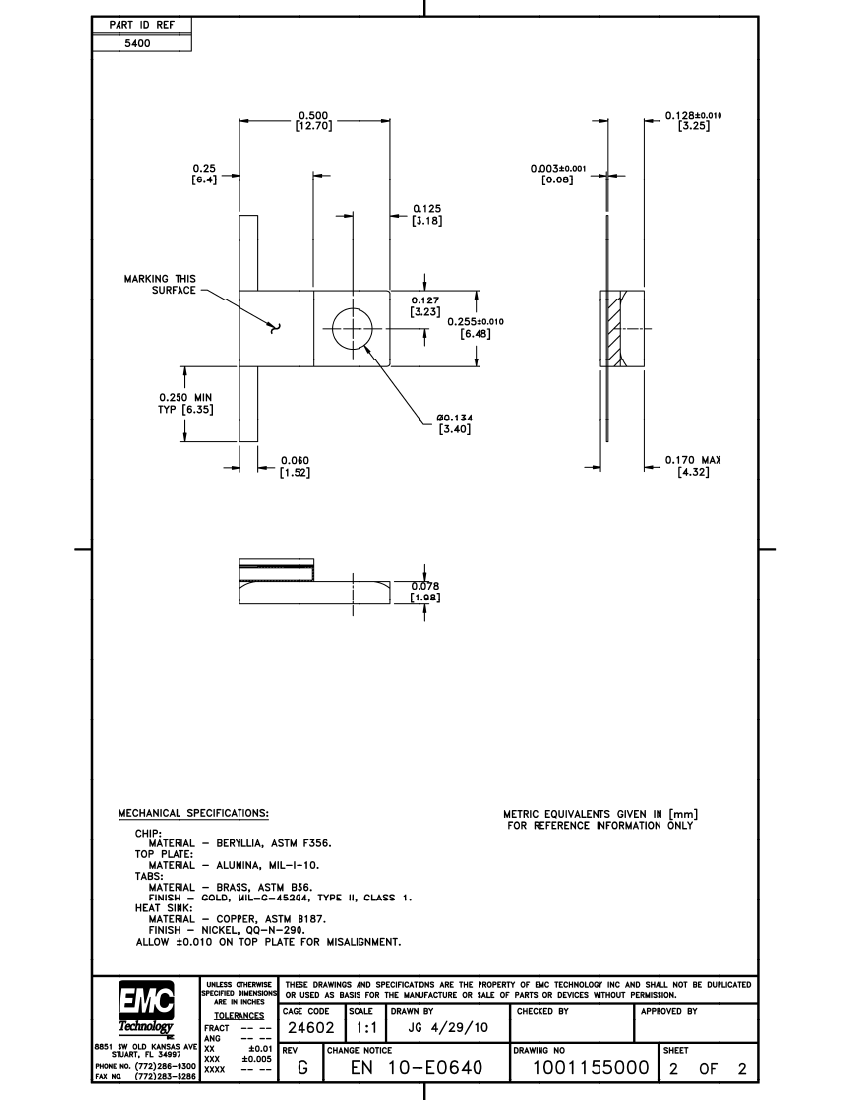

OUTLINE DWG: SEE SHEET 2.
ENVIRONMENTAL:
1.3.1
TEMPERATURE RANGE:
1.3.1.1 STORAGE: -65°C TO +150°C.
1.3.1.2 OPERATING: -55°C TO +150°C.
LOGO AND PART IDENTIFIER
LEGIBILITY AND PERMANENCY PER MIL-STD-130.
1.2
1.3
2.0
UNIT MARKING:
3.0
QUALITY ASSURANCE:
3.1
SAMPLE INSPECT PER ANSI/ASQC Z1.4, GENERAL INSPECTION, LEVEL II, AQL=1.0.
3.1.1
VISUAL AND MECHANICAL EXAMINATION FOR CONFORMANCE TO MIL-PRF-55342 AND CONTROL DRAWING
REQUIREMENTS.
INSPECTION IN ACCORDANCE WITH 824W170 AND 824F036 FOR COMMERCIAL GRADE PRODUCT.
3.2
3.3 DATA REQUIREMENTS:
3.2.1
NO TEST DATA REQUIRED FOR CUSTOMER.
3.2.2
DATA RETENTION – 24 MONTHS.
4.0
PACKAGING:
STANDARD PACK PER 755W002.
EMC TECHNOLOGY
8851 SW OLD KANSAS AVE.
STUART, FL 34997
CAGE CODE # 24602
CHANGE NOTICE
EN 10-E0640
DWG #
REV LVL
SHEET
1001155000
G
1
OF
2
