TITLE:
SPECIFICATION CONTROL DRAWING
PART IDENTIFIER:
8415
DESCRIPTION:
50 OHM FLANGE LOAD
ASSEMBLY DWG:
2100914
1.0
SPECIFICATIONS:
1.1
ELECTRICAL:
1.1.1
IMPEDANCE: 50 OHMS NOMINAL.
1.1.2
FREQUENCY RANGE: DC - 12GHZ.
1.1.3
INPUT POWER (MAX @ 60°C): (DERATED LINEARLY TO ZERO POWER @ 150°C)
1.1.3.1 AVERAGE: 1 WATT.
1.1.3.2 PEAK: 100 WATTS FOR 100US PULSE WIDTH @ 0.1% DUTY CYCLE.
1.1.4
VSWR:
DC TO 4.0 GHZ - 1.10 MAX.
4.0 TO 8.0 GHZ - 1.15 MAX.
8.0 TO 12.0 GHZ - 1.20 MAX.
MECHANICAL:
1.2.1

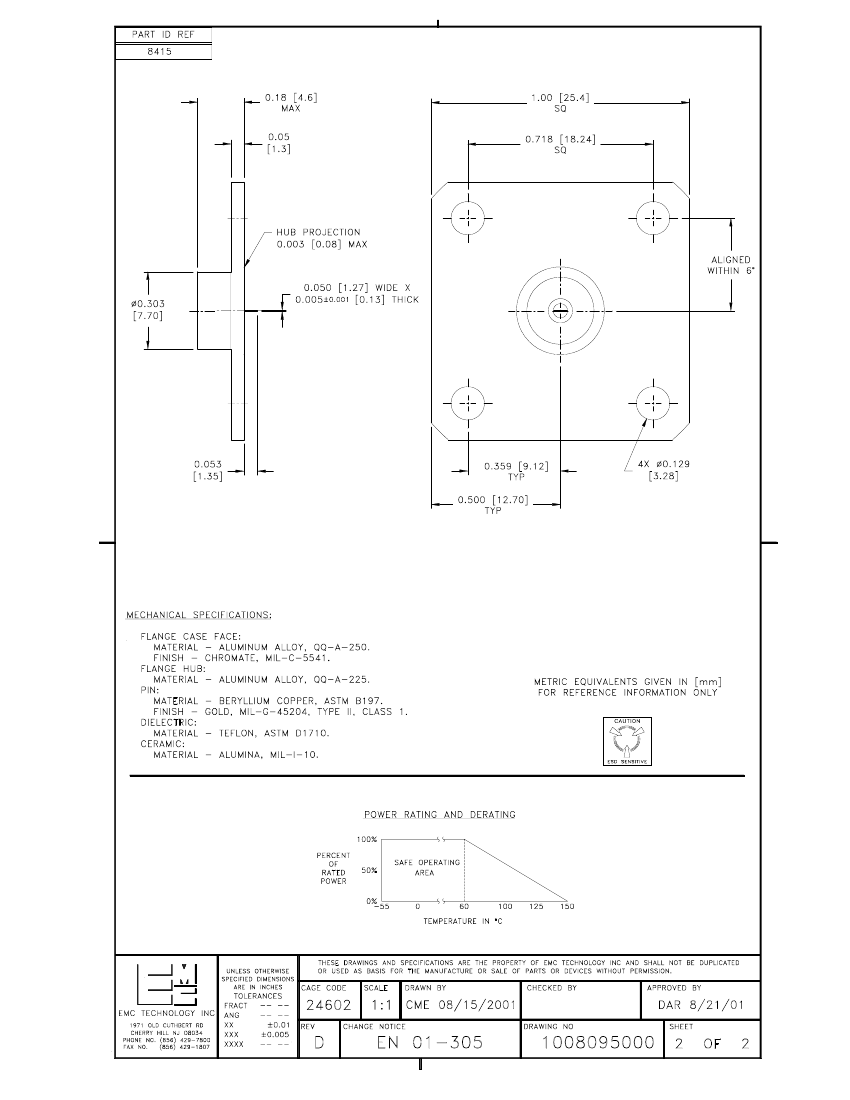

OUTLINE DWG: SEE SHEET 2.
ENVIRONMENTAL:
1.3.1
TEMPERATURE RANGE:
1.3.1.1 NON-OPERATING: -55°C TO +150°C.
1.3.1.2 OPERATING: -55°C TO +150°C.
1.3.2
VIBRATION: PER MIL-STD-202, METHOD 201 AND MIL-D-39030.
1.3.3
SHOCK: PER MIL-STD-202, METHOD 213, COND. I.
1.3.5
MOISTURE: PER MIL-STD-202, METHOD 106 AND MIL-D-39030 EXCEPT LOADING VOLTAGE
IS NOT APPLICABLE.
NONE.
1.2
1.3
2.0
3.0
UNIT MARKING:
QUALITY ASSURANCE:
3.1
PERFORM INSPECTION IN ACCORDANCE WITH QA0006 AND FORM0357 FOR COMMERCIAL GRADE PRODUCT.
3.2
TEST DATA REQUIREMENTS:
3.2.1
NO TEST DATA REQUIRED FOR CUSTOMER.
3.2.2
DATA RETENTION – 24 MONTHS.
STANDARD TRAY PACK PER MC0023.
4.0
PACKAGING:
ENG
CC
PUR
MFG
QA
PLAN
SM
EMC TECHNOLOGY, INC
1971 OLD CUTHBERT ROAD
CHERRY HILL, NJ 08034
CAGE CODE # 24602
CHANGE NOTICE
EN 01-305
DWG #
REV LVL
SHEET
1008095000
D
1
OF
2
