BA6849FM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Other integrated circuit (IC)> The signal circuit> BA6849FM

BA6849FM: DescriptionDISK DRIVE MOTOR CONTROLLER, 1.3 A, PDSO24; CategoryOther integrated circuit (IC) The signal circuit; File Size165KB，12 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA6849FM Overview

DISK DRIVE MOTOR CONTROLLER, 1.3 A, PDSO24

BA6849FM Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SOIC
package instruction	HSOP-28
Contacts	28
Reach Compliance Code	compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DISK DRIVE MOTOR CONTROLLER
JESD-30 code	R-MDSO-G30
JESD-609 code	e3/e2
length	18.5 mm
Number of functions	1
Number of terminals	30
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Maximum output current	1.3 A
Package body material	METAL
encapsulated code	HSSOP
Encapsulate equivalent code	SOP28/42,.4,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	5,12 V
Certification status	Not Qualified
Maximum seat height	2.41 mm
Maximum supply current (Isup)	6.5 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.25 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	7.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Motor driver ICs

3-phase motor driver for

CD-ROMs

BA6849FP / BA6849FP-Y / BA6849FM /

BA6849FS

The BA6849 series are ICs developed for CD-ROM spindle motor drives. These ICs possess a short brake and reverse-

rotation brake for two types of brake functions, and also contain FG output and rotation direction detection (FR) circuits,

making them high-functionality and high-performance ICs.

FApplications

CD-ROM, CD-R, CD-RW, DVD-ROM, and DVD-RAM

FFeatures

1) Three-phase, full-wave, pseudo-linear drive system.

2) Built-in power save and thermal shutdown functions.

3) Built-in current limiter and Hall bias circuits.

4) Built-in FG output.

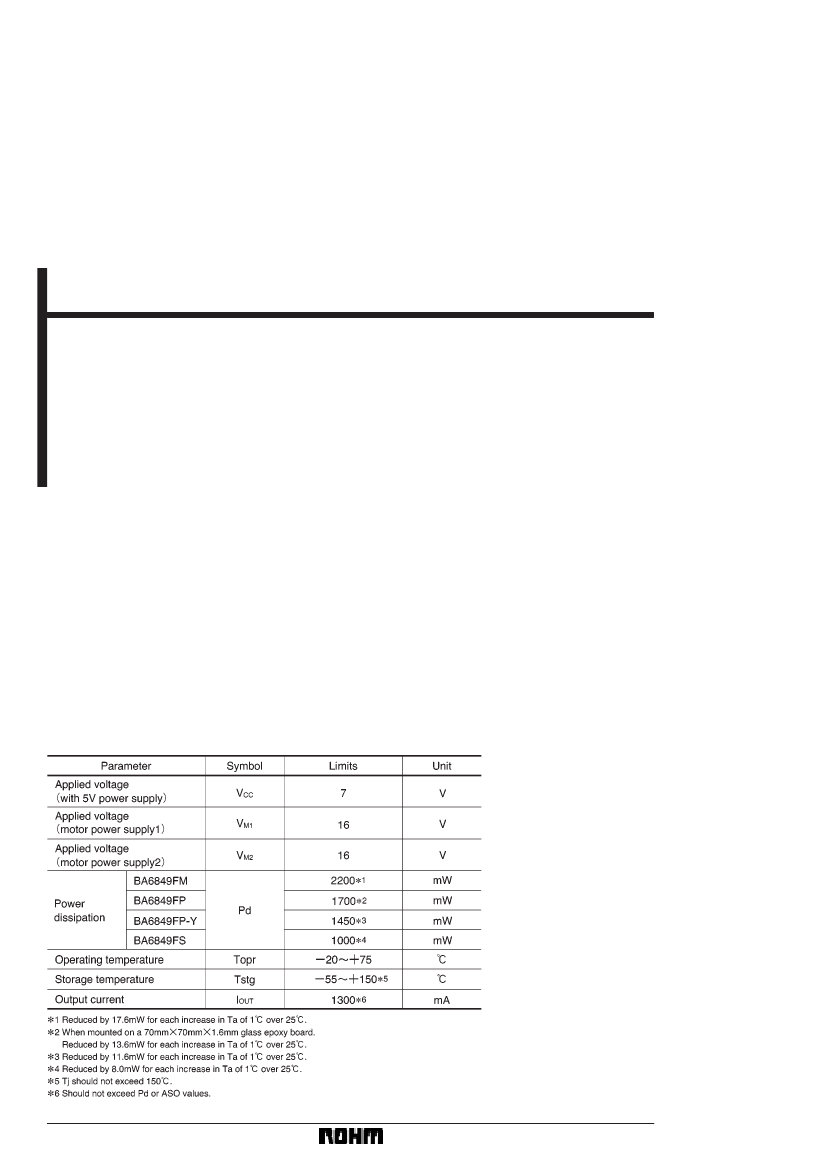

FAbsolute

maximum ratings (Ta = 25_C)

5) Built-in rotation direction detector.

6) Built-in reverse rotation prevention circuit.

7) Built-in short brake pin.

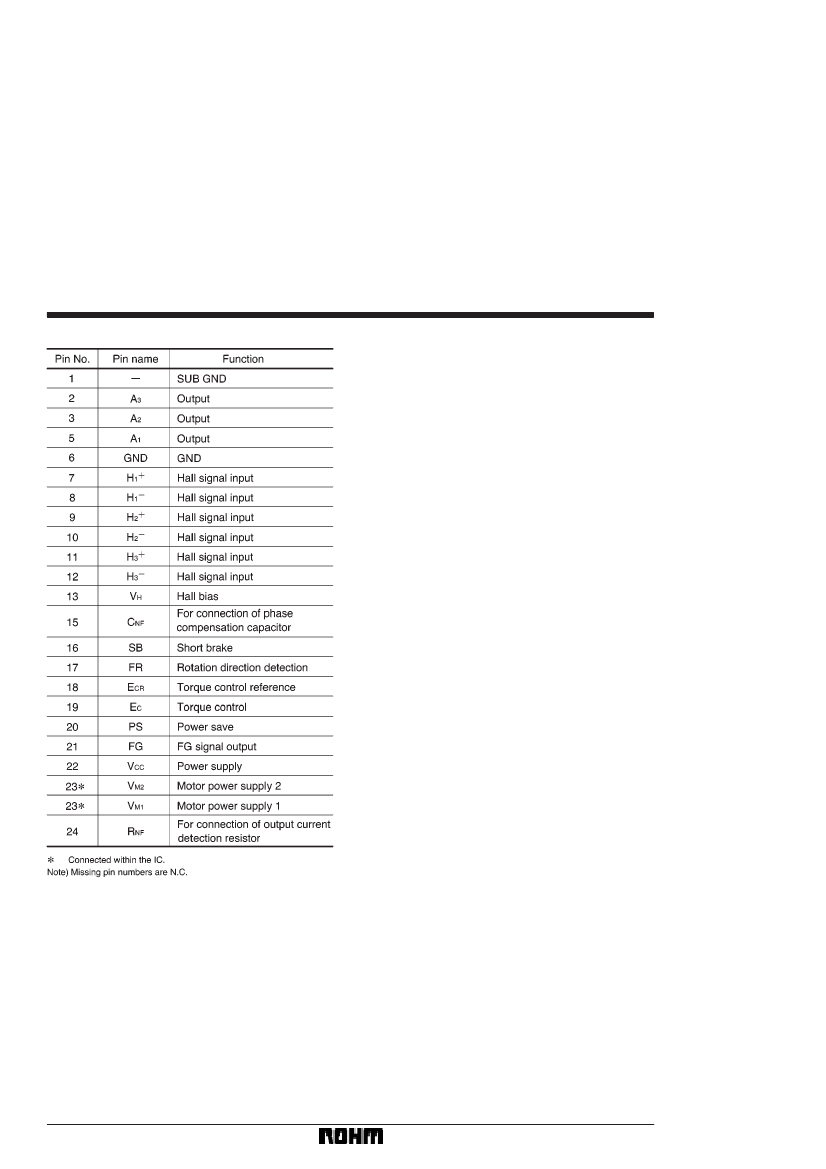

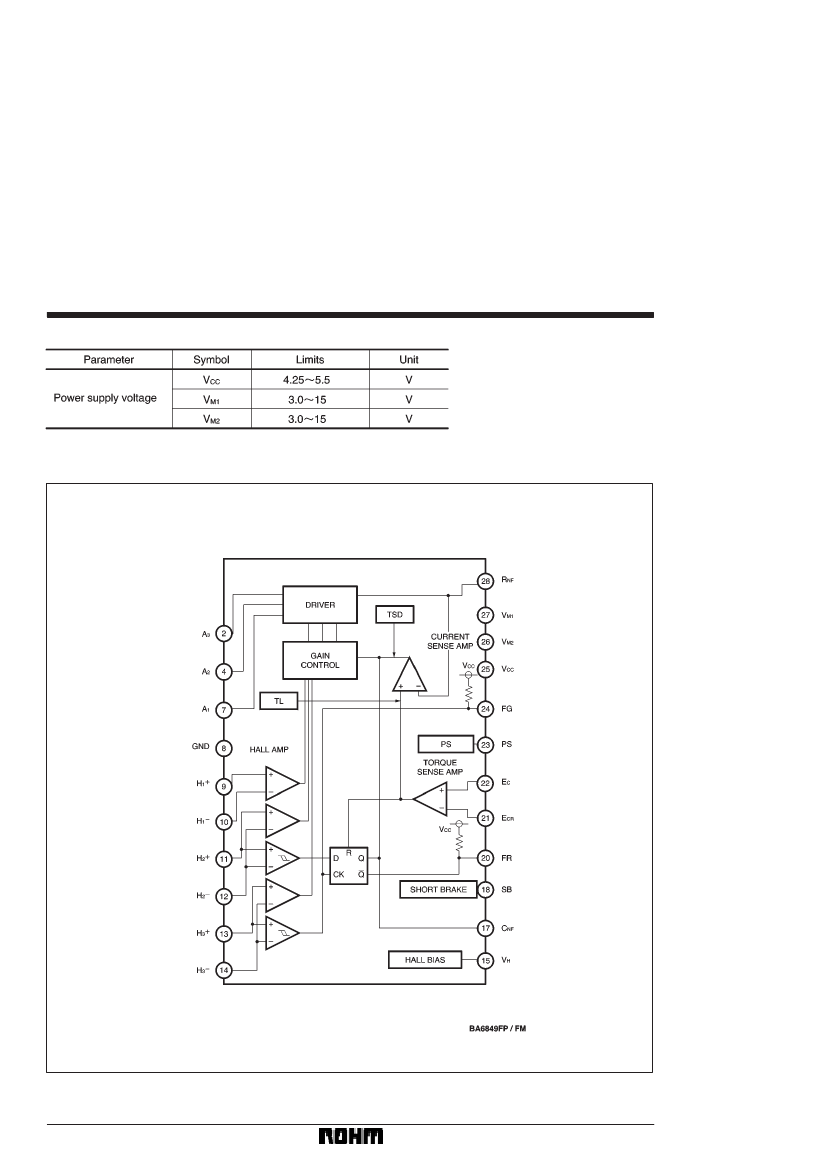

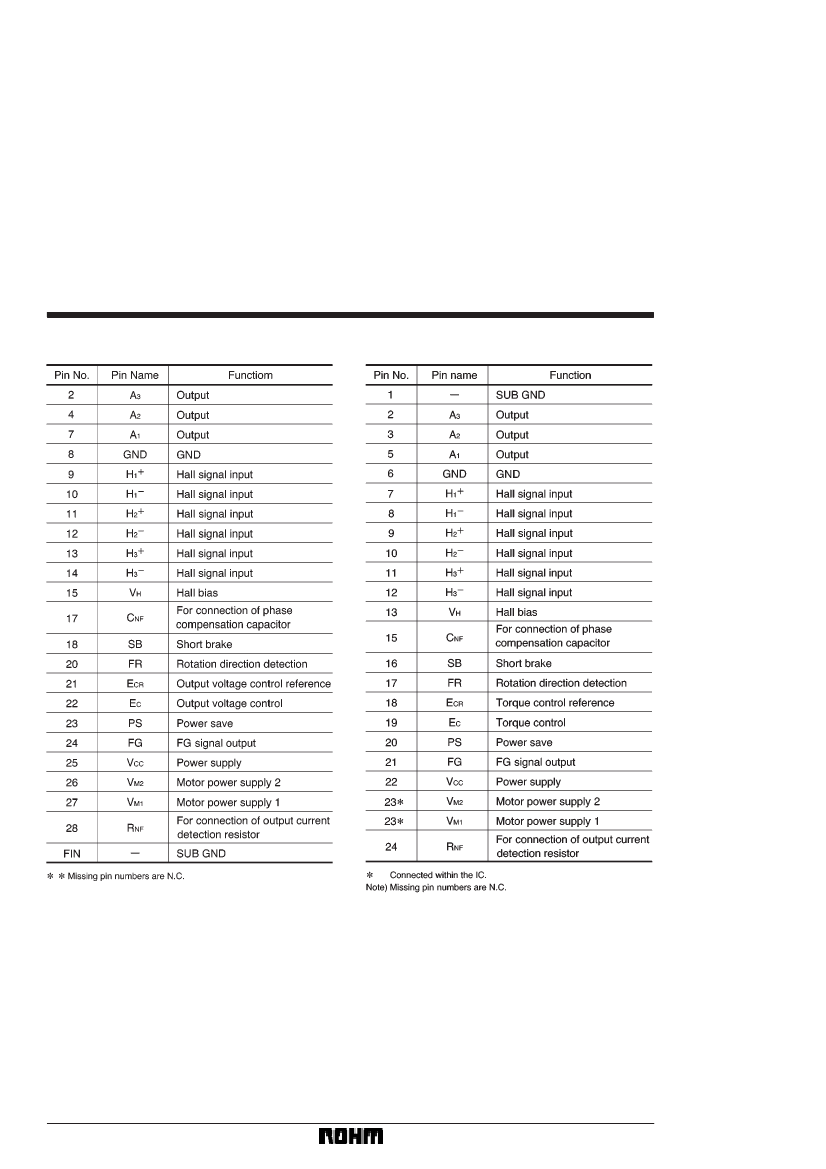

863
