60W TRC-060 Series
Switch Mode LED Drivers,
Constant Current
Electrical Specifications
Input Voltage Range:
Frequency:
Power Factor:
Inrush Current:
Input Current:
Maximum Power:
Line Regulation:
Load Regulation:
Typical Efficiency
Protection:
100 - 277 Nom. Vac (90 - 305 V Min/Max)
50/60 Hz Nom. (47-63 Hz Min/Max)
>0.90 @ full load, 100V through 277V
60 A @ 230Vac
0.80 A @ 100Vac, 0.36 A @ 220Vac
60W
± 1%
± 3%
87-91% typical @ maximum load
Over-Voltage, Output Over-Current, Over-Temperature,
Output Short Circuit Protection with Auto Recovery
Environmental Specifications
Minimum Starting Temp:
Maximum Case Temp.
Storage Temperature:
Humidity:
Cooling:
Sound Rating:
MTBF:
Lifetime:
EMC:
-35ºC
88°C
-40ºC to +85ºC
10% to 100%
Convection
Class A
546,000 Hours @ 25ºC, 80% load, 110VAC input on
2300 mA output model
80,000 Hours @ 45ºC, 80% load, 110VAC input on
2300 mA output model
FCC 47CFR Part 15 Class B
Model Number
TRC-060S035ST
TRC-060S045ST
TRC-060S070ST
TRC-060S105ST
TRC-060S140ST
TRC-060S170ST
TRC-060S230ST
TRC-060S330ST
TRC-060S500ST

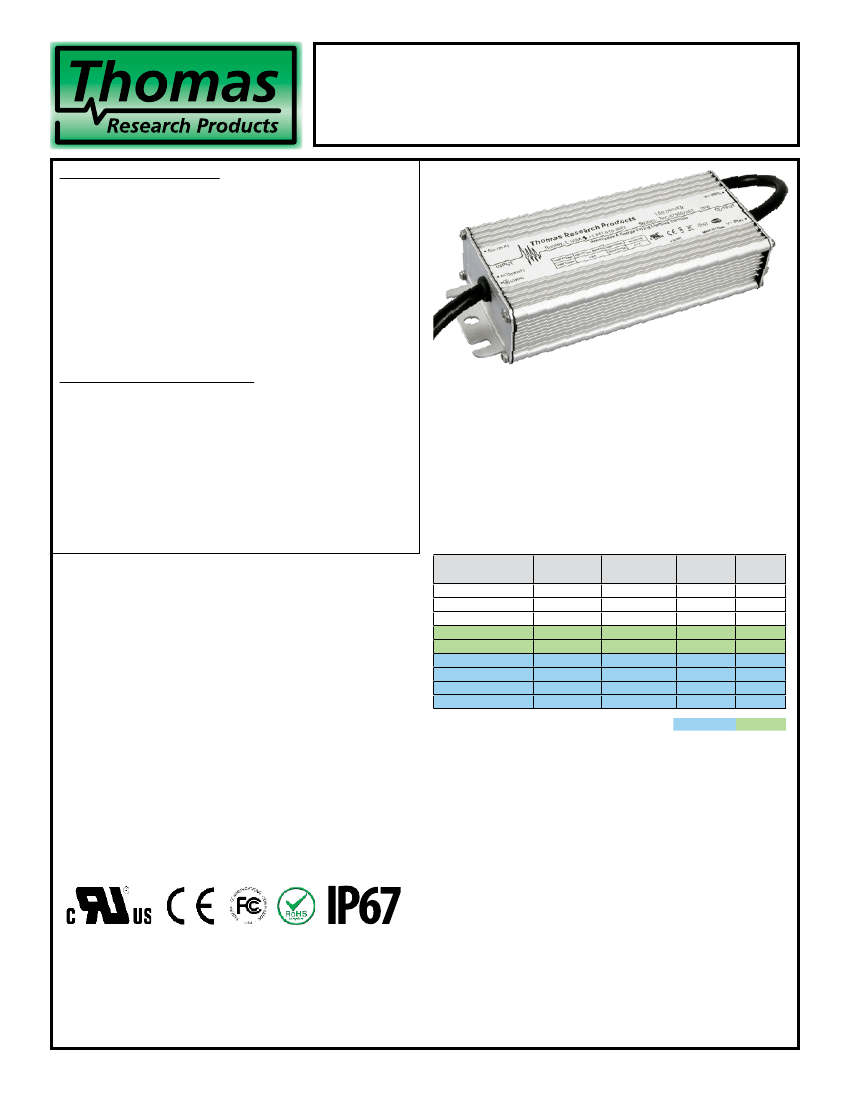

• Total Power: 60 Watts
• Input Voltage: 100-277 Vac Nom.
• UL Dry & Damp Location Rated
• IP67
• High Efficiency
• High Power Factor with Active Correction
• Output and Lightning Protection
Output Current
(mA )
350
450
700
1050
1400
1700
2300
3300
5000
Output Voltage
Range
(Vdc)
85-170
67-134
43-86
29-58
21-43
18-36
13-27
9-18
6-12
Class 2:
Max. Output
Power
(W)
59.5
60
60
60
60
60
60
59.5
60
US/Canada
Typical
Efficiency
90%
90%
90%
89%
89%
89%
88%
88%
87%
US Only
E332160
Note:
LED drivers are designed and intended to operate LED loads only.
Non-LED loading may be outside the specified design limits of our
LED drivers, and therefore cannot be covered by any warranty.
If you desire to use our LED drivers to operate non-LED loads
please contact us to discuss compatibility.
Specifications subject to change without notice.
Rev 9-1-15
Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
TRC-060 Series
SSL Solutions Faster Than The Speed Of Light
®
Pg 2 of 2

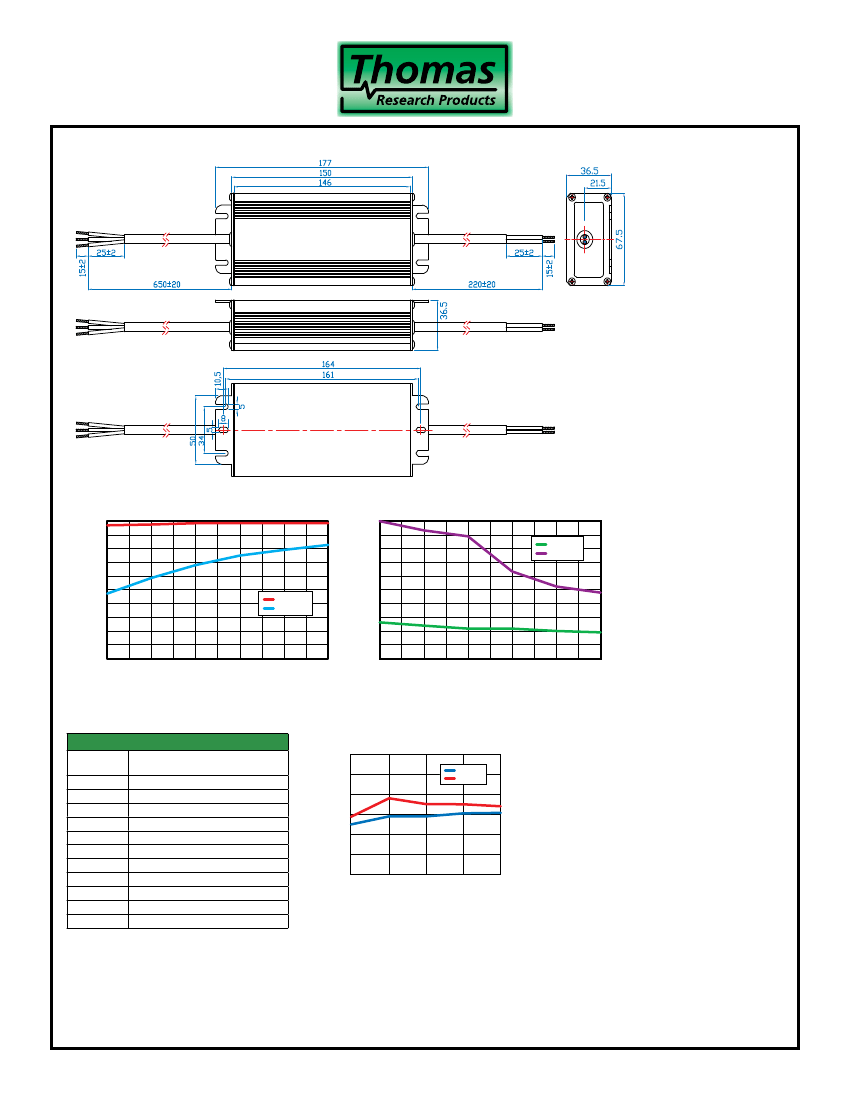

AC INPUT
(3*AWG18)
Black (ACL)
White (ACN)
Green (GND)
Red (V+)
Black (V-)
DC OUPUT
(2*AWG18)
1.00
0.95
0.90
0.85
0.75
0.70
0.65
0.60
0.55
0.50
50%
0.80
Power Factor / Load
25%
20%
15%
10%
5%
0%
50%
THD / Load
120Vac
277Vac
120Vac
277Vac
60%
70%
Load
80%
90%
100%
THD
PF
60%
70%
Load
80%
90%
100%
Safety and EMC Compliance
CUL
CE
EN 55015
EN 61000-3-2
EN 61000-3-3
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN 61547
UL 8750, Compliance to UL1310, Class 2
EN 61347-1, EN61347-2-13
Conducted emission
Harmonic current emissions
Voltage fluctuations and flicker
Electrostatic discharge
RFE Field Susceptibility test
Electrical Fast Transient
Surge Immunity test
Conducted Radio Frequency
Power Frequency Magnetic Field Test
Electromagnetic Immunity
100%
95%
Typical Efficiency / Load
120Vac
277Vac
Efficiency
90%
85%
80%
75%
70%
60%
Normalized Output Voltage
70%
80%
90%
100%
EN 61000-4-11 Voltage Dips
