BA7107 datasheet, PDF - EEWORLD Datasheet

BA7107: DescriptionSECAM chroma signal processor for VHS VCRs; CategoryOther integrated circuit (IC) Consumption circuit; File Size351KB，6 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA7107 Overview

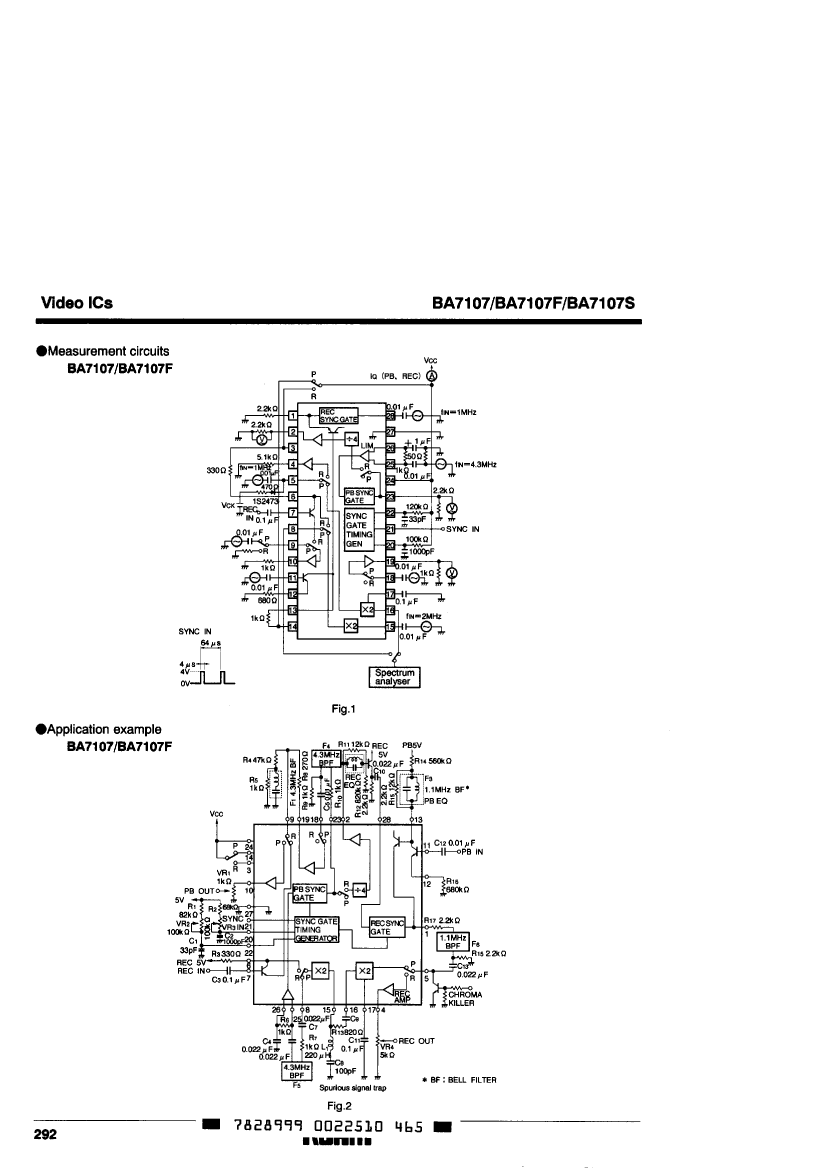

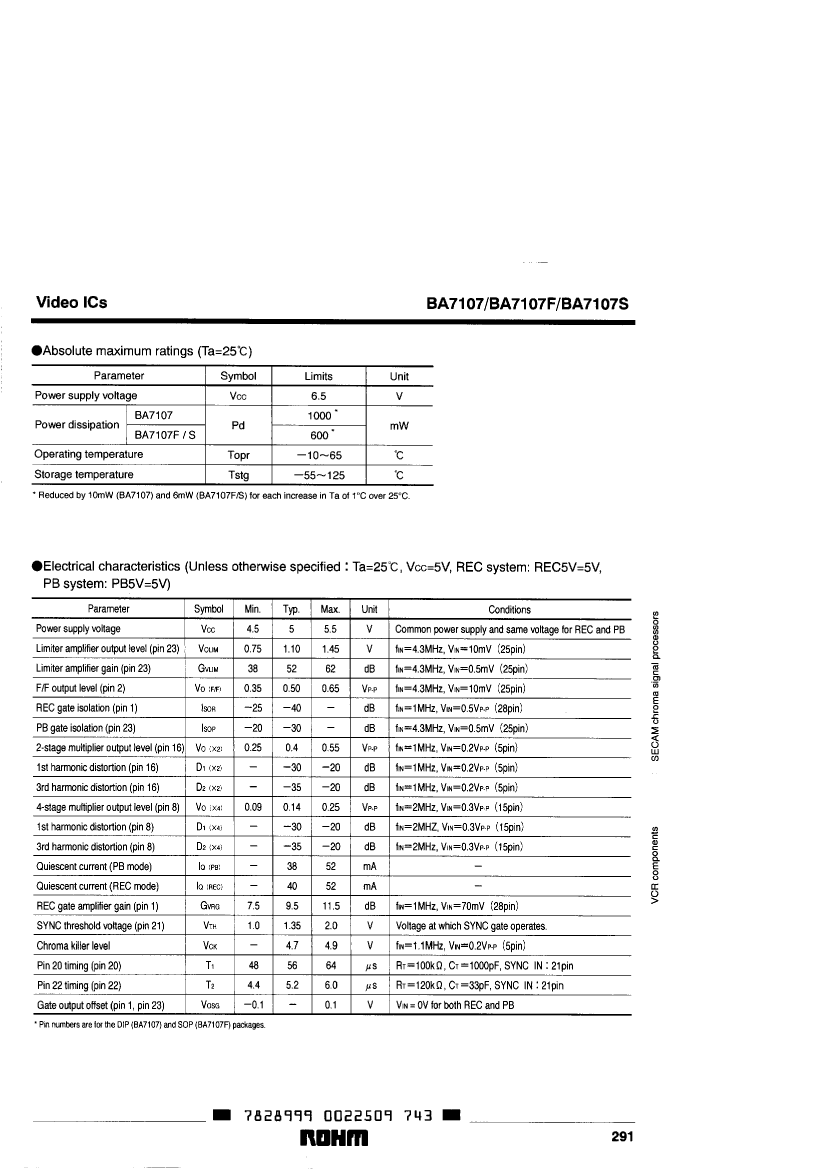

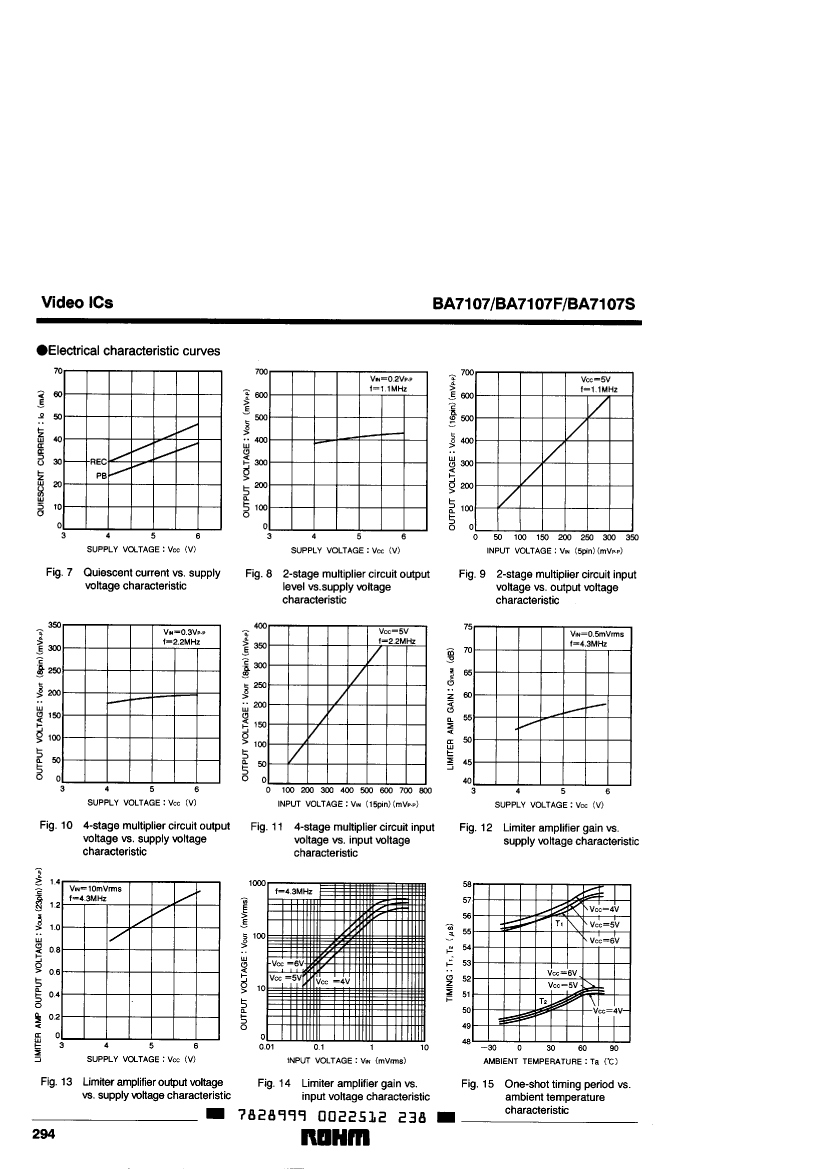

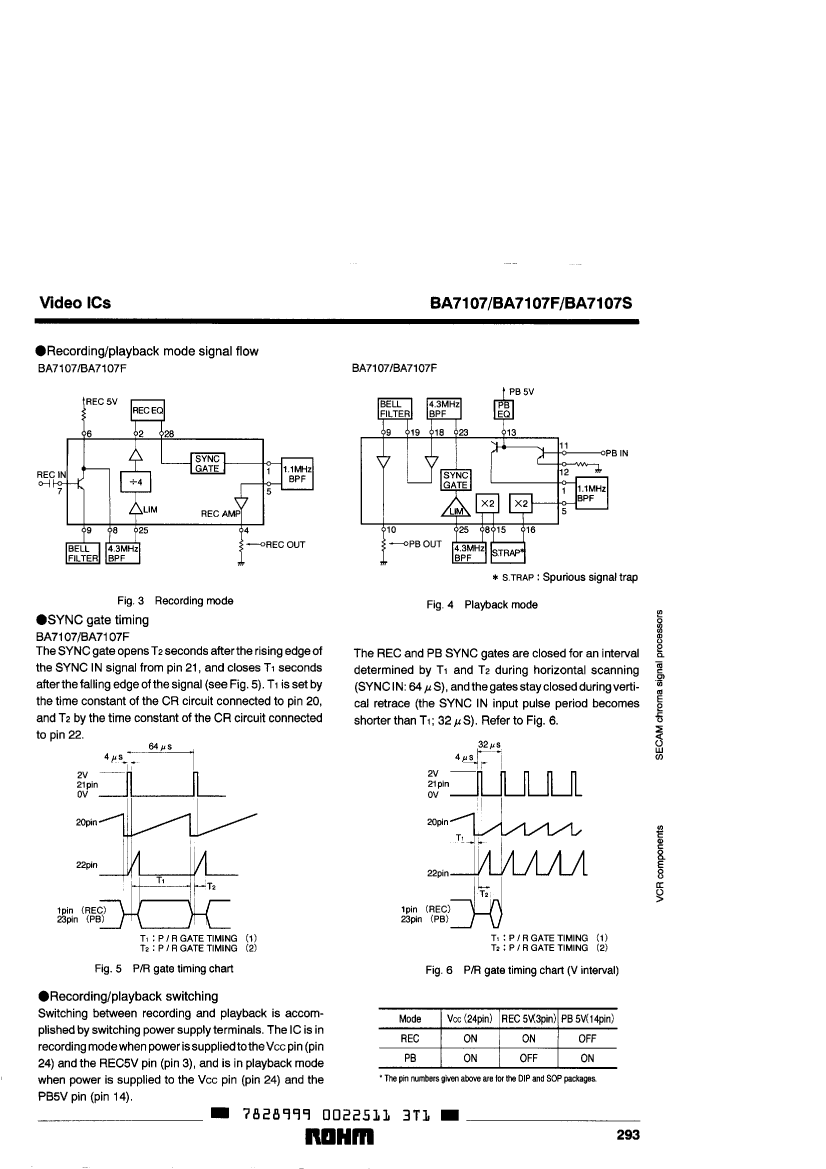

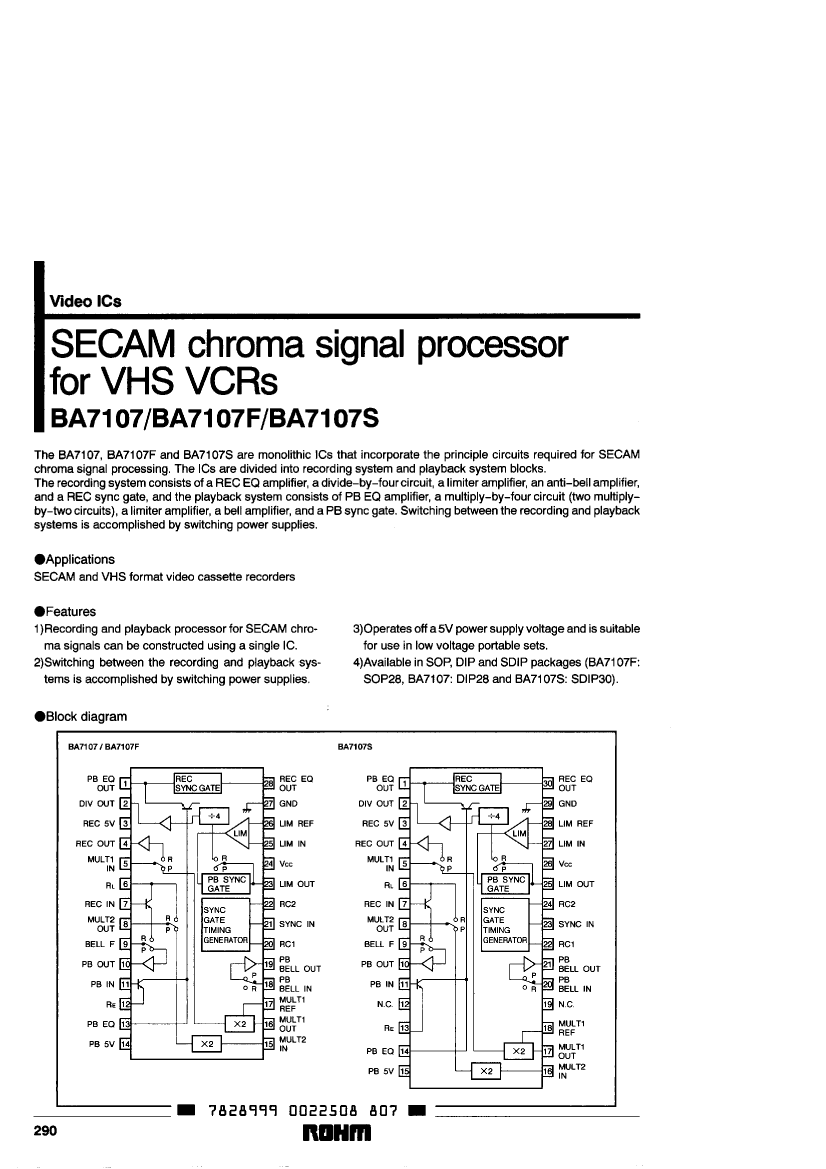

SECAM chroma signal processor for VHS VCRs

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	DIP
package instruction	DIP, DIP28,.6
Contacts	28
Reach Compliance Code	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDIP-T28
length	37.1 mm
Number of terminals	28
Maximum operating temperature	65 °C
Minimum operating temperature	-10 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.72 mm
Maximum supply voltage (Vsup)	5 V
Minimum supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
Base Number Matches	1

	BA7107	BA7107F	BA7107S
Description	SECAM chroma signal processor for VHS VCRs	SECAM chroma signal processor for VHS VCRs	SECAM chroma signal processor for VHS VCRs
Is it Rohs certified?	conform to	incompatible	conform to
Parts packaging code	DIP	SOIC	DIP
package instruction	DIP, DIP28,.6	SOP, SOP28,.4	SDIP, SDIP30,.4
Contacts	28	28	30
Reach Compliance Code	unknow	unknow	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT
JESD-30 code	R-PDIP-T28	R-PDSO-G28	R-PDIP-T30
length	37.1 mm	18.5 mm	28 mm
Number of terminals	28	28	30
Maximum operating temperature	65 °C	65 °C	65 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SDIP
Encapsulate equivalent code	DIP28,.6	SOP28,.4	SDIP30,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE, SHRINK PITCH
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.72 mm	2.3 mm	5 mm
Maximum supply voltage (Vsup)	5 V	5 V	5 V
Minimum supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.778 mm
Terminal location	DUAL	DUAL	DUAL
width	15.24 mm	7.5 mm	10.16 mm
Base Number Matches	1	1	1
