856866

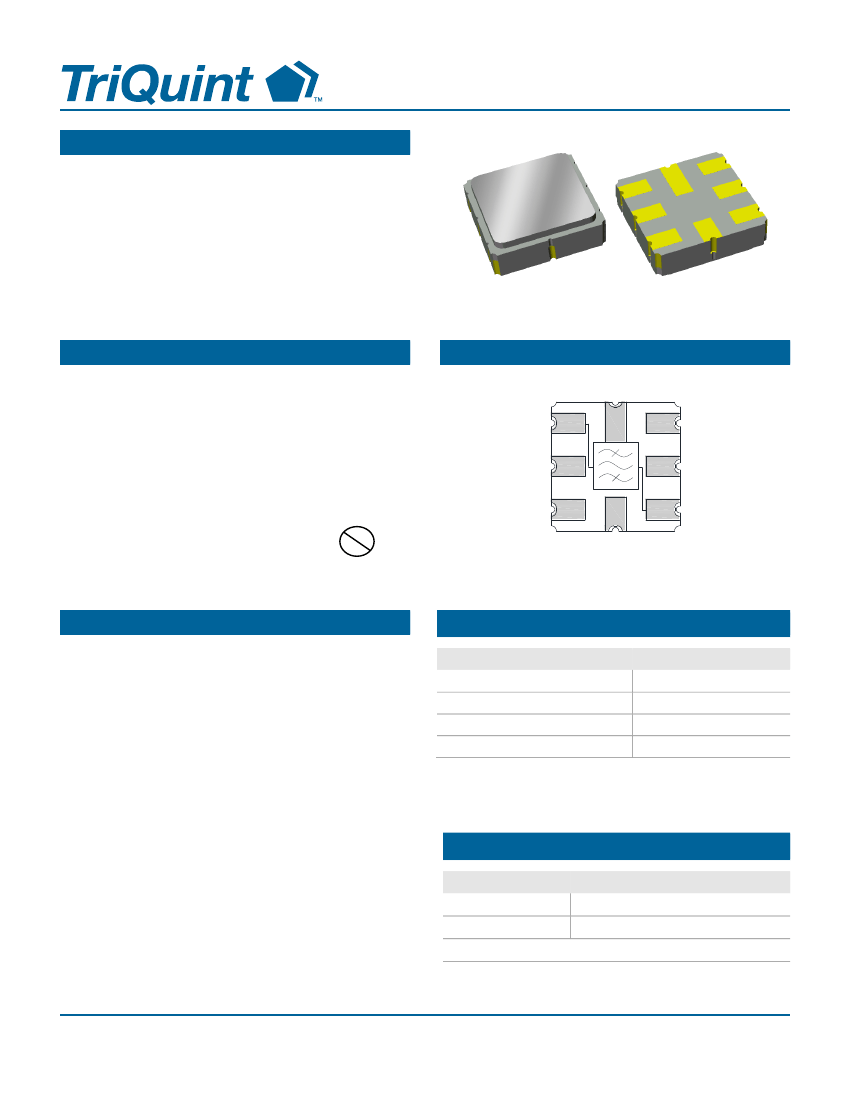

756 MHz SAW Filter
Applications
For broadband wireless access applications.
SMP-15, 3.8 x 3.8 x 1.27 mm
Product Features
Usable bandwidth 20 MHz
Low loss
High attenuation
Single-ended operation
No external matching required for operation at 50 Ω
Small size: 3.8 x 3.8 x 1.27 mm
Ceramic Surface Mount Package (SMP)
Hermetically sealed
RoHS (2002/95/EC) compliant, Pb-free
Pb
Functional Block Diagram
Gnd
Input
1
8
7
Gnd
Gnd
2
6
Gnd
Gnd
3
4
Gnd
5
Output
Top View
General Description
The 856866 is a high-performance IF SAW filter with a
center frequency of 756 MHz and a usable bandwidth of
20 MHz
It features low loss with excellent attenuation, and is
designed to be used with a balanced input and output.
Pin Configuration
Pin No.
1
5
2,6
3,4,7,8
Label
Input
Output
Ground
Case Ground
Ordering Information
Part No.
856866
856866-EVB
Description
Packaged Part
Evaluation board
Standard T/R size = 4000 units/reel
Data Sheet: Rev. B 14-06-16
© 2014 TriQuint
-
1 of 6
-
Disclaimer: Subject to change without notice
www.triquint.com
856866
756 MHz SAW Filter
Absolute Maximum Ratings
Parameter
Storage Temperature
(1)
(2)
Rating
- 40 to + 85 °C
- 40 to + 85 °C
1.
2.
Operable Temperature
Operation of this device outside the parameter ranges given
may cause permanent damage.
Specifications are not guaranteed over all operable
conditions.
Electrical Specifications
(1)
Test conditions unless otherwise noted:
(2)
Temperature Range - 40 to + 85 °C
Parameter
(3)
Center Frequency
Minimum Insertion Loss
(5)
1.0 dB Bandwidth
(5)
Lower 1.0 dB Band Edge
(5)
Upper 1.0 dB Band Edge
Amplitude Variation
(7)
(7)
Conditions
Min
-
-
-
-
766
Typical
(4)
Max
756
0.9
29.15
740.85
770.86
0.4
13.2
46
36
18
35
43
34
54
50
-
2.5
-
746
-
1.0
75
-
-
-
-
-
-
-
-
Units
MHz
dB
MHz
dB p-p
ns p-p
746 – 766 MHz
746 – 766 MHz
10 – 616 MHz
616 – 716 MHz
784 – 788 MHz
796 – 896 MHz
896 – 1005 MHz
1005 – 1092 MHz
1092 – 1500 MHz
(8)
-
-
40
30
15
30
40
30
40
-
Group Delay Variation
Absolute Attenuation
(6)
dB
Source/Load Impedance
Notes:
1.
2.
3.
4.
5.
6.
7.
8.
Single-ended
All specifications are based on the TriQuint schematic reference design shown on page 3.
In production, devices will be tested at room temperature to a guard-banded specification to ensure electrical compliance
over temperature.
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing
tolerances.
Typical values are based on average measurements at room temperature.
Relative to minimum insertion loss.
Absolute attenuation measurements are referenced to zero dB.
Total variation over the defined frequency range.
This is the optimum impedance in order to achieve the performance shown
Data Sheet: Rev. B 14-06-16
© 2014 TriQuint
-
2 of 6
-
Disclaimer: Subject to change without notice
www.triquint.com
856866
756 MHz SAW Filter

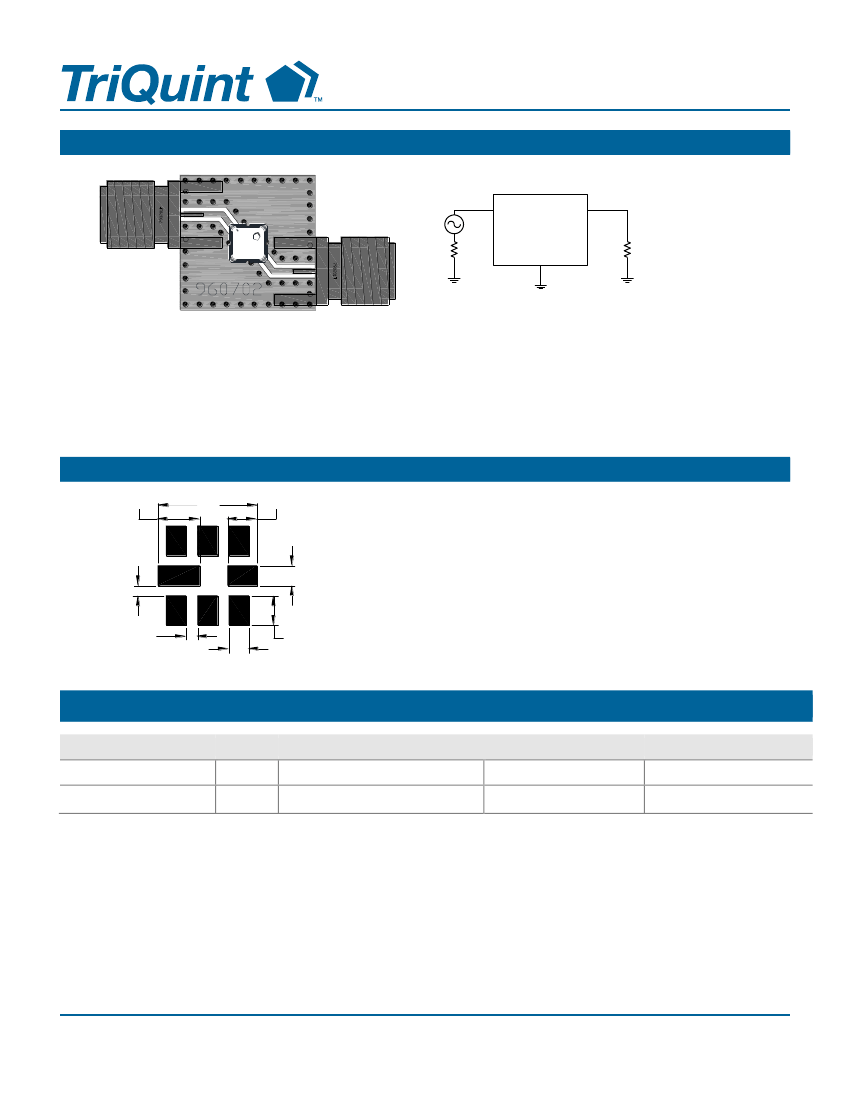

Evaluation Board
1
JJJYM
5
2,3,4
6,7,8
50
50
Notes:
3-layers board - top, middle & bottom layer: 1 oz copper
Substrates: .031” thick FR4 dielectric.
Finish plating: Nickel: 3-8 µm thick, Gold: .03-.2 µm thick
Hole plating: Copper min .0008 µm thick
PCB Mounting Pattern
1.70
4.01
1.19
FS
.81
.41
Notes:
1. All dimensions are in millimeters. Angles are in degrees.
2. This drawing specifies the mounting pattern used on the TriQuint evaluation
board for this product. Some modification may be necessary to suit end
user assembly materials and processes.
.46
.81
1.19
Bill of Material
Reference Des.
SMA
PCB
Value
N/A
N/A
Description
SMA connector
3-layer
Manuf.
Johnson Components
Multiple
Part Number
142-0701-801
960702
Data Sheet: Rev. B 14-06-16
© 2014 TriQuint
-
3 of 6
-
Disclaimer: Subject to change without notice
www.triquint.com
856866
756 MHz SAW Filter

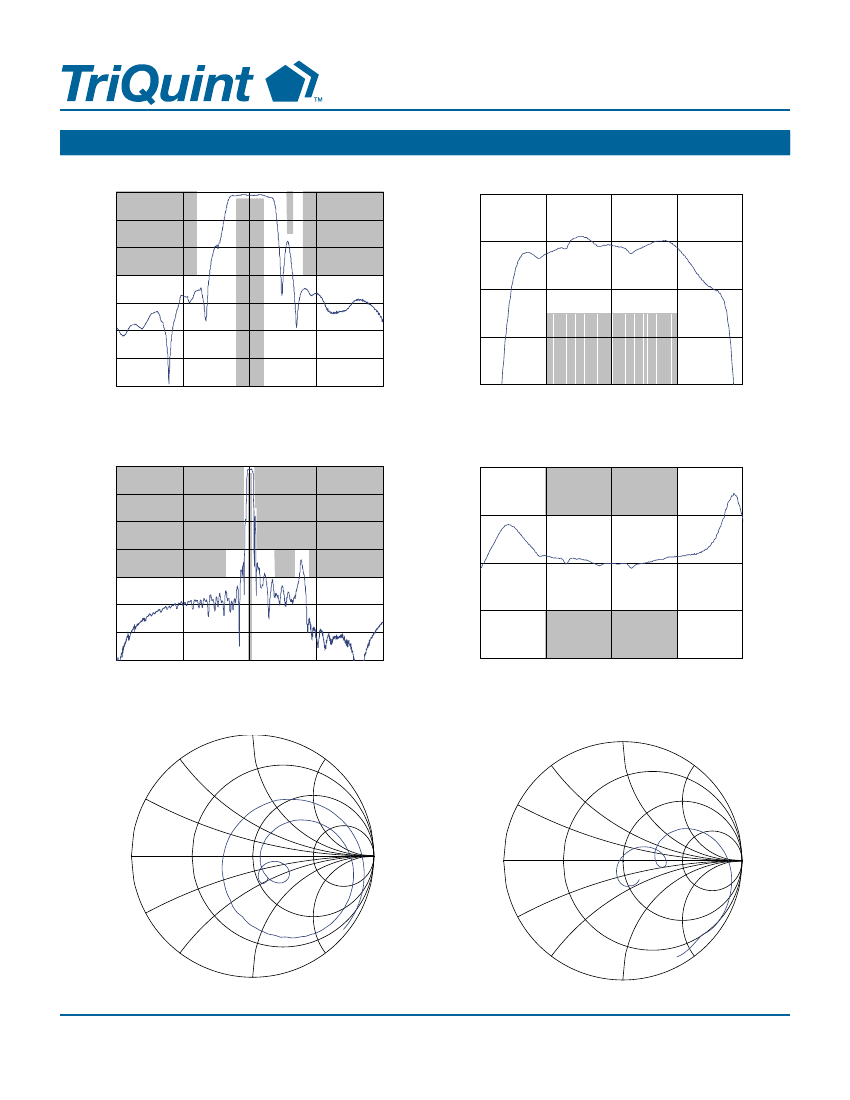

Performance Plots
0
-10
(Test conditions unless otherwise noted: Temp.= + 25 °C)
Passband Response
Frequency Response
0
-20
-1
d
B
-30
-40
-50
-60
-70
656
706
756
806
856
d
B
-2
-3
-4
736
746
756
766
776
Frequency (MHz)
Frequency (MHz)
0
-10
-20
Wideband Response
75
Group Delay Response
37.5
d
B
-30
-40
-50
-60
-70
5
380
755
1130
1505
n
s
e
c
0
-37.5
-75
736
746
756
766
776
Frequency (MHz)
Frequency (MHz)
Input Smith Chart
1
Output Smith Chart
1
0.8
0.8
0.6
0.6
0.4
0.4
0.2
0.2
0
-1
-0 .5
0
0.5
1
-1
-0 .5
0
0
0.5
1
-0 .2
-0 .2
-0 .4
-0 .4
-0 .6
-0 .6
-0 .8
-0 .8
-1
-1
Data Sheet: Rev. B 14-06-16
© 2014 TriQuint
-
4 of 6
-
Disclaimer: Subject to change without notice
www.triquint.com
856866
756 MHz SAW Filter

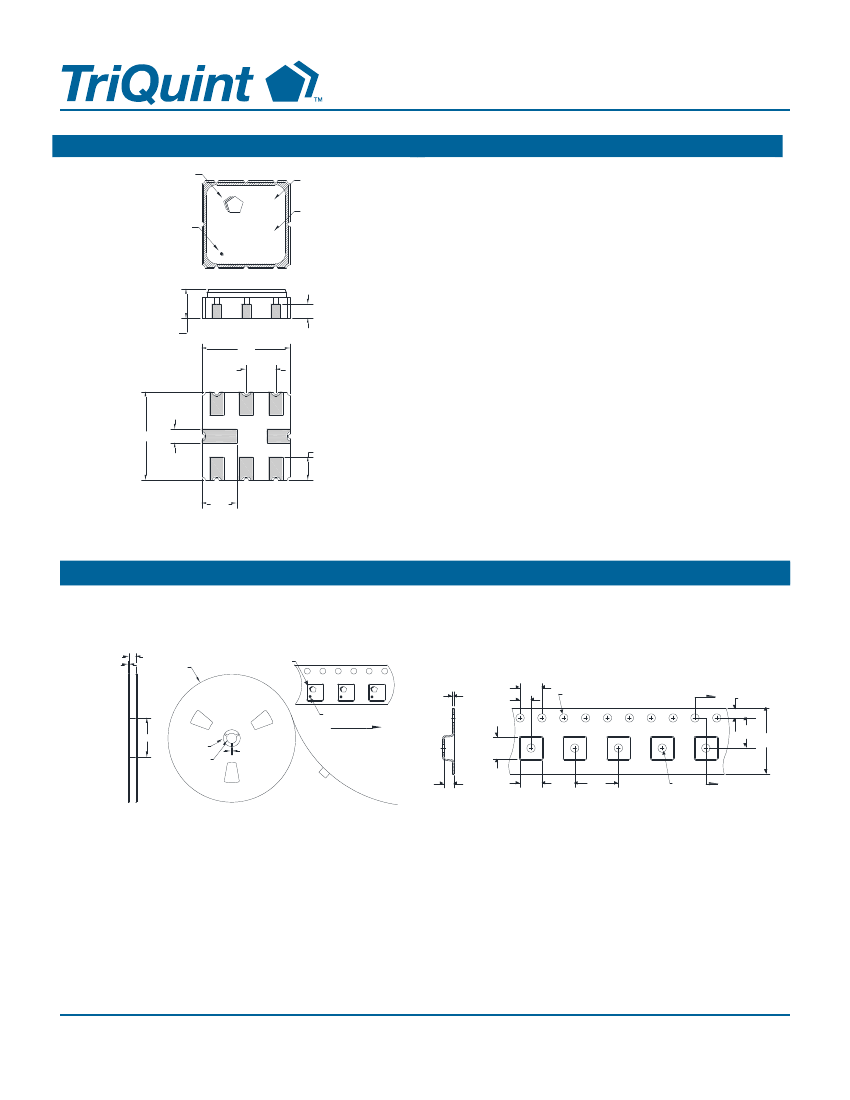

Mechanical Information
TriQuint
logo
Marking
code
FS
ID dot
Date code
Package Style: SMP-15
Dimensions: 3.8 x 3.8 x 1.27 mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0μm, over a 2-6μm
Ni
plating
JJJYM
0.61
1.27 NOM.
1.45 MAX.
3.80
1.27
All dimensions shown are nominal in millimeters
All tolerances are ±0.15mm except overall length and
width ±0.10mm
The date code consists of: day of the current year
(Julian,
3 digits), Y = last digit of the year, and M =
manufacturing site code
Notes:
1.
All dimensions shown are typical in millimeters
2.
An asterisk (*) in front of the marking code
indicates prototype.
3.80
0.60
1.00
1.50
Tape and Reel information
Standard T/R size = 4000 units / reel. All dimensions are in millimeters
2.7
12.8
Ø330
Triquint
logo
Section A-A
0.3
ID dot
4.0
2.0
Ø1.5
A
1.75
5.5
4.1
1.8
4.1
8.0
Ø1.5
A
Ø102 Ø20.2
Ø13.0
Direction of travel
2.0
12.0
Data Sheet: Rev. B 14-06-16
© 2014 TriQuint
-
5 of 6
-
Disclaimer: Subject to change without notice
www.triquint.com
