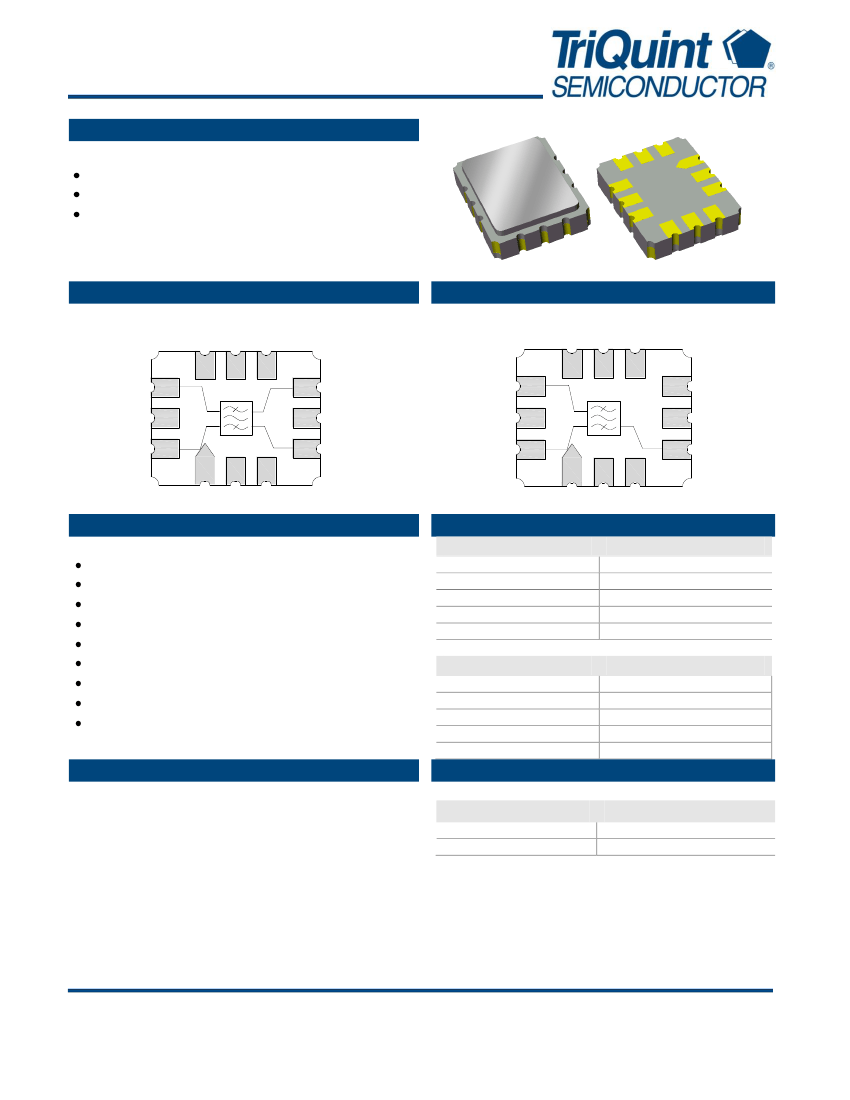

358.4 MHz SAW Filter
Applications
General Purpose Wireless
Wireless Infrastructure
3G, 4G, Multistandard
Functional Block Diagram Bal/Bal
Top view
Gnd Gnd Gnd
9
Input +
Gnd
Input -
10
11
12
1
2
3
8
7
6
5
4
Output -
Gnd
Output +
Functional Block Diagram Bal/SE
Top view
Gnd Gnd Gnd
9
Input +
Gnd
Input -
10
11
12
1
2
3
8
7
6
5
4
Gnd
Gnd
Output
Gnd Gnd Gnd
Gnd Gnd Gnd
Product Features
Usable bandwidth 39.6 MHz
Low loss
High attenuation
Low EVM
Balanced-Balanced or Balanced-Single ended operation
Ceramic Surface Mount Package (SMP)
Small Size: 7.01 x 5.51 x 1.70 mm
Excellent power handling
Hermetic
RoHS
compliant,
Pb-free
Pin Configuration
Pin # Bal/Bal
10
12
4
6
1,2,3,5, 7, 8, 9, 11
Description
Input +
Input -
Output +
Output -
Ground
Pin # Bal/SE
10
12
4
1,2,3,5,6, 7, 8, 9, 11
Description
Input +
Input -
Output
Ground
General Description
The 856882 is a high performance IF SAW filter developed
for 4G and Multistandard infrastructure applications.
It features low loss with excellent attenuation, and is designed
to be used with multiple impedance values and configurations.
The filter is developed for excellent in-band characteristics in
order to minimize system bit-error rates.
This device is RoHS compliant and Pb-free.
Ordering Information
Part No.
856882
856882-EVB
Description
packaged part
evaluation board
Standard T/R size = 3000 units/reel.
Please specify the evaluation board impedance:
1. Balanced 200Ω input, Balance 200Ω output.
2. Balanced 200Ω input, Single-ended 50Ω output.
3. Balanced 100Ω input, Balance 100Ω output.
Data Sheet: Rev - 7/26/11
© 2011 TriQuint Semiconductor, Inc.
- 1 of 8 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856882
358.4 MHz SAW Filter
Specifications
Electrical Specifications
(1, 2)
Specified Temperature Range:
(3)
-33 to +85 ºC
Parameter
(4)
Center Frequency
Insertion Loss
Amplitude Variation
(6)
Absolute Group Delay
Group Delay Variation
(6)
Time side-lobe response attenuation
IIP3
EVM
(7)
Absolute Attenuation
(8)
Conditions
At 358.4 MHz
338.6 – 378.2 MHz
At 358.4 MHz
338.6 – 378.2 MHz
(1.0 – 500 µs)
Tones 5 MHZ separated power
> 5dBm per tone
10.0 – 253.4 MHz
253.4 – 270.0 MHz
270.0 – 294.4 MHz
294.4 – 312.4 MHz
312.4 – 326.4 MHz
388.4 – 404.4 MHz
404.4 – 422.4 MHz
422.4 – 463.4 MHz
463.4 – 660.0 MHz
660.0 – 780.0 MHz
780.0 – 3000 MHz
338.6 – 378.2 MHz
Min
-
-
-
-
-
40
45
-
55
53
55
40
25
30
40
45
55
35
55
10
-
Typical
(5)
358.4
9.5
0.35
0.43
21
45
50
1.3
61
56
58
53
44
37
49
52
66
38
62
12
200, 100, 50
Max
-
11.5
1.0
0.5
50
-
-
3
-
-
-
-
-
-
-
-
-
-
-
-
-
Units
MHz
dB
dB p-p
µs
ns p-p
dB
dBm
%
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
Input/Output Return Loss
Source/Load Impedance
(9)
Notes:
1. All specifications are based on the TriQuint schematics for the different impedances shown on page 3, 4 & 5.
2. An external impedance matching network with ±2% tolerance will be necessary to achieve the proposed specifications.
3. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature.
4. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances.
5. Typical values are based on average measurements at room temperature.
6. These Variations are defined as the difference between the lowest loss and the highest loss within the defined frequency points.
7. Measured with an RRC filtered QPSK modulated signal with a BW of 3.84 MHz placed anywhere within 338.6 to 378.2 MHz.
8. Relative to insertion loss at center frequency.
9. See the impedance options in the ordering information section on page 1.
Data Sheet: Rev - 7/26/11
© 2011 TriQuint Semiconductor, Inc.
- 2 of 8 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856882
358.4 MHz SAW Filter

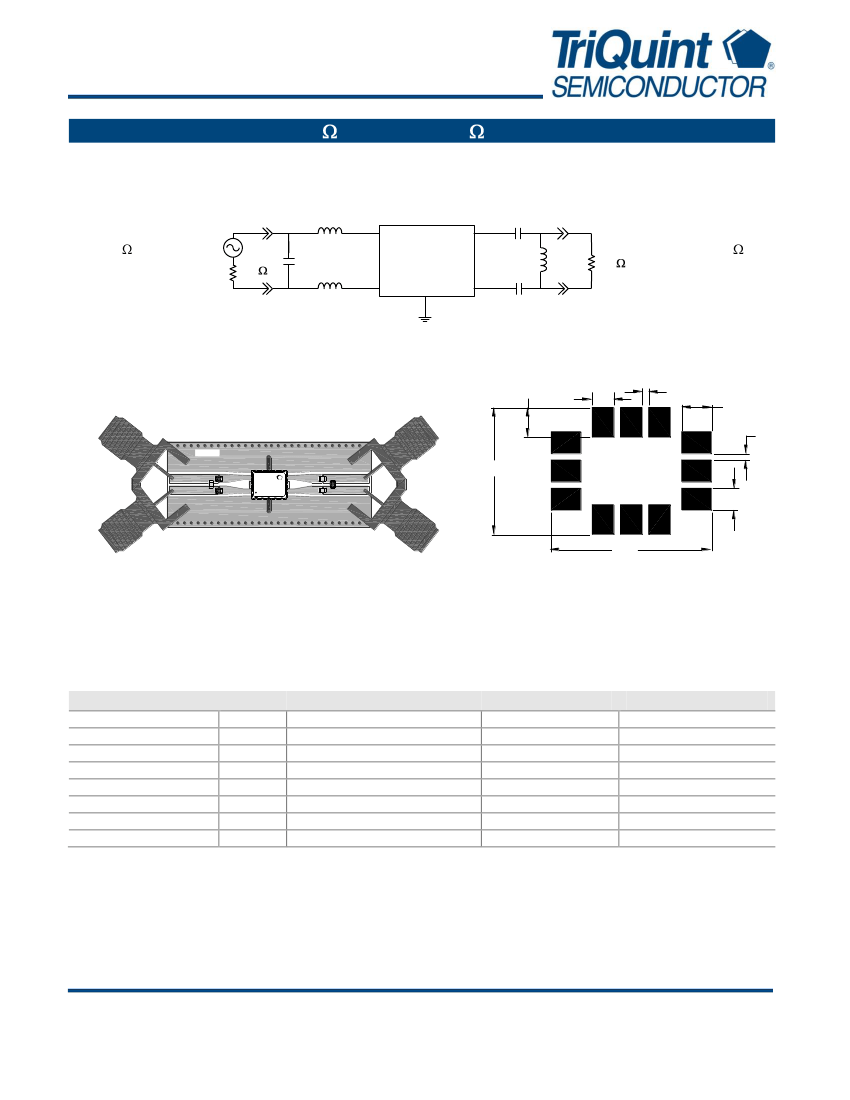

Impedance option #1 – 200
Schematic
27nH
12
4
27nH
1,2,3,5
10 7,8,9,11
27nH
6
39pF
200
39pF
Bal Input, 200
Bal Output
200
Balanced
Input
200
5pF
200
Balanced
Output
Note: Actual matching values may vary due to PCB layout and parasitic
PC Board
Mounting Configuration
1.34
.99
.28
1.34
.28
960686
L1
C1
L2
TriQuint
856882
JJJYHH
C2
L3
5.71
C3
.99
7.21
Notes:
Top, middle & bottom layers: 1 oz copper
Substrates: FR4 dielectric, .031” thick
Finish plating: Nickel: 3-8µm thick, Gold: .03-.2µm thick
Hole plating: Copper min .0008µm thick
Notes:
1.
All dimensions are in millimeters.
2.
This footprint represents a recommendation only.
Bill of Material
Reference Desg.
C1
C2
C3
L1
L2
L3
SMA
PCB
Value
5.0 pF
39 pF
39 pF
27nH
27nH
27nH
N/A
N/A
Description
Chip Ceramic, 0603, 5%
Chip Ceramic, 0603, 5%
Chip Ceramic, 0603, 5%
Coil Wire-wound, 0603, 5%
Coil Wire-wound, 0603, 5%
Coil Wire-wound, 0603, 5%
SMA connector
3-layer
Manufacturer
Panasonic
Panasonic
Panasonic
Coillcraft
Coillcraft
Coillcraft
Johnson Components
multiple
Part Number
ECU-V1H0050CCV
ECU-V1H390KCV
ECU-V1H390KCV
0603CS-27NXJBC
0603CS-27NXJBC
0603CS-27NXJBC
142-0701-801
960686
Data Sheet: Rev - 7/26/11
© 2011 TriQuint Semiconductor, Inc.
- 3 of 8 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856882
358.4 MHz SAW Filter

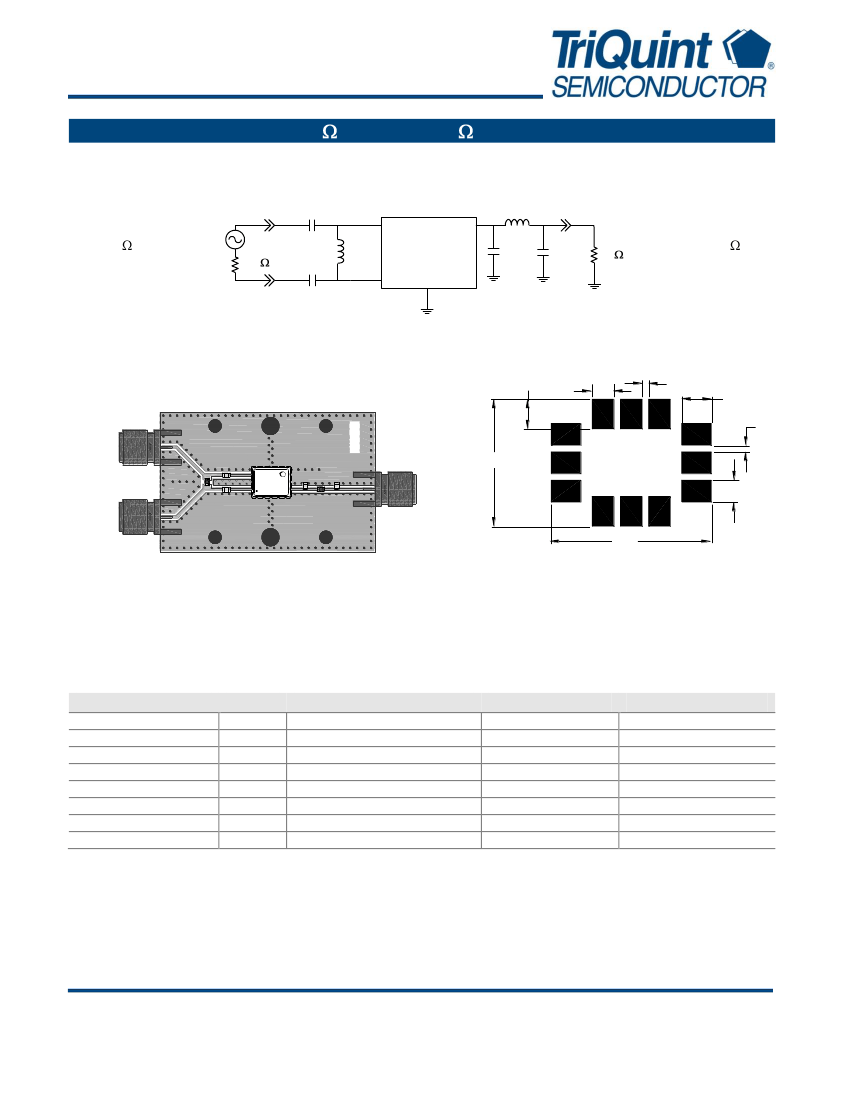

Impedance option #2 – 200
Schematic
100pF
12
4
4.0pF
1,2,3,5,6
10 7,8,9,11
100pF
18pF
50
22nH
Bal Input, 50
SE Output
200
Balanced
Input
27nH
200
50
Single-ended
Output
Note: Actual matching values may vary due to PCB layout and parasitic
PC Board
Mounting Configuration
1.34
.99
.28
1.34
.28
5.71
TriQuint
856882
JJJYHH
.99
7.21
Notes:
Top, middle & bottom layers: 1 oz copper
Substrates: FR4 dielectric, .031” thick
Finish plating: Nickel: 3-8µm thick, Gold: .03-.2µm thick
Hole plating: Copper min .0008µm thick
Notes:
3.
All dimensions are in millimeters.
4.
This footprint represents a recommendation only.
Bill of Material
Reference Desg.
C1
C2
C3
C4
L1
L2
SMA
PCB
Value
100 pF
100 pF
4.0 pF
18 pF
27 nH
22 nH
N/A
N/A
Description
Chip Ceramic, 0603, 5%
Chip Ceramic, 0603, 5%
Chip Ceramic, 0603, 5%
Chip Ceramic, 0603, 5%
Coil Wire-wound, 0603, 5%
Coil Wire-wound, 0603, 5%
SMA connector
3-layer
Manufacturer
Panasonic
Panasonic
Panasonic
Panasonic
MuRata
MuRata
Johnson Components
multiple
Part Number
ECU-V1H101KCV
ECU-V1H101KCV
ECU-V1H040CCV
ECU-V1H0180KCV
LQW18AN27NJ00
LQW18AN22NJ00
142-0701-801
991275
Data Sheet: Rev - 7/26/11
© 2011 TriQuint Semiconductor, Inc.
- 4 of 8 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856882
358.4 MHz SAW Filter
Impedance option #3 100
Schematic
16nH
12
4
6.0pF
1,2,3,5
10 7,8,9,11
6
13nH
100
Bal Input, 100
Bal Output
100
Balanced
Input
100
12pF
16nH
4.0pF
100
Balanced
Output
Note: Actual matching values may vary due to PCB layout and parasitic
PC Board
Mounting Configuration
1.34
.99
.28
1.34
.28
960686
L1
C1
L2
C2
TriQuint
856882
JJJYHH
5.71
C3
L3
.99
7.21
Notes:
Top, middle & bottom layers: 1 oz copper
Substrates: FR4 dielectric, .031” thick
Finish plating: Nickel: 3-8µm thick, Gold: .03-.2µm thick
Hole plating: Copper min .0008µm thick
Notes:
5.
All dimensions are in millimeters.
6.
This footprint represents a recommendation only.
Bill of Material
Reference Desg.
C1
C2
C3
L1
L2
L3
SMA
PCB
Value
12 pF
4.0 pF
6.0 pF
16 nH
16 nH
13 nH
N/A
N/A
Description
Chip Ceramic, 0603, 5%
Chip Ceramic, 0603, 5%
Chip Ceramic, 0603, 5%
Coil Wire-wound, 0603, 5%
Coil Wire-wound, 0603, 5%
Coil Wire-wound, 0603, 5%
SMA connector
3-layer
Manufacturer
Panasonic
Panasonic
Panasonic
MuRata
MuRata
MuRata
Johnson Components
multiple
Part Number
ECU-V1H120JCV
ECU-V1H040CCV
ECU-V1H060CCV
LQW18AN16NJ00
LQW18AN16NJ00
LQW18AN13NJ00
142-0701-801
960686
Data Sheet: Rev - 7/26/11
© 2011 TriQuint Semiconductor, Inc.
- 5 of 8 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
