CTCDRH62BF-221M datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> CTCDRH62BF-221M

Preview

CTCDRH62BF-221M: Description1 ELEMENT, 220 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size170KB，1 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CTCDRH62BF-221M Overview

1 ELEMENT, 220 uH, GENERAL PURPOSE INDUCTOR, SMD

CTCDRH62BF-221M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
DC Resistance	3.12 Ω
Nominal inductance(L)	220 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	CTCDRH62BF
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.001 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

Power Inductors - Shielded

ctparts.com

CTCDRH62BF Series

From 2.9 µH to 330 µH

Part

Number

CTCDRH62BF-2R9N

CTCDRH62BF-3R3N

CTCDRH62BF-4R0N

CTCDRH62BF-4R7N

CTCDRH62BF-5R5N

CTCDRH62BF-7R1N

CTCDRH62BF-100M

CTCDRH62BF-120M

CTCDRH62BF-150M

CTCDRH62BF-180M

CTCDRH62BF-220M

CTCDRH62BF-270M

CTCDRH62BF-330M

CTCDRH62BF-390M

CTCDRH62BF-470M

CTCDRH62BF-560M

CTCDRH62BF-680M

CTCDRH62BF-820M

CTCDRH62BF-101M

CTCDRH62BF-121M

CTCDRH62BF-151M

CTCDRH62BF-181M

CTCDRH62BF-221M

CTCDRH62BF-271M

CTCDRH62BF-331M

Not shown at actual size.

SPECIFICATIONS

Part numbers indicate available tolerance.

M = ±20%, N = ±30%

*Inductance drop =25% typ. at IDC

DCR

Max.

Ω

(Ω)

.068

.075

.080

.090

.096

.110

.150

.200

.230

.270

.340

.380

.450

.490

.690

.780

1.07

1.21

1.39

1.90

2.18

2.77

3.12

4.38

4.94

*IDC

Min.

(A)

1.94

1.80

1.63

1.55

1.40

1.22

1.10

1.00

0.90

0.80

0.74

0.66

0.59

0.54

0.50

0.46

0.42

0.38

0.34

0.31

0.28

0.26

0.23

0.22

0.19

Inductance

(µH )

2.9

3.3

4.0

4.7

5.5

7.1

10

12

15

18

22

27

33

39

47

56

68

82

100

120

150

180

220

270

330

L Test

Freq.

7.96MHz

1.0kHz

Compliant

RoHS

CHARACTERISTICS

Description:

SMD (shielded) power inductor

Applications:

Power supplies for VTR, OA equipment, LCD

televisions, PC notebooks, portable communication equipment,

DC/DC converters, etc.

Operating Temperature:

-40°C to +85°C

Inductance Tolerance:

±20%, ±30%

Testing:

Tested on a HP4285A at the specified frequency

Packaging:

Tape & Reel

Marking:

Parts are marked with inductance code

Miscellaneous:

RoHS Compliant

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

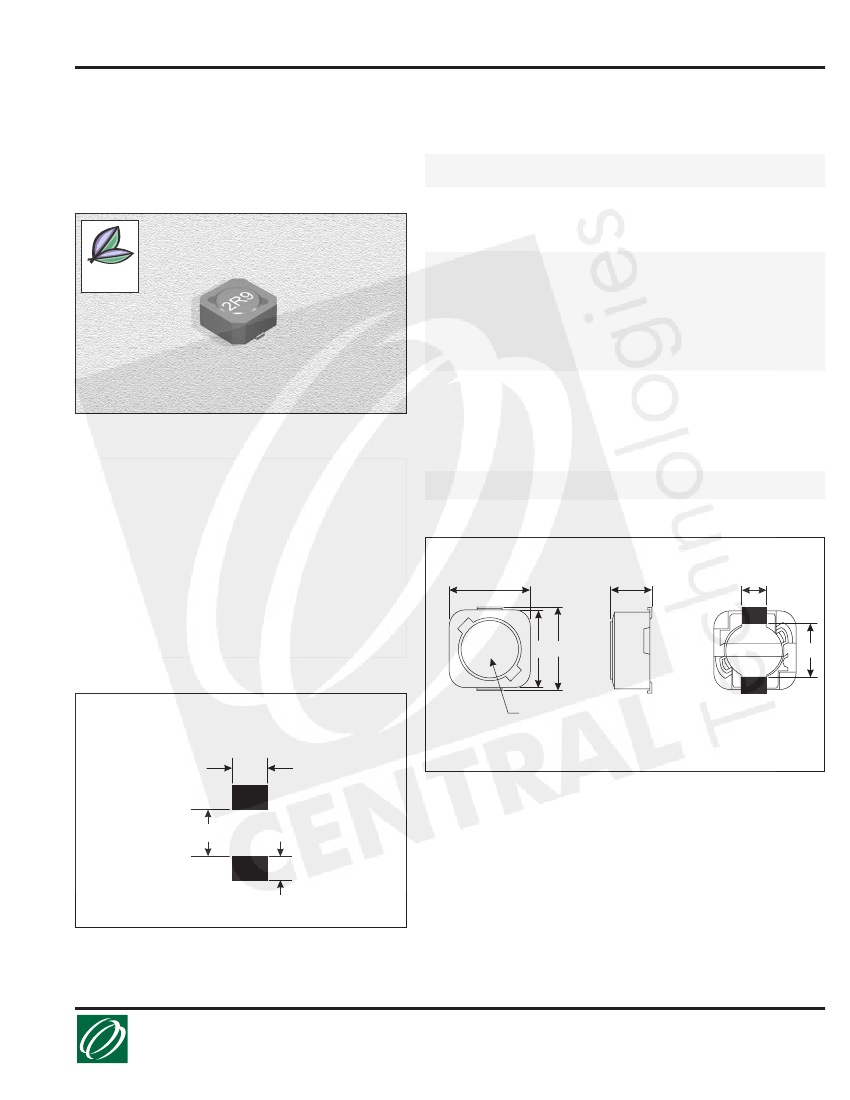

PHYSICAL DIMENSIONS

Size

mm

inches

A

6.2±0.3

0.24±0.01

B

5.9±0.3

0.23±0.01

C

6.6±0.3

0.26±0.01

D

Max.

3.0

0.12

E

1.5±0.2

0.059±0.008

F

4.6

0.18

A

D

E

XXX

B C

F

PAD LAYOUT

Unit: mm

Marking

(Inductance Code)

1.9

4.6

1.4

01.17.07

Technologies

Manufacturer of Passive and Discrete Semiconductor Components

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice
