DEM-9P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DEM-9P

DEM-9P: DescriptionD Type Connector, 9 Contact(s), Male, Solder Lug Terminal, Hole .112-.124, Receptacle; CategoryThe connector The connector; File Size695KB，7 Pages; ManufacturerJapan Aviation Electronics Industry Limited; Environmental Compliance

Download Datasheet Parametric Compare View All

DEM-9P Overview

D Type Connector, 9 Contact(s), Male, Solder Lug Terminal, Hole .112-.124, Receptacle

DEM-9P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknow
Other features	RS-232
body width	0.496 inch
subject depth	0.185 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	2.7 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1250VAC V
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	GLASS FILLED DIALLYL PHTHALATE
MIL compliance	YES
Manufacturer's serial number	DEM
Installation option 1	HOLE .112-.124
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Rated current (signal)	5 A
reliability	MIL-C-24308
Shell surface	ZINC/YELLOW CHROMATE
Shell material	STEEL
Termination type	SOLDER LUG
Total number of contacts	9
Maximum wire diameter	20 AWG
Minimum wire diameter	20 AWG
Evacuation force-minimum value	2.224 N

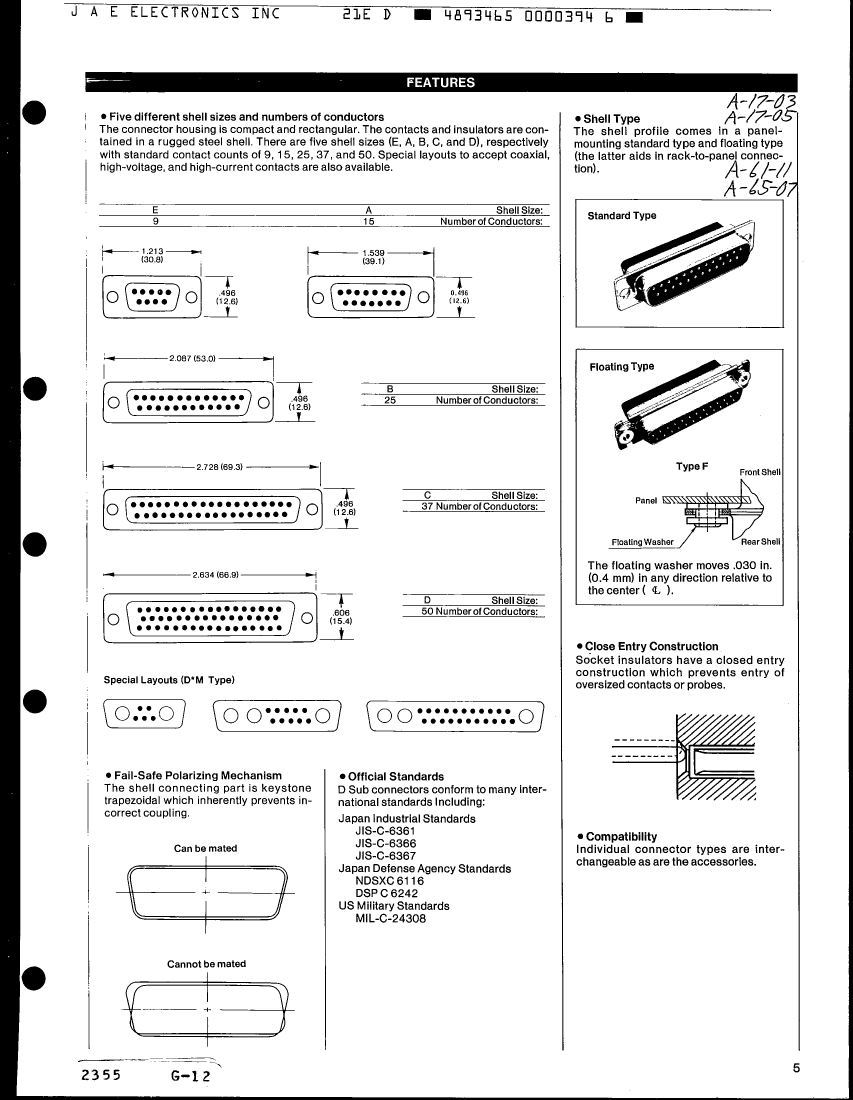

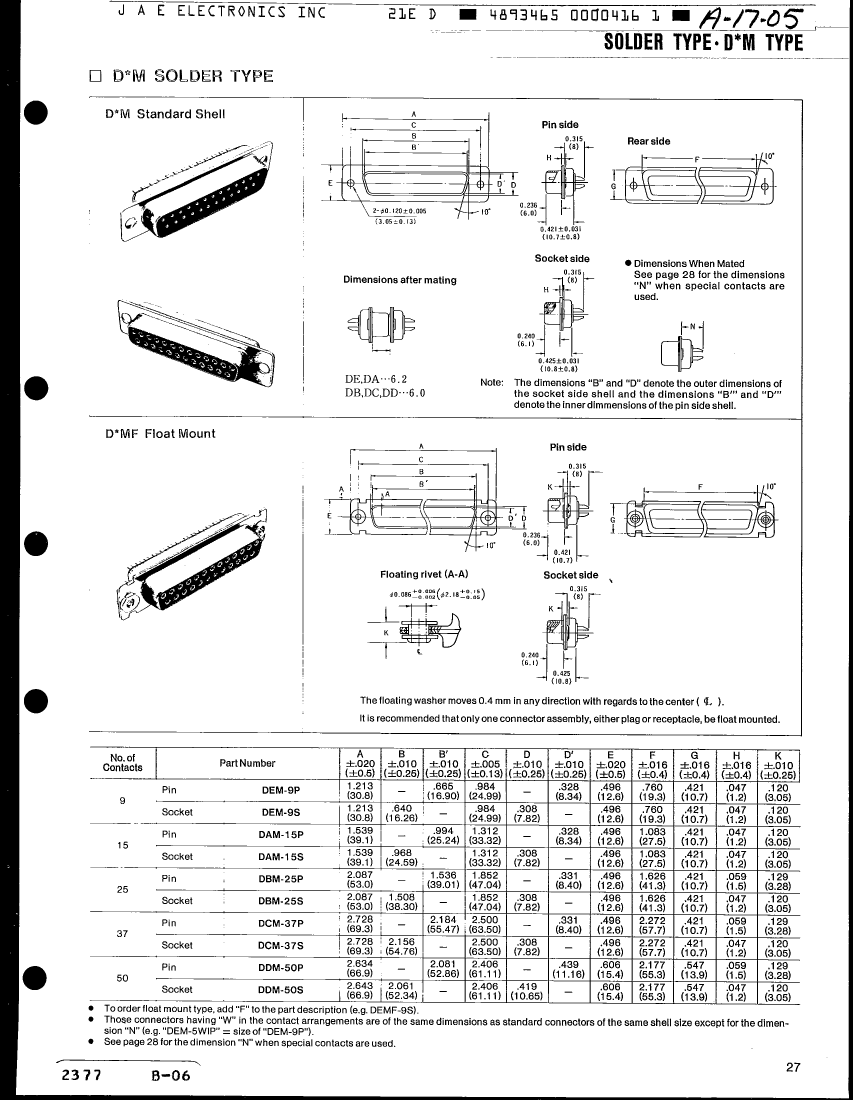

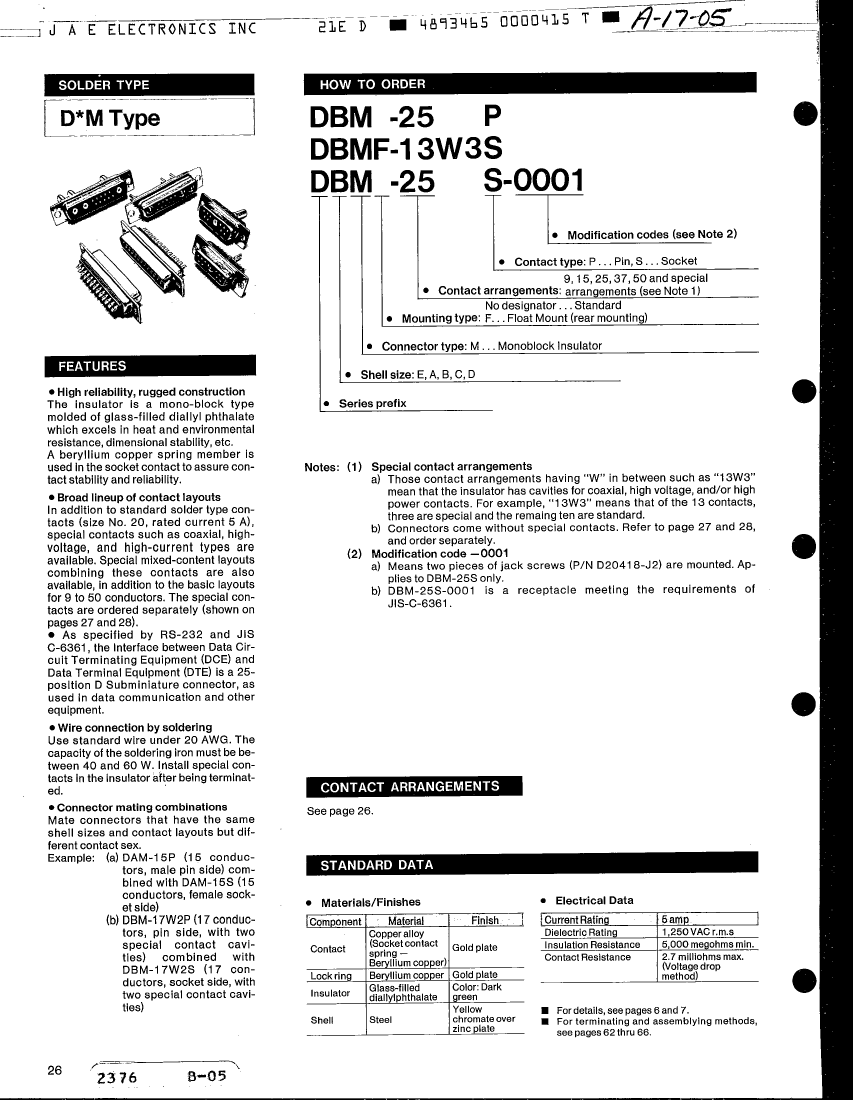

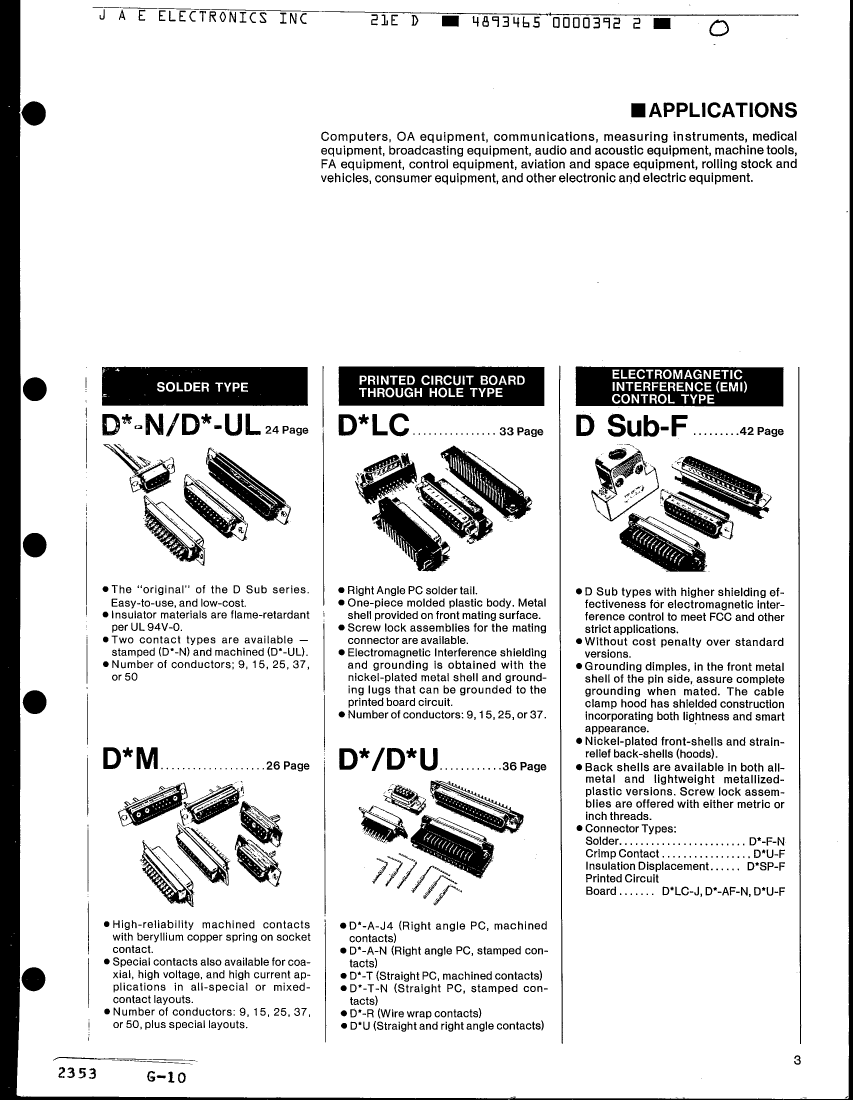

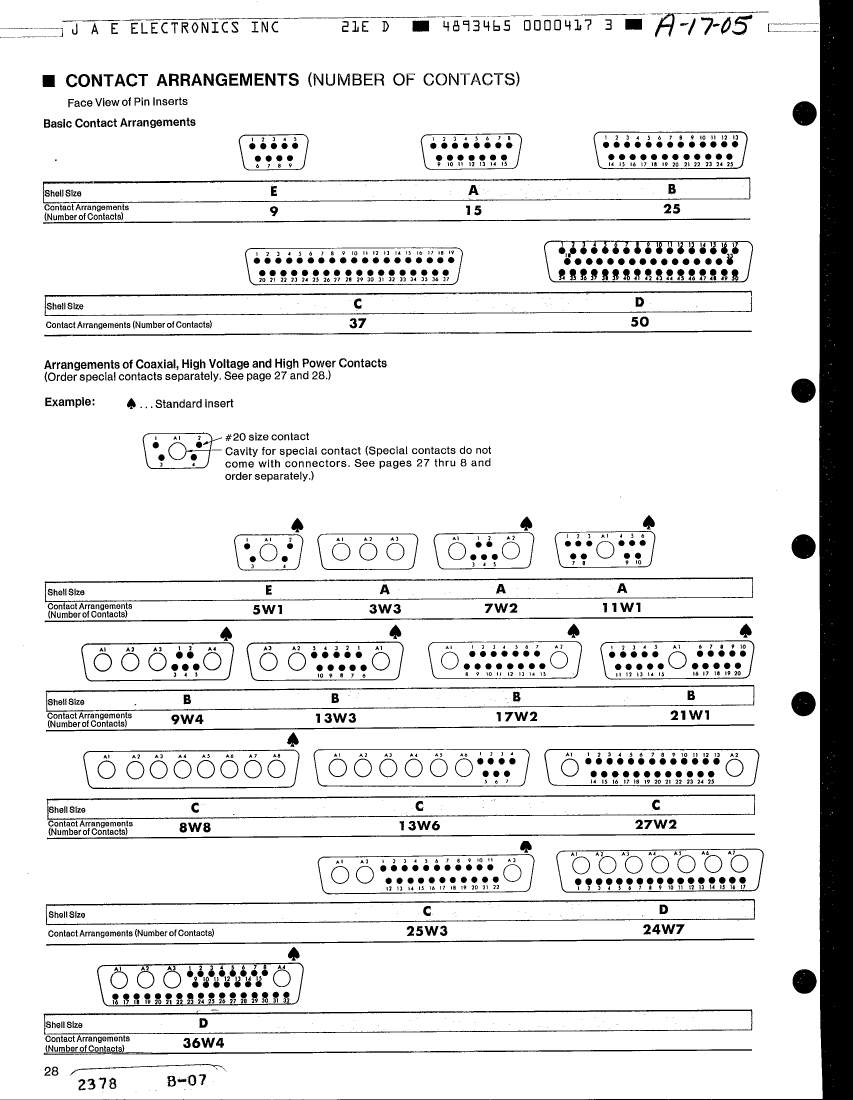

Preview

Download Datasheet

View All

DEM-9P Related Products

	DEM-9P	DDM-50S	DDM-50P	DEMF-9S	DEMF-9P	DAM-15S
Description	D Type Connector, 9 Contact(s), Male, Solder Lug Terminal, Hole .112-.124, Receptacle	D Type Connector, 50 Contact(s), Female, Solder Lug Terminal, Hole .112-.124, Plug	D Type Connector, 50 Contact(s), Male, Solder Lug Terminal, Hole .112-.124, Receptacle	D Type Connector, 9 Contact(s), Female, Solder Lug Terminal, Plug	D Type Connector, 9 Contact(s), Male, Solder Lug Terminal, Receptacle	D Type Connector, 15 Contact(s), Female, Solder Lug Terminal, Hole .112-.124, Plug
Maker	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknow
Other features	RS-232	RS-232	RS-232	RS-232	RS-232	RS-232
body width	0.496 inch	0.606 inch	0.606 inch	0.496 inch	0.496 inch	0.496 inch
subject depth	0.185 inch	0.185 inch	0.185 inch	0.185 inch	0.185 inch	0.185 inch
body length	1.213 inch	2.634 inch	2.634 inch	1.213 inch	1.213 inch	1.539 inch
Body/casing type	RECEPTACLE	PLUG	RECEPTACLE	PLUG	RECEPTACLE	PLUG
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU	AU	AU	AU	AU	AU
Contact point gender	MALE	FEMALE	MALE	FEMALE	MALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	2.7 mΩ	2.7 mΩ	2.7 mΩ	2.7 mΩ	2.7 mΩ	2.7 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1250VAC V	1250VAC V	1250VAC V	1250VAC V	1250VAC V	1250VAC V
maximum insertion force	3.336 N	3.336 N	3.336 N	3.336 N	3.336 N	3.336 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	GREEN	GREEN	GREEN	GREEN	GREEN	GREEN
insulator material	GLASS FILLED DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	GLASS FILLED DIALLYL PHTHALATE	GLASS FILLED DIALLYL PHTHALATE	DIALLYL PHTHALATE
MIL compliance	YES	YES	YES	YES	YES	YES
Manufacturer's serial number	DEM	DDM	DDM	DEMF	DEMF	DAM
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL
Number of rows loaded	2	3	3	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A
reliability	MIL-C-24308	MIL-C-24308	MIL-C-24308	MIL-C-24308	MIL-C-24308	MIL-C-24308
Shell surface	ZINC/YELLOW CHROMATE	ZINC/YELLOW CHROMATE	ZINC/YELLOW CHROMATE	ZINC/YELLOW CHROMATE	ZINC/YELLOW CHROMATE	ZINC/YELLOW CHROMATE
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Termination type	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Total number of contacts	9	50	50	9	9	15
Maximum wire diameter	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG
Minimum wire diameter	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG
Evacuation force-minimum value	2.224 N	2.224 N	2.224 N	2.224 N	2.224 N	2.224 N
Is it Rohs certified?	conform to	conform to	conform to	conform to	-	conform to
Installation option 1	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	-	-	HOLE .112-.124
