CTDD1106S-0515S-1 datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> CTDD1106S-0515S-1

CTDD1106S-0515S-1: Description1-OUTPUT 1 W DC-DC UNREG PWR SUPPLY MODULE; CategoryPower/power management The power supply circuit; File Size160KB，2 Pages; ManufacturerCT [ Central Technologies ]

Download Datasheet Parametric View All

CTDD1106S-0515S-1 Overview

1-OUTPUT 1 W DC-DC UNREG PWR SUPPLY MODULE

CTDD1106S-0515S-1 Parametric

Parameter Name	Attribute value
Maker	CT [ Central Technologies ]
Parts packaging code	MODULE
package instruction	PLASTIC PACKAGE-4
Contacts	4
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V
Minimum input voltage	4.5 V
Nominal input voltage	5 V
JESD-30 code	R-PSMA-P4
Maximum load regulation	15%
Number of functions	1
Output times	1
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Nominal output voltage	15 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	PIN/PEG
Terminal location	SINGLE
Maximum total power output	1 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

DC/DC Converters

ctparts.com

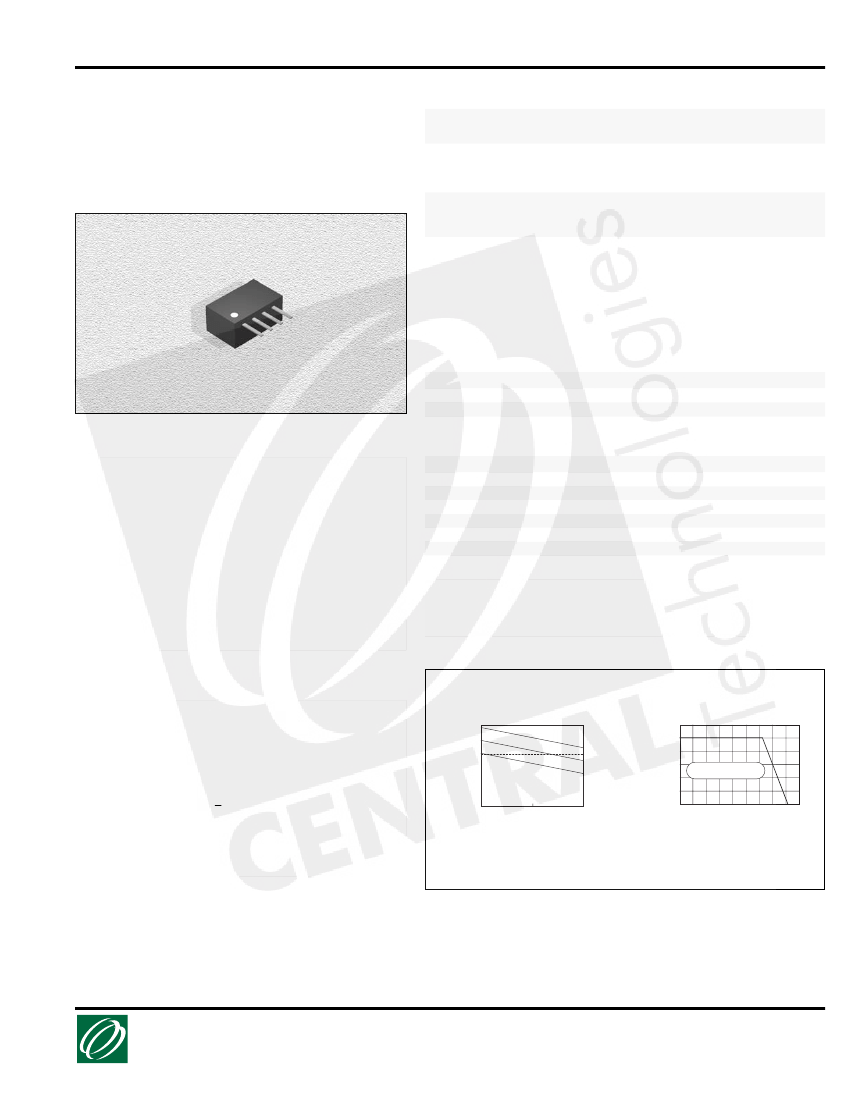

SPECIFICATIONS

CTDD1106S-S Series

Fixed Input Isolated & Unregulated

1W Output, Single Output

Part

Number

CTDD1106S-0505S-1

CTDD1106S-0509S-1

CTDD1106S-0512S-1

CTDD1106S-0515S-1

CTDD1106S-1205S-1

CTDD1106S-1209S-1

CTDD1106S-1212S-1

CTDD1106S-1215S-1

CTDD1106S-2405S-1

CTDD1106S-2409S-1

CTDD1106S-2412S-1

CTDD1106S-2415S-1

Vin Nom.

5VDC

12VDC

24VDC

Input Range

4.5-5.5VDC

10.8-13.2VDC

21.6-26.4VDC

Vout

5VDC

9VDC

12VDC

15VDC

5VDC

9VDC

12VDC

15VDC

5VDC

9VDC

12VDC

15VDC

Iout

Max.

(mA)

200

111

200

111

200

111

Iout

Min.

(mA)

Effi(Typ.)

78%

79%

80%

78%

80%

81%

79%

80%

81%

79%

Not shown at actual size.

ISOLATION SPECIFICATIONS

Item

Isolation Voltage

Isolation Resistance

Test Condition

Tested for 1 minute

Test at 500VDC

MIN

1000

TYP

MAX

Units

VDC

MΩ

FEATURES

Efficiency:

To 80%

Temperature Range:

-40°C to 85°C

Isolation:

1KVDC

Package:

UL94-V0

Miscellaneous:

Single Output Voltage. No heatsink required. No

external components required. Industry standard pinout. Small

footprint. Custom service available.

Samples available.

Item

Output Power

Line regulation

Load regulation

Output voltage accuracy

Temperature drift

Output ripple

Switching frequency

OUTPUT SPECIFICATIONS

Test Condition

For Vin change of 1%

10% to 100% full load

See tolerance envelope graph

100% full load

20MHz Bandwidth

Full load, nominal input

100

150

0.03

200

%/°C

mVp-p

KHz

MIN

0.1

TYP

MAX

1.2

Units

Note:

1. All specifications measured at TA=25°C, humidity<75%, nominal input voltage and rated output load

unless otherwise specified.

TYPICAL CHARACTERISTICS

CHARACTERISTICS

Short Circuit Protection:

1 second

Temperature Rise at Full Load:

25°C Max. 15°C Typ.

Cooling:

Free air convection

Operating Temperature Range:

-40°C to +85°C

Storage Temperature Range:

-55°C to +125°C

Lead Temperature:

300°C (1.5mm from case for 10 seconds)

Storage Humidity Range:

< 95%

Case Material:

Plastic (UL94-V0)

MTBF:

>1,000,000 hours

Tolerance Envelope Graph

Temperature Derating Graph

Typic

l Load

Line

+2.5%

-2.5%

-7.5%

Output Power(%)

Output Voltage(%)

+10%

+5%

Nominal

Voltage

120

100

10%

50%

100%

-40

Safe Operating Area

120

Output Current(%)

Ambient Temperature(°C)

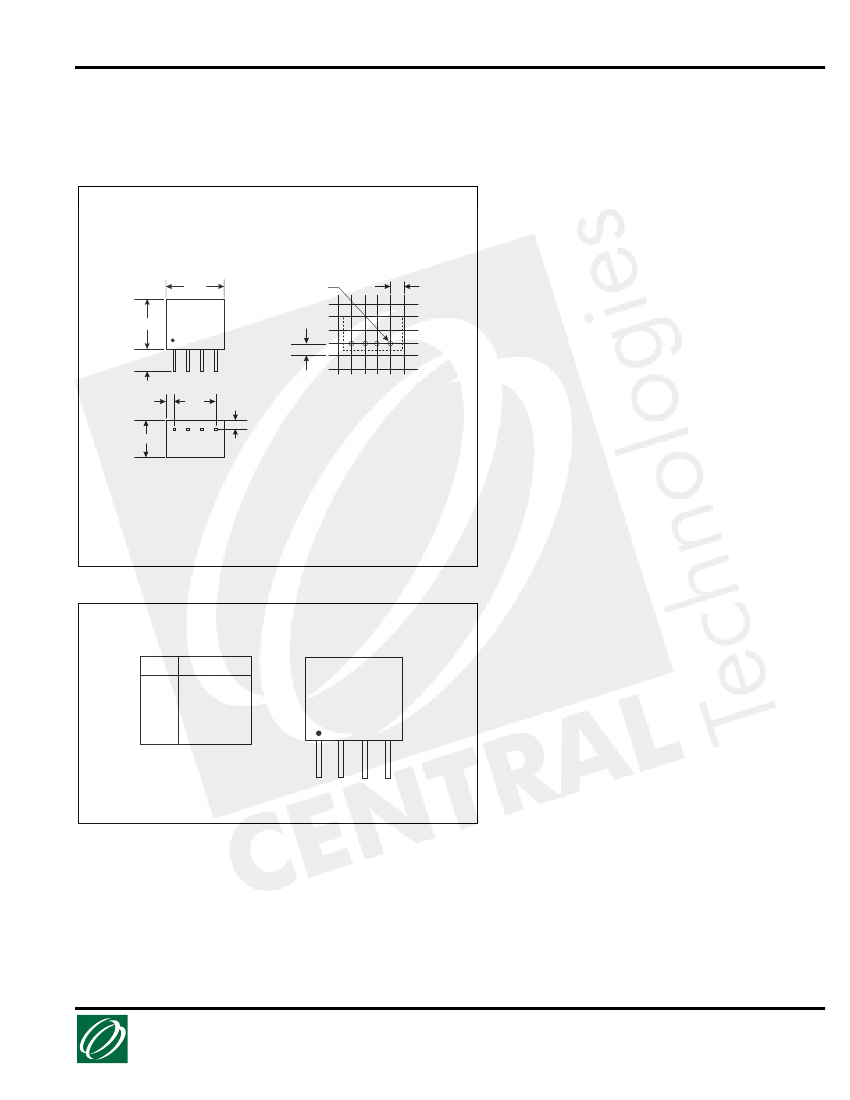

01.10.05

Technologies

Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice
