CTDD1966SF-0305SU-1: Description1-OUTPUT 1 W DC-DC UNREG PWR SUPPLY MODULE; CategoryPower/power management The power supply circuit; File Size176KB，2 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CTDD1966SF-0305SU-1 Overview

1-OUTPUT 1 W DC-DC UNREG PWR SUPPLY MODULE

CTDD1966SF-0305SU-1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CT [ Central Technologies ]
Parts packaging code	MODULE
package instruction	,
Contacts	7/4
Reach Compliance Code	compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	3.6 V
Minimum input voltage	3 V
Nominal input voltage	3.3 V
JESD-30 code	R-PSMA-P4
Maximum load regulation	15%
Number of functions	1
Output times	1
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Nominal output voltage	5 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	PIN/PEG
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	1 W
Fine-tuning/adjustable output	NO

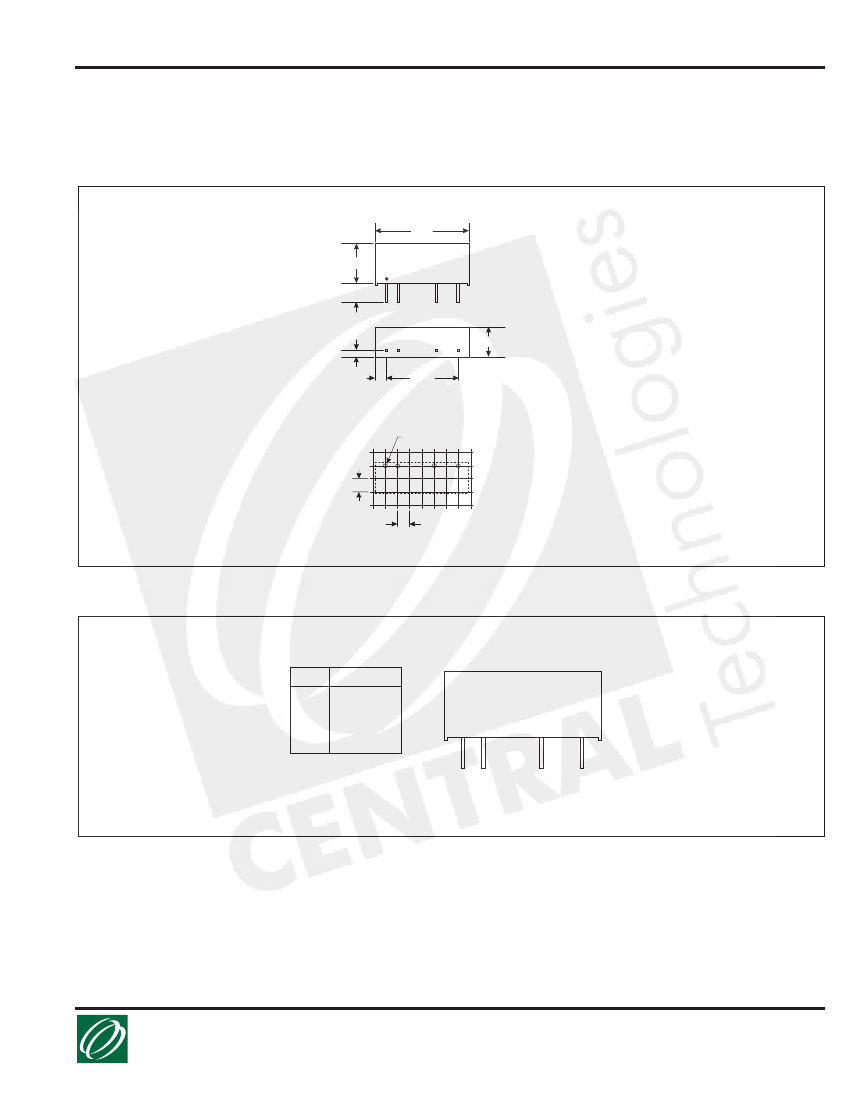

Preview

Download Datasheet

View All

DC/DC Converters

ctparts.com

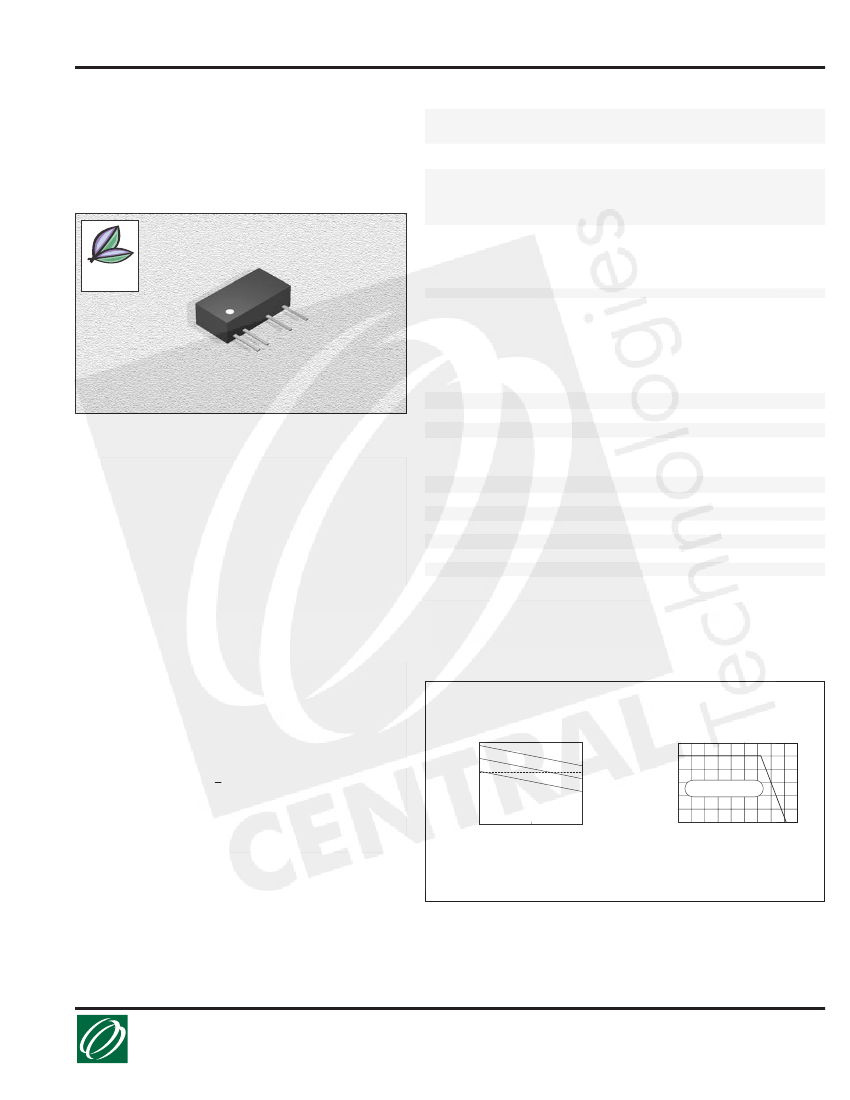

SPECIFICATIONS

CTDD1906SF-SU Series

Fixed Input Isolated & Unregulated

1W Output, Single Output

Part

Number

CTDD1906SF-0303SU-1

CTDD1966SF-0305SU-1

CTDD1906SF-0503SU-1

CTDD1906SF-0505SU-1

CTDD1906SF-0509SU-1

CTDD1906SF-0512SU-1

CTDD1906SF-0515SU-1

CTDD1906SF-1203SU-1

CTDD1906SF-1205SU-1

CTDD1906SF-1209SU-1

CTDD1906SF-1212SU-1

CTDD1906SF-1215SU-1

CTDD1906SF-1505SU-1

CTDD1906SF-2403SU-1

CTDD1906SF-2405SU-1

CTDD1906SF-2409SU-1

CTDD1906SF-2412SU-1

CTDD1906SF-2415SU-1

Vin Nom.

3.3VDC

5VDC

12VDC

15VDC

24VDC

Input Range

3.0~3.6VDC

4.5~5.5VDC

4.5-5.5VDC

10.8~13.2VDC

10.8-13.2VDC

13.5~16.5VDC

21.6~26.4VDC

21.6-26.4VDC

Vout

3.3VDC

5VDC

3.3VDC

5VDC

9VDC

12VDC

15VDC

3.3VDC

5VDC

9VDC

12VDC

15VDC

5VDC

3.3VDC

5VDC

9VDC

12VDC

15VDC

Iout

Max.

(mA)

300

200

300

200

111

83

67

300

200

111

83

67

200

300

200

111

83

67

Iout

Min.

(mA)

300

20

300

20

12

9

7

300

20

12

9

7

20

300

20

12

9

7

Effi(Typ.)

72%

73%

74%

78%

80%

81%

75%

79%

81%

72%

76%

79%

80%

Not shown at actual size.

Compliant

RoHS

ISOLATION SPECIFICATIONS

Item

Isolation Voltage

Isolation Resistance

Test Condition

Tested for 1 minute

Test at 500VDC

MIN

3000

1000

TYP

MAX

Units

VDC

MΩ

FEATURES

Efficiency:

To 81%

Temperature Range:

-40°C to 85°C

Isolation:

3KVDC

Package:

UL94-V0

Miscellaneous:

Single Output Voltage. Fixed Input Voltage.

Power Density 0.85W/cm

3

. Unregulated Output Voltage. No

heatsink required. No external component required. Industry

standard pinout. Fully encapsulated. Small footprint. Custom

service available.

Samples available.

OUTPUT SPECIFICATIONS

Item

Output Power

Line regulation

Load regulation

Output voltage accuracy

Temperature drift

Output ripple & noise

Switching frequency

For Vin change of 1%

10% to 100% full load

See tolerance envelope graph

100% full load

20Hz-300KHz bandwidth

Full load, nominal input

100

50

150

0.03

75

200

%/°C

mVp-p

KHz

10

Test Condition

MIN

0.1

TYP

MAX

1

1.2

15

Units

W

%

Note:

1. All specifications measured at TA=25°C, humidity<75%, nominal input voltage and rated output load

unless otherwise specified.

CHARACTERISTICS

Short Circuit Protection:

1 second

Temperature Rise at Full Load:

25°C Max. 15°C Typ.

Cooling:

Free air convection

No-load power consumption:

10% nominal power (typical)

Operating Temperature Range:

-40°C to +85°C

Storage Temperature Range:

-55°C to +125°C

Lead Temperature:

300°C (1.5mm from case for 10 seconds)

Storage Humidity Range:

< 95%

Case Material:

Plastic (UL94-V0)

MTBF:

>1,000,000 hours

Miscellaneous:

RoHS Compliant.

TYPICAL CHARACTERISTICS

Tolerance Envelope Graph

Temperature Derating Graph

Typic

a

l Load

Line

+2.5%

-2.5%

-7.5%

Output Power(%)

Output Voltage(%)

+10%

+5%

Nominal

Voltage

120

100

80

60

10%

50%

100%

40

20

0

-40

Safe Operating Area

0

40

80

120

Output Current(%)

Ambient Temperature(°C)

03.29.06

Technologies

Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice

CENTRAL
