BA8204F datasheet, PDF - EEWORLD Datasheet

BA8204F: DescriptionTone ringer IC for telephone set; CategoryWireless rf/communication Telecom circuit; File Size120KB，6 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

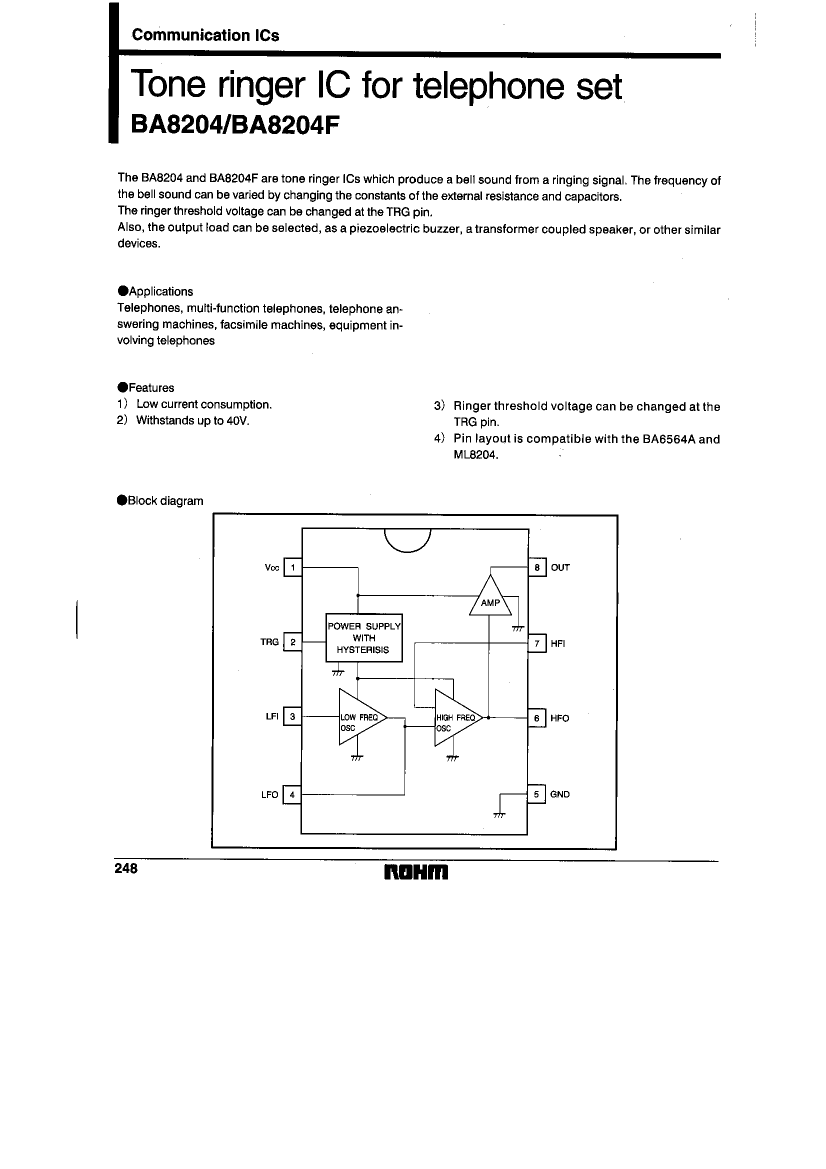

BA8204F Overview

Tone ringer IC for telephone set

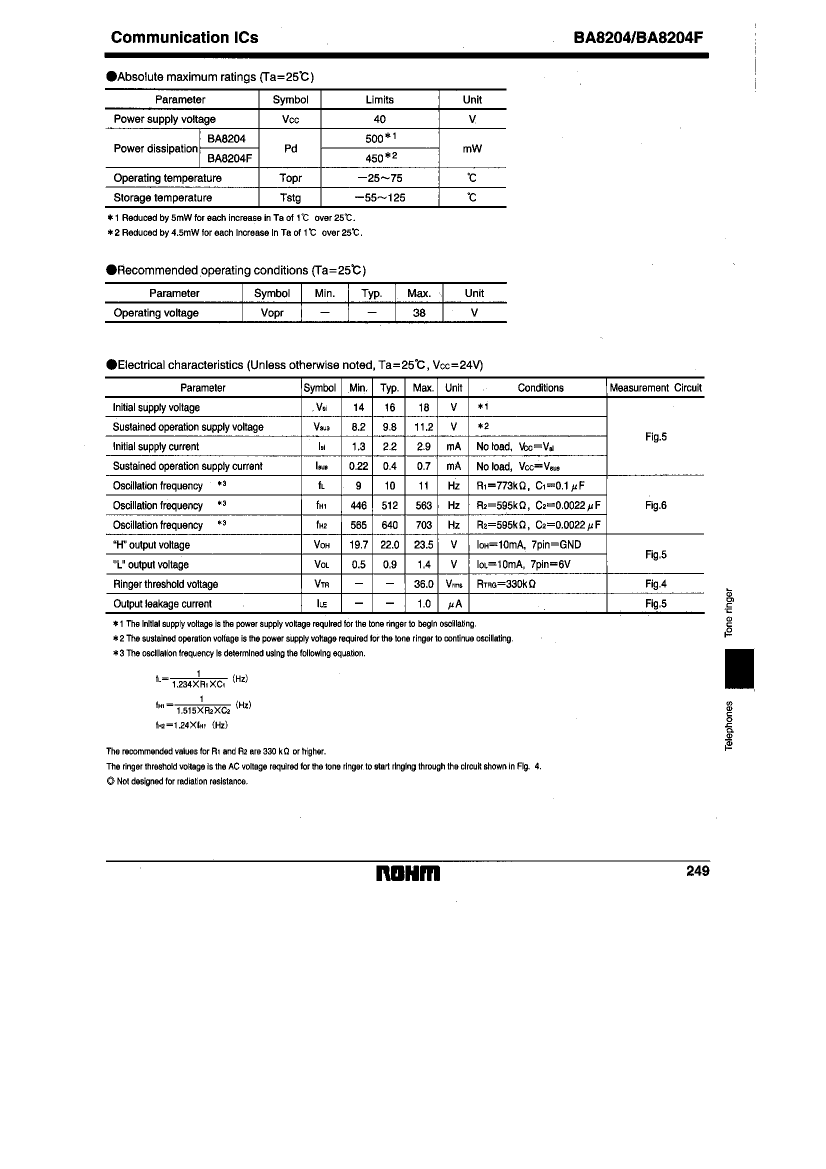

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	LSOP, SOP8,.25
Contacts	8
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	5 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	24 V
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum slew rate	0.0029 mA
Nominal supply voltage	24 V
surface mount	YES
technology	BIPOLAR
Telecom integrated circuit types	TELEPHONE RINGER CIRCUIT
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	4.4 mm
Base Number Matches	1

	BA8204F	BA8204
Description	Tone ringer IC for telephone set	Tone ringer IC for telephone set
Is it Rohs certified?	incompatible	conform to
Maker	ROHM Semiconductor	ROHM Semiconductor
Parts packaging code	SOIC	DIP
package instruction	LSOP, SOP8,.25	DIP, DIP8,.3
Contacts	8	8
Reach Compliance Code	unknown	unknown
JESD-30 code	R-PDSO-G8	R-PDIP-T8
length	5 mm	9.3 mm
Number of functions	1	1
Number of terminals	8	8
Maximum operating temperature	75 °C	75 °C
Minimum operating temperature	-25 °C	-25 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOP	DIP
Encapsulate equivalent code	SOP8,.25	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	24 V	24 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	3.7 mm
Maximum slew rate	0.0029 mA	0.0029 mA
Nominal supply voltage	24 V	24 V
surface mount	YES	NO
technology	BIPOLAR	BIPOLAR
Telecom integrated circuit types	TELEPHONE RINGER CIRCUIT	TELEPHONE RINGER CIRCUIT
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	4.4 mm	7.62 mm
Base Number Matches	1	1
