CTDD2010DF-241515-T1K-2 datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> CTDD2010DF-241515-T1K-2

CTDD2010DF-241515-T1K-2: Description2-OUTPUT 2 W DC-DC UNREG PWR SUPPLY MODULE; CategoryPower/power management The power supply circuit; File Size492KB，2 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric Compare View All

CTDD2010DF-241515-T1K-2 Overview

2-OUTPUT 2 W DC-DC UNREG PWR SUPPLY MODULE

CTDD2010DF-241515-T1K-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	DIP
package instruction	,
Contacts	14/7
Reach Compliance Code	compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	26.4 V
Minimum input voltage	21.6 V
Nominal input voltage	24 V
JESD-30 code	R-PDMA-P7
Maximum load regulation	15%
Number of functions	1
Output times	2
Number of terminals	7
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Nominal output voltage	15 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	2 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

DC/DC Converters

ctparts.com

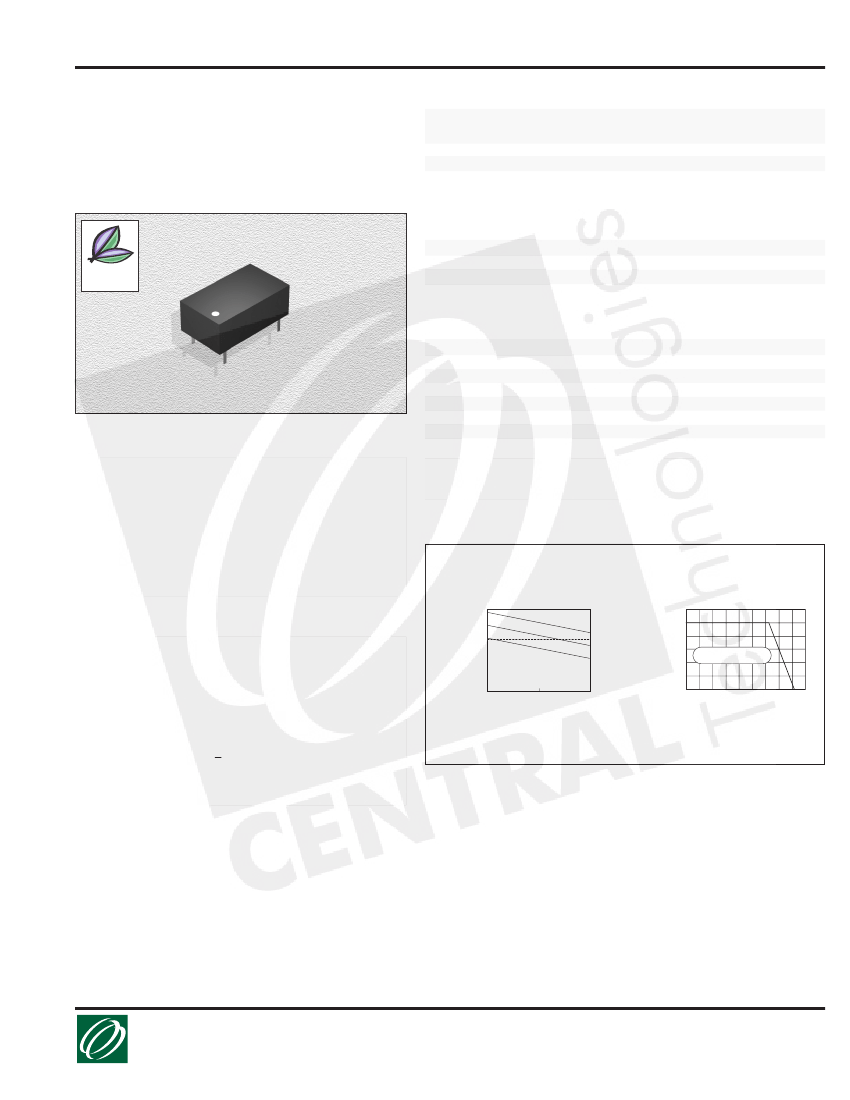

SPECIFICATIONS

CTDD2010DF-T1K-2 Series

Fixed Input Isolated & Unregulated

2W Output, Twin Independent Output

Part

Number

CTDD2010DF-050505-T1K-2

CTDD2010DF-121515-T1K-2

CTDD2010DF-240505-T1K-2

CTDD2010DF-241515-T1K-2

Vin

Nom.

(VDC)

Input Range

(VDC)

4.5-5.5

10.8-13.2

21.6-26.4

Vo1,Vo2

(VDC)

Io1,Io2

Max.

(mA)

200

Io1,Io2

Min.

(mA)

Effi.

Typ.

(%)

Not shown at actual size.

Item

Isolation Voltage

ISOLATION SPECIFICATIONS

Test Condition

Tested for 1 minute

Test at 500VDC

MIN

1000

TYP

MAX

Units

VDC

MΩ

Compliant

RoHS

Isolation Resistance(Vin/Vout)

Isolation Resistance(Vo1/Vo2)

OUTPUT SPECIFICATIONS

Item

Output Power

Line regulation

Load regulation

Output voltage accuracy

Temperature drift

Output ripple

100% full load

20MHz Bandwidth

Full load, nominal input

100

For Vin change of 1%

10% to 100% full load

See tolerance envelope graph

0.03

200

%/°C

mVp-p

KHz

Test Condition

MIN

0.2

TYP

MAX

1.2

Units

FEATURES

Efficiency:

To 87%

Temperature Range:

-40°C to +85°C

Isolation:

1KVDC

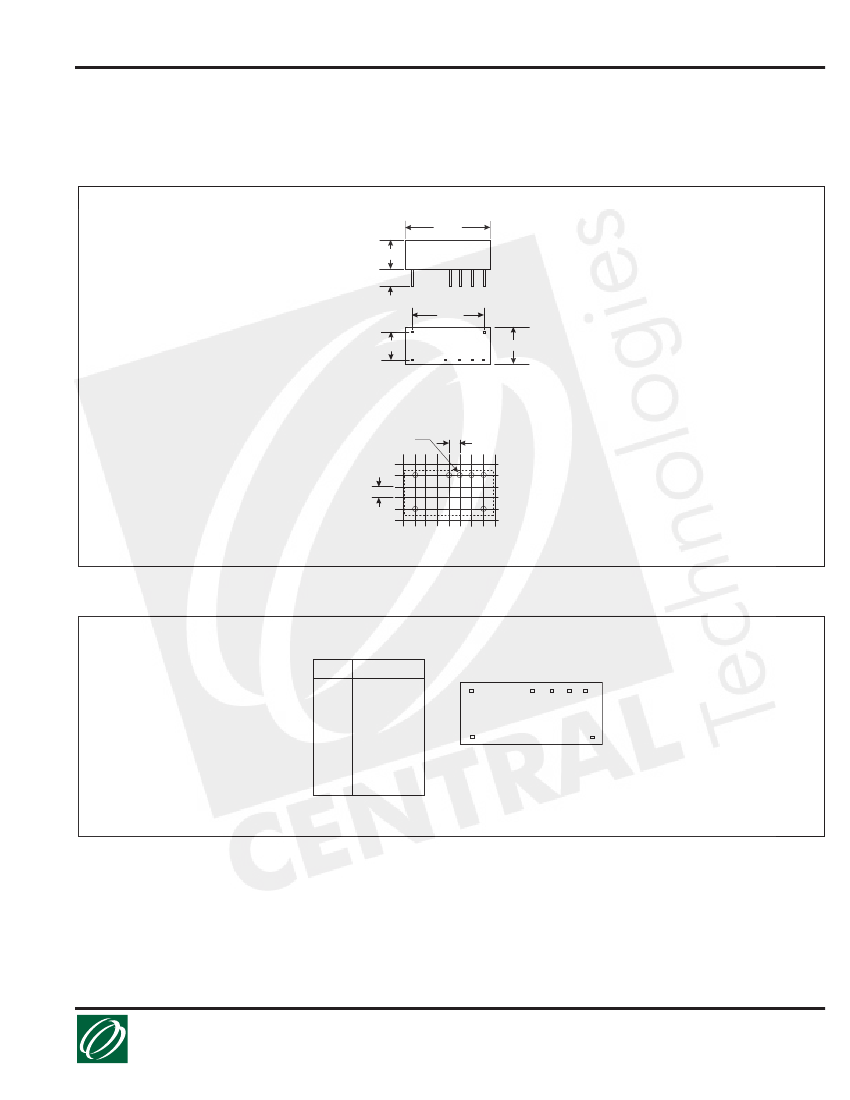

Package:

UL94-V0

Miscellaneous:

No heat sink required. No external components

required. Industry standard pinout. Twin Ouput Voltage. Super

Miniature DIP package. Small Footprint. Custom service available.

Samples available.

Switching frequency

Note:

1. All specifications measured at TA=25°C, humidity<75%, nominal input voltage and rated output unless

otherwise specified.

TYPICAL CHARACTERISTICS

Tolerance Envelope Graph

Temperature Derating Graph

CHARACTERISTICS

Short Circuit Protection:

1 second

Temperature Rise at Full Load:

25°C Max. 15°C Typ.

Cooling:

Free air convection

No Load Power Consumption:

10% nominal power (typical)

Operating Temperature Range:

-40°C to +85°C

Storage Temperature Range:

-55°C to +125°C

Lead Temperature:

300°C (1.5mm from case for 10 seconds)

Storage Humidity Range:

< 95%

Case Material:

Plastic (UL94-V0)

MTBF:

>3,500,000 hours

Miscellaneous:

RoHS Compliant.

Typic

l Load

Line

+2.5%

-2.5%

-7.5%

Output Power(%)

Output Voltage(%)

+10%

+5%

Nominal

Voltage

120

100

Safe Operating Area

10%

50%

100%

-40

120

Output Current(%)

Ambient Temperature(°C)

06.04.07

Technologies

Manufacturer of Passive and Discrete Semiconductor Components

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice

CENTRAL
