CTDD3220DF-2412-D1.5K-5M datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> CTDD3220DF-2412-D1.5K-5M

CTDD3220DF-2412-D1.5K-5M: Description2-OUTPUT 5 W DC-DC REG PWR SUPPLY MODULE; CategoryPower/power management The power supply circuit; File Size273KB，2 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CTDD3220DF-2412-D1.5K-5M Overview

2-OUTPUT 5 W DC-DC REG PWR SUPPLY MODULE

CTDD3220DF-2412-D1.5K-5M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	MODULE
package instruction	,
Contacts	23
Reach Compliance Code	compli
ECCN code	EAR99
Other features	-12V OUTPUT ALSO AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	18 V
Nominal input voltage	24 V
JESD-30 code	R-MDMA-P8
Maximum load regulation	1%
Number of functions	1
Output times	2
Number of terminals	8
Maximum operating temperature	71 °C
Minimum operating temperature	-40 °C
Maximum output voltage	12.36 V
Minimum output voltage	11.64 V
Nominal output voltage	12 V
Package body material	METAL
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	5 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

DC/DC Converters

ctparts.com

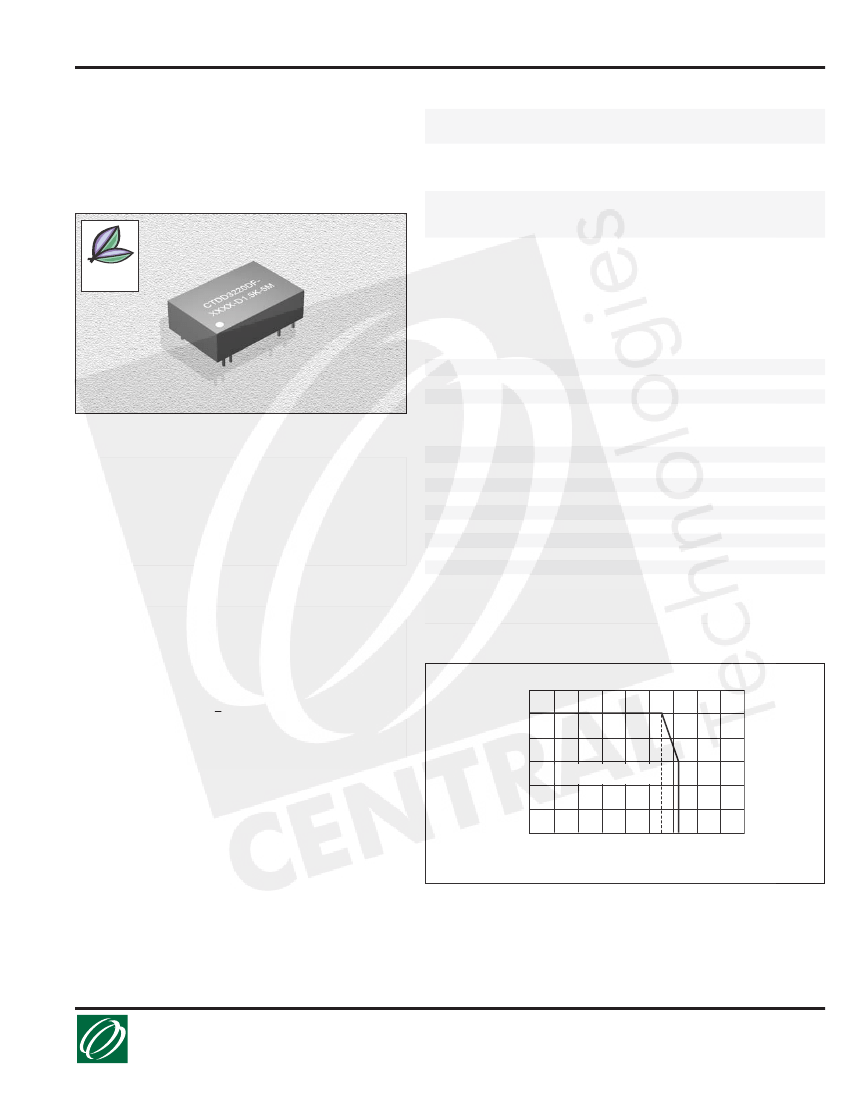

SPECIFICATIONS

CTDD3220DF-D1.5K-5M

Series

Wide Input Isolated & Regulated

5W Output, Dual Output

Part

Number

CTDD3220DF-1205-D1.5K-5M

CTDD3220DF-1212-D1.5K-5M

CTDD3220DF-1215-D1.5K-5M

CTDD3220DF-1224-D1.5K-5M

CTDD3220DF-2405-D1.5K-5M

CTDD3220DF-2412-D1.5K-5M

CTDD3220DF-2415-D1.5K-5M

CTDD3220DF-2424-D1.5K-5M

CTDD3220DF-4805-D1.5K-5M

CTDD3220DF-4812-D1.5K-5M

CTDD3220DF-4815-D1.5K-5M

CTDD3220DF-4824-D1.5K-5M

Vin

Nom.

(VDC)

Input Range

(VDC)

9-18

18-36

36-72

Vin

Max.*

(VDC)

Vout

(VDC)

±5

±12

±15

±24

±5

±12

±15

±24

±5

±12

±15

±24

Iout

Max.

(mA)

±500

±210

±166

±105

±500

±210

±166

±105

±500

±210

±166

±105

Iout

Min.**

(mA)

±50

±21

±17

±11

±50

±21

±17

±11

±50

±21

±17

±11

Effi.

Typ.

(%)

Not shown at actual size.

Compliant

RoHS

*If Input voltage above specified may cause permanent damage to the device

**The load shouldn’t be less than 10%, otherwise ripple will increase dramatically

ISOLATION SPECIFICATIONS

Item

Isolation Voltage

Isolation Resistance

Test Condition

Flash tested for 1 minute

Test at 500VDC

MIN

1500

1000

TYP

MAX

Units

VDC

MΩ

FEATURES

Efficiency:

To 85%

Temperature Range:

-40°C to +85°C

Isolation:

1.5KVDC

Miscellaneous:

Wide (2:1) Input Range. Dual Output. No heat

sink required. Metal Shielding Package. 24PIN Industry standard

pinout. Continuous Short-Circuit Protection.

Samples available.

OUTPUT SPECIFICATIONS

Item

5W Output Power

Positive voltage accuracy

Negative voltage accuracy

Load regulation

Line regulation

Temperature drift (Vout)

Ripple

Noise

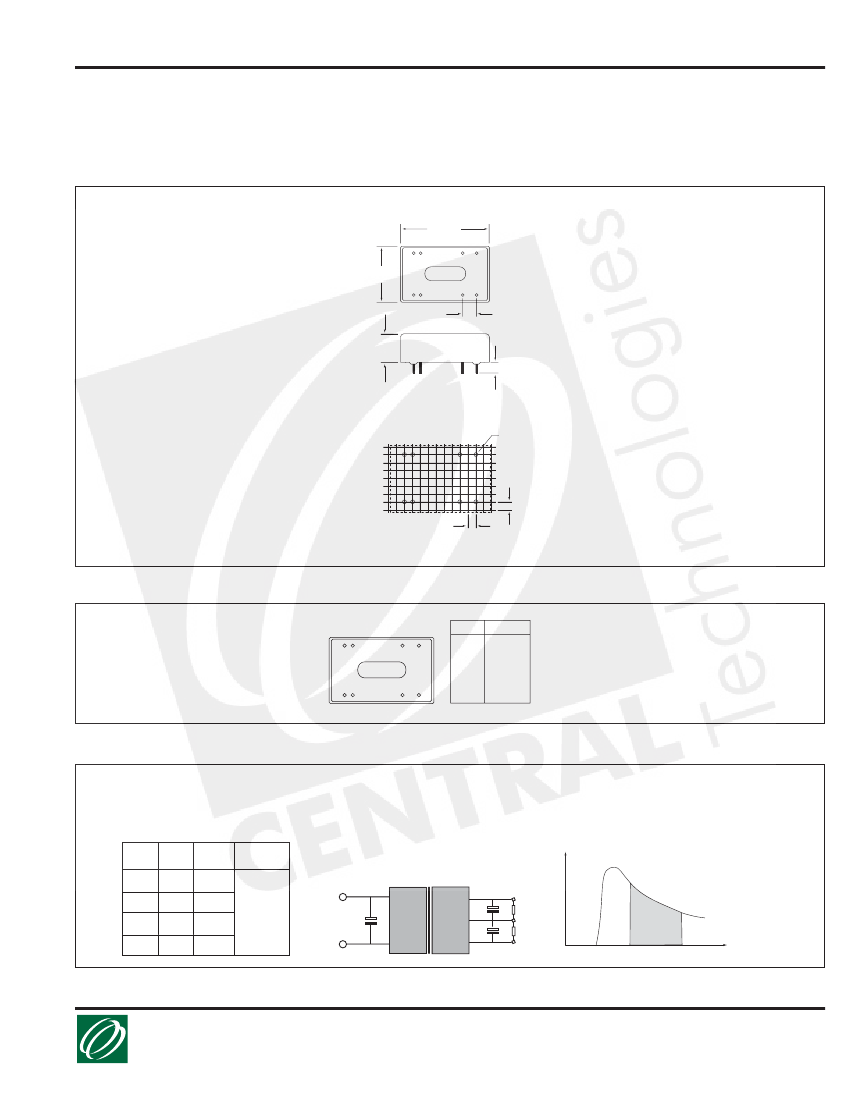

Refer to Recommended Circuit

From 10% to 100% load

Input Voltage from low to high

Refer to Temp. Derating Graph

20Hz to 300KHz Bandwidth

DC-20MHz Bandwidth

±1

±3

±0.5

±0.2

0.02

100

300

Test Condition

MIN

TYP

MAX

±3

±5

±1

±0.5

Units

%/°C

mVp-p

CHARACTERISTICS

Output Short Circuit Protection:

Continuous 1 Hour

Temperature Rise at Full Load:

40°C (Typ.)

Cooling:

Free air convection

Operating Temperature Range:

-40°C to +85°C

Storage Temperature Range:

-55°C to +125°C

Lead Temperature:

300°C (1.5mm from case for 10 seconds)

Storage Humidity Range:

< 95%

Case Material:

Metal

MTBF:

>1,000,000 hours

Miscellaneous:

RoHS Compliant.

Switching frequency

100% load, nominal input voltage

300

KHz

Note:

1. All specifications measured at TA=25°C, humidity<75%, nominal input voltage and rated output unless

otherwise specified.

TYPICAL CHARACTERISTICS

120

Temperature Derating Graph

Output Power (%)

100

-40

120

71 85

Operating Temperature

(°C)

Safe Operating Area

01.10.07

Technologies

Manufacturer of Passive and Discrete Semiconductor Components

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice
