CTDD3220DF-4812-D1.5K-3MW datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> CTDD3220DF-4812-D1.5K-3MW

CTDD3220DF-4812-D1.5K-3MW: Description2-OUTPUT 3 W DC-DC REG PWR SUPPLY MODULE; CategoryPower/power management The power supply circuit; File Size268KB，2 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric Compare View All

CTDD3220DF-4812-D1.5K-3MW Overview

2-OUTPUT 3 W DC-DC REG PWR SUPPLY MODULE

CTDD3220DF-4812-D1.5K-3MW Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CT [ Central Technologies ]
Parts packaging code	MODULE
package instruction	,
Contacts	24/8
Reach Compliance Code	compli
ECCN code	EAR99
Is Samacsys	N
Other features	-12V OUTPUT ALSO AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	72 V
Minimum input voltage	18 V
Nominal input voltage	48 V
JESD-30 code	R-MDMA-P8
Maximum load regulation	2%
Number of functions	1
Output times	2
Number of terminals	8
Maximum operating temperature	71 °C
Minimum operating temperature	-40 °C
Maximum output voltage	12.36 V
Minimum output voltage	11.64 V
Nominal output voltage	12 V
Package body material	METAL
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	3 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

DC/DC Converters

ctparts.com

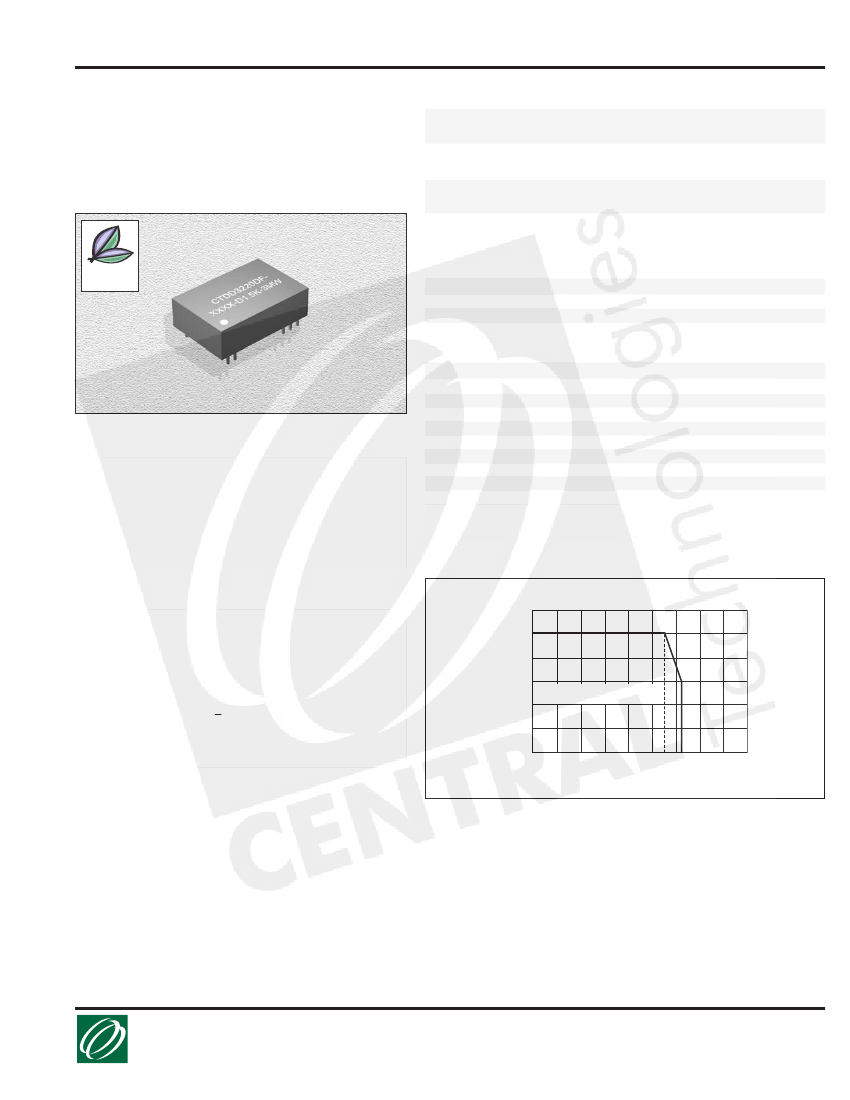

SPECIFICATIONS

CTDD3220DF-D1.5K-3MW

Series

4:1 Wide Input Isolated & Regulated

3W Output, Dual Output

Part

Number

CTDD3220DF-2405-D1.5K-3MW

CTDD3220DF-2412-D1.5K-3MW

CTDD3220DF-2415-D1.5K-3MW

CTDD3220DF-4805-D1.5K-3MW

CTDD3220DF-4812-D1.5K-3MW

CTDD3220DF-4815-D1.5K-3MW

Vin

Nom.

(VDC)

Input

Range

(VDC)

9-36

18-72

Vin

Max.*

(VDC)

Vout

(VDC)

±5

±12

±15

±5

±12

±15

Iout

Max.

(mA)

±300

±125

±100

±300

±125

±100

Iout

Min.

(mA)

±30

±12

±10

±30

±12

±10

Effi.

Typ.

(%)

Not shown at actual size.

*If Input voltage above specified may cause permanent damage to the device

Compliant

RoHS

ISOLATION SPECIFICATIONS

Item

Isolation Voltage

Isolation Resistance

Test Condition

Flash tested for 1 minute

Test at 500VDC

MIN

1500

1000

TYP

MAX

Units

VDC

MΩ

OUTPUT SPECIFICATIONS

Item

3W Output Power

Voltage accuracy

Load regulation

Line regulation

Temperature drift (Vout)

Ripple

Noise

Switching frequency

Refer to Recommended Circuit

From 10% to 100% load

Input Voltage from low to high

Refer to Temp. Derating Graph

20Hz to 300KHz Bandwidth

DC-20MHz Bandwidth

100

100-650(PFM)

Test Condition

MIN

0.3

±1

TYP

MAX

±3

±2

±1

0.03

Units

%/°C

mVp-p

KHz

FEATURES

Efficiency:

To 82%

Temperature Range:

-40°C to +85°C

Isolation:

1.5KVDC

Package:

Metal SUS

Miscellaneous:

Wide (4:1) Input Range. Dual Output. No heat

sink required. Continuous Short Circuit Protection.

Samples available.

Isolation Capacitance

150

Note:

1. All specifications measured at TA=25°C, humidity<75%, nominal input voltage and rated output unless

otherwise specified.

TYPICAL CHARACTERISTICS

Temperature Derating Graph

120

CHARACTERISTICS

Output Short Circuit Protection:

Continuous

Temperature Rise at Full Load:

30°C (Typ.)

Cooling:

Free air convection

Operating Temperature Range:

-40°C to +85°C

Storage Temperature Range:

-55°C to +125°C

Lead Temperature:

300°C (1.5mm from case for 10 seconds)

Storage Humidity Range:

< 95%

Case Material:

Metal SUS

MTBF:

>1,000,000 hours

Miscellaneous:

RoHS Compliant.

Output Power (%)

100

-40

120

71 85

Operating Temperature

(°C)

Safe Operating Area

01.31.07

Technologies

Manufacturer of Passive and Discrete Semiconductor Components

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice

CENTRAL

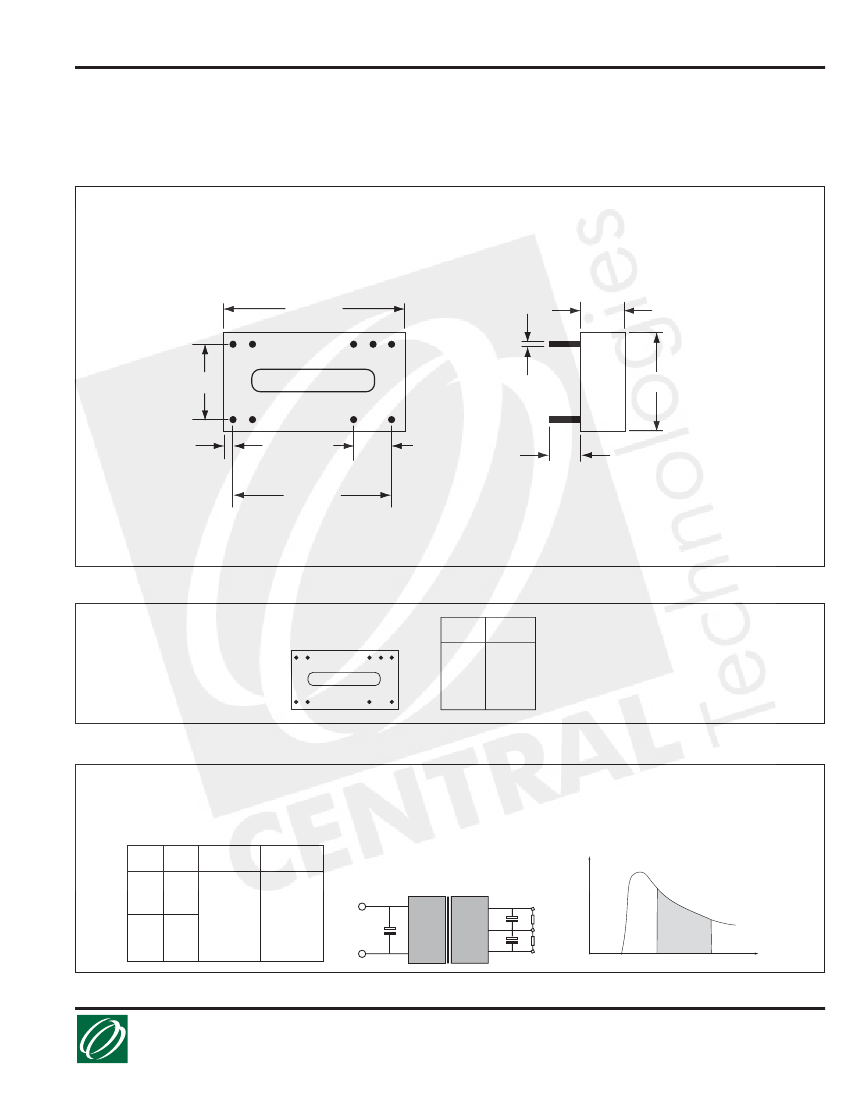

CTDD3220DF-4812-D1.5K-3MW Related Products

	CTDD3220DF-4812-D1.5K-3MW	CTDD3220DF-2405-D1.5K-3MW	CTDD3220DF-2412-D1.5K-3MW	CTDD3220DF-2415-D1.5K-3MW	CTDD3220DF-4805-D1.5K-3MW	CTDD3220DF-4815-D1.5K-3MW	CTDD3220DF-D1.5K-3MW
Description	2-OUTPUT 3 W DC-DC REG PWR SUPPLY MODULE	2-OUTPUT 3 W DC-DC REG PWR SUPPLY MODULE	2-OUTPUT 3 W DC-DC REG PWR SUPPLY MODULE	2-OUTPUT 3 W DC-DC REG PWR SUPPLY MODULE	2-OUTPUT 3 W DC-DC REG PWR SUPPLY MODULE	2-OUTPUT 3 W DC-DC REG PWR SUPPLY MODULE	2-OUTPUT 3 W DC-DC REG PWR SUPPLY MODULE
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	-
Maker	CT [ Central Technologies ]	CT [ Central Technologies ]	-	CT [ Central Technologies ]	CT [ Central Technologies ]	CT [ Central Technologies ]	-
Parts packaging code	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	-
Contacts	24/8	24/8	24/8	24/8	24/8	24/8	-
Reach Compliance Code	compli	compli	compli	compli	compli	compliant	-
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
Other features	-12V OUTPUT ALSO AVAILABLE	-5V OUTPUT ALSO AVAILABLE	-12V OUTPUT ALSO AVAILABLE	-15V OUTPUT ALSO AVAILABLE	-5V OUTPUT ALSO AVAILABLE	-15V OUTPUT ALSO AVAILABLE	-
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	-
Maximum input voltage	72 V	36 V	36 V	36 V	72 V	72 V	-
Minimum input voltage	18 V	9 V	9 V	9 V	18 V	18 V	-
Nominal input voltage	48 V	24 V	24 V	24 V	48 V	48 V	-
JESD-30 code	R-MDMA-P8	R-MDMA-P8	R-MDMA-P8	R-MDMA-P8	R-MDMA-P8	R-MDMA-P8	-
Maximum load regulation	2%	2%	2%	2%	2%	2%	-
Number of functions	1	1	1	1	1	1	-
Output times	2	2	2	2	2	2	-
Number of terminals	8	8	8	8	8	8	-
Maximum operating temperature	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-
Maximum output voltage	12.36 V	5.15 V	12.36 V	15.45 V	5.15 V	15.45 V	-
Minimum output voltage	11.64 V	4.85 V	11.64 V	14.55 V	4.85 V	14.55 V	-
Nominal output voltage	12 V	5 V	12 V	15 V	5 V	15 V	-
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
surface mount	NO	NO	NO	NO	NO	NO	-
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	-
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	-
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	-
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Maximum total power output	3 W	3 W	3 W	3 W	3 W	3 W	-
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	-
Base Number Matches	1	-	1	-	1	1	-
