Power Inductors - Unshielded
ctparts.com
CTDO1606T Series
From 1.0 µH to 1,000 µH
Part
Number
CTDO1606T_-102_
CTDO1606T_-152_
CTDO1606T_-222_
CTDO1606T_-332_
CTDO1606T_-472_
CTDO1606T_-682_
CTDO1606T_-103_
CTDO1606T_-153_
CTDO1606T_-223_
CTDO1606T_-333_
CTDO1606T_-473_
CTDO1606T_-683_
CTDO1606T_-104_
CTDO1606T_-154_
CTDO1606T_-224_
CTDO1606T_-334_
CTDO1606T_-474_
CTDO1606T_-684_
CTDO1606T_-105_
Not shown at actual size.
SPECIFICATIONS
Please specify tolerance code when ordering.
CTDO1606T-102__
K = ±10% M = ±20%
CTDO1606TF
Please specify “F” for RoHS Compliant
Inductance
(µH)
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
L Test
Freq.
(kHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
DCR
Max.
Ω
(Ω)
.05
.06
.07
.10
.12
.19
.30
.40
.54
.74
1.1
1.6
2.3
3.2
5.7
8.2
10.8
17.2
22.6
SRF
Ref.
(MHz)
230
180
140
110
100
80
60
45
35
30
22
20
15
10
9
8
7
5
4
Isat
(A)
2.25
1.98
1.62
1.26
1.08
0.99
0.90
0.72
0.54
0.45
0.40
0.31
0.27
0.22
0.16
0.14
0.12
0.10
0.07
Irms
(A)
2.3
2.1
1.7
1.3
1.1
1.0
0.90
0.70
0.50
0.45
0.40
0.35
0.30
0.25
0.18
0.16
0.12
0.10
0.08
Compliant
Available
RoHS

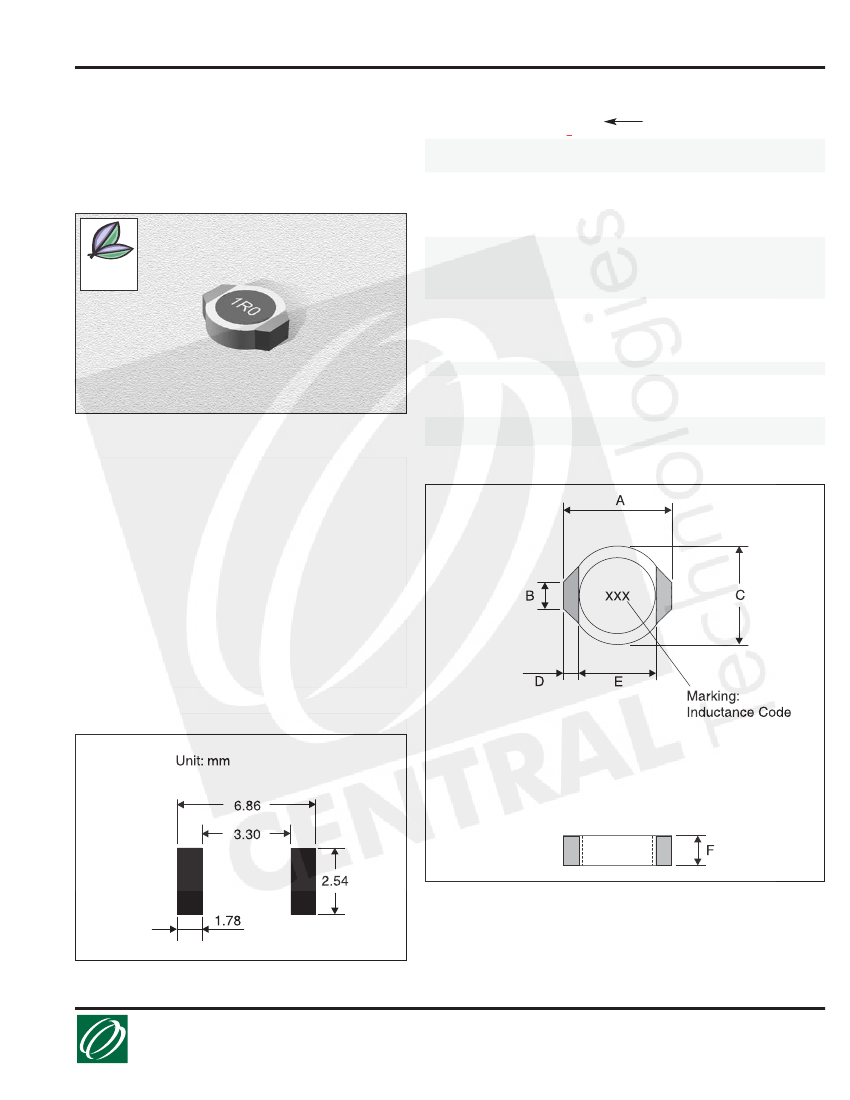

PHYSICAL DIMENSIONS
Size
CHARACTERISTICS
Description:
SMD power inductor
Applications:
VTR power supplies, OA equipment, LCD
televisions, PC notebooks, portable communication equipment,
DC/DC converters. Used in limited spaces and ultra-low profiles
Operating Temperature:
-40°C to +85°C
Inductance Tolerance:
±10%, ±20%
Inuctance Drop:
10% typ. at Isat
Temp. Rise:
∆T
= 30°C rise at Irms
Testing:
Inductance is tested on an HP4285A at 100 kHz
Packaging:
Tape & Reel
Marking:
Parts are marked with the appropriate inductance code
Miscellaneous:
RoHS Compliant available
Additional Information:
Additional electrical & physical
information available upon request
Samples available. See website for ordering information.
Max.
6.5
0.26
A
B
2.0
0.08
Max.
5.6
0.22
C
D
1.0
0.04
E
4.3
0.17
Max.
2.0
0.08
F
mm
inches
PAD LAYOUT
02.04.05
Technologies
Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2005 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
