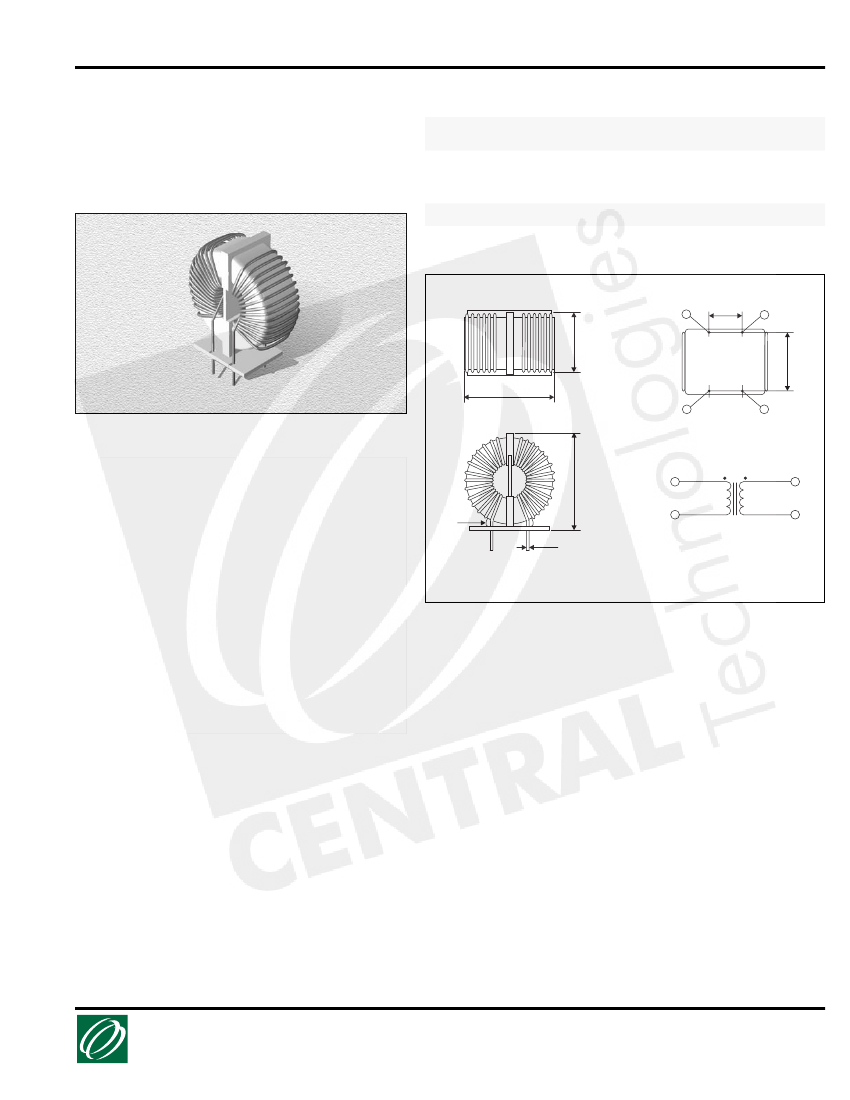

Common Mode Choke Coils - Radial

ctparts.com

CTF2012S Series

From 0.4 mH to 4.5 mH

Not shown at actual size.

SPECIFICATIONS

* Indicates the inductance difference between the coil L1 and L2.

Part

Number

CTF2012S-452M2R0

CTF2012S-452M3R3

CTF2012S-202M3R0

CTF2012S-202M5R0

CTF2012S-102M5R0

CTF2012S-601M8R0

CTF2012S-401M10R

Inductance

Min.

(mH)

4.5

2.0

1.0

0.6

0.4

Inductance

Difference*

(µH Max.)

100

150

DCR

Max.

Ω

(Ω)

0.15

0.09

0.10

0.045

0.05

0.015

0.01

Rated

Current

(Aac)

2.0

3.3

3.0

5.0

8.0

Ød

(mm)

0.55

0.65

0.75

0.8

1.1

PHYSICAL DIMENSIONS

10±1

(0.394±0.039)

21(.827)Max.

30(1.181)Max.

Description:

Common mode choke coils for power supply line.

Applications:

Prevents noise emission, protects AC side from the

affects of switching regulators, provides noise elimination and

immunity for TV’s, VTR’s/VCR’s, audio equipment, etc.

Operating Temperature:

-25°C to +85°C including self

temperature rise

Insulation Resistance:

100 Mohm minimum between each

winding for 1 minute

Dielectric Withstanding Voltage:

2000 Vac between each

winding for 1 minute

Packaging:

Bulk Pack

Marking:

None

Additional Information:

Additional electrical & physical

information available upon request. Different inductance and

current products are available as well.

Samples available. See website for ordering information.

30(1.181)Max.

CHARACTERISTICS

Epoxy

ød

Dimensions in mm (inches)

08.17.04

Technologies

Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice

CENTRAL

15±1

(0.591±0.039)
