ATT-479F-02-TNC-07 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ATT-479F-02-TNC-07

ATT-479F-02-TNC-07: DescriptionFixed Attenuator, 0MHz Min, 12400MHz Max, STAINLESS STEEL; CategoryWireless rf/communication Radio frequency and microwave; File Size37KB，1 Pages; ManufacturerMidwest Microwave

Download Datasheet Parametric View All

ATT-479F-02-TNC-07 Overview

Fixed Attenuator, 0MHz Min, 12400MHz Max, STAINLESS STEEL

ATT-479F-02-TNC-07 Parametric

Parameter Name	Attribute value
Maker	Midwest Microwave
Reach Compliance Code	unknow
Other features	TNC-F, I/P POWER-MAX(PEAK)=100W
Nominal attenuation	2 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	40 dBm
Maximum operating frequency	12400 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.25

Preview

Download Datasheet

View All

Wireless - Cellular Products

10 Watts - Wireless System Performance

Frequency:

DC - 2.0 GHz, DC - 8.0, DC - 12.4, and DC - 18.0 units available

Attenuation Values:

1 - 40 dB as noted

Attenuation Accuracy:

DC-12.4 GHz

12.4-18.0 GHz

1 - 6 dB

7 - 20 dB

21 - 40 dB

+ 0.3 dB

+ 0.5 dB

+ 1.0 dB

+ 0.5 dB

+ 0.75 dB

+ 1.5 dB

Attenuators

Impedance:

50 Ohms

VSWR:

1.25 max @ DC - 12.4 GHz, 1.50 @ 12.4 - 18.0 GHz

Power:

10 Watts average @ 40 C derated linearly to 1 Watt @ 125 C

Peak Power:

100 watts and 5 Kilowatts on 476 Series

Operating Temperature Range:

-54C to +125C

Finish:

Stainless Steel

DC - 2.0 GHz

Male/Female

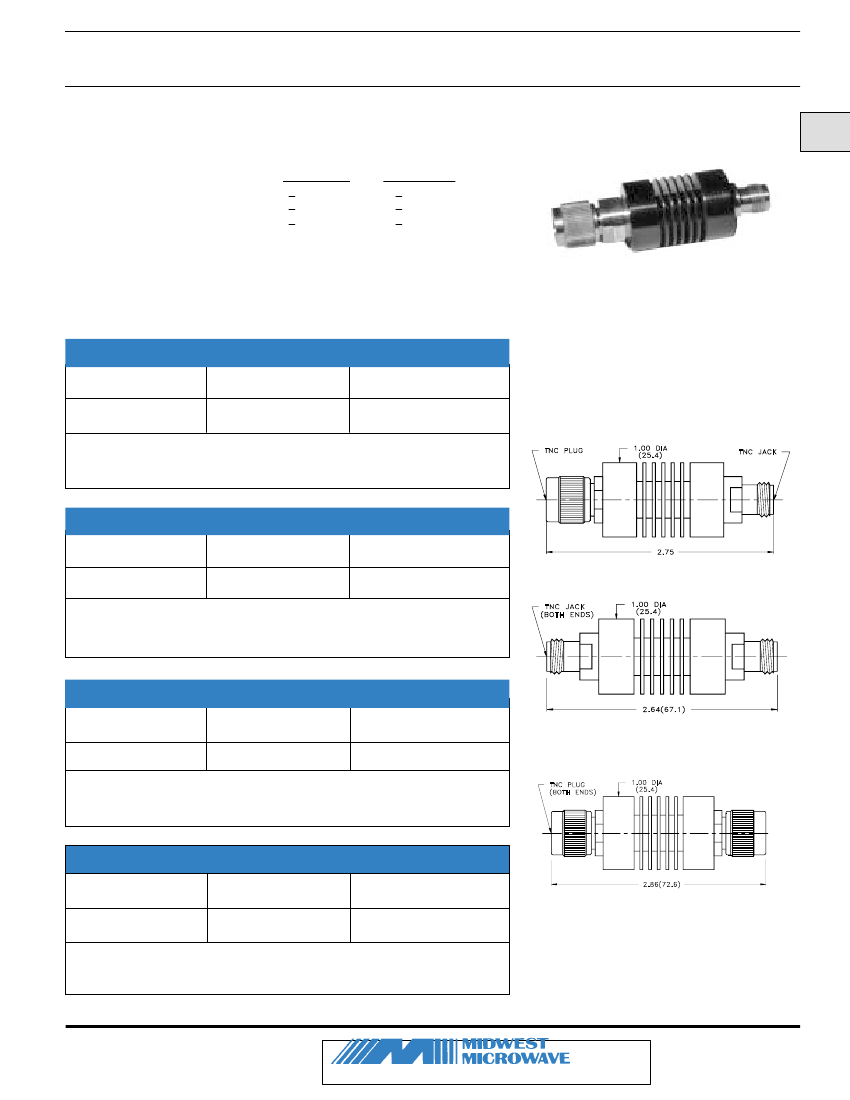

ATT-0476-XX-TNC-07

476 Series

Female/Female

ATT-476F-XX-TNC-07

Model Number

Male/Male

ATT-476M-XX-TNC-07

Attenuation Value = XX, Select 01 - 40 dB in 1 dB increments

10 Watts - Wireless System Performance

DC - 8.0 GHz

Male/Female

478 Series

Female/Female

Model Number

Male/Male

ATT-478M-XX-TNC-07

ATT-0478-XX-TNC-07 ATT-478F-XX-TNC-07

Attenuation Value = XX, Select 01 - 40 dB in 1 dB increments

10 Watts - Wireless System Performance

DC - 12.4 GHz

Male/Female

ATT-0479-XX-TNC-07

479 Series

Female/Female

ATT-479F-XX-TNC-07

Model Number

Male/Male

ATT-479M-XX-TNC-07

Attenuation Value = XX, Select 01 - 40 dB in 1 dB increments

10 Watts - Wireless System Performance

DC - 18.0 GHz

Male / Female

ATT-0480-XX-TNC-07

480 Series

Female / Female

ATT-480F-XX-TNC-07

Model Number

Male / Male

ATT-480M-XX-TNC-07

Attenuation Value = XX, Select 01 - 40 dB in 1 dB increments

10 Watts - Wireless System Performance
