HM4-6116L-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> HM4-6116L-2

HM4-6116L-2: DescriptionStandard SRAM, 2KX8, 120ns, CMOS, CQCC32; Categorystorage storage; File Size379KB，8 Pages; ManufacturerMatra MHS

Download Datasheet Parametric Compare View All

HM4-6116L-2 Overview

Standard SRAM, 2KX8, 120ns, CMOS, CQCC32

HM4-6116L-2 Parametric

Parameter Name	Attribute value
Maker	Matra MHS
package instruction	,
Reach Compliance Code	unknow
ECCN code	3A001.A.2.C
Maximum access time	120 ns
JESD-30 code	R-CQCC-N32
memory density	16384 bi
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	32
word count	2048 words
character code	2000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	2KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Minimum standby current	2 V
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD

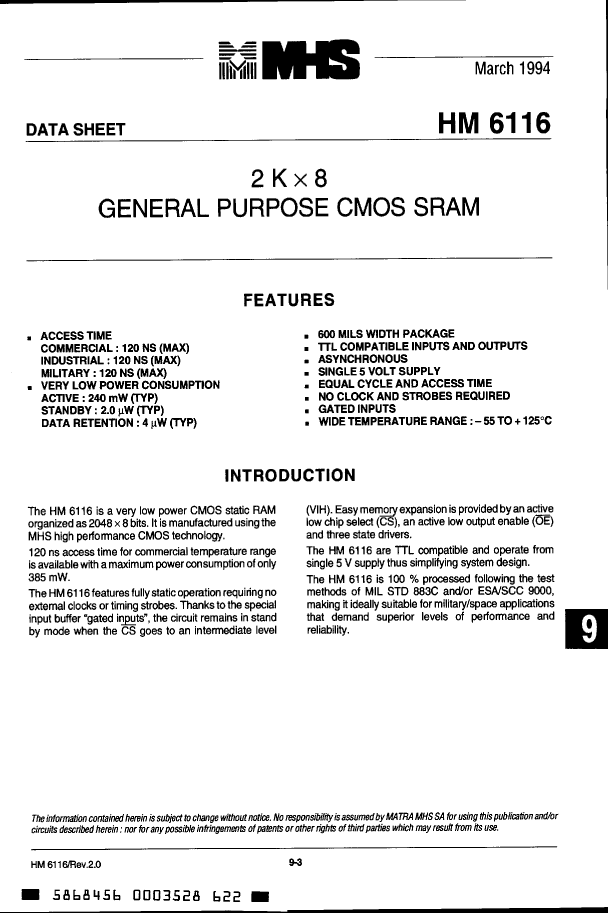

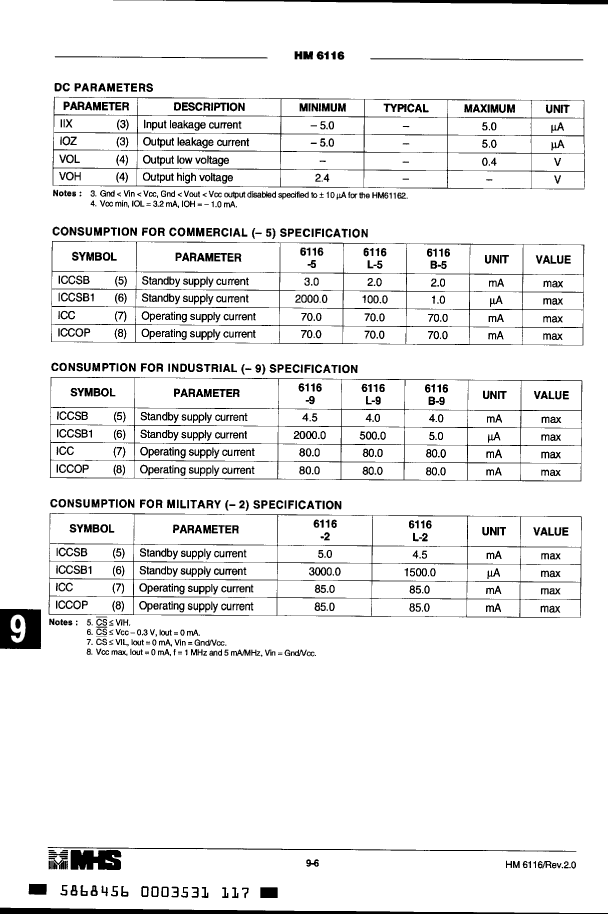

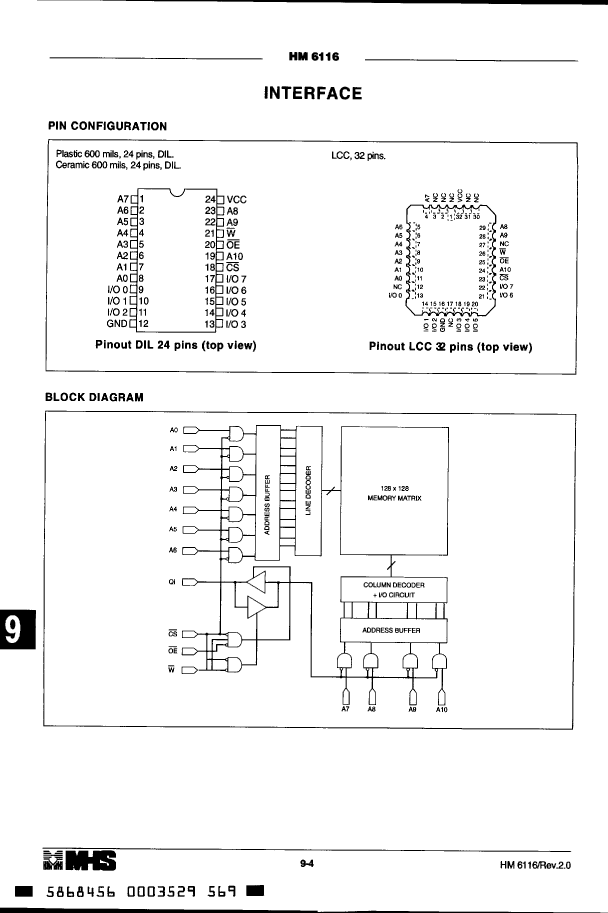

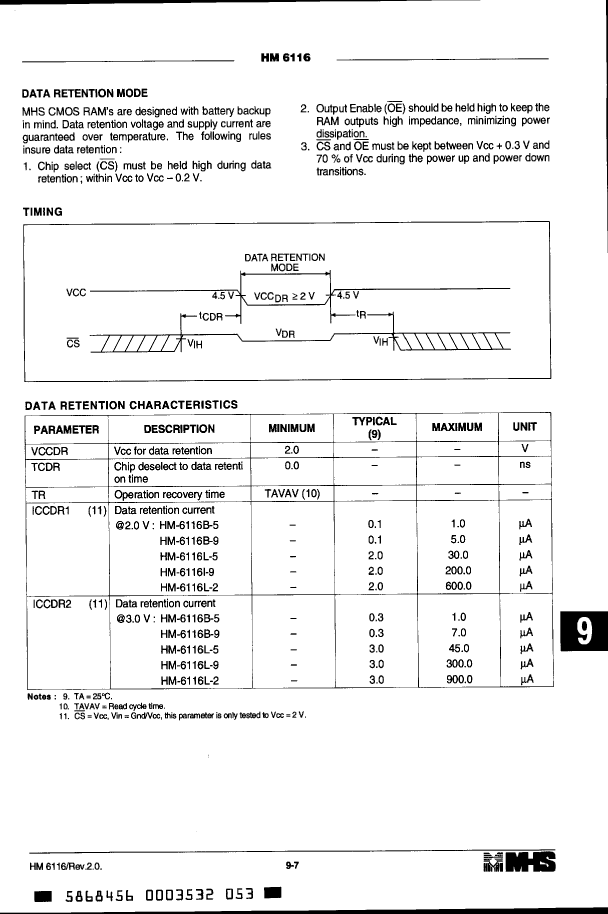

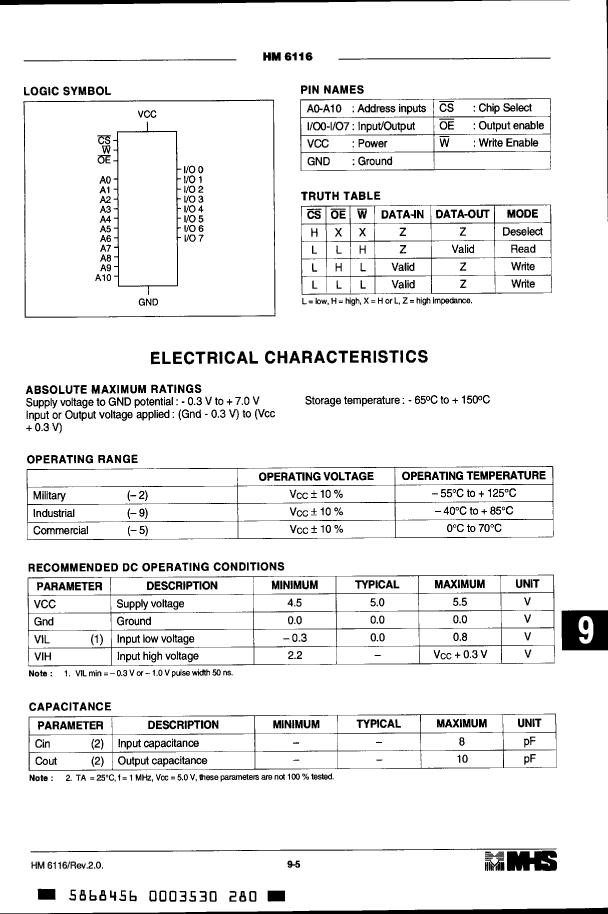

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

HM4-6116L-2 Related Products

	HM4-6116L-2	HM3-6116-5	HM3-6116L-9	HM3-6116-6
Description	Standard SRAM, 2KX8, 120ns, CMOS, CQCC32	Standard SRAM, 2KX8, 120ns, CMOS, PDIP24	Standard SRAM, 2KX8, 120ns, CMOS, PDIP24	Standard SRAM, 2KX8, CMOS, PDIP24
Maker	Matra MHS	Matra MHS	Matra MHS	Matra MHS
Reach Compliance Code	unknow	unknow	unknow	unknow
ECCN code	3A001.A.2.C	EAR99	EAR99	EAR99
JESD-30 code	R-CQCC-N32	R-PDIP-T24	R-PDIP-T24	R-PDIP-T24
memory density	16384 bi	16384 bi	16384 bi	16384 bi
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	32	24	24	24
word count	2048 words	2048 words	2048 words	2048 words
character code	2000	2000	2000	2000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
organize	2KX8	2KX8	2KX8	2KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Minimum standby current	2 V	2 V	2 V	2 V
surface mount	YES	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	QUAD	DUAL	DUAL	DUAL
Maximum access time	120 ns	120 ns	120 ns	-
Maximum operating temperature	125 °C	70 °C	85 °C	-
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	-
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	-
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-
Temperature level	MILITARY	COMMERCIAL	INDUSTRIAL	-
