MS27471Y15D18P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MS27471Y15D18P

MS27471Y15D18P: DescriptionMIL Series Connector, 18 Contact(s), Carbon Steel, Male, Solder Terminal; CategoryThe connector The connector; File Size2MB，12 Pages; ManufacturerSealtron Inc

Download Datasheet Parametric View All

MS27471Y15D18P Overview

MIL Series Connector, 18 Contact(s), Carbon Steel, Male, Solder Terminal

MS27471Y15D18P Parametric

Parameter Name	Attribute value
Maker	Sealtron Inc
Reach Compliance Code	unknow
Other features	STANDRAD: MIL-DTL-38999
Back shell type	SOLID
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	MS27471Y
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	HERMETIC
Shell surface	TIN PLATED
Shell material	CARBON STEEL
Housing size	15
Termination type	SOLDER
Total number of contacts	18

Preview

Download Datasheet

View All

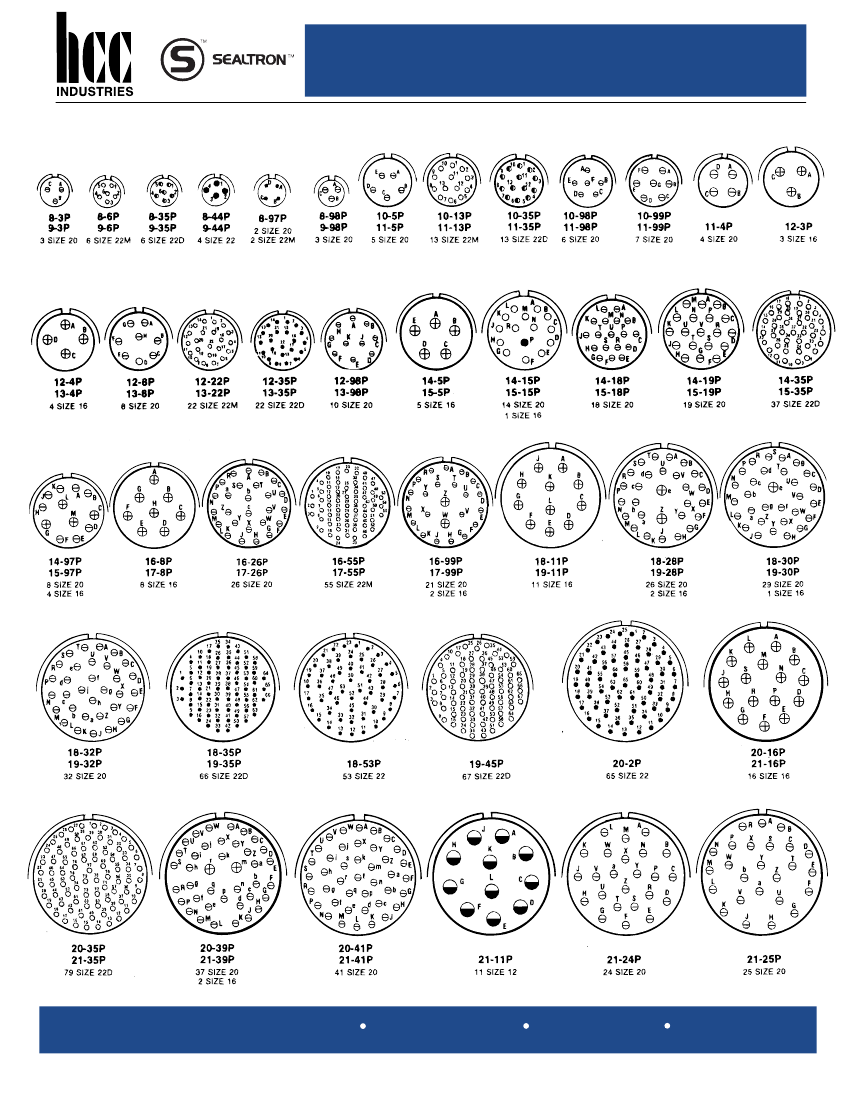

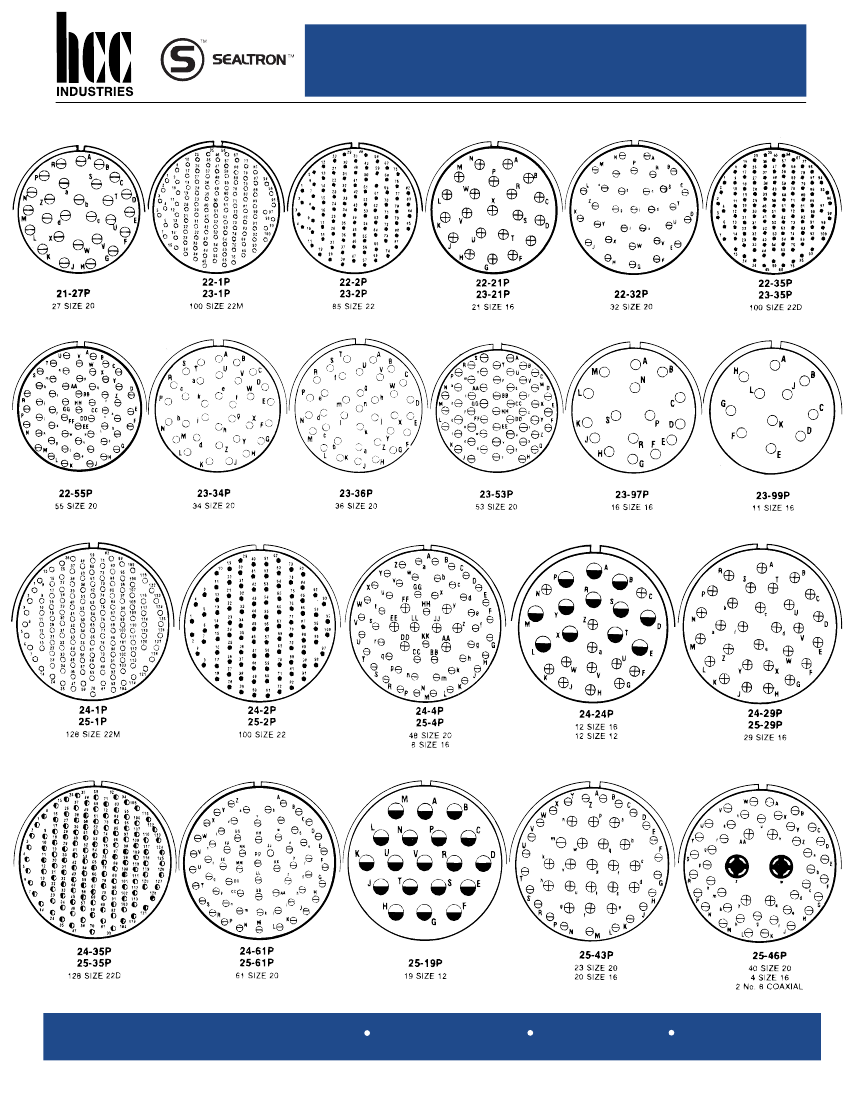

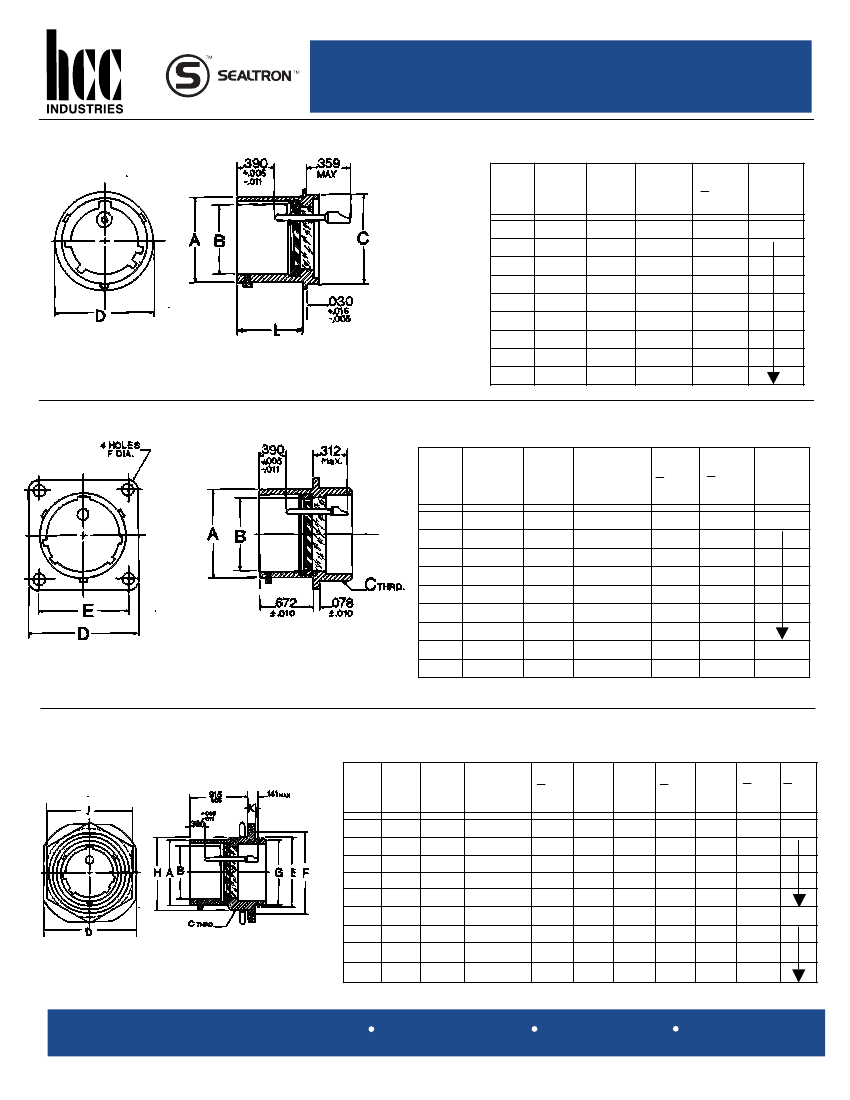

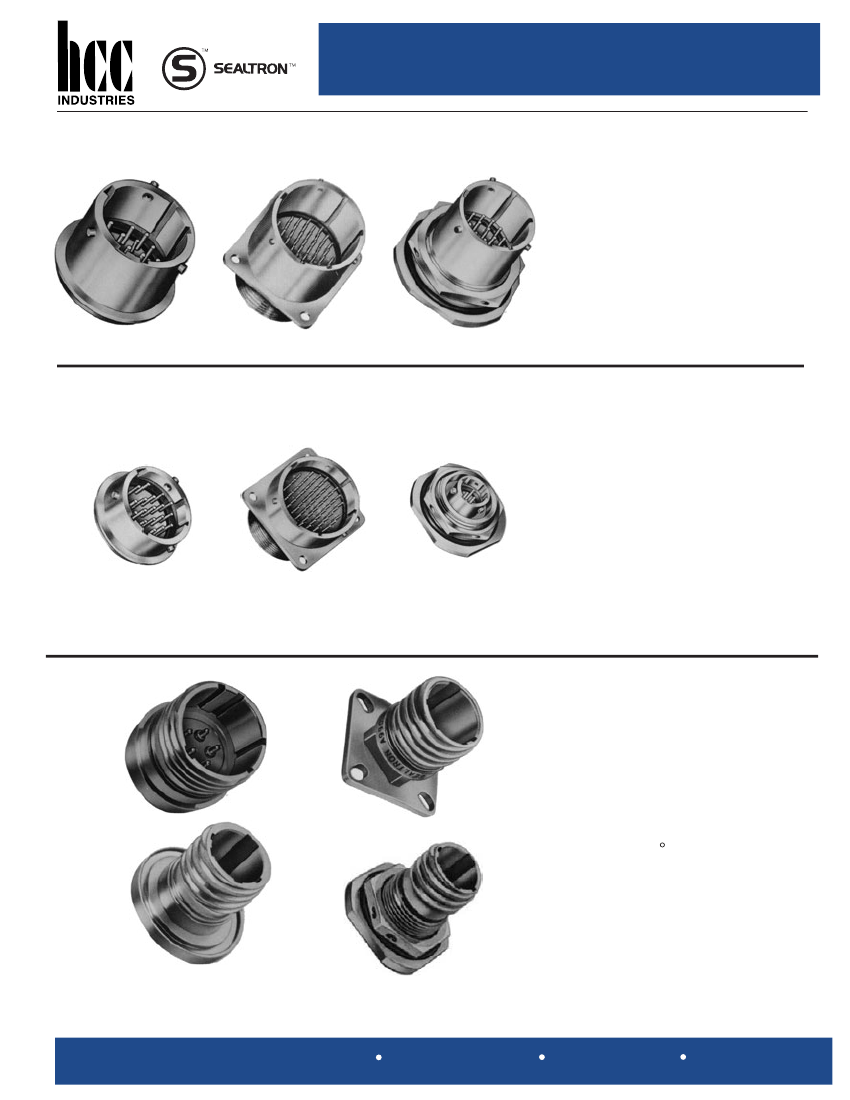

MIL-DTL-38999

Hermetically Sealed Connectors

Series I

Sealtron’s 9700 Series of hermetically

sealed connectors are manufactured in

accordance with MIL-DTL-38999

Series 1 (LJT). These series are

designed so that electrical continuity is

maintained between mating shells prior

to pin and socket engagement, and in

reverse order during the disconnecting

process, thereby providing protection

against EMI.

Series II

Sealtron’s 9800 Series of hermetically

sealed connectors are manufactured in

accordance with MIL-DTL-38999

(USAF) Series II (JT and JTS). These

series are designed to provide low

silhouette for minimum size and weight.

All MIL-DTL-38999 connectors have

high density contact arrangements avail-

able. These connectors have twice the

number of contacts than previously

available in the same shell size.

Series III

Sealtron’s 9900 Series connectors are

supplied with a stainless steel body and

gold plated contacts. These hermetic

receptacles provide excellent service in

areas of severe environments, such as high

temperature, humidity, vibration, shock

and where EMI/RFI shielding is required.

The triple lead thread offers quick

disconnect (360x) with a non- decoupling

feature designed into the plug. The scoop-

proof design prevents accidental bending

of the contacts and provides for the

grounding of the plug and receptacle prior

to the engagement of the pin and socket

contacts.

9705 Reading Rd. Cincinnati, Ohio 45215

Phone(513) 733-8400

Fax(513)733-0131 www.sealtron.com
