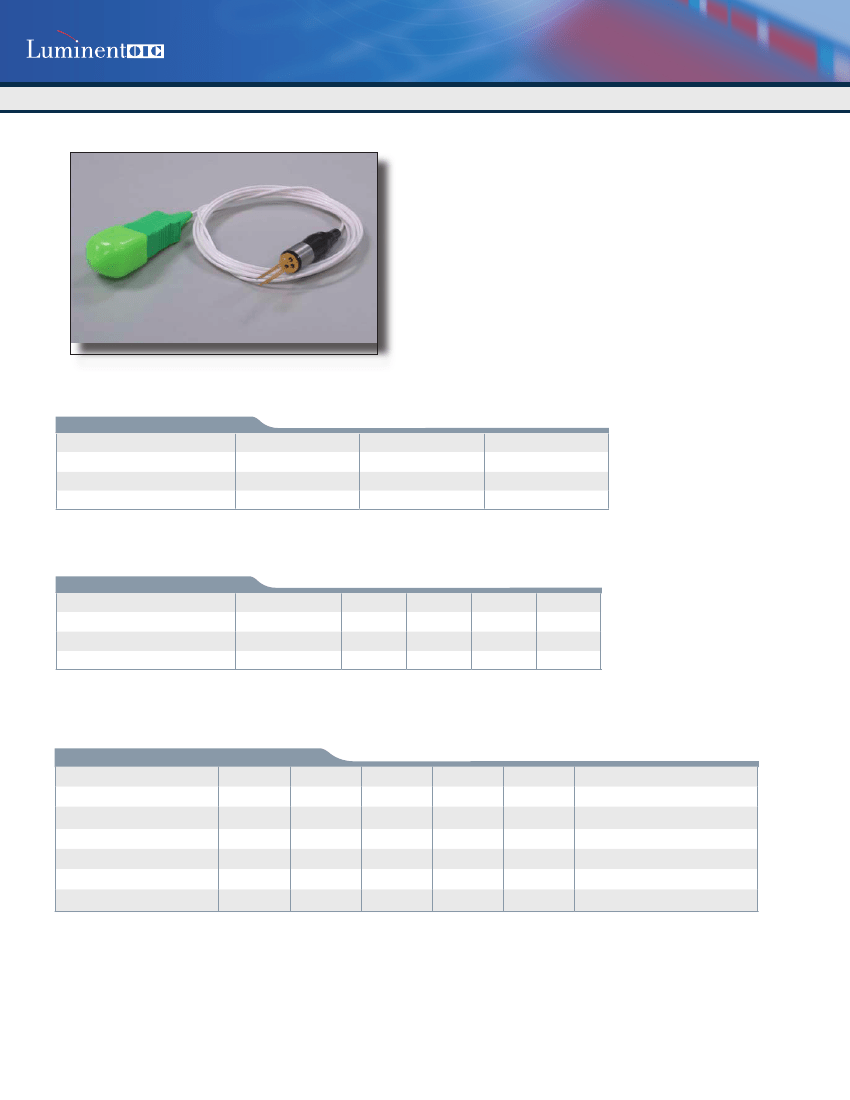

2.5Gbps PIN-TIA Receiver Modules (3.3V)
T-11-2500-P3-SSC/APC-01-XX
• InGaAs/InP PIN Photodiode with transimpedance amplifier
• High sensitivity with AGC*
• Differential ended output
• Single+3.3V operation
• -40~85
º
C operating temperature
• SM fiber pigtailed with SC/APC connector
• 2.5Gbps SDH/SONET/ATM receivers
• RoHS Compliant available
Features
Absolute Maximum Ratings (Tc=25ºC)
Parameter
Supply Voltage
Operating Temperature
Storage Temperature
Symbol
V
CC
T
opr
T
stg
Value
3.8
-40 ~ 85
-40 ~ 85
Unit
V
ºC
ºC
DC Electrical Characteristics (Tc=25ºC)
Parameter
Power Supply
Differential Ouptput Voltage
Supply Current (no load)
Symbol
V
CC
V
d
I
cc
Min.
3.0
-
-
Typ.
3.3
0.6
26
Max.
3.6
-
38
Unit
V
V
mA
(Operating at VCC=3.3V,Tc=25ºC,
λ=1310nm,
9/125µm SM fiber )
AC/Optical and Electrical Characteristics (Tc=25ºC)
Parameter
Detection Range
Gain@10Mbps Differential
Bandwidth
Saturation Power
Sensitivity
Output Resistance
Symbol
-
Min
1100
-
1.7
-3
-
40
Typ
1310
27
1.9
0
-21
53
Max
1650
-
-
-
-18
65
Unit
nm
V/mW
GHz
dBm
dBm
ohm
Test Conditions
-
λ
=
1310nm
-
λ
=
1310nm
BER=10
-10
@2.5Gbps, PRBS23
V
RPD
=5V, f=1MHz
G
BW
P
sat
Sens.
Rout
Note: 1.Pin assignment can be customized.
2.Specifications subject to change without notice.
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS1006-JUN1406
rev. A.2
1

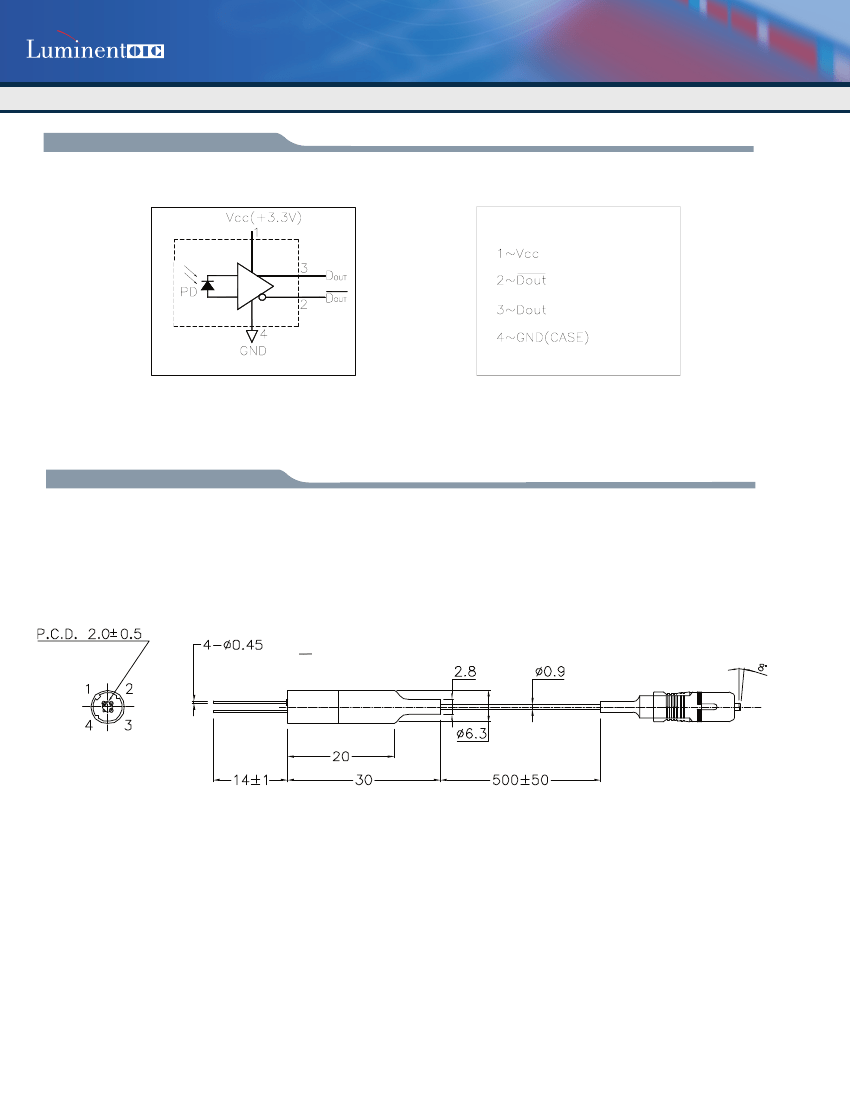

2.5Gbps PIN-TIA Receiver Modules (3.3V)
T-11-2500-P3-SSC/APC-01-XX
Ordering Information
T-11-2500-P3-SSC/APC-01-XX
SC
Connector
Fiber Application
S=SM 9/125µm
-/G5/GR
Blank = RoHS non-compliant product
G5 = RoHS 5/6-compliant product (lead exemption)
GR = Full RoHS compliant product (no exemption)
RoHS Compliant
Warnings
Handling Precautions:
This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment
is highly recommended. Follow guidelines according to proper ESD procedures.
Laser Safety:
Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation.
