BAOOLBSG Overview

Super-mini package regulator IC

Preview

Download Datasheet

View All

Regulator ICs

Super-mini package regulator IC

BAfffLBSG series

The BAfffLBSG (the “fff” indicates the output voltage value) is a low-saturation series regulator IC employing

the super-mini mold package of the SMP5 (2916 package). Equipped with a power-saving function that reduces current

consumption, it also offers outstanding ripple rejection and other characteristics, and is ideal for cellular telephones and

other compact telephones.

Applications

Features

Residential / industrial device power supplies for cellular

telephones such as the CDMA and GSM, and for other

portable communication devices

1) Internal output transistor (Io = 150mA)

2) Internal temperature protection circuit

3) Power-saving function enables designs with low cur-

rent consumption

4) High level of ripple rejection (R.R. = 66dB)

5) SMP5 super-mini package enables space-saving

designs

6) Low I / O voltage differential (90mV Typ. at Io =

50mA)

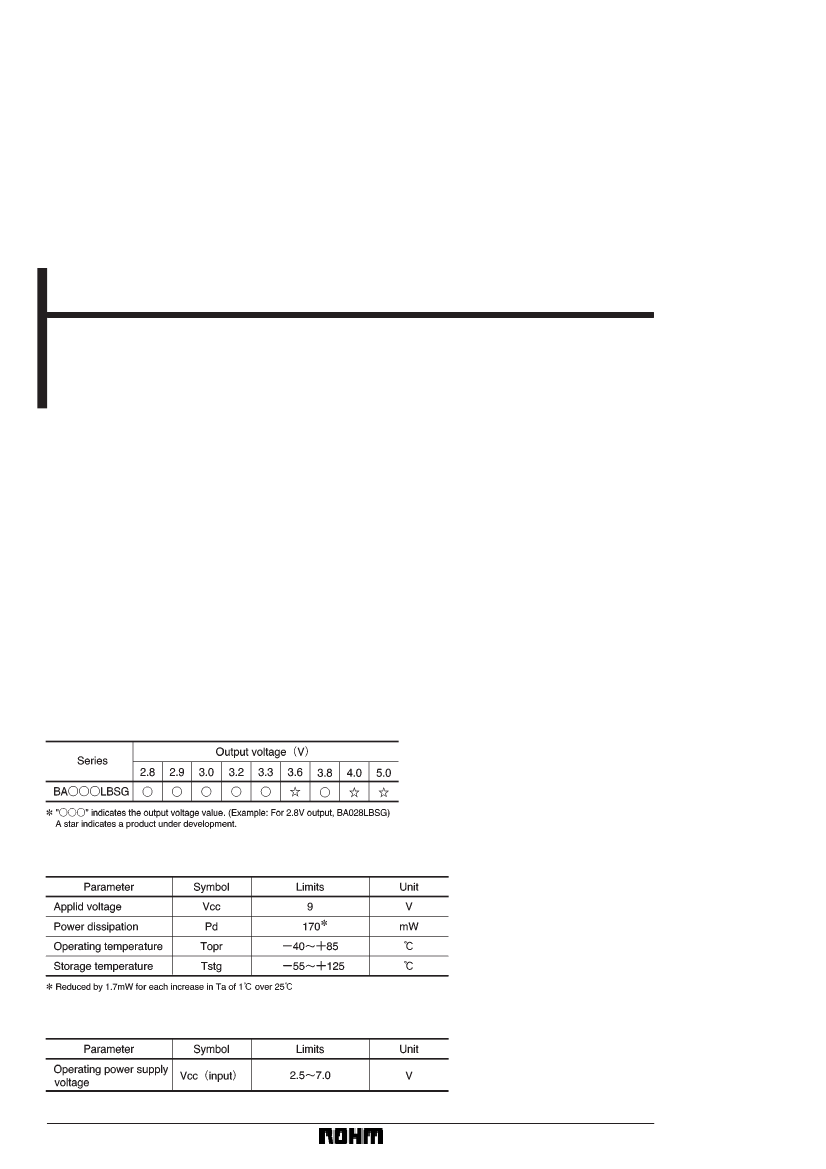

Super-mini regulator lineup

Absolute maximum ratings (Ta = 25°C)

Recommended operating conditions (Ta = 25°C)

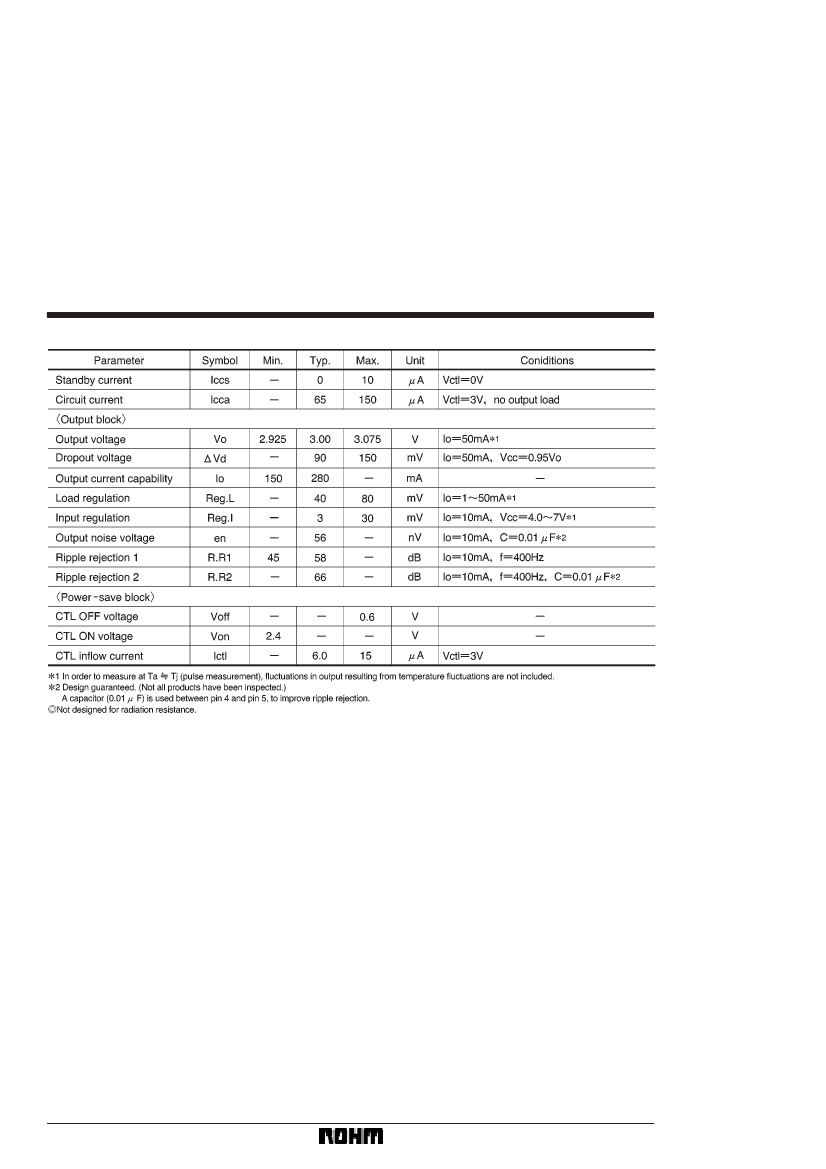

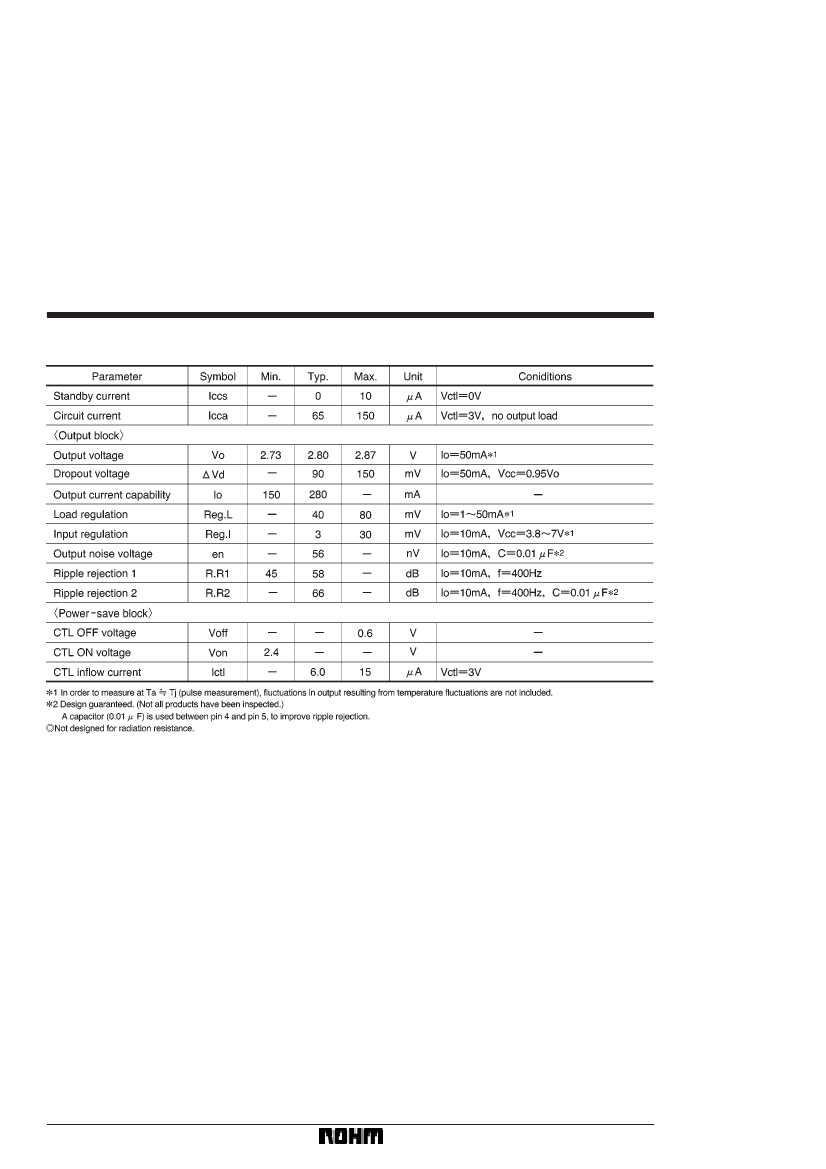

381
