Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
NEW PRODUCT
ADVANCE INFORMATION
P-Channel
Description and Applications
This new generation complementary MOSFET H-Bridge features
2 N and 2 P channel in an SOIC package. Qualified to AECQ101 the
H bridge is ideally suited to driving :
•
•
•
Solenoids
DC Motors
Audio Outputs
Mechanical Data
•
•
•
•
•
•
N2D/P2D
Case: SO-8
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections Indicator: See diagram
Terminals: Finish
⎯
Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
e3
Weight: 0.074 grams (approximate)
P1S/P2S
P1G
P2G
SO-8
H-Bridge
Top View
Top View
Pin Configuration
N1G
N1D/P1D
N1S/N2S
N2G

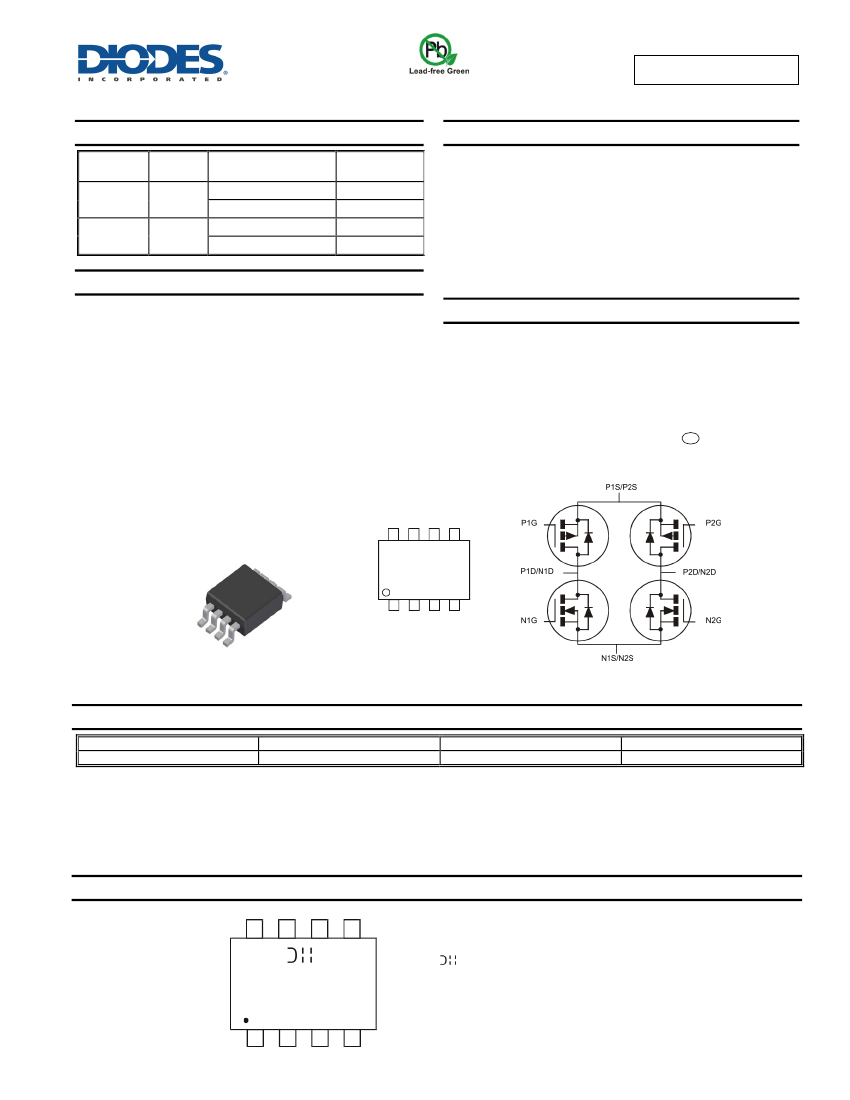

Internal Schematic
Ordering Information
(Note 5)
Part Number
DMHC3025LSDQ-13
Notes:
Compliance
Automotive
Case
SO-8
Packaging
2,500/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_grade_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
