B41538-J5478-M: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 4700uF, Through Hole Mount; CategoryPassive components capacitor; File Size206KB，6 Pages; ManufacturerEPCOS (TDK)

Download Datasheet Parametric Compare View All

B41538-J5478-M Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 4700uF, Through Hole Mount

B41538-J5478-M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	EPCOS (TDK)
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	4700 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
Custom functions	Other Voltage and Capacitance on Reques
dielectric materials	ALUMINUM (WET)
ESR	27 mΩ
Manufacturer's serial number	B41538
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
ripple current	2600 mA
series	B41538
surface mount	NO
Terminal shape	WIRE

Preview

Download Datasheet

View All

3-Pin Capacitors

105

°C

Not for new design

B 41 538

LL grade

Especially long useful life

High volumetric efficiency

Construction

Charge-discharge proof, polar

Aluminum case with insulating sleeve

Solder pin terminals brought out at one end

to fit standardized PCB spacings

Negative potential can be applied to third pin;

this pin does not serve as a minus pole, however

Construction

Low equivalent series resistance

ESR

Very high ripple current capability

Very long useful life

Wide temperature range

Pinning ensures correct insertion

Applications

Specially suitable for use in output circuits of switch-mode power supplies

General industrial electronics, telecommunications and data processing equipment

Specifications and characteristics in brief

Rated voltage

Surge voltage

Rated capacitance

Capacitance tolerance

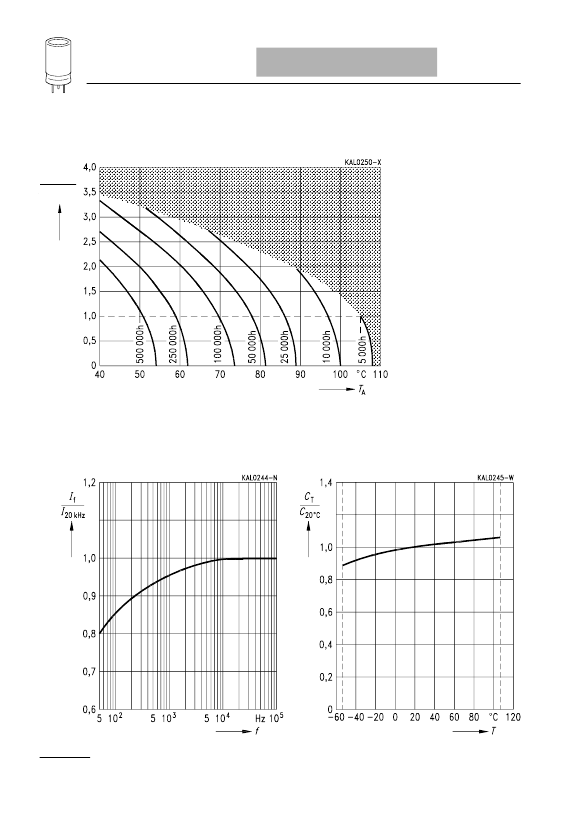

Useful life

40 ˚C,

85 ˚C,

;

max

105 ˚C,

;

Failure percentage

Failure rate

Voltage endurance test

Leakage current

lka

(5 min, 20

°C)

Self-inductance

ESL

> 200 000 h (2,9 ·

R,105˚C

)

> 12 000 h

≥

5 000 h

≤

(during useful life)

≤

20 fit

(≤ 20 · 10

– 9

/h)

2 000 h, 105 ˚C

(at

)

6,3 … 63 V–

1,15 ·

1 000 … 33 000

µF

20 %

R 0,7

lka

≤

0,3

µA ⋅ 

-------

⋅

-------



µA

µF

V-



approx. 10 nH

264

Siemens Matsushita Components
