Aluminum electrolytic capacitors
For automotive applications,
single-ended,150 °C / 1000 h
Series/Type:
Date:
B41868
July 2005
© EPCOS AG 2005. Reproduction, publication and dissemination of this data sheet, enclosures hereto and the
information contained therein without EPCOS' prior express consent is prohibited.
Single-ended
Aluminum electrolytic capacitors
Introduction
Aluminum electrolytic capacitors
from EPCOS are constantly being
enhanced to specifications meeting
the typical requirements in the auto-
motive industry. This section presents
the latest innovations within the single-
ended product line. All existing series
have been improved and new series
introduced. In addition, special lead
configurations have been added to
provide a broad range of lead
options. The Protection Against
Polarity Reversal (PAPR) concept has
been extended with J leads and bent
90° leads. Blister packaging is now
introduced as standard for all PAPR
configurations. This results in better
quality and convenience for the cus-
tomer.
The new B41853 series was devel-
oped to achieve excellent perform-
ance in airbag applications, covering
a wide range of capacitance values
up to 6800 µF.
The high-reliability series B41868 for
high temperatures up to 150 °C and
the new B41896 series with long use-
ful life for temperatures up to 125 °C
take full advantage of higher ripple
current capability in compact can
sizes, ensuring exceptional perform-
ance in powertrain applications and
control units installed in the vicinity of
the engine.
The B41888 series has also been up-
graded and provides very long useful
life and high ripple current capability
at 105 °C.
The B43866 series combines high
temperature resistance up to 125 °C,
at high operating voltages up to 350 V,
and is a potential solution for new
applications such as piezo injector
technology.
EPCOS quality is certified by the
international standards ISO 9001 and
ISO/TS 16949. In addition, the intro-
duction of new mechanical and
technical features makes EPCOS
single-ended aluminum electrolytic
capacitors one of the best and most
competitive products worldwide.

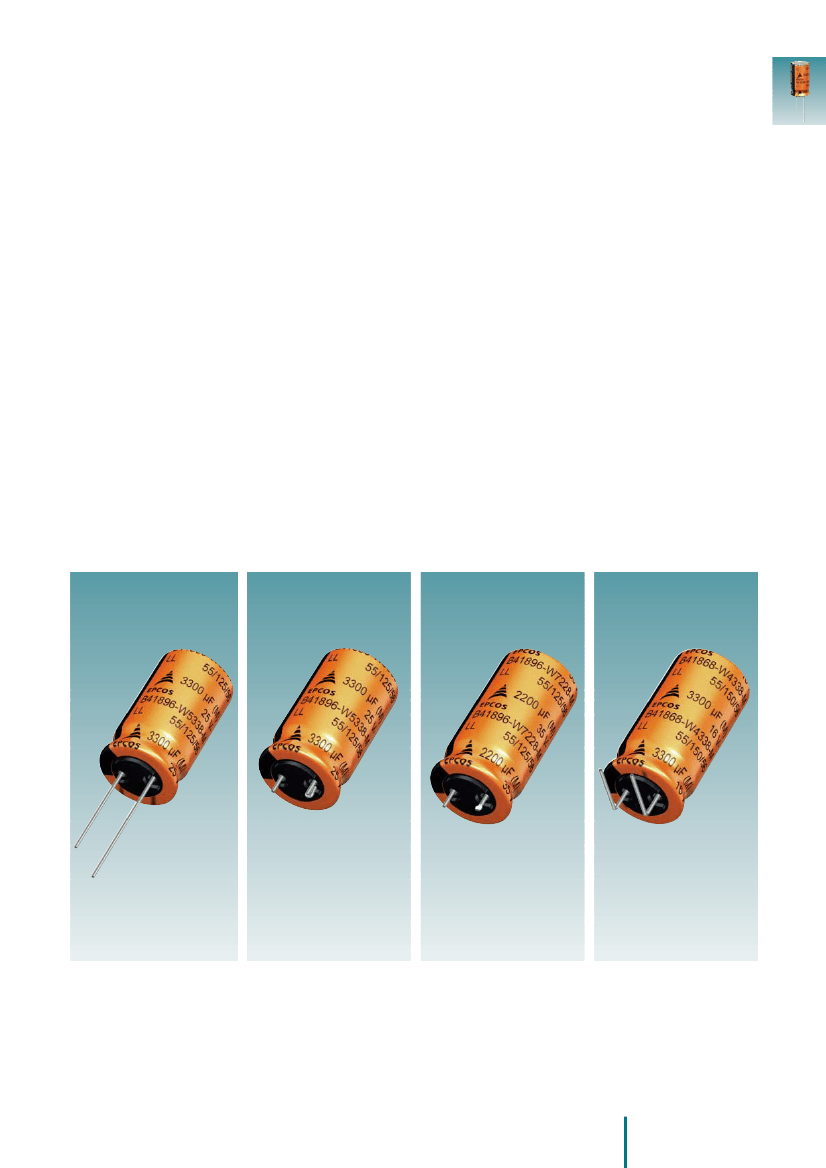

Standard type
J lead
Crimped lead
Bent 90° lead
Different lead configurations available. For more details see pages 63–66.
EPCOS AG
Please read the important notes, cautions and warnings.
07/05
1
Data sheet
B41868
Specifications and characteristics in brief
brief
Specifications and characteristics in
Rated voltage V
R
Surge voltage V
surge
Rated capacitance C
R
Capacitance tolerance
Useful life
150 °C; V
R
; I~
R
10 … 63 VDC
1.15 · V
R
47 … 4700 µF
±20%
;
M
1 000 h
Requirements:
∆C/C ≤
±45% of initial measured value
tan
≤
3 times initial specified value
I
leak
≤
initial specified value
Post test requirements:
∆C/C ≤
±30% of initial measured value
tan
≤
2 times initial specified value
I
leak
≤
initial specified value
Product
Voltage endurance test
150 °C; V
R
1 000 h
Vibration resistance
To IEC 60068-2-6, test Fc:
displacement amplitude 0.75 mm, frequency range 10 … 2000 Hz,
acceleration max. 20
g,
duration 3 x 2 h (body clipping)
To IEC 60068-1:
55/150/56 (– 55 °C/+150 °C/56 days damp heat test)
AEC-Q200, IEC 60384-4, DIN 45910 part 12
IEC climatic category
Sectional specification
Features
s
Wide temperature range up to 150 °C
s
High reliability
s
Long useful life
s
High ripple current capability
s
Compact design
s
Shelf life of the capacitor up to 15 years at storage temperatures up to 40 °C. To ensure solderability,
the capacitors should be built into the application within one year of delivery. After a total of two years’
storage, the operating voltage must be applied for one hour to ensure the specified leakage current.
Specifications and characteristics in brief
Dimensional drawing, standard type
Dimensions
Product
and weights, standard type
dxl
(mm)
10 x 12.5
d
max
x l
max
(mm)
10.5 x 13.5
10.5 x 17
10.5 x 22
13.0 x 22
13.0 x 27
16.5 x 22
16.5 x 33.5
18.5 x 22
18.5 x 37
18.5 x 42
20.5 x 22
20.5 x 27
20.5 x 42
a
(mm)
5.0
5.0
5.0
5.0
5.0
7.5
7.5
7.5
7.5
7.5
10.0
10.0
10.0
b
(mm)
0.60 ± 0.05
0.60 ± 0.05
0.60 ± 0.05
0.60 ± 0.05
0.60 ± 0.05
0.80 ± 0.05
0.80 ± 0.05
0.80 ± 0.1
0.80 ± 0.1
0.80 ± 0.1
0.80 ± 0.1
0.80 ± 0.1
0.80 ± 0.1
Approx. weight
(g)
1.6
1.9
2.6
3.6
4.5
5.5
8.8
8
13
16
10
12
16.5
d max.
d
Stand-off rubber seal
+
10 x 16
10 x 20
øb
a±0.5
12.5 x 20
12.5 x 25
16 x 20
-
max.
Safety vent
15 min.
5 min.
KAL0811-E-E
Minus pole
marking
16 x 31.5
18 x 20
18 x 35
18 x 40
20 x 20
20 x 25
20 x 40
2
07/05
Please read the important notes, cautions and warnings.
EPCOS AG
Data sheet
B41868
Case dimensions and ordering codes
V
R
VDC
10
C
R
120 Hz
20 °C
µF
330
470
1000
2200
3300
4700
220
330
470
1000
1000
2200
2200
3300
3300
4700
100
220
330
470
1000
1000
2200
3300
47
100
220
330
470
1000
2200
100
220
330
470
470
1000
47
100
220
220
330
330
470
Case dimensions tan
max
dxl
120 Hz
20 °C
mm
10 x 16
10 x 16
12.5 x 20
16 x 31.5
16 x 31.5
18 x 35
10 x 16
10 x 16
10 x 20
12.5 x 25
16 x 20
16 x 31.5
18 x 20
18 x 35
20 x 25
20 x 40
10 x 12.5
10 x 16
10 x 20
12.5 x 20
16 x 31.5
18 x 20
18 x 35
18 x 40
10 x12.5
10 x 16
10 x 20
12.5 x 20
12.5 x 25
16 x 31.5
20 x 40
10 x 20
12.5 x 20
12.5 x 25
16 x 31.5
18 x 20
18 x 35
10 x 16
12.5 x 20
16 x 31.5
18 x 20
16 x 31.5
20 x 20
18 x 35
0.20
0.20
0.20
0.22
0.24
0.26
0.16
0.16
0.16
0.16
0.16
0.18
0.18
0.20
0.20
0.22
0.14
0.14
0.14
0.14
0.14
0.14
0.16
0.18
0.12
0.12
0.12
0.12
0.12
0.12
0.14
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
ESR
max
120 Hz
20 °C
Ω
0.80
0.56
0.26
0.13
0.09
0.07
0.96
0.64
0.45
0.21
0.21
0.11
0.11
0.08
0.08
0.06
1.85
0.84
0.56
0.39
0.18
0.18
0.09
0.07
3.38
1.59
0.72
0.48
0.34
0.16
0.08
1.32
0.60
0.40
0.28
0.28
0.13
2.82
1.32
0.60
0.60
0.40
0.40
0.28
I~
R
100 kHz
150 °C
mA
330
400
650
1200
1300
1500
320
395
500
750
750
1300
1300
1500
1500
1600
250
370
490
600
1185
1185
1500
1600
250
370
500
600
750
1185
1500
300
400
500
700
700
850
220
350
660
660
680
680
800
I
leak, max
5 min.
20 °C
µA
33
47
100
220
330
470
35
53
75
160
160
350
350
525
525
750
25
55
82
115
250
250
550
1150
17
35
77
115
165
350
770
50
110
165
235
235
500
30
63
140
140
205
205
300
Ordering
code
16
25
35
50
63
B41868W3337M***
B41868W3477M***
B41868W3108M***
B41868W3228M***
B41868W3338M***
B41868W3478M***
B41868W4227M***
B41868W4337M***
B41868W4477M***
B41868W4108M***
B41868R4108M***
B41868W4228M***
B41868R4228M***
B41868W4338M***
B41868R4338M***
B41868W4478M***
B41868W5107M***
B41868W5227M***
B41868W5337M***
B41868W5477M***
B41868W5108M***
B41868R5108M***
B41868W5228M***
B41868W5338M***
B41868W7476M***
B41868W7107M***
B41868W7227M***
B41868W7337M***
B41868W7477M***
B41868W7108M***
B41868W7228M***
B41868W6107M***
B41868W6227M***
B41868W6337M***
B41868W6477M***
B41868R6477M***
B41868W6108M***
B41868W8476M***
B41868W8107M***
B41868W8227M***
B41868R8227M***
B41868W8337M***
B41868R8337M***
B41868W8477M***
*** = "000" for standard leads, bulk
"001" for kinked leads, bulk (for
≥
10 mm)
"002" for cut leads, bulk (for
≥
10 mm)
"003" for crimped leads, blister (for
≥
16 mm)
"004" for J leads, blister (from 10 x 12.5 mm to 18 x 35 mm)
"008" for taped leads, Ammo pack, lead spacing F = 5.0 mm (from
"009" for taped leads, Ammo pack, lead spacing F = 7.5 mm (from
"012" for bent 90° leads, blister (for 16 mm and 18 mm)
For more details refer to page 63 "Overview of packing units".
6.3 x 11 mm to 12.5 x 25 mm)
16 x 20 mm to 18 x 31.5 mm)
EPCOS AG
Please read the important notes, cautions and warnings.
07/05
3
Data sheet
B41868
Characteristics
Useful life
depending on ambient temperature T
A
under ripple
current operating conditions
2.5
KAL0806-D
Frequency factor of permissible ripple current I~
versus frequency f
1.2
KAL0807-L
Ι
~
Ι
~
R
B41868
2.0
Ι
~
100 kHz
1.0
Ι
~
f
B41868
1.5
0.8
1.0
0.6
50 000 h
20 000 h
10 000 h
2 000 h
0.5
5 000 h
1 000 h
0.4
0
40
50
60
70
80
90 100 110 120 130 140
˚C 160
T
A
0.2
2
10
10
3
10
4
Hz 10
5
f
4
07/05
Please read the important notes, cautions and warnings.
