PBD3545/1QN datasheet, PDF - EEWORLD Datasheet

PBD3545/1QN: DescriptionAnd Gate Based Peripheral Driver, 0.9A, PQCC28, POWER, PLASTIC, LCC-28; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size254KB，8 Pages; ManufacturerEricsson; Websitehttp://www.ericsson.com

Download Datasheet Parametric Compare View All

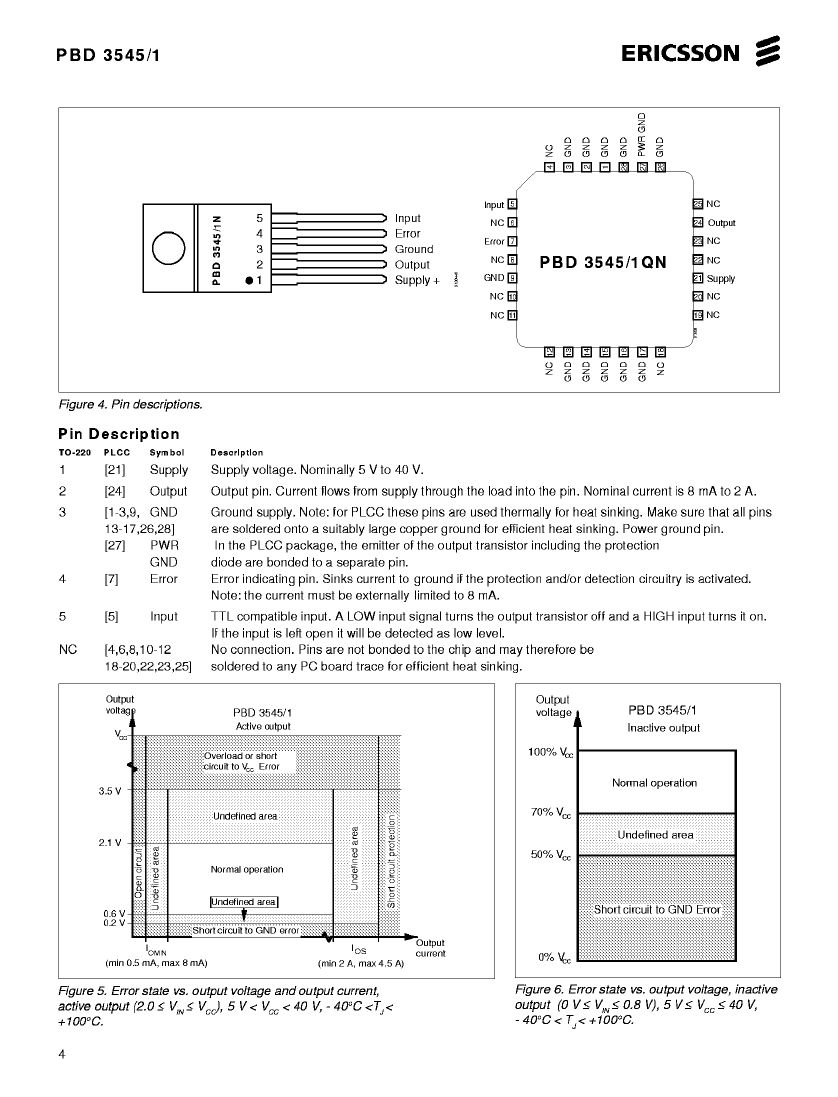

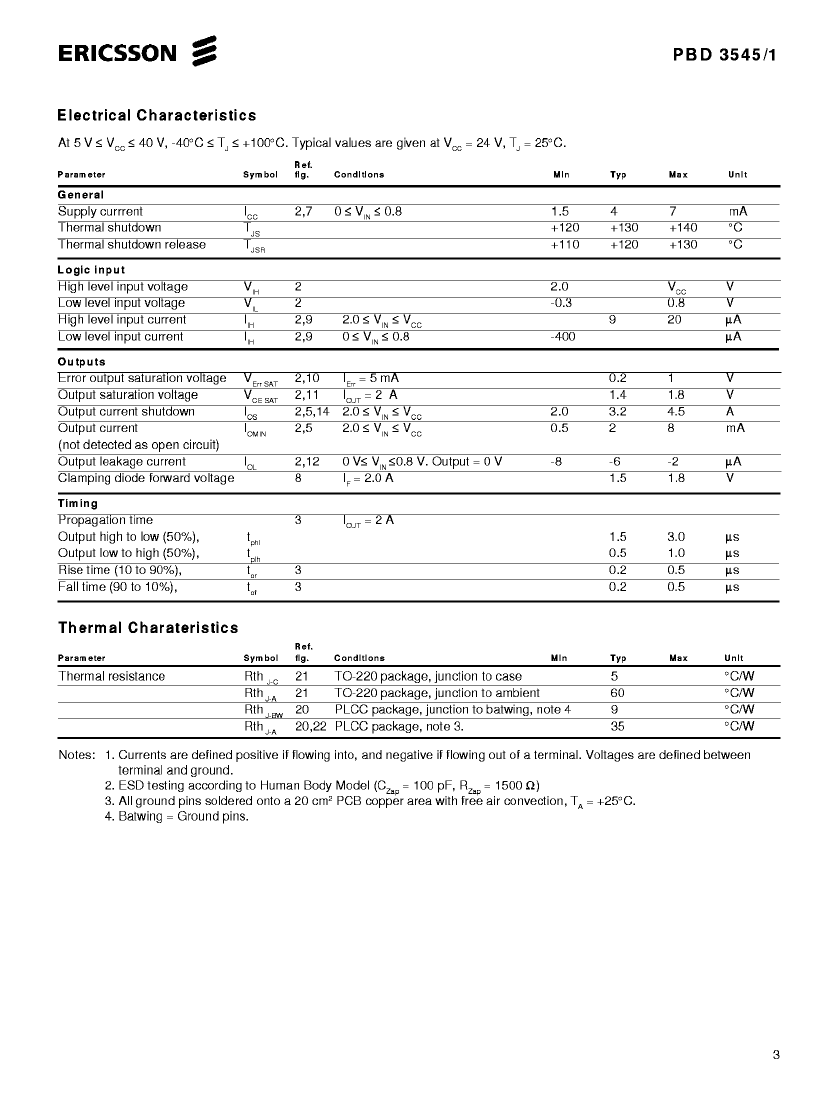

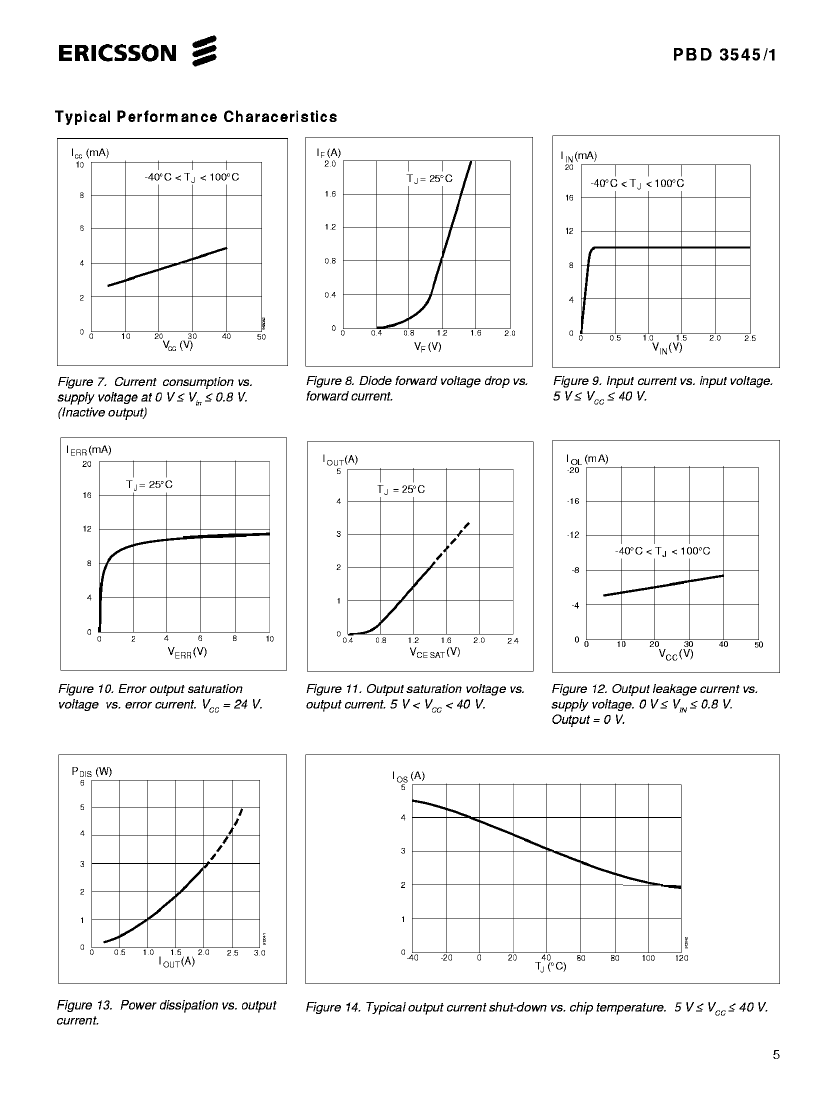

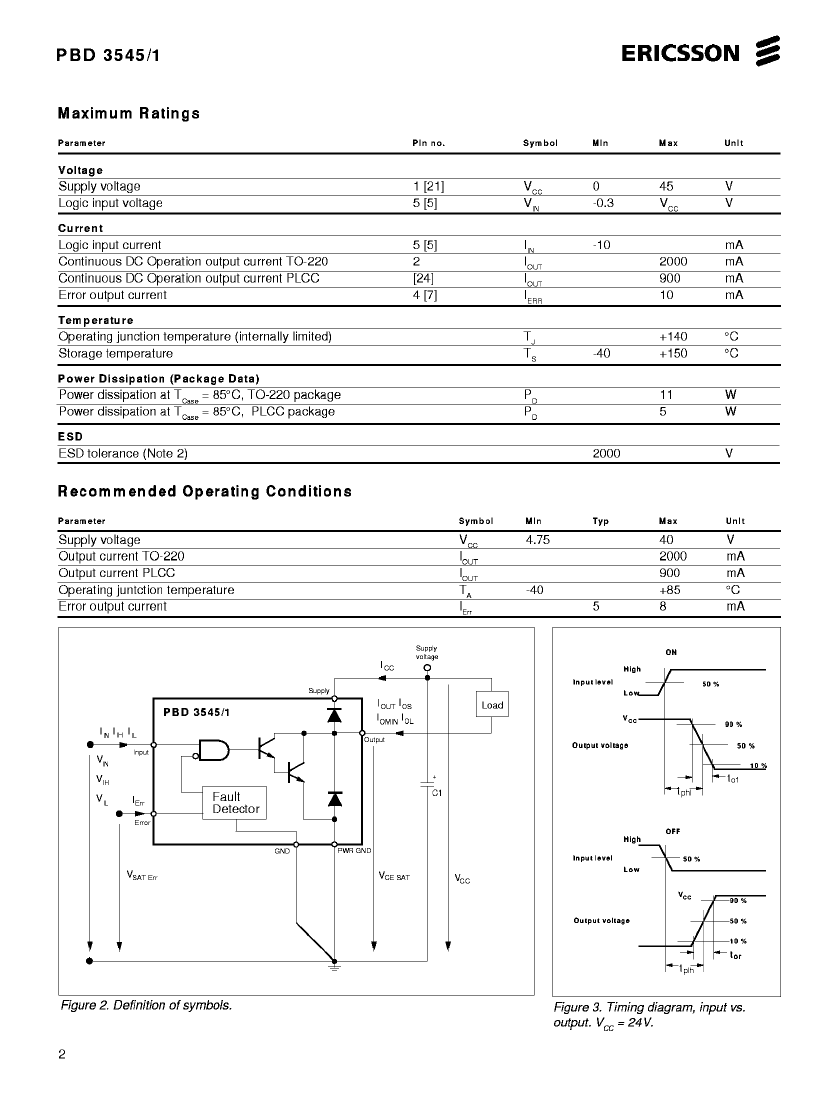

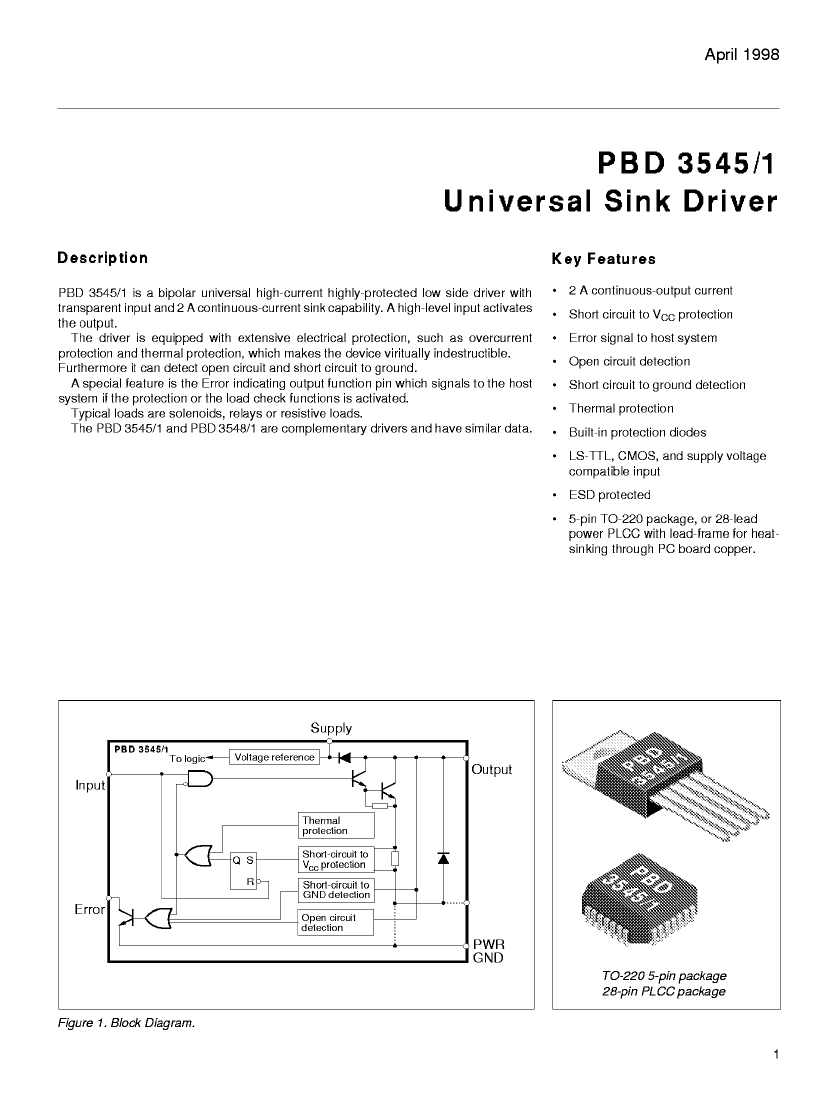

PBD3545/1QN Overview

And Gate Based Peripheral Driver, 0.9A, PQCC28, POWER, PLASTIC, LCC-28

Parameter Name	Attribute value
Maker	Ericsson
Parts packaging code	QLCC
package instruction	QCCJ,
Contacts	28
Reach Compliance Code	unknow
ECCN code	EAR99
Built-in protection	TRANSIENT; OVER CURRENT; THERMAL
Interface integrated circuit type	AND GATE BASED PERIPHERAL DRIVER
JESD-30 code	S-PQCC-J28
length	11.5062 mm
Number of functions	1
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output current flow direction	SINK
Nominal output peak current	0.9 A
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum supply voltage	40 V
Minimum supply voltage	4.75 V
Nominal supply voltage	24 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Disconnect time	3 µs
connection time	1 µs
width	11.5062 mm

	PBD3545/1QN	PBD3545/1QN:T
Description	And Gate Based Peripheral Driver, 0.9A, PQCC28, POWER, PLASTIC, LCC-28	0.9A AND GATE BASED PRPHL DRVR, PQCC28, POWER, PLASTIC, LCC-28
Maker	Ericsson	Ericsson
Parts packaging code	QLCC	QLCC
package instruction	QCCJ,	QCCJ,
Contacts	28	28
Reach Compliance Code	unknow	unknown
Built-in protection	TRANSIENT; OVER CURRENT; THERMAL	TRANSIENT; OVER CURRENT; THERMAL
Interface integrated circuit type	AND GATE BASED PERIPHERAL DRIVER	AND GATE BASED PERIPHERAL DRIVER
JESD-30 code	S-PQCC-J28	S-PQCC-J28
length	11.5062 mm	11.5062 mm
Number of functions	1	1
Number of terminals	28	28
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output current flow direction	SINK	SINK
Nominal output peak current	0.9 A	0.9 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	4.57 mm
Maximum supply voltage	40 V	40 V
Minimum supply voltage	4.75 V	4.75 V
Nominal supply voltage	24 V	24 V
surface mount	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
Disconnect time	3 µs	3 µs
connection time	1 µs	1 µs
width	11.5062 mm	11.5062 mm
