TC55257CPI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > TC55257CPI

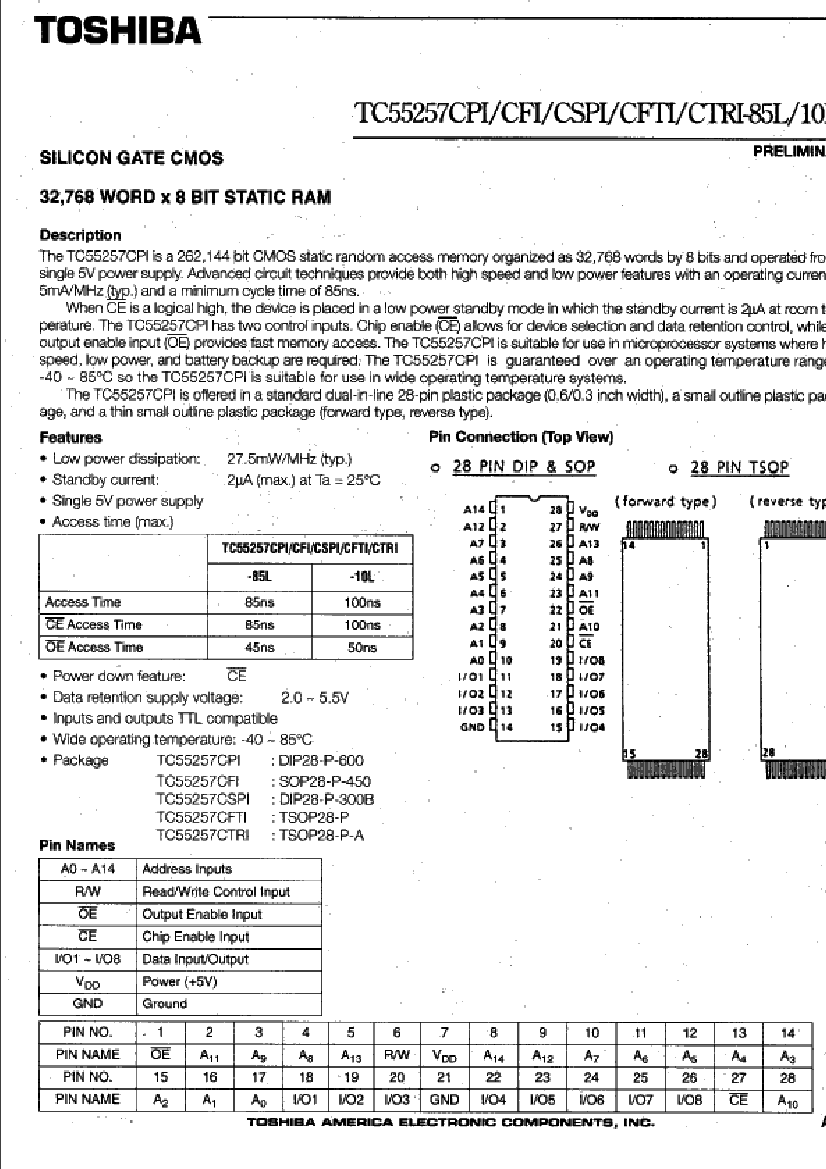

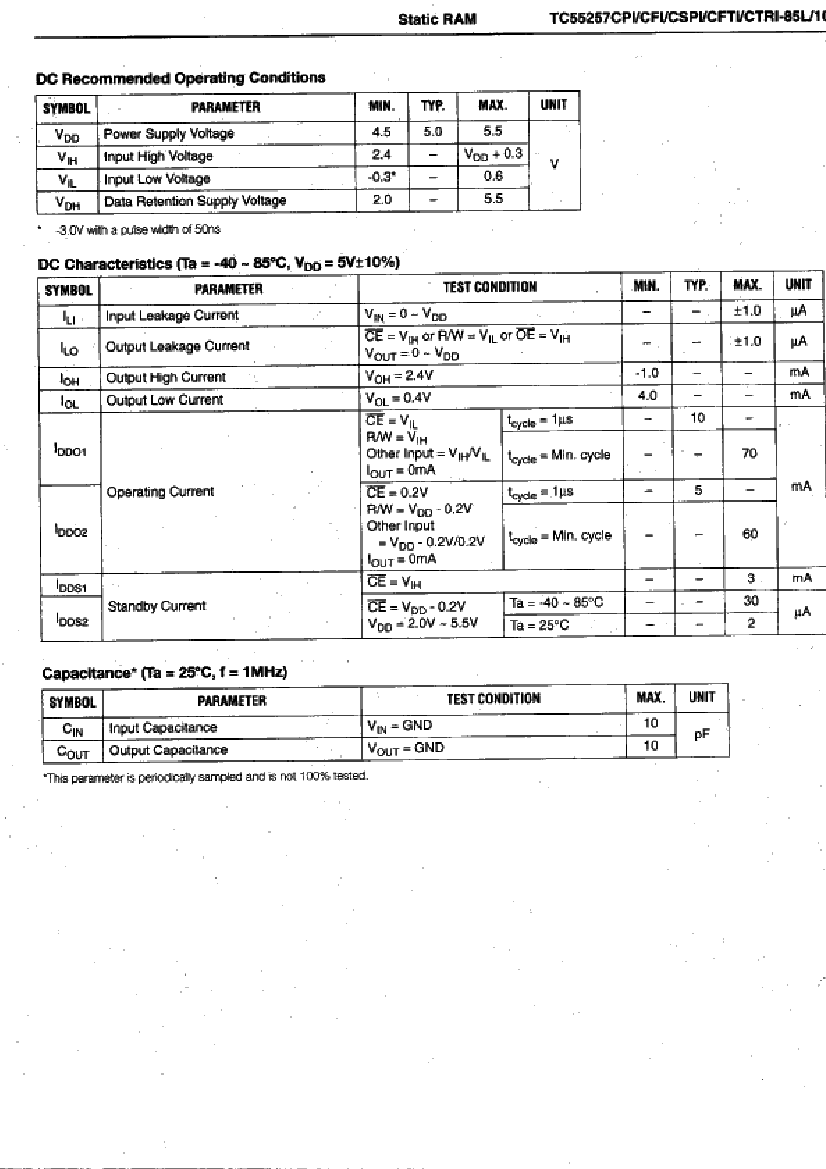

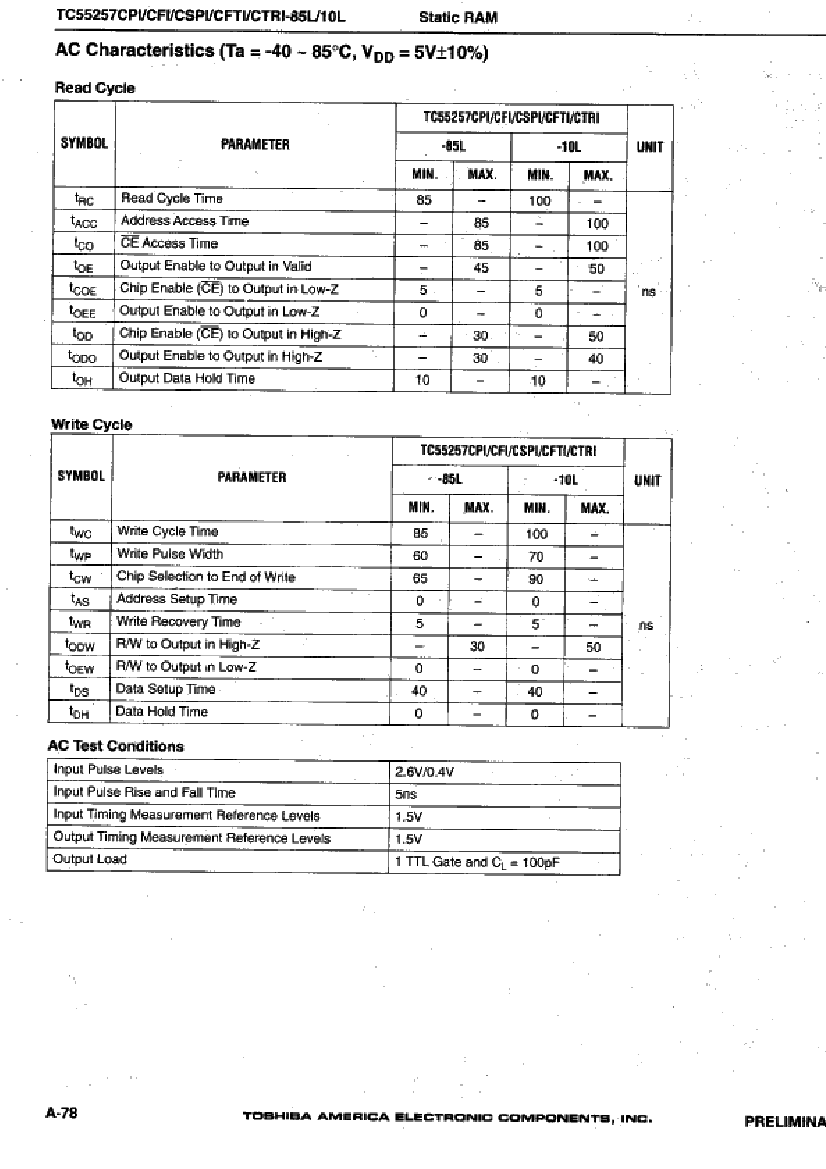

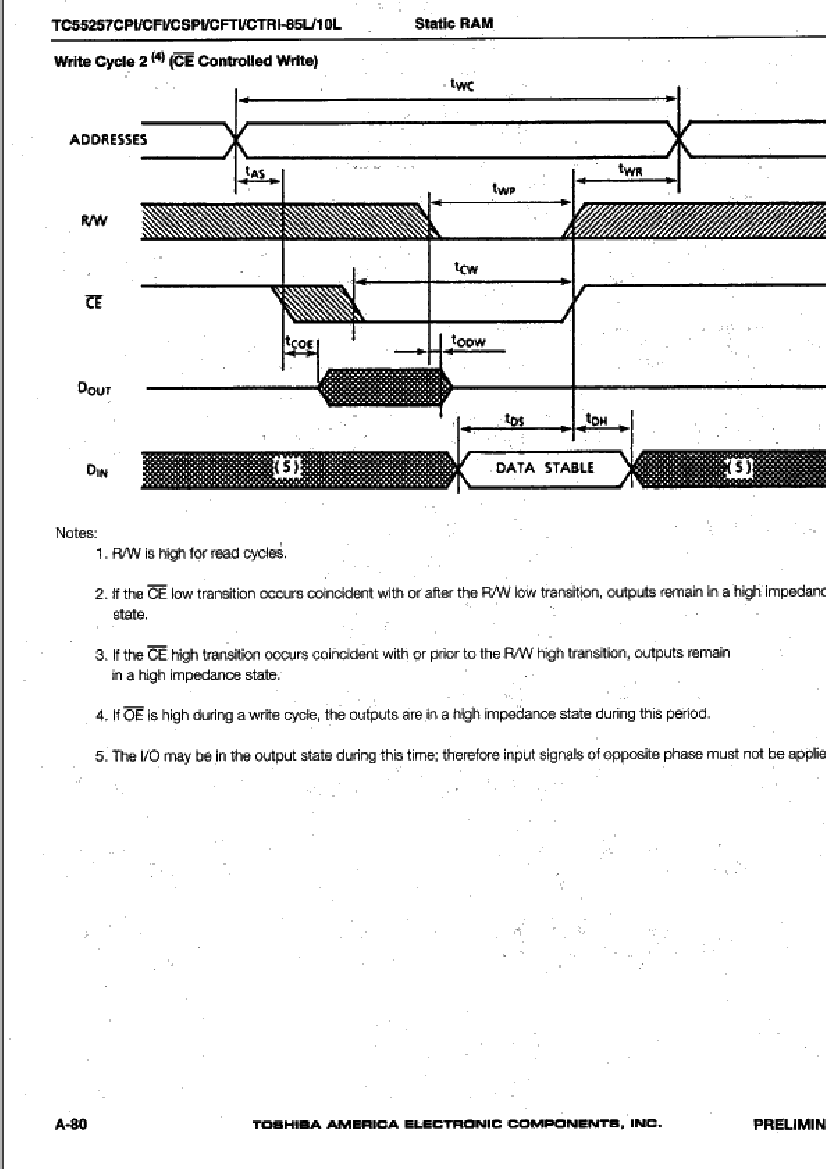

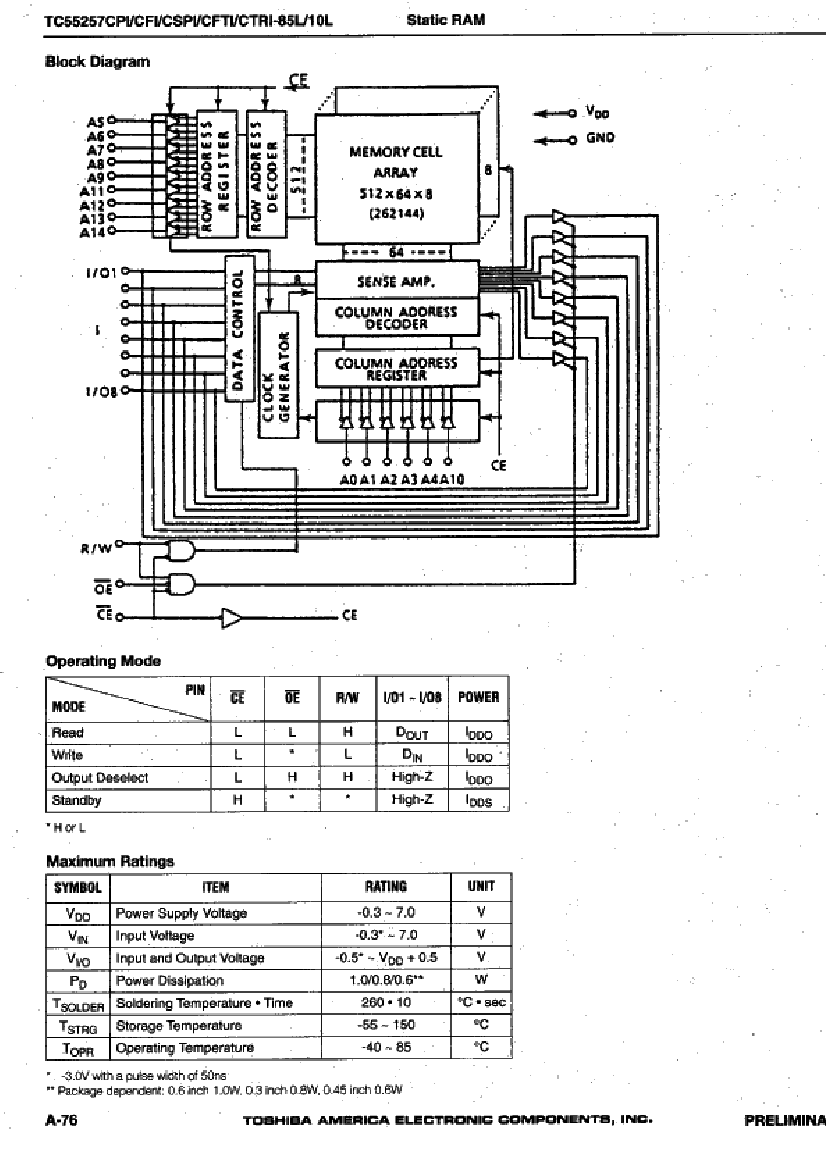

Preview

TC55257CPI: DescriptionSILICON GATE CMOS 32,768 WORD x 8 BIT STATIC RAM; File Size184KB，7 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Compare View All

TC55257CPI Overview

SILICON GATE CMOS 32,768 WORD x 8 BIT STATIC RAM

Preview

Download Datasheet

View All

TC55257CPI Related Products

	TC55257CPI	TC55257CTRI-10L	TC55257CTRI	TC55257CSPI-85L	TC55257CSPI	TC55257CSPI-10L	TC55257CPI-85L	TC55257CPI-10L	TC55257CFTI-10L	TC55257CFTI-85L
Description	SILICON GATE CMOS 32,768 WORD x 8 BIT STATIC RAM	SILICON GATE CMOS 32,768 WORD x 8 BIT STATIC RAM	SILICON GATE CMOS 32,768 WORD x 8 BIT STATIC RAM	SILICON GATE CMOS 32,768 WORD x 8 BIT STATIC RAM	SILICON GATE CMOS 32,768 WORD x 8 BIT STATIC RAM	SILICON GATE CMOS 32,768 WORD x 8 BIT STATIC RAM	SILICON GATE CMOS 32,768 WORD x 8 BIT STATIC RAM	SILICON GATE CMOS 32,768 WORD x 8 BIT STATIC RAM	SILICON GATE CMOS 32,768 WORD x 8 BIT STATIC RAM	SILICON GATE CMOS 32,768 WORD x 8 BIT STATIC RAM
Is it lead-free?	-	Contains lead	-	Contains lead	-	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	-	incompatible	-	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	-	TSOP	-	DIP	-	DIP	DIP	DIP	TSOP	TSOP
package instruction	-	TSOP1-R, TSSOP28,.53,22	-	DIP, DIP28,.3	-	DIP, DIP28,.3	DIP, DIP28,.6	DIP, DIP28,.6	TSOP1, TSSOP28,.53,22	TSOP1, TSSOP28,.53,22
Contacts	-	28	-	28	-	28	28	28	28	28
Reach Compliance Code	-	unknow	-	unknow	-	unknow	unknow	unknow	unknow	unknow
ECCN code	-	EAR99	-	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	-	100 ns	-	85 ns	-	100 ns	85 ns	100 ns	100 ns	85 ns
I/O type	-	COMMON	-	COMMON	-	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	-	R-PDSO-G28	-	R-PDIP-T28	-	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28	R-PDSO-G28	R-PDSO-G28
JESD-609 code	-	e0	-	e0	-	e0	e0	e0	e0	e0
length	-	11.8 mm	-	34.9 mm	-	34.9 mm	37 mm	37 mm	11.8 mm	11.8 mm
memory density	-	262144 bi	-	262144 bi	-	262144 bi	262144 bi	262144 bi	262144 bi	262144 bi
Memory IC Type	-	STANDARD SRAM	-	STANDARD SRAM	-	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	-	8	-	8	-	8	8	8	8	8
Number of functions	-	1	-	1	-	1	1	1	1	1
Number of terminals	-	28	-	28	-	28	28	28	28	28
word count	-	32768 words	-	32768 words	-	32768 words	32768 words	32768 words	32768 words	32768 words
character code	-	32000	-	32000	-	32000	32000	32000	32000	32000
Operating mode	-	ASYNCHRONOUS	-	ASYNCHRONOUS	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	-	85 °C	-	85 °C	-	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
organize	-	32KX8	-	32KX8	-	32KX8	32KX8	32KX8	32KX8	32KX8
Output characteristics	-	3-STATE	-	3-STATE	-	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	-	PLASTIC/EPOXY	-	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	TSOP1-R	-	DIP	-	DIP	DIP	DIP	TSOP1	TSOP1
Encapsulate equivalent code	-	TSSOP28,.53,22	-	DIP28,.3	-	DIP28,.3	DIP28,.6	DIP28,.6	TSSOP28,.53,22	TSSOP28,.53,22
Package shape	-	RECTANGULAR	-	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	SMALL OUTLINE, THIN PROFILE	-	IN-LINE	-	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	-	PARALLEL	-	PARALLEL	-	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	-	240	-	240	-	240	240	240	240	240
power supply	-	5 V	-	5 V	-	5 V	5 V	5 V	5 V	5 V
Certification status	-	Not Qualified	-	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	-	1.2 mm	-	4.45 mm	-	4.45 mm	5.3 mm	5.3 mm	1.2 mm	1.2 mm
Maximum standby current	-	0.000015 A	-	0.000015 A	-	0.000015 A	0.000015 A	0.000015 A	0.000015 A	0.000015 A
Minimum standby current	-	2 V	-	2 V	-	2 V	2 V	2 V	2 V	2 V
Maximum slew rate	-	0.07 mA	-	0.07 mA	-	0.07 mA	0.07 mA	0.07 mA	0.07 mA	0.07 mA
Maximum supply voltage (Vsup)	-	5.5 V	-	5.5 V	-	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	-	4.5 V	-	4.5 V	-	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	-	5 V	-	5 V	-	5 V	5 V	5 V	5 V	5 V
surface mount	-	YES	-	NO	-	NO	NO	NO	YES	YES
technology	-	CMOS	-	CMOS	-	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	-	INDUSTRIAL	-	INDUSTRIAL	-	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	-	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	-	GULL WING	-	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	-	0.55 mm	-	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	0.55 mm	0.55 mm
Terminal location	-	DUAL	-	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	-	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	-	8 mm	-	7.62 mm	-	7.62 mm	15.24 mm	15.24 mm	8 mm	8 mm
