CTMC2220F-472K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CTMC2220F-472K

CTMC2220F-472K: Description1 ELEMENT, 4700 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size195KB，1 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CTMC2220F-472K Overview

1 ELEMENT, 4700 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD

CTMC2220F-472K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	2320
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	2320
core material	FERRITE
DC Resistance	78 Ω
Nominal inductance(L)	4700 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CTMC2220F
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Minimum quality factor (at nominal inductance)	20
Maximum rated current	0.036 A
self resonant frequency	0.9 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.252 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

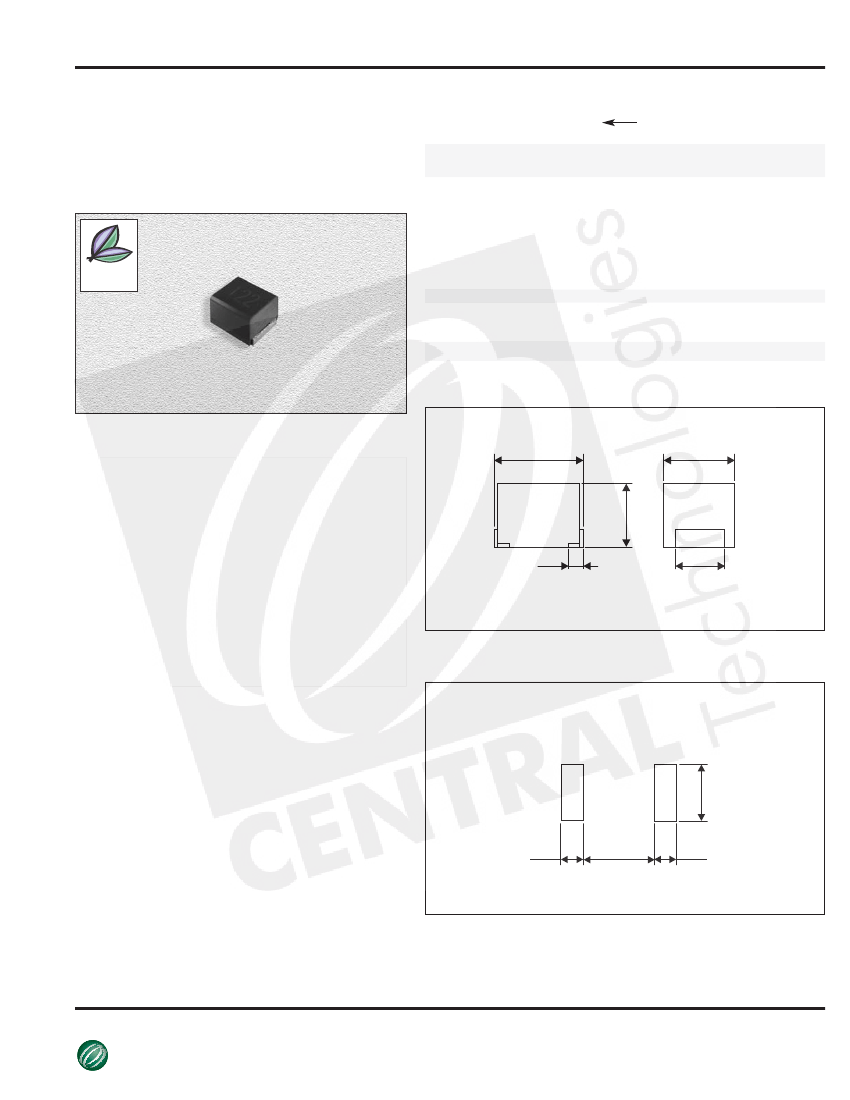

Wire-wound Chip Inductors - Molded

ctparts.com

CTMC2220F Series

From 1,200 µH to 10,000 µH

Part

Number

CTMC2220F-122_

CTMC2220F-152_

CTMC2220F-182_

CTMC2220F-222_

CTMC2220F-272_

CTMC2220F-332_

CTMC2220F-392_

CTMC2220F-472_

CTMC2220F-562_

CTMC2220F-682_

CTMC2220F-822_

CTMC2220F-103_

Not shown at actual size.

SPECIFICATIONS

Please specify tolerance code when ordering.

CTMC2220F-122_

J = ±5%, K = ±10%

L Test

Freq.

(MHz)

.252

.0796

Fact.

Min.

Q Test

Freq.

(MHz)

.252

.0796

SRF

Min.

(MHz)

1.5

1.4

1.3

1.2

1.1

1.0

0.9

0.8

0.7

0.6

0.5

DCR

Max.

(Ω)

110

125

150

Rated

(mA)

Inductance

(µH)

1200

1500

1800

2200

2700

3300

3900

4700

5600

6800

8200

10000

Compliant

RoHS

PHYSICAL DIMENSIONS

Size

inches

Max.

5.9

0.232

Max.

5.2

0.205

Max.

4.2

0.165

4±0.2

0.157±0.008

0.7±0.2

0.028±0.008

CHARACTERISTICS

Description:

Ferrite core, wire-wound molded chip inductor

Applications:

TV’s, VCR’s, disk drives, computer peripherals,

telecommunication devices and electronic control boards

for automobiles

Operating Temperature:

-25°C to +85°C

Inductance Tolerance:

±5%, ±10%

Testing:

Inductance and Q are tested on an HP4285A at

specified frequency

Packaging:

Tape & Reel

Part Marking:

Inductance code.

Miscellaneous:

RoHS Compliant.

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

LAND PATTERN

Unit: mm

2.00

4.00

2.00

12.09.08

CENTRAL

Manufacturer of Passive Components

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice

TECHNOLOGIES

4.50
