TOSHIBA

TC551001BPL/BFL/BFTL/BTRL-70L/85L

SILICON GATE CMOS

131,072 WORD x 8 BIT STATIC RAM

Description

The TC551001BPL is a 1,048,576 bits static random access memory organized as 131,072 words by 8 bits using CMOS technology,

and operated from a single 5V power supply. Advanced circuit techniques provide both high speed and low power features with an

operating current of 5mA/MHz (typ.) and a minimum cycle time of 70ns. When CE1 is a logical high, or CE2 is low, the device is

placed in a low power standby mode in which the standby current is 2

A typically. The TC551001BPL has three control inputs.

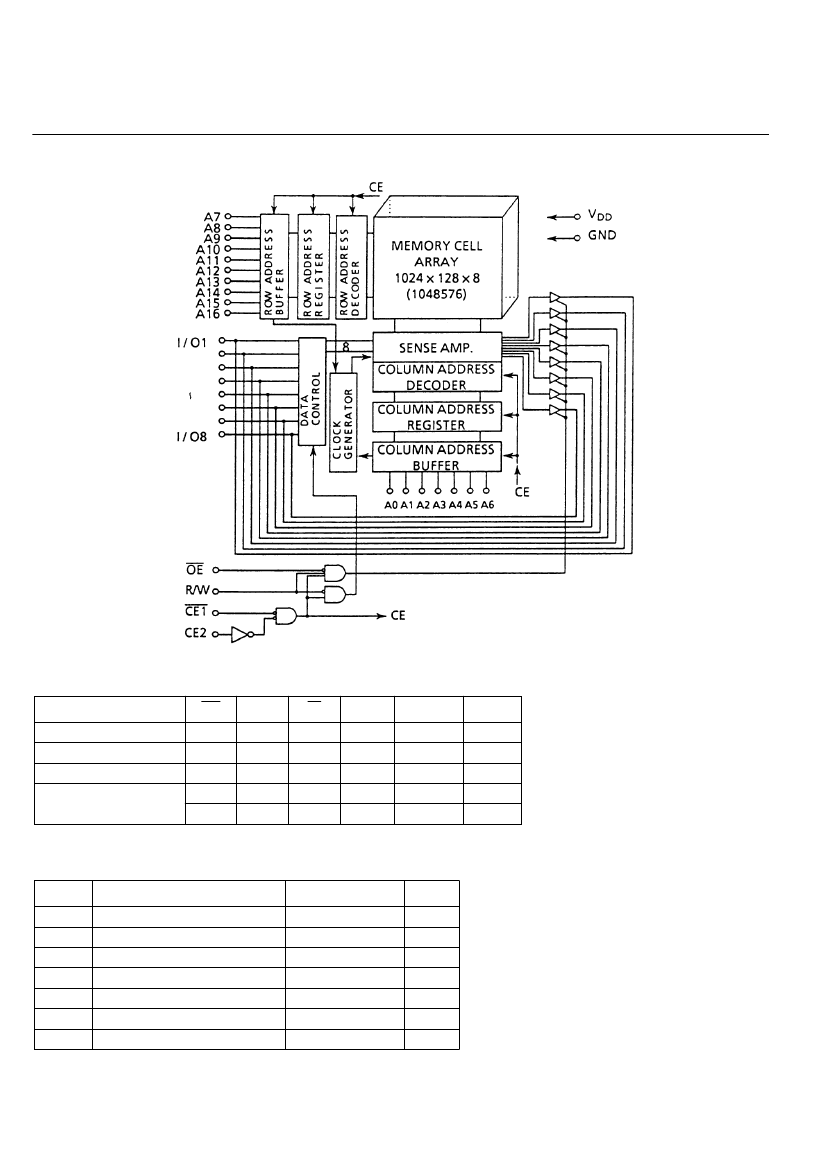

Chip Enable inputs (CE1, CE2) allow for device selection and data retention control, while an Output Enable input (OE) provides fast

memory access. The TC551001BPL is suitable for use in microprocessor application systems where high speed, low power, and

battery backup are required.

The TC551001BPL is offered in a standard dual-in-line 32-pin plastic package, a small outline plastic package, and a thin small

outline plastic package (forward, reverse type).

Features

• Low power dissipation

• Standby current:

• 5V single power supply

• Access time (max.)

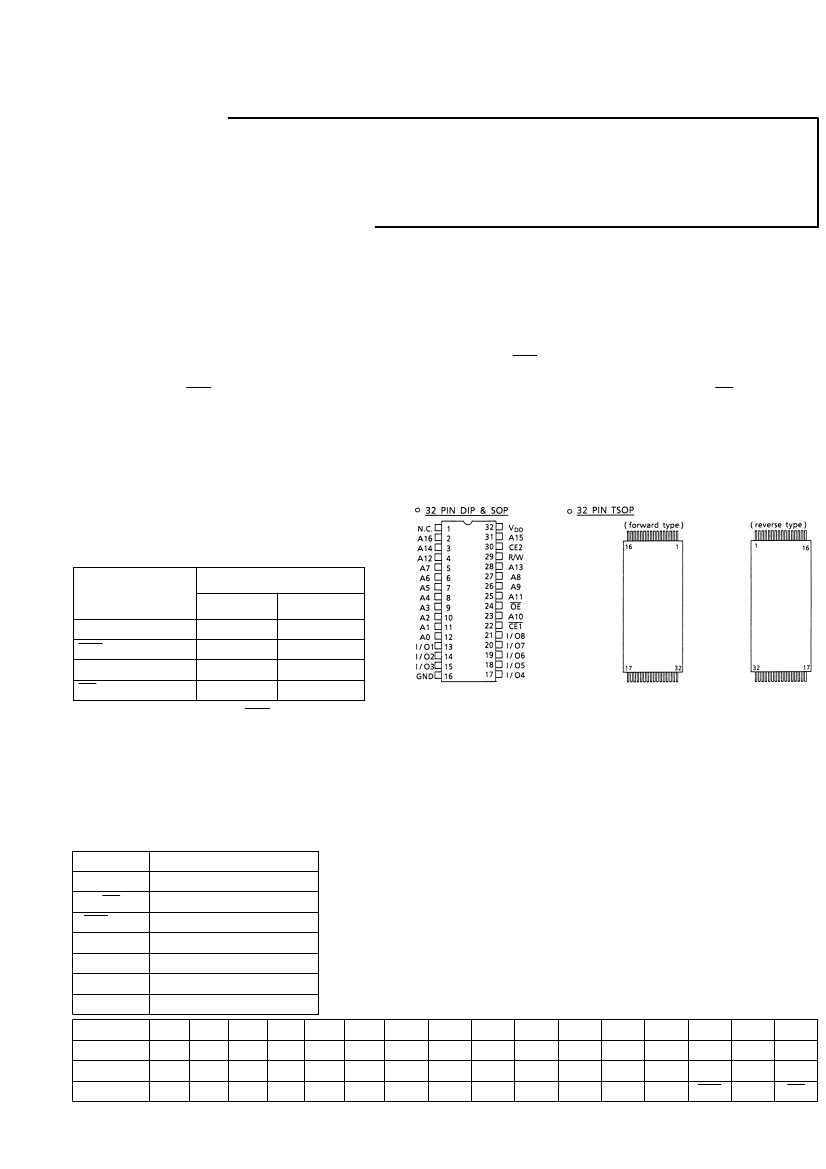

Pin Connection (Top View)

27.5mW/MHz (typ.)

A (max.) at Ta = 25

TC551001BPL/BFL/BFTL/BTRL

-70L

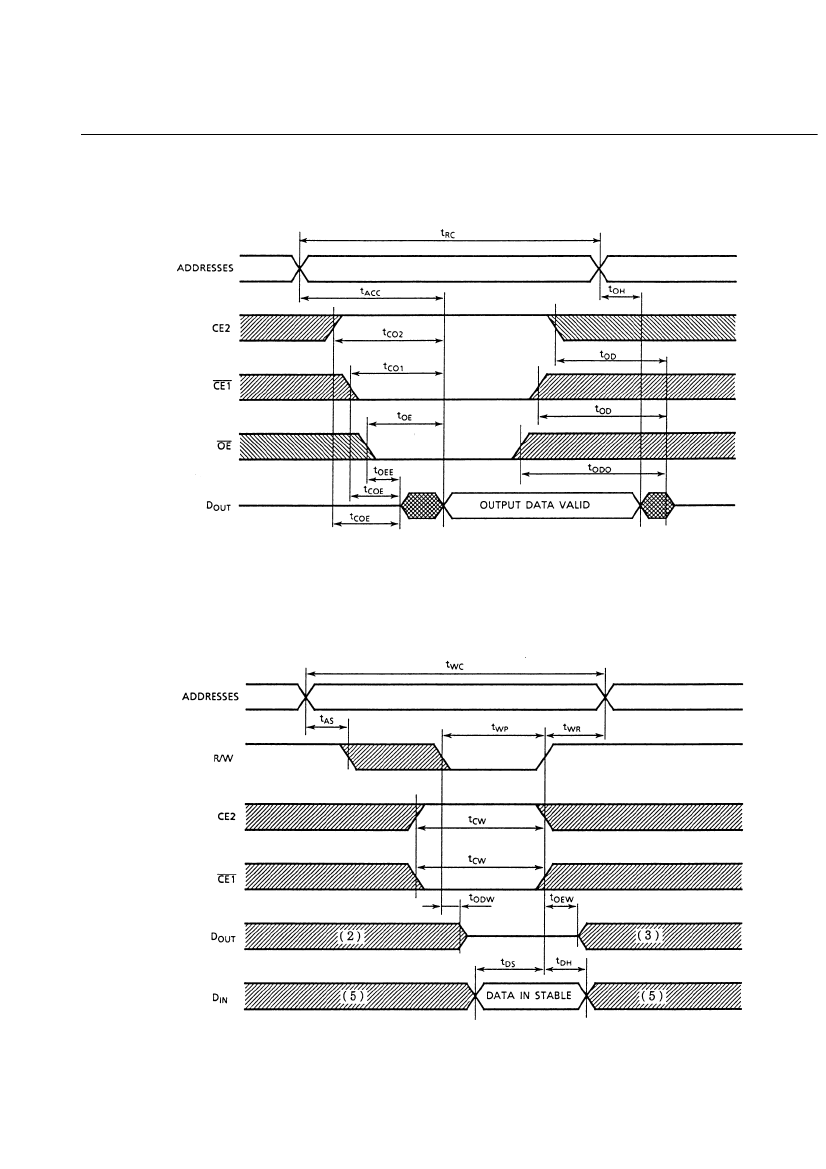

Access Time

CE1 Access Time

CE2 Access Time

OE Access Time

70ns

35ns

-85L

85ns

45ns

Power down feature:

CE1, CE2

Data retention supply voltage:

2.0 ~ 5.5V

Inputs and outputs directly TTL compatible

Package

TC551001BPL

: DIP32-P-600

TC551001BFL

: SOP32-P-525

TC551001BFTL

: TSOP32-P-0820

TC551001BTRL : TSOP32-P-0820A

Pin Names

•

A0 ~ A16

R/W

CE1, CE2

I/O1 ~ I/O8

GND

N.C.

PIN NO.

PIN NAME

PIN NO.

PIN NAME

Address Inputs

Read/Write Control Input

Output Enable Input

Chip Enable Inputs

Data Input/Output

Power (+5V)

Ground

No Connection

R/W

I/O1

CE2

I/O2

I/O3

TSOP Pinout

GND

I/O4

I/O5

I/O6

I/O7

I/O8

CE1

TOSHIBA AMERICA ELECTRONIC COMPONENTS, INC
