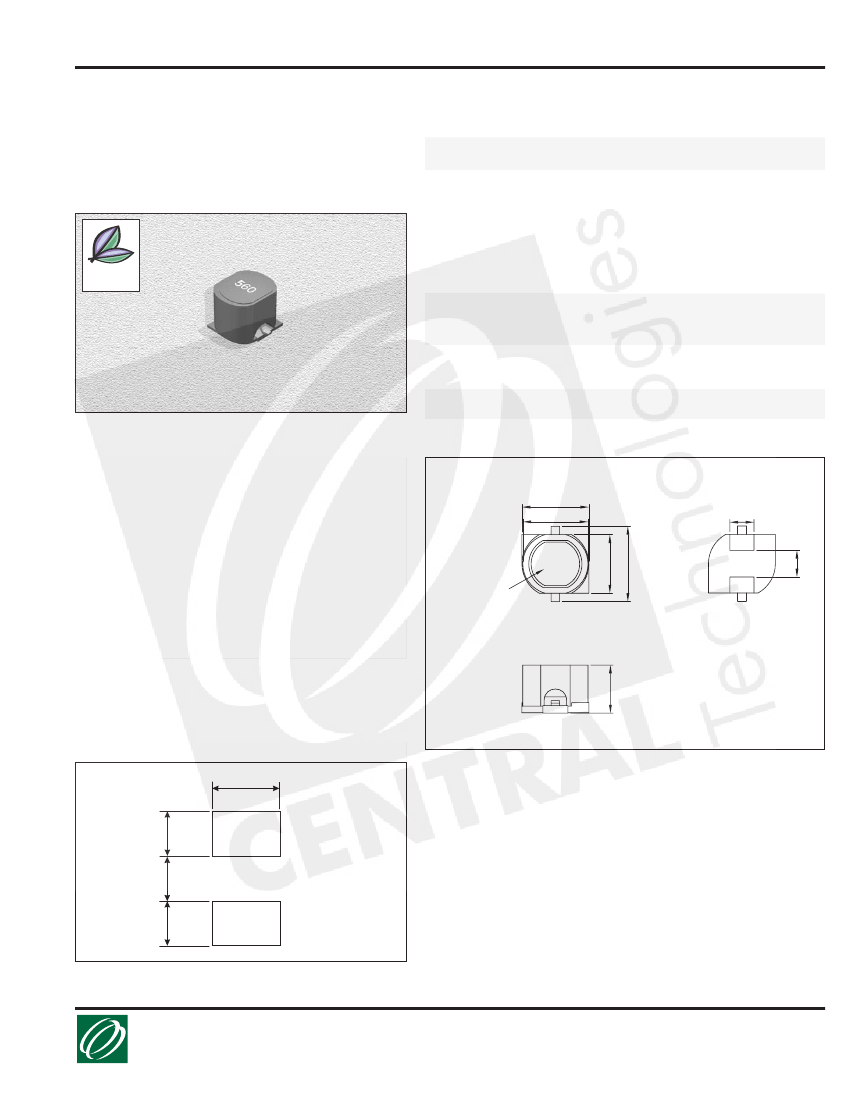

Power Inductors - Shielded
ctparts.com
CTSDB0705F Series
From 10 µH to 220 µH
Part
Number
CTSDB0705F-100M
CTSDB0705F-120M
CTSDB0705F-150M
CTSDB0705F-180M
CTSDB0705F-220M
CTSDB0705F-270M
CTSDB0705F-330M
CTSDB0705F-390M
CTSDB0705F-470M
CTSDB0705F-560M
CTSDB0705F-680M
CTSDB0705F-820M
CTSDB0705F-101M
CTSDB0705F-121M
CTSDB0705F-151M
CTSDB0705F-181M
CTSDB0705F-221M
Not shown at actual size.
SPECIFICATIONS
Parts are only available in ±20% inductance tolerance.
L Test
Freq.
(kHz)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
DCR
Max.
Ω
(Ω)
0.05
0.06
0.07
0.08
0.10
0.10
0.15
0.15
0.20
0.25
0.30
0.30
0.40
0.45
0.55
0.70
0.75
Rated
DC
(A)
1.60
1.50
1.40
1.30
1.10
1.00
0.92
0.84
0.76
0.68
0.63
0.58
0.50
0.46
0.40
0.38
0.36
Inductance
(µH)
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
Compliant
RoHS
PHYSICAL DIMENSIONS
Size
mm
inches
A
8.0±0.3
0.32±0.012
B
Max.
10.5
0.41
C
5.7±0.3
0.22±0.012
D
Ref.
7.8
0.31
E
Ref.
7.0
0.28
F
3.0±0.2
0.12±0.008
G
3.7±0.3
0.15±0.012
CHARACTERISTICS
Description:
SMD (shielded) power inductor
Applications:
Switching power supplies. RFI/EMC filtering
Operating Temperature:
-25°C to +75°C
Storage Temperature:
-40°C to +125°C
Inductance Tolerance:
±20%
Testing:
Inductance is tested on an HP4284A at 1kHz
Packaging:
Tape & Reel
Marking:
Marked with inductance code
Rated DC:
Based on temperature rise &
ΔL
/ L0A = 10% typ.
Miscellaneous:
RoHS Compliant
Additional Information:
Additional electrical & physical
information available upon request
Samples available. See website for ordering information.
A
D
F
XXX
E B
G
Marking:
Inductance Code
C
RECOMMENDED LAND PATTERN
Unit: mm
3.9Ref.
2.8Ref. 2.8Ref. 2.8Ref.
07.27.06
Technologies
Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2006 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
