Unless otherwise specified on order, amplified units with 4 mA
to 20 mA output will provide 4 mA at 0 psid and 20 mA at positive full
scale and the unit will not operate in the negative direction. Consult
Factory to specify 4 mA at negative full scale and 20 mA at positive full
scale.
Note 2:
All amps add 2 inches to sensor housing length.
500 psi
Ha C276 & 316L Stainless Steel
TABLE 4. ENVIRONMENTAL SPECIFICATIONS
ORDER
CODE
RANGE
TEMPERATURE,
COMPENSATED
TEMPERATURE, OPERATING
Unamplified Output:
Option 2U
TEMPERATURE, OPERATING
Voltage Output:
Option 2D,2E,2F,2G
Current Output:
Option 2P,2Y,2N
less than 1 psi
FDD
1 psi and less than 5 psi
5 psi and above
less than 1 psi
FDW
1 psi and less than 5 psi
5 psi and above
Temperature,
error band
0.10 % accuracy
0.25 % accuracy
10 °C to 45 °C [50 °F to 110 °F]
5 °C to 50 °C [40 °F to 120 °F]
5 °C to 60 °C [40 °F to 140 °F]
10 °C to 45 °C [50 °F to 110 °F]
5 °C to 50 °C [40 °F to 120 °F]
5 °C to 60 °C [40 °F to 140 °F]
±0.5 % full scale
±1.0 % full scale
–
–
–
–
-40 °C to 116 °C
[-40 °F to 240 °F]
-29 °C to 85 °C
[-20 °F to 185 °F]
2
sensing.honeywell.com
DIFFERENTIAL PRESSURE TRANSDUCER,
MODEL FP2000
TABLE 5. INTERNAL AMPLIFIERS
AMPLIFIER
SPECIFICATIONS
Output signal at null
Output signal at full scale output
Input power (voltage)
Input power (current)
Frequency response
Power supply rejection
Operating temperature
Reverse voltage protection
Short circuit protection
AMPLIFIER
SPECIFICATIONS
Output signal at null
Output signal at full scale output
Input power (voltage)
Input power (current)
Frequency response
Power supply rejection
Operating temperature
Reverse voltage protection
Short circuit protection
UNAMPLIFIED
OUTPUT: OPTION 2U
0 Vdc
50 mV
10 Vdc
2 mA @ 10 Vdc
Natural frequency
N/A
-40 °C to 116 °C
[-40 °F to 240 °F]
N/A
N/A
VOLTAGE OUTPUT:
OPTION 2E
0 Vdc
5 Vdc
9 Vdc to 28 Vdc
10 mA
2000 Hz
60 dB
-29 °C to 85 °C
[-20 °F to 185 °F]
Yes
Momentary
VOLTAGE OUTPUT:
OPTION 2D
0 Vdc
5 Vdc
9 Vdc to 28 Vdc
10 mA
300 Hz
60 dB
-29 °C to 85 °C
[-20 °F to 185 °F]
Yes
Momentary
VOLTAGE OUTPUT:
OPTION 2F
0 Vdc
10 Vdc
15 Vdc to 28 Vdc
15 mA
2000 Hz
60 dB
-29 °C to 85 °C
[-20 °F to 185 °F]
Yes
Momentary
VOLTAGE OUTPUT:
OPTION 2G
0 Vdc
10 Vdc
15 Vdc to 28 Vdc
15 mA
300 Hz
60 dB
-29 °C to 85 °C
[-20 °F to 185 °F]
Yes
Momentary
INTRINSICALLY SAFE
AMP: OPTION 2N (2N)***
4 mA
20 mA
9 Vdc to 28 Vdc
4 mA to 24 mA
2000 Hz
60 dB
-29 °C to 85 °C
[-20 °F to 185 °F]
Yes
Yes
CURRENT TWO-WIRE:
OPTION 2P
4 mA
20 mA
9 Vdc to 32 Vdc
4 mA to 24 mA
300 Hz
60 dB
-29 °C to 85 °C
[-20 °F to 185 °F]
Yes
Yes
CURRENT TWO-WIRE:
OPTION 2Y
4 mA
20 mA
9 Vdc to 32 Vdc
4 mA to 24 mA
2000 Hz
60 dB
-29 °C to 85 °C
[-20 °F to 185 °F]
Yes
Yes
Sensing and Internet of Things
3
DIFFERENTIAL PRESSURE TRANSDUCER,
MODEL FP2000

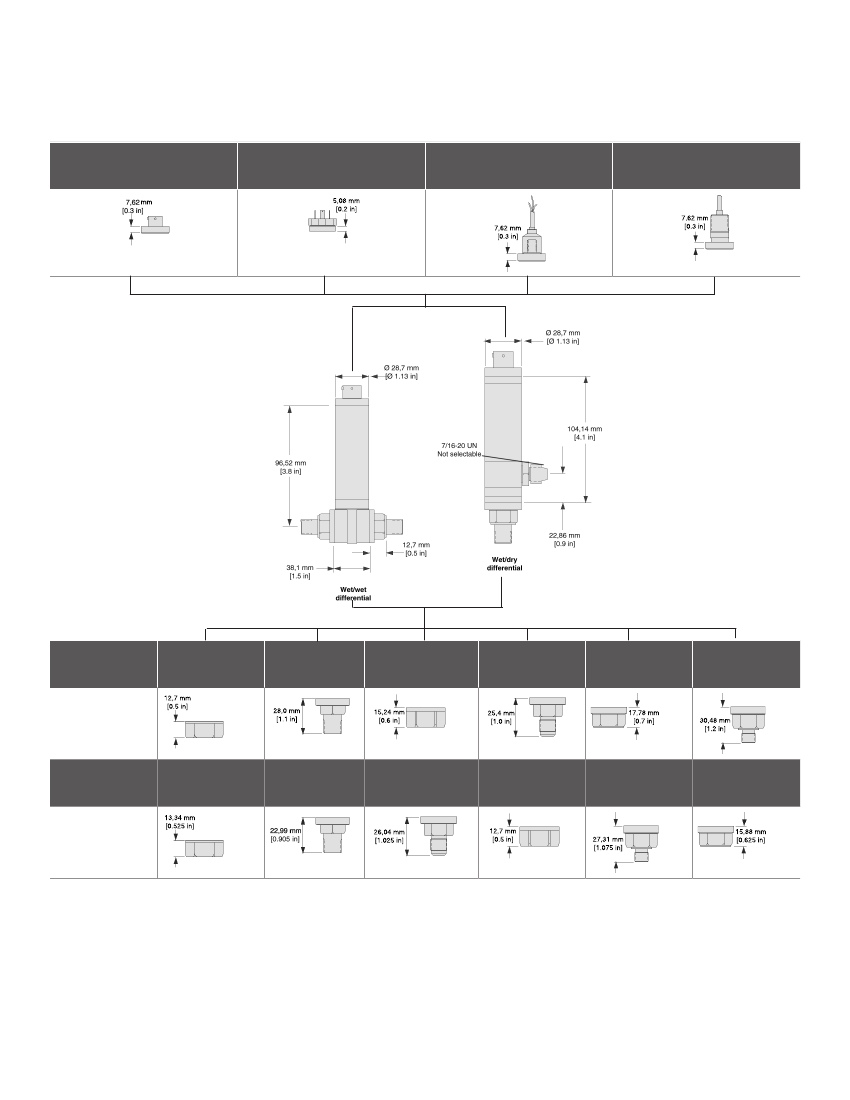

FIGURE 2. MOUNTING DIMENSIONS
ELECTRICAL TERMINATION
Code 6a: 6-pin, vented, Bendix
style
Code 6m: 4-pin, vented, stand-
ard DIN (43650)
Code 6q: 4-conductor, vented,
integral cable, 1,52 m [5 ft]
Code 6r: 4-conductor, vented,
integral cable, conduit fitting 1,52
m [5 ft]
FDW
FDD
PRESSURE PORTS
Code 5a
1/4-18 NPT
female
Up to
1000 psi
Code 5b
1/4-18 NPT
male
Code 5c
7/16-20 UNF
female
Code 5d
7/16-20 UNF
male
Code 5f
G 1/4 B female
Code 5g
G 1/4 B male
Code 5h
1/8-27 NPT
female
Up to
1000 psi
Code 5i
1/8-27 NPT
male
Code 5p
M12-1.5 male
Code 5q
M12-1.5 female
Code 5r
9/16-18 SAE
male
Code 5s
9/16-18 SAE
female
4
sensing.honeywell.com
DIFFERENTIAL PRESSURE TRANSDUCER,
MODEL FP2000
TABLE 7. WIRING CODES
UNAMPLIFIED OUT-
PUT: OPTION 2U
VOLTAGE OUTPUT:
OPTION 2D/2E
A
B
C
D
E
F
A
B
C
D
E
F
(+) Supply
(-) Supply return
(-) Output 0 Vdc to
5 Vdc
(+) Output
No connection
No connection
(+) Supply
(-) Supply return
(-) Output 0 Vdc to
5 Vdc
(+) Output
No connection
Shunt cal
VOLTAGE OUTPUT:
OPTION 2G/2F
A
B
C
D
E
F
A
B
C
D
E
F
(+) Supply
(-) Supply return
(-) Output 0 Vdc to
10 Vdc
(+) Output Vdc
No connection
No connection
(+) Supply
(-) Supply return
(-) Output 0 Vdc to
10 Vdc
(+) Output
No connection
Shunt cal
CURRENT TWO-WIRE:
OPTION 2P/2Y
A
B
C
D
E
F
A
B
C
D
E
F
(+) Supply
No connection
No connection
(+) Output 4 mA to
20 mA
No connection
No connection
(+) Supply
No connection
No connection
(+) Output 4 mA to
20 mA
No connection
Shunt cal
INTRINSICALLY SAFE
AMP: OPTION 2N (2N)***
A
B
C
D
E
F
A
B
C
D
E
F
(+) Supply
No connection
No connection
(+) Output 4 mA to
20 mA
Case ground
No connection
(+) Supply
No connection
No connection
(+) Output 4 mA to
20 mA
No connection
Shunt cal
BENDIX PTIH-10-6P (OPTION 6A)
No shunt cal
A
B
C
D
E
F
A
B
C
D
E
F
(+) Excitation
(+) Excitation
(-) Excitation
(-) Excitation
(-) Output
(+) Output
(+) Excitation
(-) Excitation
(+) Output
(-) Output
No connection
Shunt Cal
With shunt
cal (option
3d)
STD. DIN 43650 (OPTION 6M)
No shunt cal
1
2
3
4
(+) Excitation
(+) Output
(-) Output
(-) Excitation
1
2
3
GND
1
2
3
GND
(+) Supply
(+) Output
Supply/ output com.
No connect. to case
(+) Supply
(+) Output
Supply/output com.
Shunt cal
1
2
3
GND
1
2
3
GND
(+) Supply
(+) Output
Supply/ output com.
No connect. to case
(+) Supply
(+) Output
Supply/output com.
Shunt cal
1
2
3
GND
1
2
3
GND
(+) Supply
(+) Output 4 mA to
20 mA
No connection
No connection
(+) Supply
(+) Output 4 mA to
20 mA
No connection
Shunt cal
1
2
3
GND
1
2
3
GND
(+) Supply
(+) Output
Case ground
No connection
(+) Supply
(+) Output
Case ground
Shunt cal
With shunt
cal (option
3d)
Not Applicable
1.83 M [5 FT] INTEGRAL CABLE (OPTION 6Q)
No shunt
cal
R
Bl
G
W
(+) Excitation
(-) Excitation
(-) Output
(+) Output
R
Bl
G
W
R
Bl
G
W
(+) Supply
(-) Supply return
(-) Output
(+) Output 0 Vdc to
5 Vdc
(+) Supply
(-) Supply return
Shunt cal
(+) Output 0 Vdc to
5 Vdc
R
Bl
G
W
R
Bl
G
W
(+) Supply
(-) Supply return
(-) Output
(+) Output 0 Vdc to
10 Vdc
(+) Supply
(-) Supply return
Shunt cal
(+) Output 0 Vdc to
10 Vdc
R
Bl
(+) Supply
(+) Output 4 mA to
20 mA
R
Bl
W
R
Bl
W
G
(+) Supply
(+) Output 4 mA to
20 mA
Case ground
(+) Supply
(+) Output 4 mA to
20 mA
Case ground
Shunt cal
With shunt
cal (option
3d)
Not Applicable
R
Bl
G
(+) Supply
(+) Output 4 mA to
20 mA
Shunt cal
CONDUIT FITTING (OPTION 6R)
No shunt
cal
R
Bl
G
W
(+) Excitation
(-) Excitation
(-) Output
(+) Output
R
Bl
G
W
R
Bl
G
W
(+) Supply
(-) Supply return
(-) Output
(+) Output 0 Vdc to
5 Vdc
(+) Supply
(-) Supply return
Shunt cal
(+) Output 0 Vdc to
5 Vdc
R
Bl
G
W
R
Bl
G
W
(+) Supply
(-) Supply return
(-) Output
(+) Output 0 Vdc to
10 Vdc
(+) Supply
(-) Supply return
Shunt cal
(+) Output 0 Vdc to
10 Vdc
R
Bl
(+) Supply
(+) Output 4 mA to
20 mA
R
Bl
W
R
Bl
W
G
(+) Supply
(+) Output 4 mA to
20 mA
Case ground
(+) Supply
(+) Output 4 mA to
20 mA
Case ground
Shunt cal
With shunt
cal (option
3d)
Not Applicable
R
Bl
G
(+) Supply
(+) Output 4 mA to
20 mA
Shunt cal
Note: For wiring codes, R=red; Bl = black; W = white; G = green. Color specifies cable and letter or number specifies connection
*** See Honeywell’s Web site (http://measurementsensors.honeywell.com) for most up-to-date information regarding Intrinsically Safe approvals ref. #008-0547-00.
