Chip Tantalum Capacitor
ctparts.com
Not shown at actual size.
CTTCC Series
Compliant
RoHS

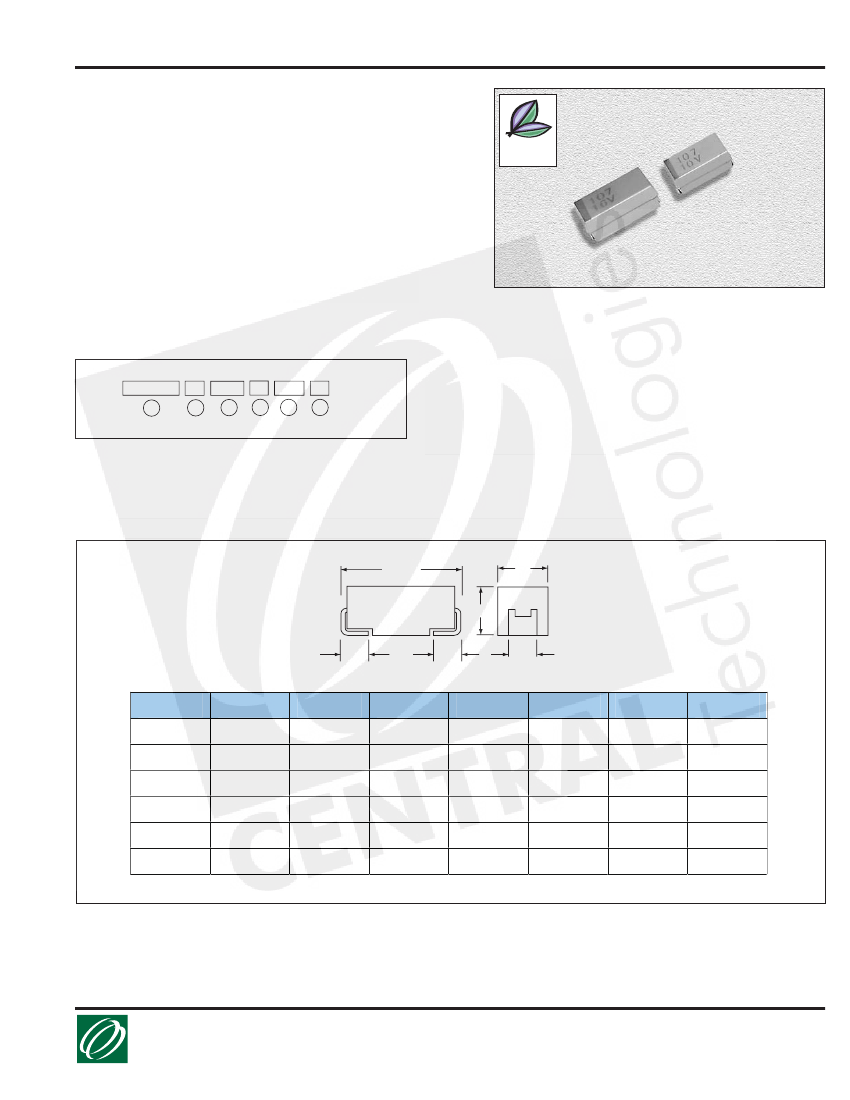

FEATURES
- Easy installation, economical, high performance.
- Molded case available in six case codes.
- 6 miniature case codes available.
- EIA standard case sizes.
- Compatible with “High Volume” automatic pick and place equipment.
PART NUMBERING
ORDERING CODE
CTTCC
1
A
2
451 M 016
4 5
3
T
6
1. Product Type:
2. Size Code:
3. Capacitance:
4. Tolerance:
5. Rated Voltage:
6. Packaging:
CTTCC
SMD
Tantalum Chip Capacitor
A, B, C, D, E, V.
2
Sig.
Digits + Number of Zero, Ex. 105 = 1µF
K = ±10% & M = ±20%
2R5 = 2.5V; 010 = 10V; 050 = 50V
T = Tape & Reel
DIMENSIONS
L
H
A
S
A
W
W
1
Code
A
B
C
D
E
V
EIA Code
3216-18
3528-21
6032-28
7343-31
7343-43
7361-38
L±0.20
3.20
3.50
6.00
7.30
7.30
7.30
W±0.20
1.60
2.80
3.20
4.30
4.30
6.10
H±0.20
1.60
1.90
2.60
2.90
4.10
3.45±0.30
W
1
±0.20
1.20
2.20
2.20
2.40
2.40
3.10
A±0.30
0.80
0.80
1.30
1.30
1.30
1.40
S(min.)
1.10
1.40
2.90
4.40
4.40
4.40
06.02.08
Technologies
Manufacturer of Passive and Discrete Semiconductor Components
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2008 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
CENTRAL
Chip Tantalum Capacitor
ctparts.com
CTTCC Series
CAPACITANCE & RATED VOLTAGE RANGE
Capacitance
uF
Code
104
0.10
154
0.15
224
0.22
334
0.33
474
0.47
684
0.68
105
1.0
155
1.5
225
2.2
335
3.3
475
4.7
685
6.8
10
106
15
156
22
226
336
33
476
47
686
68
107
100
157
150
227
220
330
337
470
477
680
687
1000
108
1500
158
Rated Voltage DC (V
R
) to 85˚C
10V
16V
20V
2.5V
4V
6.3V
25V
A
A
B
B/D
D
C/D
D
D/E
E/V
A
A
A
A/B
A
A/B
A/B
B/C
B/C
B/C
C/D
C/D/E
D/E
D/E
E/V
V
A
A
A
A/B
A/B
A/B
A/B/C
A/B/C
B/C/D
B/C/D
B/C/D
C/D
C/D/E
C/D/E
D/E/V
V
V
A
A
A
A/B
A/B
A/B/C
A/B/C
A/B/C
B/C/D
B/C/D
C/D
C/D/E
C/D/E
D/E
D/E/V
E/V
V
A
A
A/B
A/B
A/B
A/B/C
A/B/C
B/C
B/C/D
B/C/D
C/D
C/D
D/E
D/E/V
D/E/V
E/V
A
A
A
A/B
A/B
A/B/C
B/C
B/C
B/C/D
B/C/D
C/D
C/D/E
D/E
D/E/V
E/V
A
A
A
A/B
A/B
A/B/C
B/C
B/C
C/D
C/D
C/D
D/E
D/E
E
V
35V
A
A
A
A
A/B
A/B
A/B/C
B/C
B/C
C/D
C/D
C/D
D/E
D/E
E
50V
A
A/B
A/B
B
B/C
B/C
B/C
C/D
C/D
C/D
D
D
D/E
E
* Higher Voltage or
Smaller Size
substitution is offered upon request.
TECHNICAL SPECIFICATIONS
Technical Data:
Capacitance Range:
Capacitance Tolerance:
Rated Voltage(V
R
)
Category Voltage(V
C
)
Surge Voltage(V
S
)
Surge Voltage(V
S
)
Temperature Range:
Reliability
+85°C
+125°C
+85°C
+125°C
All technical data relate to an ambient temperature of +25°C
0.1uF to 1000uF
±10% ; ±20%
2.5
1.7
3.3
2.2
4
2.7
5.2
3.4
6.3
4
8
5
10
7
13
8
16
10
20
13
20
13
26
16
25
17
32
20
35
23
46
28
50
33
65
40
-55°C to +125°C
1% per 1000 hours at 85°C,V
R
with 0.1 Ω/ V
R
Series impedance,
60% confidence level
Qualification
CECC 30801 -005 issue 2 ; EIA 535BAAC
06.02.08
Technologies
Manufacturer of Passive and Discrete Semiconductor Components
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2008 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
CENTRAL
