isc
Silicon PNP Power Transistor
2SA1593

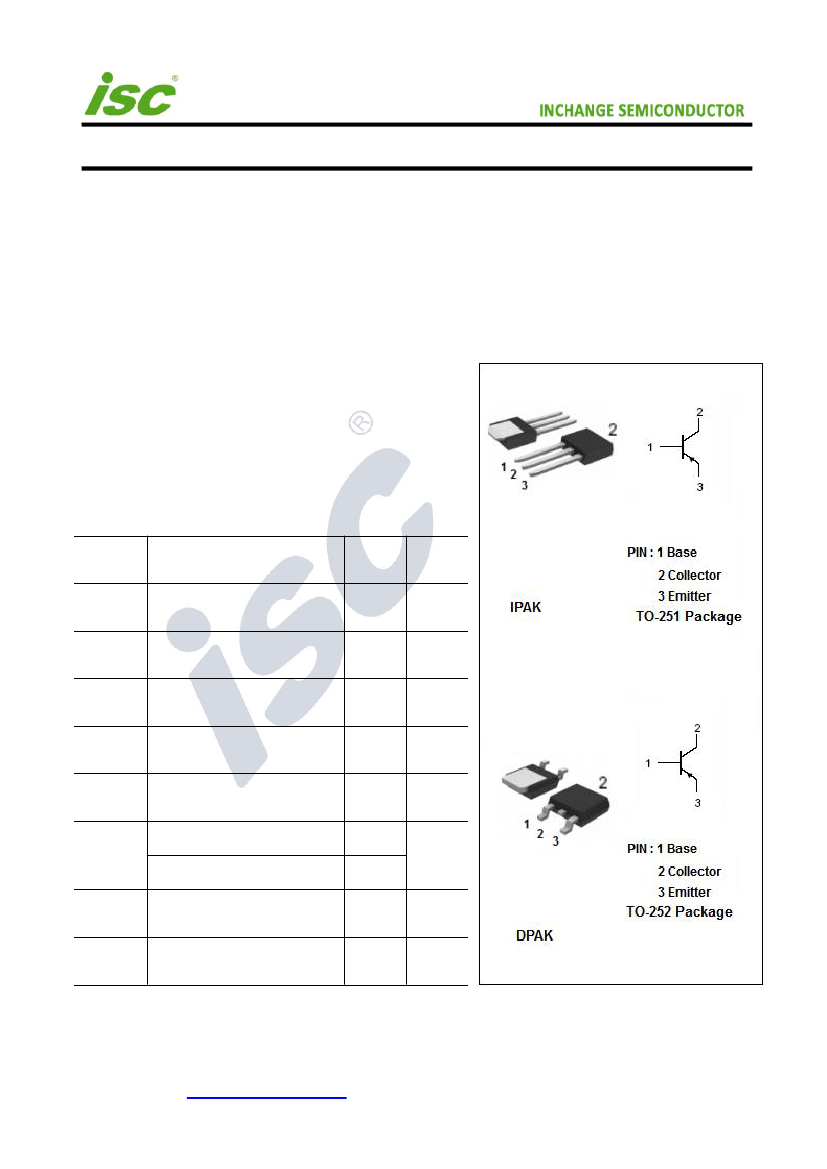

DESCRIPTION
·High
breakdown voltage and large current capacity
·Fast
switching speed
·Small
and slim package permitting
·100%
avalanche tested
·Minimum
Lot-to-Lot variations for robust device
performance and reliable operation
·Complementary
to 2SC4135
APPLICATIONS
·Power
supplies, relay drivers,lamp drivers.
ABSOLUTE MAXIMUM RATINGS(T
a
=25
℃)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
PARAMETER
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current-Continuous
Collector Current-Peak
Collector Power Dissipation
@ T
C
=25℃
Collector Power Dissipation
@T
a
=25℃
Junction Temperature
Storage Temperature Range
VALUE
-120
-100
-6
-2
-3
15
W
1.0
150
-55~150
℃
UNIT
V
V
V
A
A
I
CM
P
C
T
J
T
stg
℃
isc website
：
www.iscsemi.com
1
isc & iscsemi
is registered trademark
isc
Silicon PNP Power Transistor
ELECTRICAL CHARACTERISTICS
T
C
=25℃ unless otherwise specified
SYMBOL
V
CE
(sat)
V
BE(sat)
V
(BR)CEO
V
(BR)EBO
I
CBO
I
EBO
h
FE
C
OB
f
T
PARAMETER
Collector-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Output Capacitance
Current-Gain—Bandwidth Product
CONDITIONS
I
C
= -1.0A; I
B
= -0.1A
I
C
= -1.0A; I
B
= -0.1A
I
C
= -1mA; I
B
= 0
I
E
= -10uA; I
C
= 0
V
CB
= -100V; I
E
= 0
V
EB
= -4V; I
C
= 0
I
C
= -0.1A; V
CE
= -5V
I
E
= 0; V
CB
= -10V; f= 1.0MHz
I
C
= -0.1mA; V
CE
= -10V
100
-100
-6
MIN
2SA1593
TYP.
MAX
-0.6
-1.2
UNIT
V
V
V
V
-100
-100
400
25
120
nA
nA
pF
MHz
h
FE
Classifications
R
S
140-280
T
200-400
100-200
isc website
：
www.iscsemi.com
2
isc & iscsemi
is registered trademark
isc Silicon PNP Power Transistor

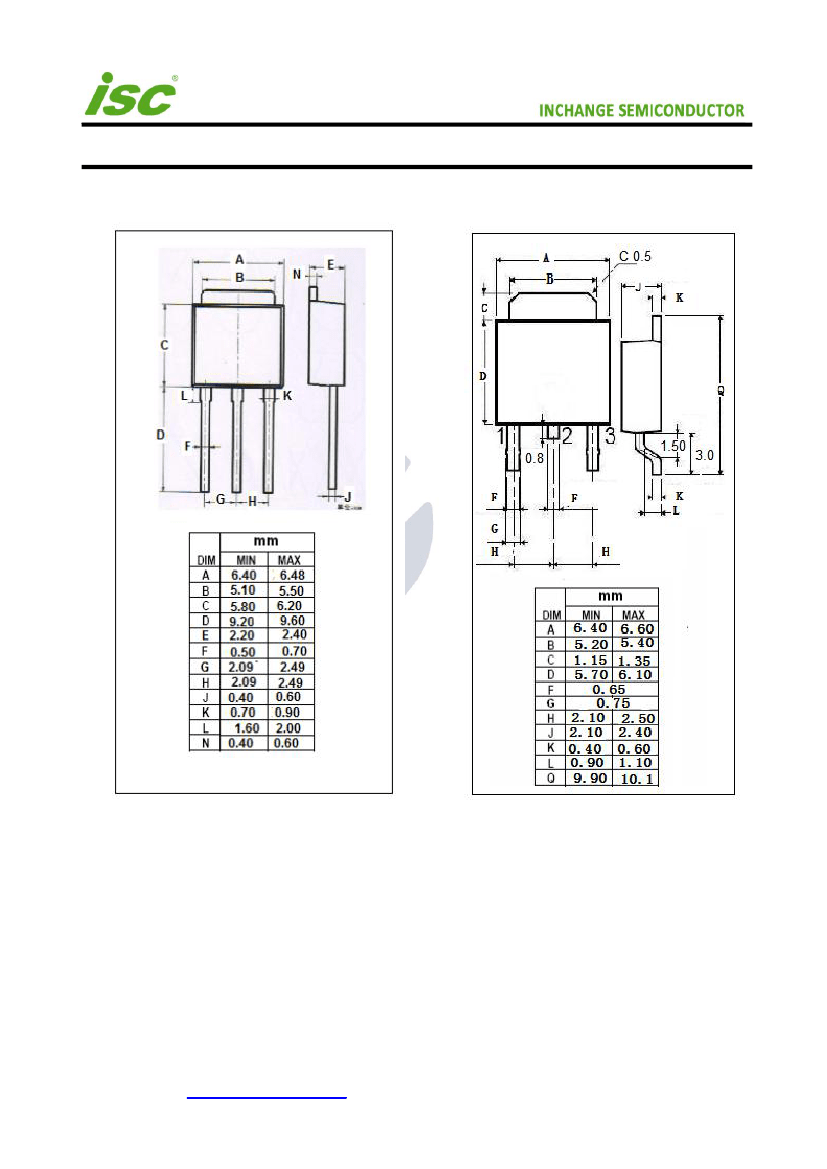

Outline Drawing
2SA1593
isc website
：
www.iscsemi.com
3
isc & iscsemi
is registered trademark
isc
Silicon PNP Power Transistor
2SA1593
NOTICE：
ISC reserves the rights to make changes of the content herein the datasheet at any time without
notification. The information contained herein is presented only as a guide for the applications of
our products.
ISC products are intended for usage in general electronic equipment. The products are not designed
for use in equipment which require specialized quality and/or reliability, or in equipment which
could have applications in hazardous environments, aerospace industry, or medical field. Please
contact us if you intend our products to be used in these special applications.
ISC makes no warranty or guarantee regarding the suitability of its products for any particular
purpose, nor does ISC assume any liability arising from the application or use of any products, and
specifically disclaims any and all liability, including without limitation special, consequential or
incidental damages.
isc website
：
www.iscsemi.com
4
isc & iscsemi
is registered trademark
