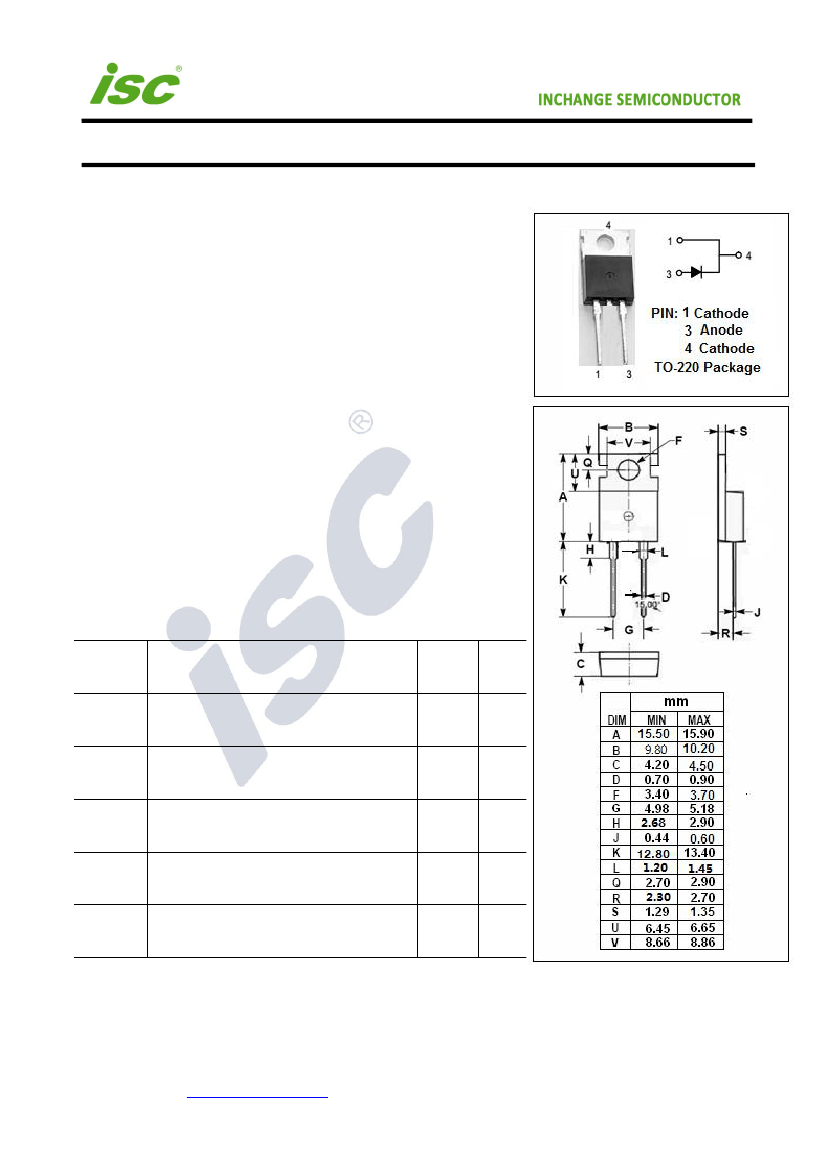

Ultrafast Rectifier
BYC15-1200P
FEATURES
·1200V
blocking voltage
·Very
short recovery time
·Soft
recovery behaviour
·Minimum
Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
·Half-bridge
or full-bridge switched-mode power supplies
·Free
wheeling diode in converters and motor control circuits
ABSOLUTE MAXIMUM RATINGS(T
a
=25
℃)
SYMBOL
V
RRM
V
RWM
V
R
I
F(AV)
PARAMETER
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
Non-repetitive Peak Surge Current@45℃
(Surge applied at rated load conditions half-
wave, single phase, 60Hz)
Junction Temperature
VALUE
UNIT
1200
V
15
A
I
FSM
200
A
T
J
-40~150
℃
T
stg
Storage Temperature Range
-40~150
℃
isc website
：
www.iscsemi.com
1
isc & iscsemi
is registered trademark
Ultrafast Rectifier
THERMAL CHARACTERISTICS
SYMBOL
R
th j-c
PARAMETER
Thermal Resistance,Junction to Case
BYC15-1200P
MAX
1.5
UNIT
℃/W
ELECTRICAL CHARACTERISTICS
(T
a
=25℃)
(Pulse Test: Pulse Width=300μs,Duty Cycle≤2%)
SYMBOL
V
F
I
R
t
rr
PARAMETER
Maximum Instantaneous Forward Voltage
Maximum Instantaneous Reverse Current
Maximum Reverse Recovery Time
CONDITIONS
I
F
=15A ;
Tj=25℃
I
F
=15A ;
Tj=150℃
V
R
= 600V;
V
R
= 500V;
Tj=100℃
IF =1A; di/dt = 50A/µs
MAX
3.2
2.03
200
3000
55
UNIT
V
μA
ns
NOTICE：
ISC reserves the rights to make changes of the content herein the datasheet at any time without
notification. The information contained herein is presented only as a guide for the applications of
our products.
ISC products are intended for usage in general electronic equipment. The products are not
designed for use in equipment which require specialized quality and/or reliability, or in equipment
which could have applications in hazardous environments, aerospace industry, or medical
field. Please contact us if you intend our products to be used in these special applications.
ISC makes no warranty or guarantee regarding the suitability of its products for any particular
purpose, nor does ISC assume any liability arising from the application or use of any products, and
specifically disclaims any and all liability, including without limitation special, consequential or
incidental damages.
isc website
：
www.iscsemi.com
2
isc & iscsemi
is registered trademark
