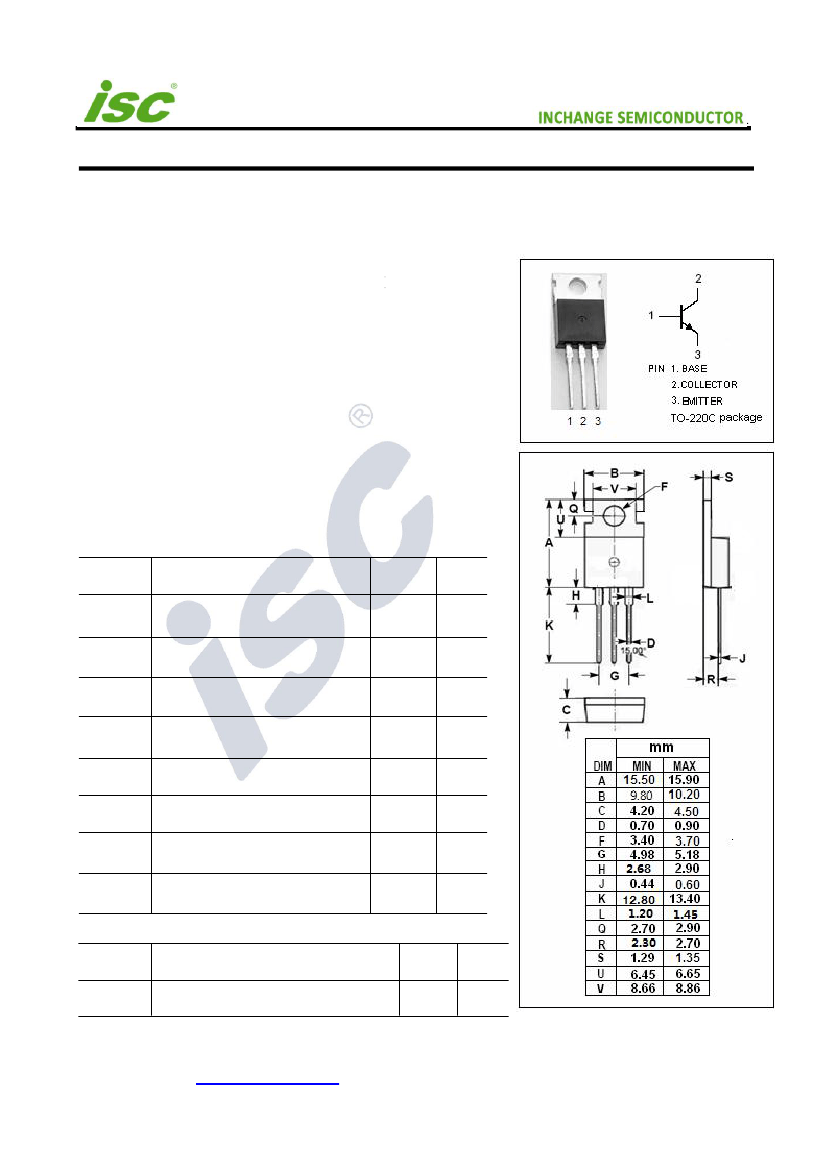

isc
Silicon NPN Power Transistors
KTC2238A
DESCRIPTION
·Low
Saturation Voltage-
: V
CE(sat)
=1.5V(Max)@
(I
C
= 0.5A, I
B
= 50mA)
·High
Collector-Emitter Breakdown Voltage-
: V
(BR)CEO
= 180V(Min)
·Complement
to Type KTA968A
·Minimum
Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
·Designed
for high voltage and general purpose applications.
ABSOLUTE MAXIMUM RATINGS(T
a
=25℃)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
E
P
C
T
j
T
stg
PARAMETER
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current-Continuous
Emitter Current
Collector Power Dissipation
T
C
=25℃
Junction Temperature
Storage Temperature Range
VALUE
180
180
5
1.5
1.5
25
150
-55~150
UNIT
V
V
V
A
A
W
℃
℃
THERMAL CHARACTERISTICS
SYMBOL
R
th j-a
PARAMETER
Thermal Resistance, Junction to Ambient
MAX
63
UNIT
℃/W
isc website：
www.iscsemi.com
1
isc
&
iscsemi
is registered trademark
isc
Silicon NPN Power Transistors
ELECTRICAL CHARACTERISTICS
T
C
=25℃ unless otherwise specified
SYMBOL
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
V
CE
(sat)
V
BE
(on)
I
CBO
I
EBO
h
FE
C
OB
f
T
PARAMETER
Collector-Emitter Breakdown Voltage
Collector-Base Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector-Emitter Saturation Voltage
Base-Emitter On Voltage
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Output Capacitance
Current-Gain—Bandwidth Product
CONDITIONS
I
C
= 10mA; I
B
= 0
I
C
= 0.1mA; I
B
= 0
I
E
= 1mA; I
C
= 0
I
C
= 0.5A; I
B
= 50mA
I
C
= 0.5A; V
CE
= 5V
V
CB
= 160V; I
E
= 0
V
EB
= 5V; I
C
= 0
I
C
= 0.1A ; V
CE
= 5V
I
E
= 0 ; V
CB
= 10V,f
test
= 1MHz
I
C
= 0.1A ; V
CE
= 10V
70
MIN
180
180
5
KTC2238A
TYP
MAX
UNIT
V
V
V
1.5
1.0
1
1
240
25
100
V
V
uA
uA
pF
MHz
h
FE
Classifications
O
Y
120-240
70-140
Notice：
ISC reserves the rights to make changes of the content herein the datasheet at any time without
notification. The information contained herein is presented only as a guide for the applications of
our products.
ISC products are intended for usage in general electronic equipment. The products are not designed
for use in equipment which require specialized quality and/or reliability, or in equipment which
could have applications in hazardous environments, aerospace industry, or medical field. Please
contact us if you intend our products to be used in these special applications.
ISC makes no warranty or guarantee regarding the suitability of its products for any particular
purpose, nor does ISC assume any liability arising from the application or use of any products, and
specifically disclaims any and all liability, including without limitation special, consequential or
incidental damages.
isc website：
www.iscsemi.com
2
isc
&
iscsemi
is registered trademark
