Thin Film Chip Inductors
ctparts.com
SPECIFICATIONS
CTTF0603F Series
From 1.0 nH to 68 nH
Not shown at actual size.
Please specify tolerance code when ordering.
CTTF0603F-1N0_
B = ±0.1nH, C = ±0.2nH, G = ±2%
* = B or C only
Part
Number
CTTF0603F-1N0_*
CTTF0603F-1N2_*
CTTF0603F-1N5_*
CTTF0603F-1N8_*
CTTF0603F-2N2_*
CTTF0603F-2N7_*
CTTF0603F-3N3_*
CTTF0603F-3N9_*
CTTF0603F-4N7_*
CTTF0603F-5N6_*
CTTF0603F-6N8_*
CTTF0603F-8N2_*
CTTF0603F-10NG
CTTF0603F-12NG
CTTF0603F-15NG
CTTF0603F-18NG
CTTF0603F-22NG
CTTF0603F-27NG
CTTF0603F-33NG
CTTF0603F-39NG
CTTF0603F-47NG
CTTF0603F-56NG
CTTF0603F-68NG
Inductance
(nH)
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
L Test
Freq.
(MHz)
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
Q
Min.
17
17
17
17
17
17
17
17
17
17
17
17
15
15
15
15
15
15
15
15
15
15
15
Q Test
Freq.
(MHz)
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
DCR
Max.
Ω
(Ω)
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.5
0.5
0.5
1.0
1.0
1.0
2.0
2.0
2.0
2.0
3.0
3.0
5.0
5.0
Rated DC
Max.
(mA)
800
800
800
300
300
300
300
300
300
300
300
300
300
300
300
300
250
250
250
200
200
150
150
SRF
Min.
(GHz)
6
6
6
6
6
6
6
6
5
5
5
4
4
3
3
2
2
2
1.5
1.5
1.5
1
1
Compliant
RoHS
CHARACTERISTICS
Description:
SMD thin film chip inductors
Applications:
Cellular Telephone, pagers, GPS products,
wireless LAN and other communication appliances, VCO, TCXO
circuit and RF Transceiver Module
Operating Temperature:
-40°C to +85°C
Inductance Tolerance:
±0.1nH, ±0.2nH & ±2%
Testing:
Tested on a HP4287A at 300 MHz
Packaging:
Tape & Reel
Miscellaneous:
RoHS Compliant.
Marking:
Reels are marked with inductance code and tolerance
Additional Information:
Additional electrical & physical
information available upon request
Samples available. See website for ordering information.

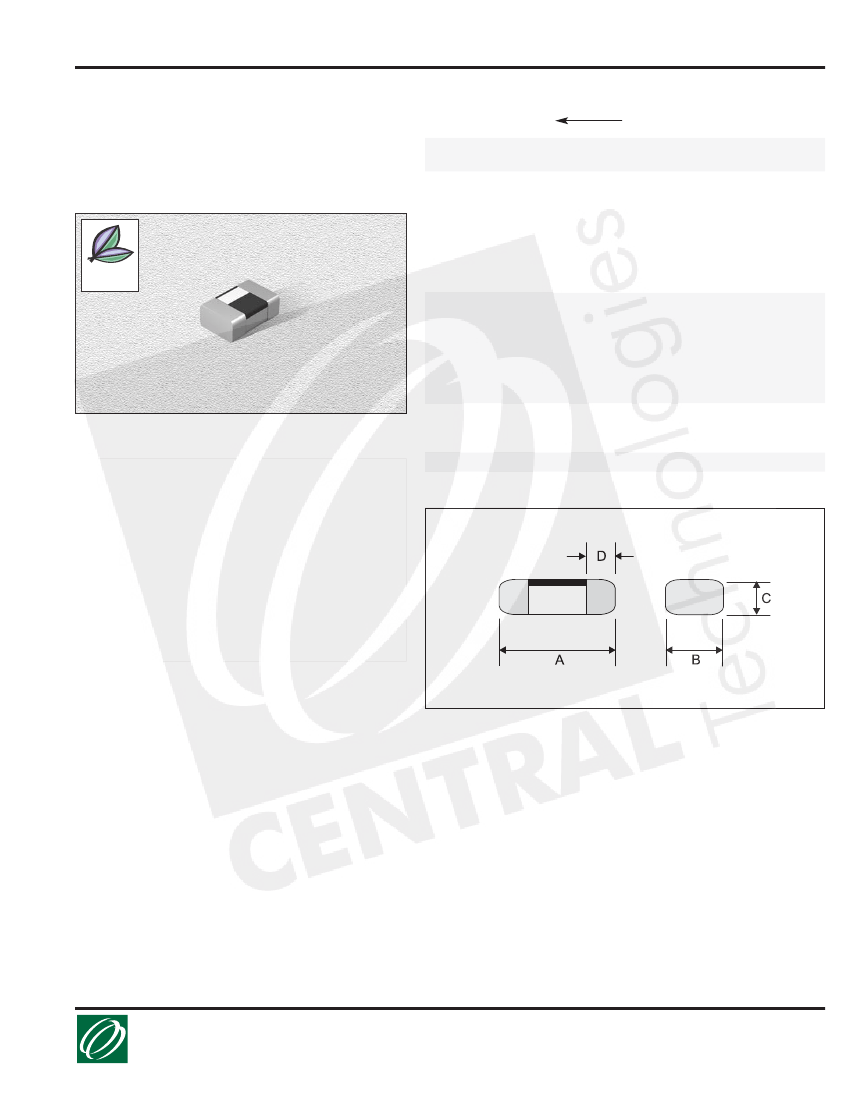

PHYSICAL DIMENSIONS
Size
mm
inches
A
1.6 ± 0.1
0.06 ± 0.004
B
0.8 ± 0.1
0.03 ± 0.004
C
0.45 ± 0.1
0.02 ± 0.004
D
0.3 ± 0.2
0.01 ± 0.008
