P101 datasheet, PDF - EEWORLD Datasheet

P101: DescriptionSilicon Controlled Rectifier, 28A I(T)RMS, 400V V(DRM), 400V V(RRM), 2 Element, D-19, 6 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size490KB，6 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric View All

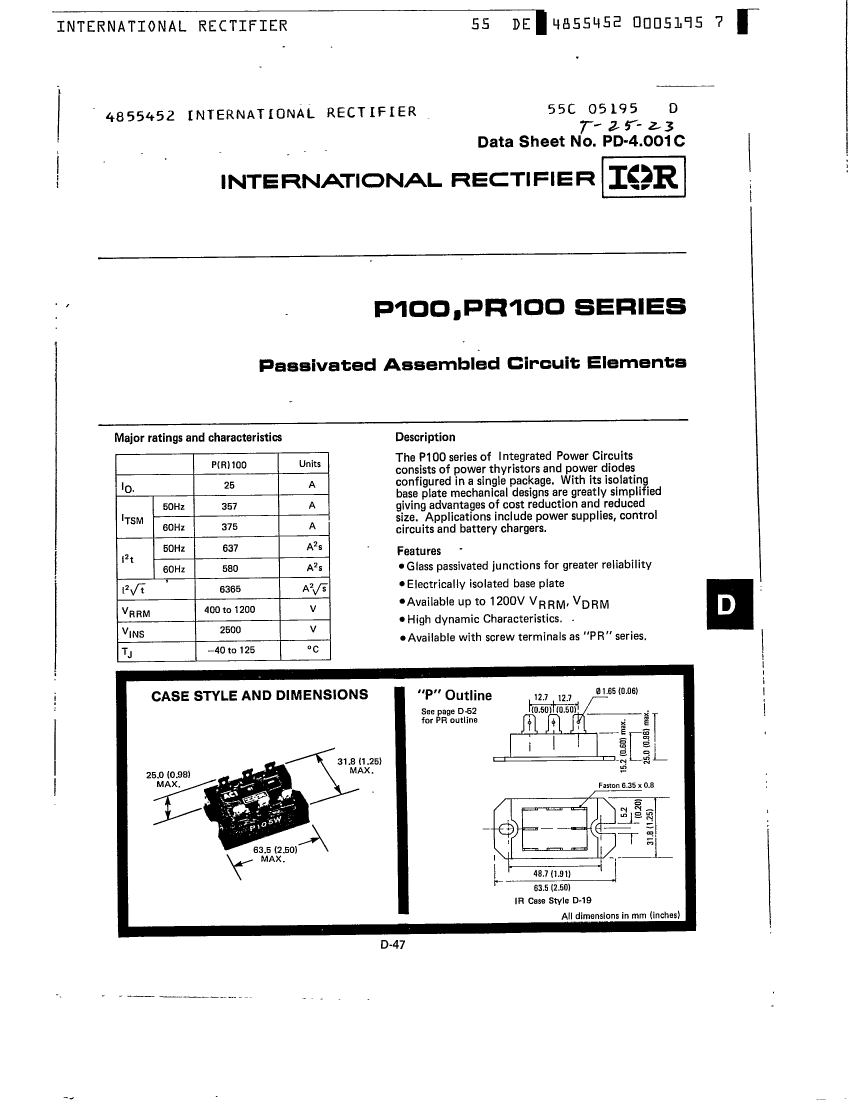

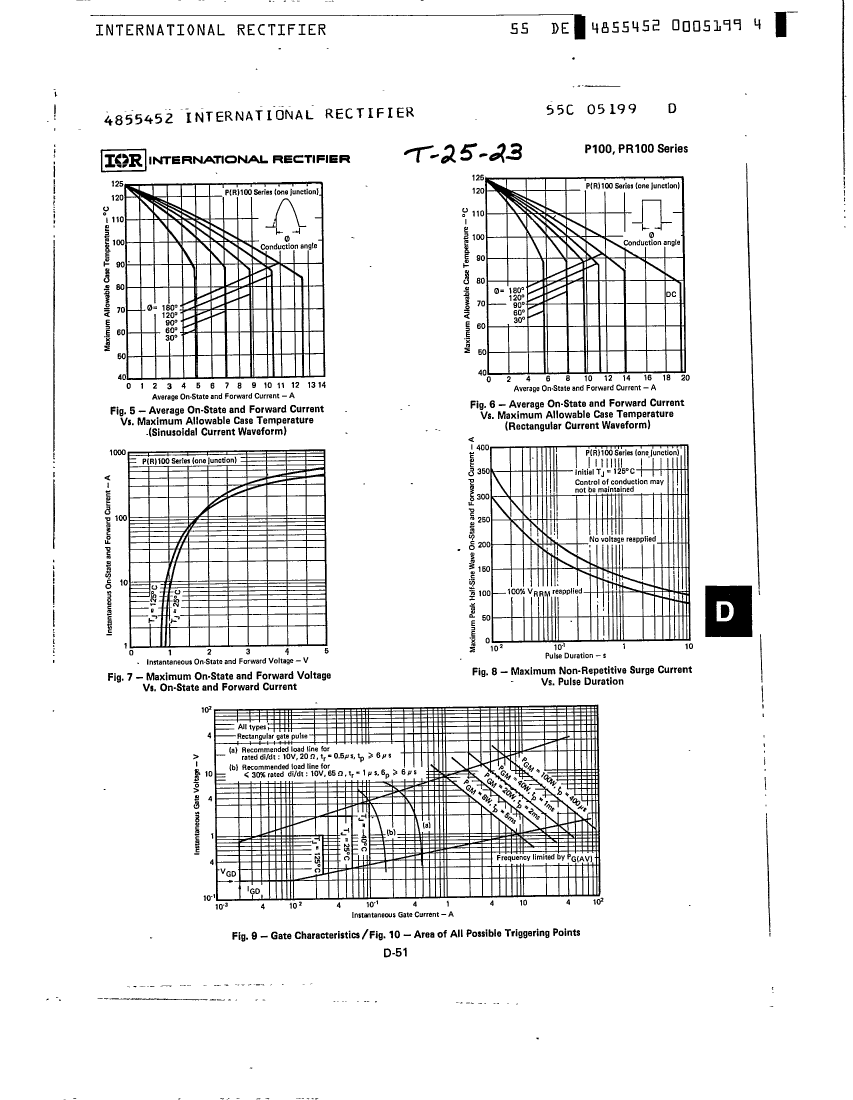

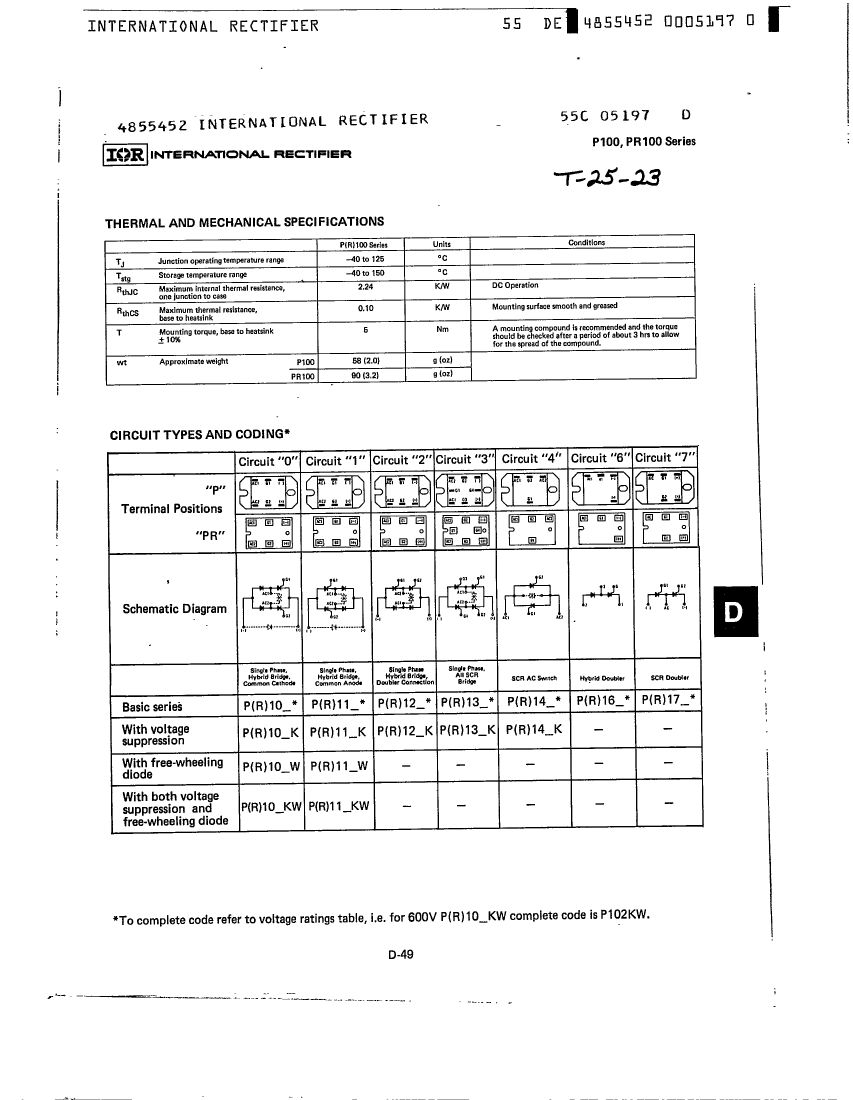

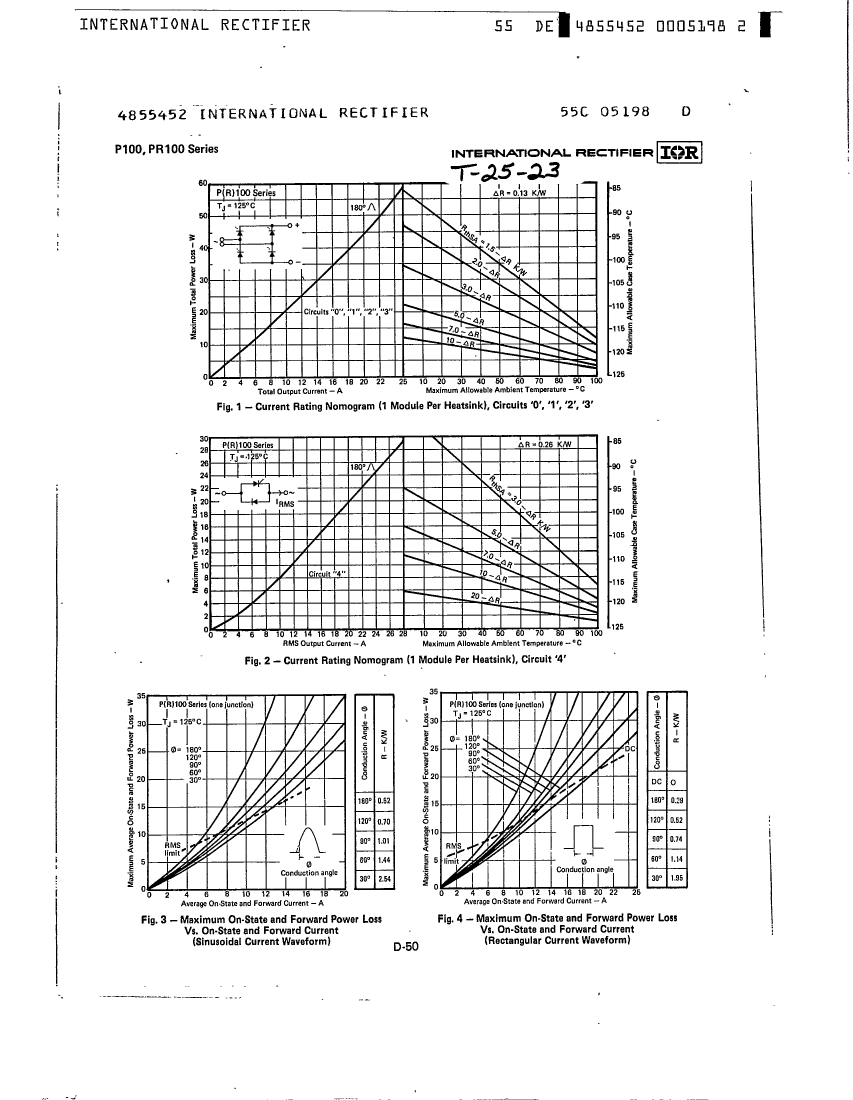

P101 Overview

Silicon Controlled Rectifier, 28A I(T)RMS, 400V V(DRM), 400V V(RRM), 2 Element, D-19, 6 PIN

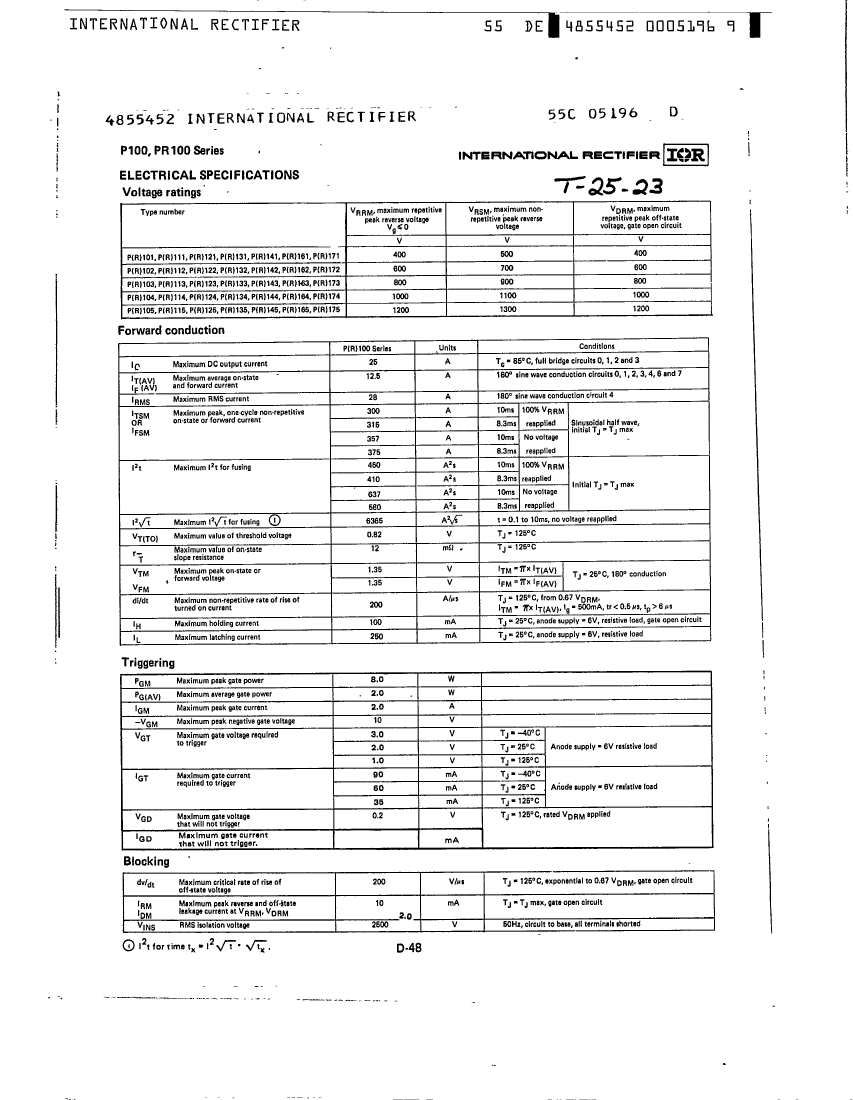

Parameter Name	Attribute value
Maker	Infineon
package instruction	FLANGE MOUNT, R-PUFM-D6
Reach Compliance Code	compli
Shell connection	ISOLATED
Configuration	COMPLEX
Maximum DC gate trigger current	60 mA
JESD-30 code	R-PUFM-D6
Number of components	2
Number of terminals	6
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum rms on-state current	28 A
Off-state repetitive peak voltage	400 V
Repeated peak reverse voltage	400 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Trigger device type	SCR
