IS25LQ016-JNA1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> IS25LQ016-JNA1

IS25LQ016-JNA1: DescriptionFlash, 2MX8, PDSO8, 0.150 INCH, LEAD FREE, SOIC-8; Categorystorage storage; File Size95KB，4 Pages; ManufacturerIntegrated Silicon Solution ( ISSI )

Download Datasheet Parametric View All

IS25LQ016-JNA1 Overview

Flash, 2MX8, PDSO8, 0.150 INCH, LEAD FREE, SOIC-8

IS25LQ016-JNA1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Integrated Silicon Solution ( ISSI )
package instruction	0.150 INCH, LEAD FREE, SOIC-8
Reach Compliance Code	compli
Maximum clock frequency (fCLK)	104 MHz
Data retention time - minimum	20
Durability	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8
length	4.9 mm
memory density	16777216 bi
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of terminals	8
word count	2097152 words
character code	2000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	2MX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
power supply	2.5/3.3 V
Programming voltage	2.7 V
Certification status	Not Qualified
Filter level	AEC-Q100
Maximum seat height	1.75 mm
Serial bus type	SPI
Maximum standby current	0.00003 A
Maximum slew rate	0.02 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
type	NOR TYPE
width	3.9 mm
write protect	HARDWARE/SOFTWARE

IS25LQ016-JNA1 Preview

IS25LQ016

16 Mbit Single Operating Voltage Serial Flash Memory

With 104 MHz Dual- or 100MHz Quad-Output SPI Bus Interface

FEATURES

PRELIMINARY DATASHEET

• Single Power Supply Operation

- Low voltage range: 2.3 V - 3.6 V

• Memory Organization

- IS25LQ016: 2048K x 8 (16 Mbit)

• Cost Effective Sector/Block Architecture

- 16Mb : Uniform 4KByte sectors / Thirty-two

uniform 64KByte blocks

• Serial

Peripheral Interface (SPI) Compatible

- Supports single-, dual- or quad-output

- Supports SPI Modes 0 and 3

- Maximum 50 MHz clock rate for normal read

- Maximum 104 MHz clock rate for fast read

- Maximum 208MHz clock rate equivalent Dual SPI

- Maximum 400MHz clock rate equivalent Quad SPI

•

Byte Program Operation

- Typical 10 us/Byte

•

Page Program (up to 256 Bytes) Operation

- Maximum 0.7ms per page program

• Sector, Block or Chip Erase Operation

- Sector Erase (4KB)Æ150ms (Typ)

- Block Erase (64KB)Æ500ms (Typ)

- Chip Erase

Æ5s

(Typ)

• Low Power Consumption

- Max 12 mA active read current

- Max 20 mA program/erase current

Max 30 uA standby current

• Hardware Write Protection

- Protect and unprotect the device from write

operation by Write Protect (WP#) Pin

• Software Write Protection

The Block Protect (BP3, BP2, BP1, BP0) bits

allow partial or entire memory to be configured as

read-only

• High Product Endurance

- Guaranteed 100,000 program/erase cycles per

single sector

- Minimum 20 years data retention

• Industrial Standard Pin-out

and Package

- 8-pin 300mil SOIC

- 8-pin 208mil SOIC

- 8-pin 150mil SOIC

- 8-pin WSON (5x6mm)

- 8-pin 208mil VVSOP

- Lead-free (Pb-free) package

•Additional

256-byte Security information one-

time programmable (OTP) area

•Special

protect function

Safe guard function (Appendix 1)

Sector unlock function (Appendix 2)

GENERAL DESCRIPTION

The IS25LQ016 are 16 Mbit Serial Peripheral Interface (SPI) Flash memories, providing single-, dual or quad-

output. The devices are designed to support a 50 MHz fclock rate in normal read mode, and 104 MHz in fast

read (Quad output is 100MHz), the fastest in the industry. The devices use a single low voltage power supply,

ranging from 2.3 Volt to 3.6 Volt, to perform read, erase and program operations. The devices can be

programmed in standard EPROM programmers.

The IS25LQ016 are accessed through a 4-wire SPI Interface consisting of Serial Data Input/Output (Sl), Serial

Data Output (SO), Serial Clock (SCK), and Chip Enable (CE#) pins. The devices support page program mode,

where 1 to 256 bytes data can be programmed into the memory in one program operation. These devices are

divided into uniform 4 KByte sectors or uniform 64 KByte blocks.

The IS25LQ016 are offered in 8-pin SOIC 300mil/208mil/150mil, 8-pin VVSOP and 8-pin WSON.

Integrated Silicon Solution, Inc.- www.issi.com

Rev. 0A

2/1/2013

IS25LQ016

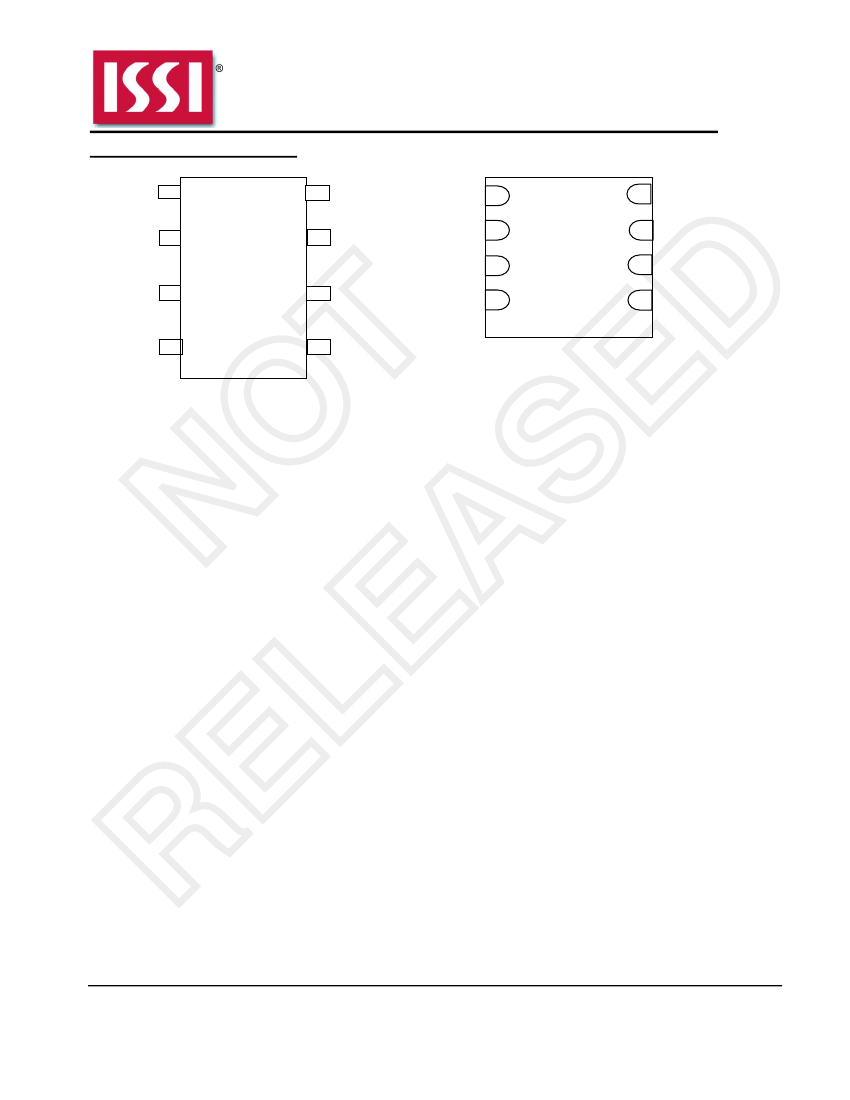

CONNECTION DIAGRAMS

CE#

Vcc

CE#

SO (IO1)

WP# (IO2)

Vcc

HOLD#(IO3)

SCK

SI (IO0

)

SO (IO1)

HOLD# (IO3)

WP# (IO2)

SCK

GND

SI (IO0

)

8-Pin SOIC/VSOP

8-pin WSON

Integrated Silicon Solution, Inc.- www.issi.com

Rev. 0A

2/1/2013

IS25LQ016

PIN DESCRIPTIONS

SYMBOL

CE#

TYPE

INPUT

DESCRIPTION

Chip Enable: CE# low activates the devices internal circuitries for

device operation. CE# high deselects the devices and switches into

standby mode to reduce the power consumption. When a device is not

selected, data will not be accepted via the serial input pin (Sl), and the

serial output pin (SO) will remain in a high impedance state.

Serial Data Clock

Serial Data Input/Output

Ground

Device Power Supply

Write Protect/Serial Data Output: A hardware program/erase protection for all or

part of a memory array. When the WP# pin is low, memory array write-protection

depends on the setting of BP3, BP2, BP1 and BP0 bits in the Status Register.

When the WP# is high, the status register are not write-protected.

When the QE bit of is set “1”, the /WP pin (Hardware Write Protect) function is

not available since this pin is used for IO2

Hold: Pause serial communication by the master device without resetting

the serial sequence.

When the QE bit of Status Register-2

is set for “1”, the function is

Serial Data

Input & Output (for 4xI/O read mode)

SCK

SI (IO0)

SO (IO1)

GND

Vcc

WP#

(IO2)

INPUT

INPUT/OUTPUT

HOLD#

(IO3)

INPUT/OUTPUT

Integrated Silicon Solution, Inc.- www.issi.com

Rev. 0A

2/1/2013

IS25LQ016

ORDERING INFORMATION:

Density

Frequency

(MHz)

Order Part Number

IS25LQ016-JMLE

IS25LQ016-JBLE

IS25LQ016-JNLE

IS25LQ016-JKLE

IS25LQ016-JVLE

IS25LQ016-JMA*

IS25LQ016-JBA*

IS25LQ016-JNA*

IS25LQ016-JKA*

IS25LQ016-JVA*

Package

16-pin SOIC 300mil

8-pin SOIC 208mil

8-pin SOIC 150mil

8-pin WSON (Call Factory)

8-pin VVSOP 150mil

16-pin SOIC 300mil (Call Factory)

8-pin SOIC 208mil (Call Factory)

8-pin SOIC 150mil (Call Factory)

8-pin WSON (Call Factory)

8-pin VVSOP 150mil (Call Factory)

16M

104

A* = A1, A2, A3 Automotive Temperature Ranges

Integrated Silicon Solution, Inc.- www.issi.com

Rev. 0A

2/1/2013

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
