SD300N22PC

Description
Rectifier Diode, 1 Phase, 1 Element, 380A, 2200V V(RRM), Silicon, DO-205AB,
CategoryDiscrete semiconductor    diode
File Size67KB,1 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/

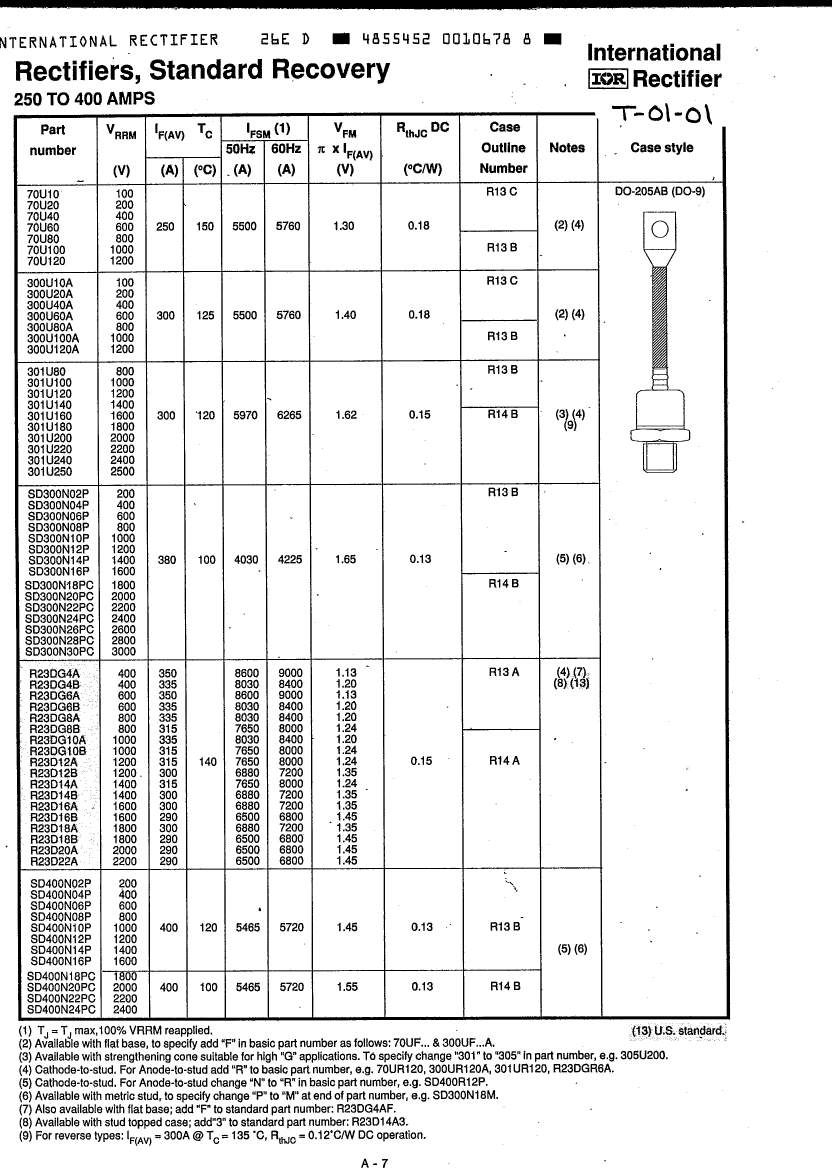

Download Datasheet Parametric View All

SD300N22PC Overview

Rectifier Diode, 1 Phase, 1 Element, 380A, 2200V V(RRM), Silicon, DO-205AB,

SD300N22PC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerInternational Rectifier ( Infineon )
package instructionO-MUPM-H1
Reach Compliance Codecompli
ECCN codeEAR99
applicationGENERAL PURPOSE
Shell connectionCATHODE
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.83 V
JEDEC-95 codeDO-205AB
JESD-30 codeO-MUPM-H1
JESD-609 codee0
Maximum non-repetitive peak forward current5330 A
Number of components1
Phase1
Number of terminals1
Maximum output current380 A
Package body materialMETAL
Package shapeROUND
Package formPOST/STUD MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum repetitive peak reverse voltage2200 V
surface mountNO
Terminal surfaceTIN LEAD
Terminal formHIGH CURRENT CABLE
Terminal locationUPPER
Maximum time at peak reflow temperatureNOT SPECIFIED
