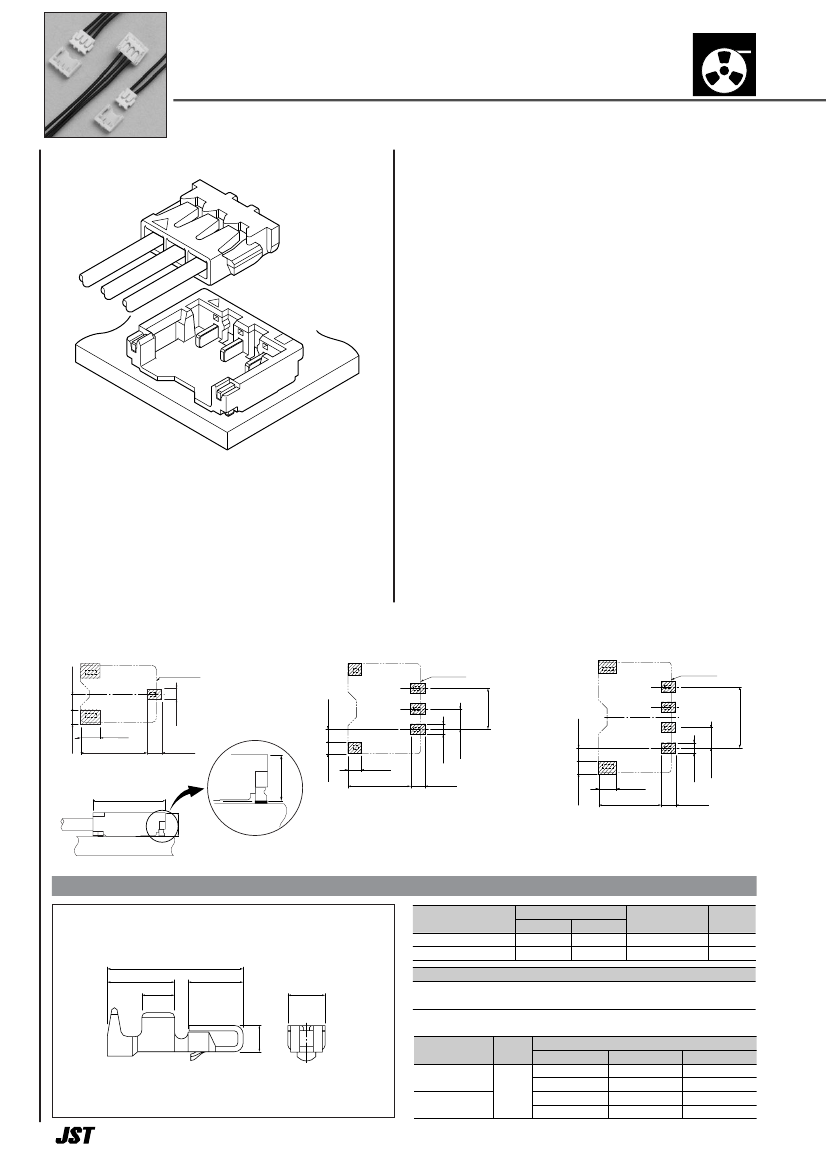

ACH
CONNECTOR
PU
3
Emboss Tape
1.2mm pitch/Disconnectable Crimp style connectors
SH
Specifications –––––––––––––––––––
• Current rating: 2 A/ 1 to 3 circuits AC, DC (AWG #28)
1.5 A/ 4, 5 circuits AC, DC (AWG #28)
• Voltage rating: 50 V AC, DC
• Temperature range:
-
25˚C to
+
85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 10 mΩ max.
After environmental tests/ 20 mΩ max.
• Insulation resistance: 100 MΩ min.
• Withstanding voltage: 500 VAC/minute
• Applicable wire: Conductor size/ AWG #32 to #28
Insulation O.D./ 0.38 to 0.63 mm
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
* Compliant with RoHS.
3
This ACH connector is compact and low
profile type, height 1.4mm and width
4.3mm,1.2mm pitch wire-to-board
connector.
• Top entry but side feed type
• Connector for DC power supply
• Corresponding to sucking nozzle of pick and
place machine
<Single circuit>
0.9
±0.05
Connector
outline
Standards–––––––––––––––––––––––
1
Certified LR20812
Connector
outline
2P : 1.2
±0.05
3P : 2.4
±0.05
0
Recognized E60389
<2, 3 circuits>
<4, 5 circuits>
Connector
outline
0.75
min
3.75
±0.05
0.85
min
0.7
min
0.8
±0.05
0.6
min
1.2
±0.05
1.1
±0.05
0.8
±0.05
1.4
0.75
min
3.75
±0.05
0.85
min
1.1
±0.05
3.75
±0.05
0.85
min
4.3
1.4
Note: 1. The above figure is the figure viewed from the connector mounting side.
2. Tolerances are non-cumulative:
±
0.05mm for all centers.
3. The dimensions above should serve as a guideline. Contact JST for details.
Contact
Model No.
SACH-003G-P0.2
SACH-003G-P0.2B
2.95
1.45
0.7
1.2
0.8
Applicable wire
mm
2
AWG#
0.05 ∼0.08
0.032∼0.05
30∼28
32∼30
Insulation O.D. (mm) Q'ty / reel
0.5 ∼0.63
0.38∼0.5
30,000
30,000
Material and Finish
Copper alloy, nickel-undercoated, gold-plated
RoHS compliance
0.6
Contact
SACH-003G-P0.2
Crimping
machine Crimp applicator
MKS-L-10-3
AP-K2N
―
MKS-L-10-3
―
Applicator
Dies
―
―
Crimp applicator with dies
―
―
MK/SACH-003-02 APLMK SACH003-02
MK/SACH-003-02 APLMK SACH003-02
SACH-003G-P0.2B
1
0.6
min
1.2
±0.05
4P : 3.6
±0.05
5P : 4.8
±0.05
0.6
min
0.8
±0.05

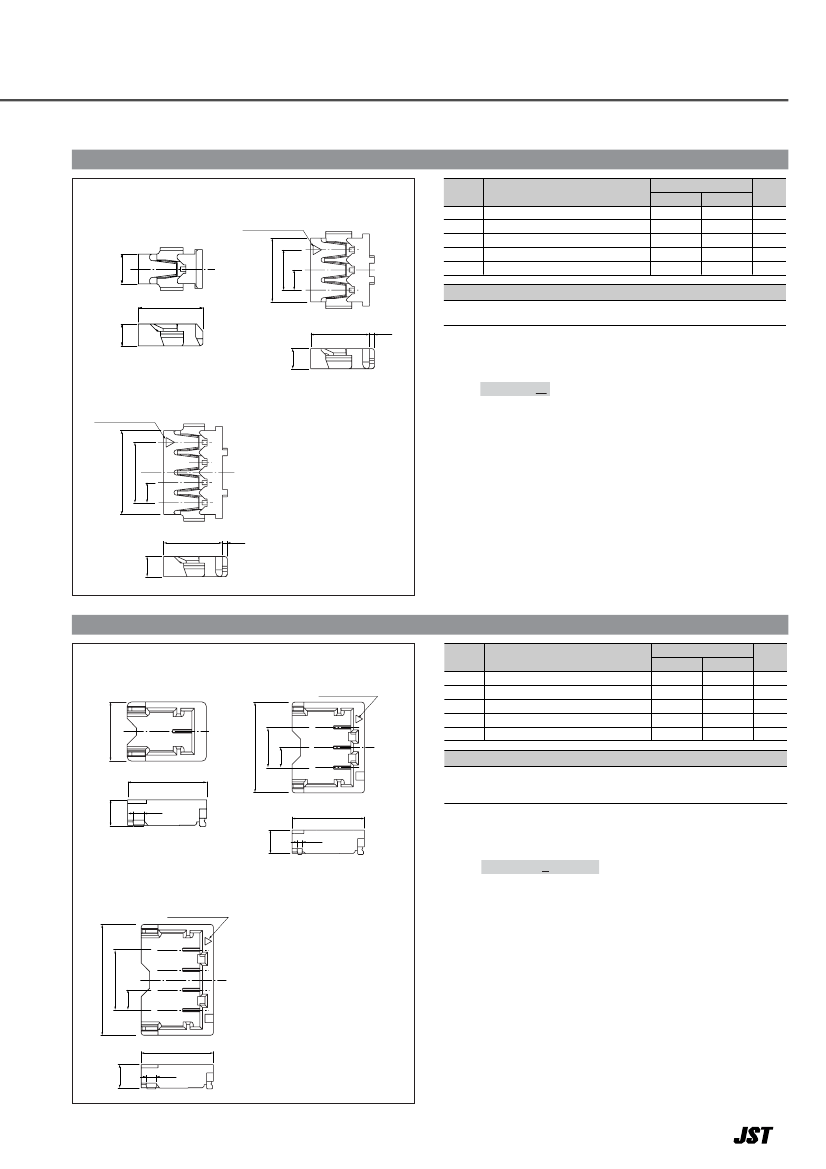

ACH CONNECTOR
Housing
<Single circuit>
<2, 3 circuits>
Circuit No.1 mark
Circuits
1
2
3
Model No.
ACHR-01V-A-S
ACHR-02V-S
ACHR-03V-S
ACHR-04V-A-S
ACHR-05V-A-S
Material
Dimensions (mm)
A
B
−
1.2
2.4
3.6
4.8
1.6
2.6
3.8
5.0
6.2
Q'ty /
bag
2,000
1,000
1,000
1,000
1,000
PUSH
4
5
B
B
A
1.2
3
3.5
PBT, UL94V-0, natural (white)
1.2
3.5
1.2
0.3
RoHS compliance
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
ACHR-02V-00-
S…natural (white)
K…black
<4, 5 circuits>
Circuit No.1 mark
PUSH
B
A
1.2
4
3.5
1.2
0.3
Shrouded header
<Single circuit>
<2, 3 circuits>
Circuit No.1 mark
Circuits
1
2
3
4
Model No.
BM01B-ACHSS-A-GAN-ETF
BM02B-ACHSS-GAN-ETF
BM03B-ACHSS-GAN-ETF
BM04B-ACHSS-A-GAN-ETF
BM05B-ACHSS-A-GAN-ETF
Material and Finish
Dimensions (mm)
A
B
−
1.2
2.4
3.6
4.8
3.2
4.2
5.4
6.6
7.8
Q'ty /
reel
4,500
4,500
4,500
4,500
4,500
B
5
B
A
1.2
4.3
Contact: Copper alloy, nickel-undercoated, gold-plated (nickel-stripe)
Housing: Heat resisting resin, UL94V-0, natural (ivory)
Solder tab: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
3
1.4
0.6
4.3
1.4
0.3
RoHS compliance
This product displays (LF)(SN) on a label.
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
BM02B-ACHSS-GAN-TF-
S…natural (ivory)
K…black
<4, 5 circuits>
Circuit No.1 mark
B
A
1.2
4
4.3
1.4
0.6
2
