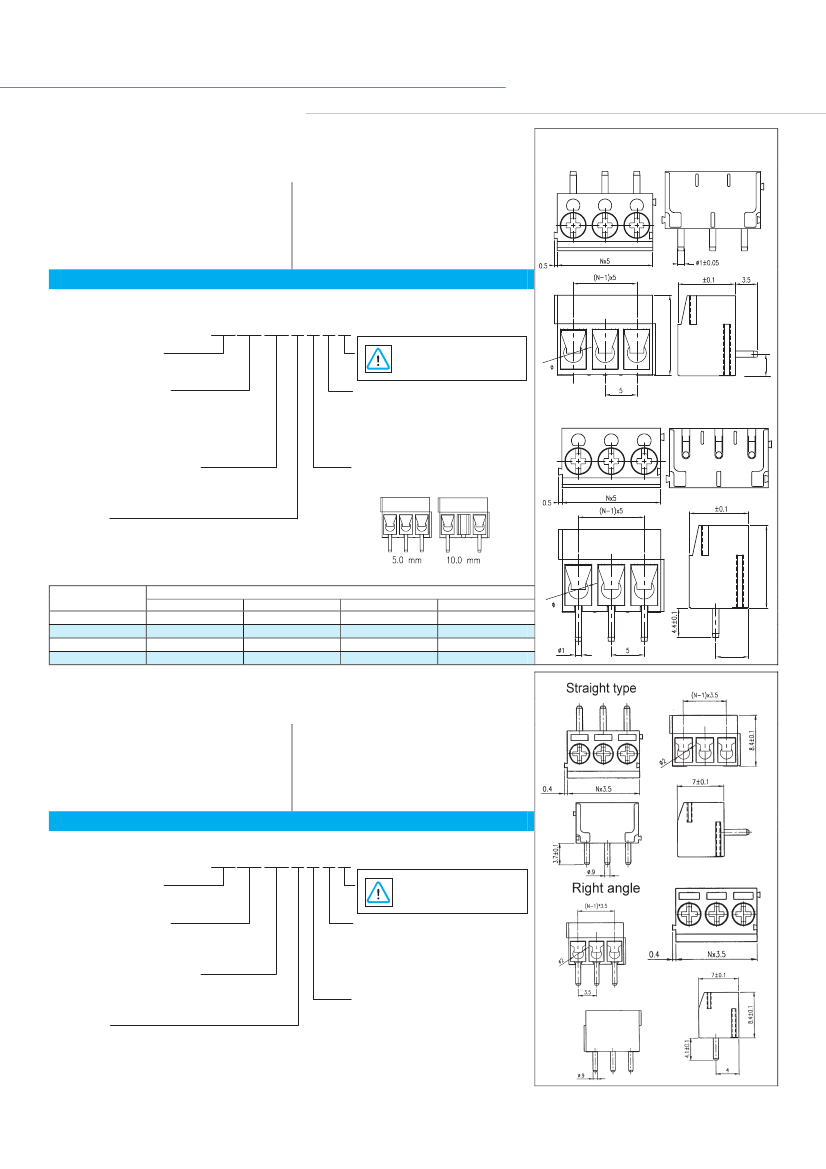

Amphenol
Terminal Blocks
G10T A/B/C/D
Materials
Housing
Contact
– 94V-0 Polyamide
– Tin plated Brass
– 13.5A
– 250 VAC/rms 60Hz
A
5 or 10mm Terminal Blocks
Wire sizes
Solid
Stranded
–
0.03 to 1.5mm²
– 0.03 to 1mm²
Straight Type
Terminal blocks can be stacked together to form any number of positions starting at 2.
Electrical
Current
Voltage
Part Number System:
G10XX XX X X X X
TERMINAL BLOCK
5 or 10mm PCB Mount
CONNECTOR TYPE
TA: R/A insulator H* 12.6mm
TB: Straight insulator H* 9mm
TC: R/A insulator H* 10mm
TD: Straight insulator H* 7.5mm
NUMBER OF POSITIONS
02: 2 position
03: 3 position
PITCH
0: 5mm
1: 10mm
Suffix may be added to Part Number.
This Suffix is for Internal use mainly.
Additional Suffix ‘EU’ or ‘LF’ may be
added for RoHS compliant product.
H
D
INSULATOR COLOUR
0: Black
1: Green
2: Blue
3: Gray
WIRE GUARD
1: With
Right Angle Type
A
H
OTHER-G10TAXXX-29 Rev. A/OTHER-G10TBXXX-29 Rev.A/PNS-10TA Rev. A
Connector Type
Dimensions (mm)
A
B
D
H*
D
TA
TB
TC
TD
9
9
7.5
7.5
5
3.5
4.2
2.8
3
3
2.6
2.6
12.6
9
10
7.5
B
G10T E/F
Materials
Housing
Contact
3.5 or 7mm Terminal Blocks
Electrical
– 94V-0 Polyamide
– Tin plated Brass
– 0.03 to 1.5mm²
– 0.03 to 1mm²
Current
Voltage
5mm
10mm
– 13.5A
– 250 VAC/rms 60Hz
– 750 VAC/rms 60Hz
Terminal blocks can be stacked together to form any number of positions starting at 2.
Wire sizes
Solid
Stranded
Part Number System:
G10XX XX X X X X
TERMINAL BLOCK
3.5 or 7mm PCB Mount
CONNECTOR TYPE
TE: R/A insulator H* 8.4mm
TF: Straight insulator H* 7mm
NUMBER OF POSITIONS
02: 2 position
03: 3 position
PITCH
0: 3.5mm
1: 7mm
Dimenions in mm
PNS-10TE Rev. A
AMTA
Suffix may be added to Part Number.
This Suffix is for Internal use mainly.
Additional Suffix ‘EU’ or ‘LF’ may be
added for RoHS compliant product.
INSULATOR COLOUR
0: Black
1: Green
2: Blue
3: Gray
WIRE GUARD
1: With
Q-1
