HM2P08PMS120E9: DescriptionBoard Connector, 125 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size386KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P08PMS120E9 Overview

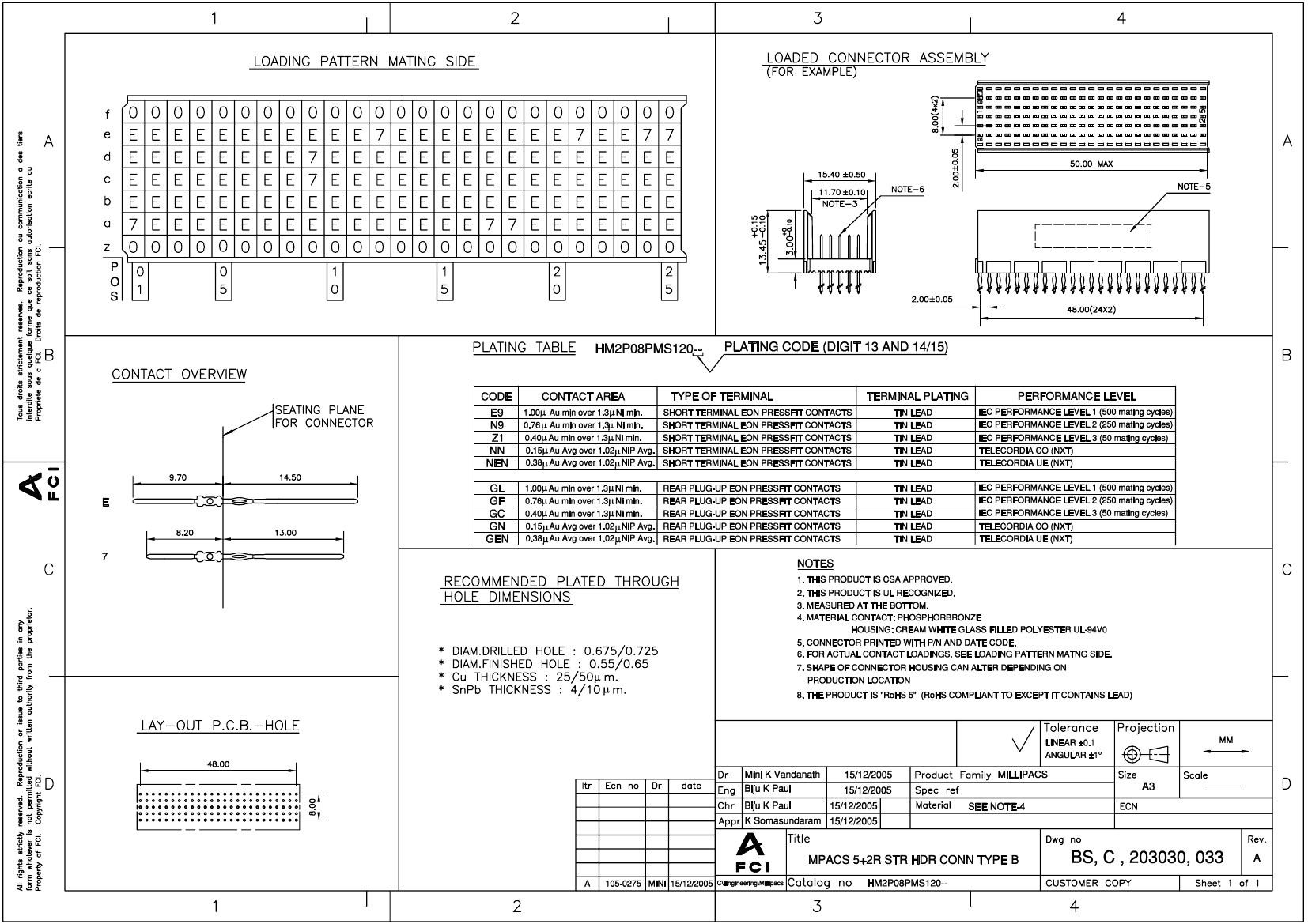

Board Connector, 125 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal

HM2P08PMS120E9 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compli
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	HM2P08PMS120E9
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	125
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: Jan 07, 2006

HM2P08PMS120E9 Related Products

	HM2P08PMS120E9	HM2P08PMS120GEN	HM2P08PMS120GN	HM2P08PMS120N9	HM2P08PMS120NEN	HM2P08PMS120NN	HM2P08PMS120Z1
Description	Board Connector, 125 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 125 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 125 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal,	Board Connector, 125 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 125 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal,	Board Connector, 125 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal,	Board Connector, 125 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal,
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	125	125	125	125	125	125	125
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Manufacturer's serial number	HM2P08PMS120E9	HM2P08PMS120GEN	HM2P08PMS120GN	HM2P08PMS120N9	HM2P08PMS120NEN	-	HM2P08PMS120Z1
Objectid	-	-	2099175753	2099175754	2099175755	2099175756	2099175757
ECCN code	-	-	EAR99	-	EAR99	EAR99	EAR99
YTEOL	-	-	8.6	-	8.6	8.6	8.6
