YA8CL2-45 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> YA8CL2-45

YA8CL2-45: DescriptionRing Terminal, 10mm2; CategoryThe connector; File Size39KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

YA8CL2-45 Overview

Ring Terminal, 10mm2

YA8CL2-45 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compli
ECCN code	EAR99
terminal gender	FEMALE
Terminal and terminal strip types	RING TERMINAL
Conductor cross section	10 mm2
Wire gauge	8 AWG

Preview

Download Datasheet

View All

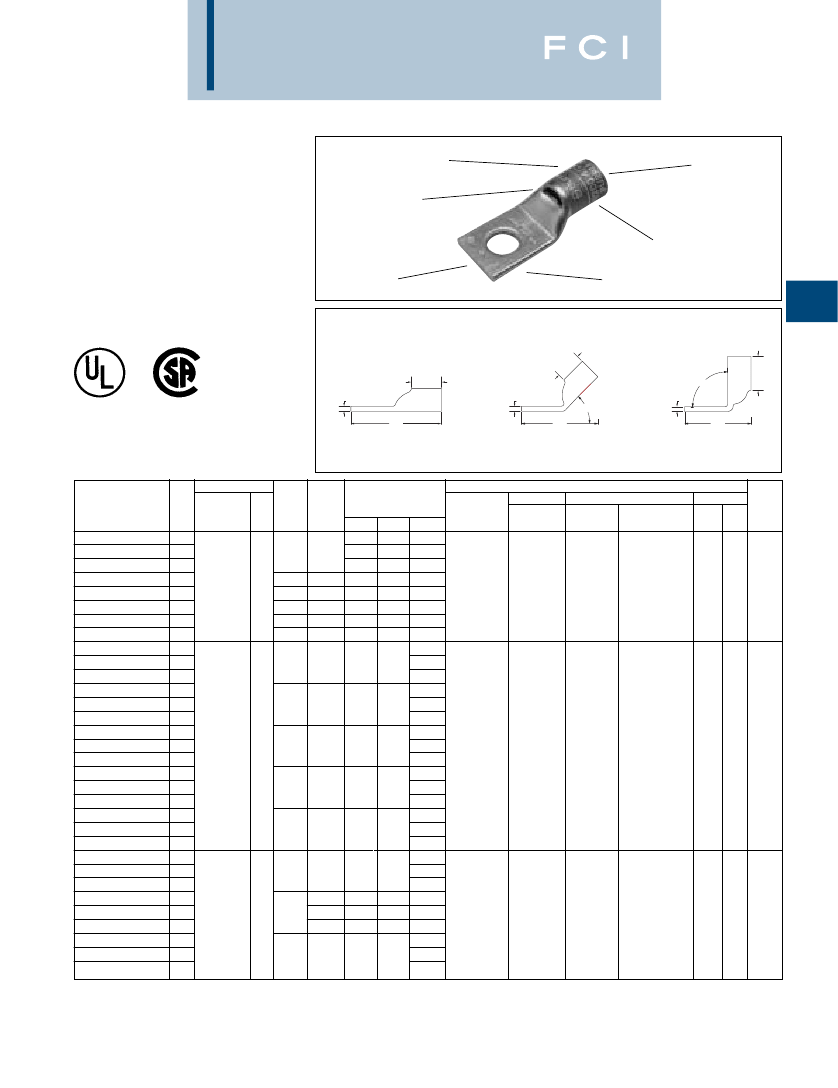

BURNDY

Compression

ONE HOLE HYLUG™

CODE CONDUCTOR

STANDARD BARREL

TYPES YA-L, YA-L-TC

COPPER COMPRESSION

TERMINAL

UL Listed 90° C,

600 Volts to 35 KV

◆

ELECTRO-TIN

PLATED

DIE AND COLOR

CODE INFORMATION

BEVELED

ENTRY

INSPECTION

WINDOW

CRIMP

CABLE

ACCOMMODATION

C-11

90°

45°

Fig. 1

Conductor

Catalog Number

YAV10-45-BOX

YAV10-BOX

YAV10R-BOX

YAV10R3-BOX

YAV10T2-BOX

YAV10T3-45-BOX

YAV10T3-BOX

YAV10T4-BOX

YA8CL1-BOX

YA8CL1-45

YA8CL1-90

YA8CL2-BOX

YA8CL2-45

YA8CL2-90

YA8CL3-BOX

YA8CL3-45

YA8CL3-90

YA8CL4-BOX

YA8CL4-45

YA8CL4-90

YA8CL-BOX

YA8CL-45

YA8CL-90

YA6CL-BOX

YA6CL-45

YA6CL-90

YA6CL1-BOX

YA6CL1-45

YA6CL1-90

YA6CL3-BOX

YA6CL3-45

YA6CL3-90

Fig #

#14-#10

STR

#12-#10

SOL

#8 AWG

#8 WELD

37/24

2 #6 SOLID

#6 AWG

***

AWG

Stud

Hole

Size

8-10

1/4

5/16

1/4

3/8

1/4

Tongue

Width

.38

.47

.53

.47

.56

.44

(B)

.405

.375

.405

.38

.405

.38

.44

Figure

Dimensions

(T)

.058

.047

.08

Dieless

(L)

.92

1.02

.77

.83

1.12

1.10

1.18

1.26

1.24

.80

1.38

1.34

.92

1.51

1.45

1.04

1.76

1.67

1.28

1.16

.71

1.18

1.08

.81

.99

.89

.72

1.24

1.06

.93

(# of crimps)

Fig. 2

▲

Installation Tooling

Mechanical

Hydraulic

MD6, OUR840, BCT500HS,

Y35,Y39,Y750,

MD7-34R

Y500CTHS

Y46*, PAT750

Fig. 3

Wire

Color Die Strip

Code Index Length

Y8MRB-1 (1)

7/16

5/16

†

.52

.44

.06

3/8

.58

.44

.06

1/2

.71

.44

.05

Y1MR (1)

Y8MRB-1 (1)

Y2MR (1)

MY29-3 (1) W8CVT (1) W8CVT (1)

MY29-11 (1) W8CRT (1) W8CRT (1)

MRC840 (1) X8CRT (1) X8CRT (1)

Y81KFT (1)

Y81KFTMBH (1)

PAT81KFT-18V (1)

U8CRT (1)

Red

7/16

8-10

.41

.44

.08

1/4

.45

.41

.42

.52

.54

.08

.09

.07

8-10

5/16

Y1MR (1)

MY29-3 (1)

MY29-11 (1)

MRC840 (1)

Y2MR (1)

Y81KFT (1)

Y81KFTMBH (1)

PAT81KFT-18V (1)

W5CVT (1)

W5CRT (1)

X5CRT (1)

X8CART (1)

W5CVT (1)

W5CRT (1)

X5CRT (1)

X8CART (1)

U5CRT (1)

Blue

7/8

* Use PUADP-1 adapter with "U" dies in Y46 HYPRESS™.

** P-RT die sets for use in Y46 HYPRESS™ only, PUADP-1

adapter not required.

*** The MM

conductor sizes listed are the recommendations

for Class 2 conductor.

† The MM

conductor size listed is for both Class 2 and

Class 5 conductor.

▲

See tooling section of this catalog for complete tool and die

listings.

◆

For applications greater than 2000 Volts, consult cable

manufacturer for voltage stress relief instructions.
