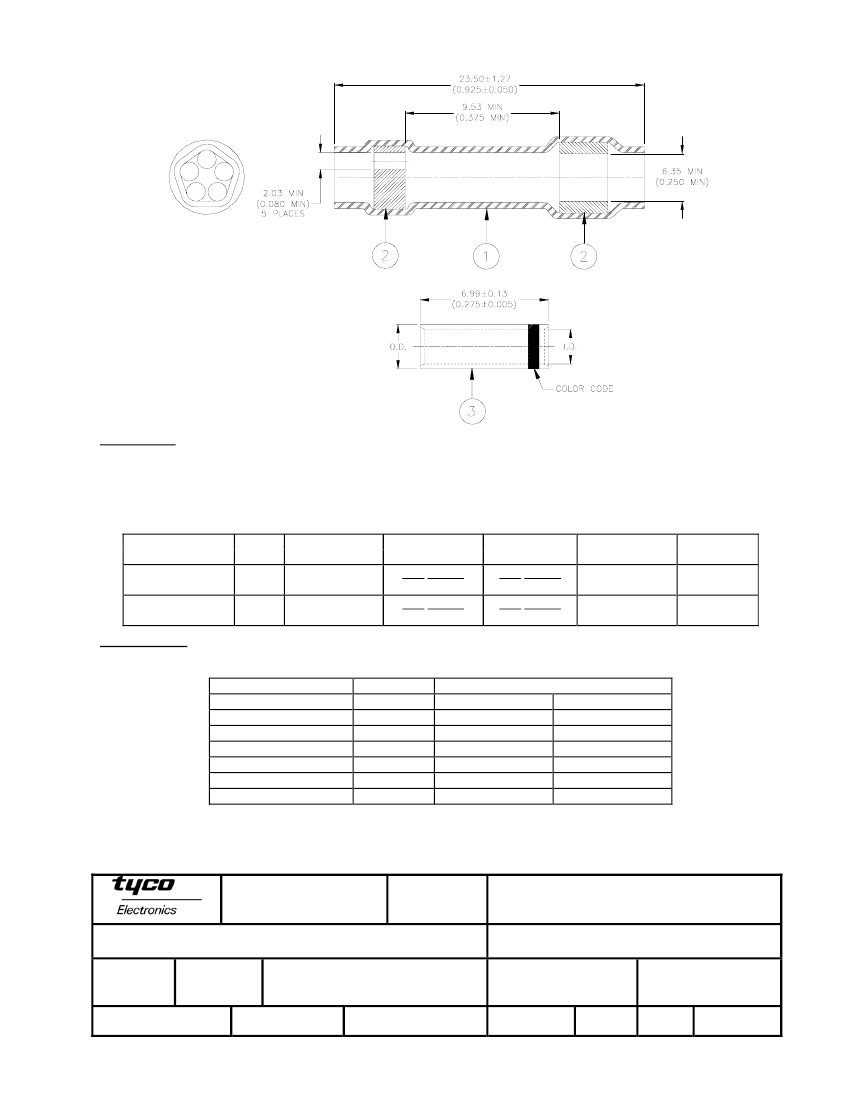

SPECIFICATION CONTROL DRAWING
MATERIALS
1. INSULATION SLEEVE: Heat-shrinkable, transparent blue, radiation cross-linked modified polyvinylidene flouride.
2. MELTABLE SEALING RINGS: Modified thermoplastic.
3. SEAMLESS STUB SPLICER: Base Metal: Copper Alloy 101 or 102 per ASTM B-75.
Plating: Tin per MIL-T-10727, Type 1.
Color code: See table below.
Dimensions of Stub Splicer:
Part
Prod.
CMA
Weight
Color
Name
Rev.
Range
I.D.
O.D.
Max.
Code
D-436-60
A
779 - 2680
1.75 (0.069)
2.68 (0.106)
1.65 lbs/Mpc
Blue
1.63 (0.064)
2.64 (0.101)
D-436-61
A
1900 - 6755
2.60 (0.102)
3.89 (0.153)
2.15 lbs/Mpc
Yellow
2.46 (0.097)
3.73 (0.147)
APPLICATION
1. These parts are designed to provide an immersion resistant stub splice in wires having insulations rated for at least 135°C.
Wire accommodation: Jacket O.D. – 2.03 (0.080) max
WIRE GAUGE
CMA
NUMBER
D-436-60
D-436-61
16
2426
---
2
18
1900
---
2-3
20
1216
2
2-5
22
754
2-3
3-8
24
475
2-5
4 - 10
26
304
3-8
9 - 10
2. Parts will meet performance requirements of MIL-S-81824/1.
3. Recovered dimensions of Insulation Sleeve: I.D –
3.18 (0.125) max
Wall – 0.33 (0.013) min
Tyco Electronics Corporation
305 Constitution Drive
Menlo Park, CA 94025, USA
TITLE :
Raychem
Products
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS.
INCHES DIMENSIONS ARE BETWEEN BRACKETS.
TOLERANCES:
0.00 N/A
0.0 N/A
0 N/A
DRAWN BY:
ANGLES: N/A
Tyco Electronics reserves the right to amend this
drawing at any time. Users should evaluate the
suitability of the product for their application.
DCR NUMBER:
STUB SPLICE SEALING SYSTEM
MULTI-WIRE
DOCUMENT NO
.: D-436-60/-61
DATE:
DOC ISSUE:
ROUGHNESS IN
MICRON
REPLACES:
05-Dec.-00
PROD. REV.
SCALE:
SIZE:
1
SHEET:
M. FORONDA
N/A
D001301
SEE TABLE
None
A
1 of 1
If this document is printed it becomes uncontrolled. Check for the latest revision.
